| Article number: | 60.01.055/A |
Specifications :
|
Drawing number |
60.01.055/A |
|
Author |
J.A.M. de Waal |
|
Description |

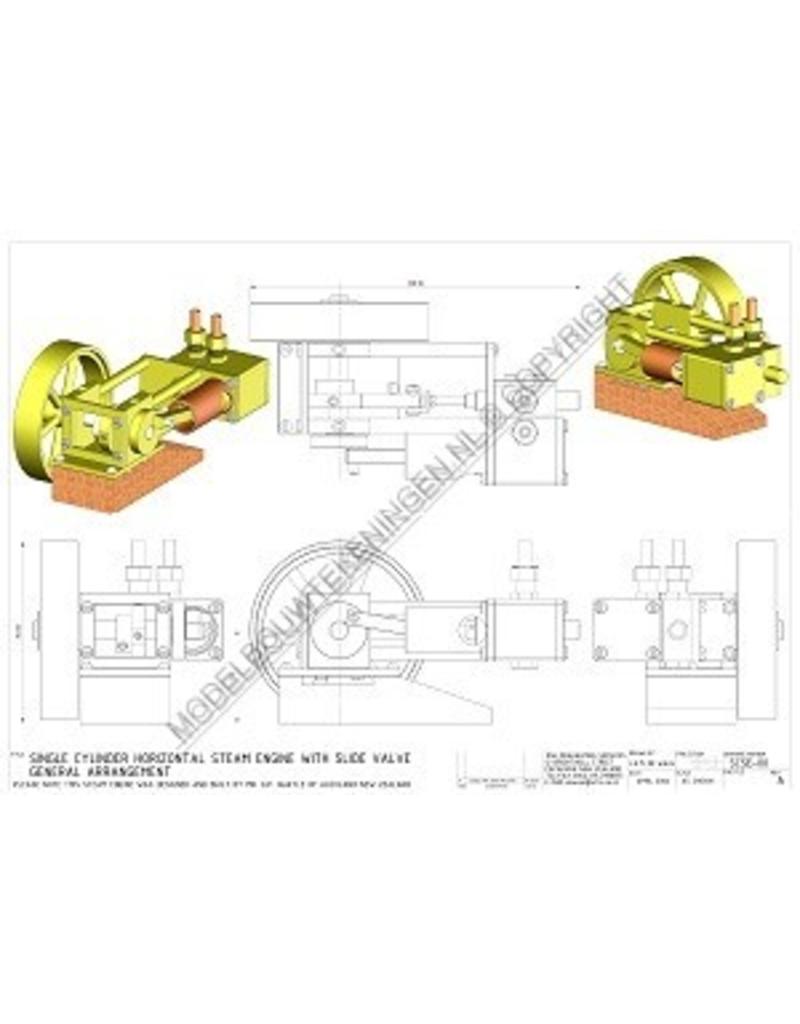

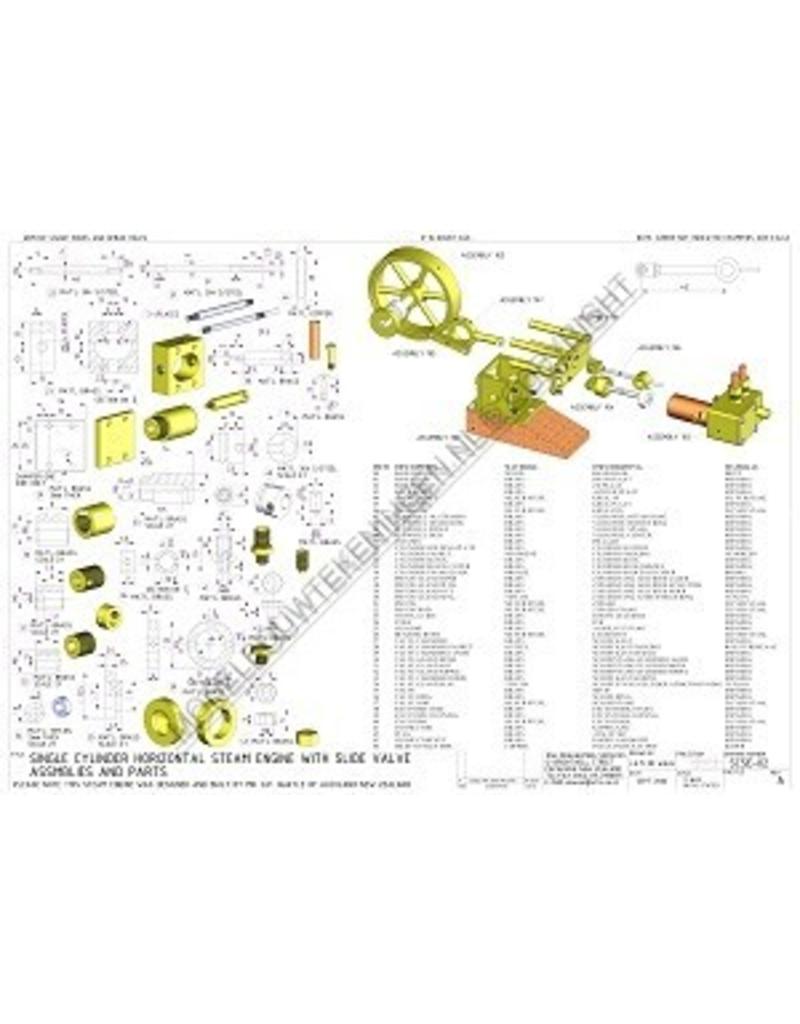

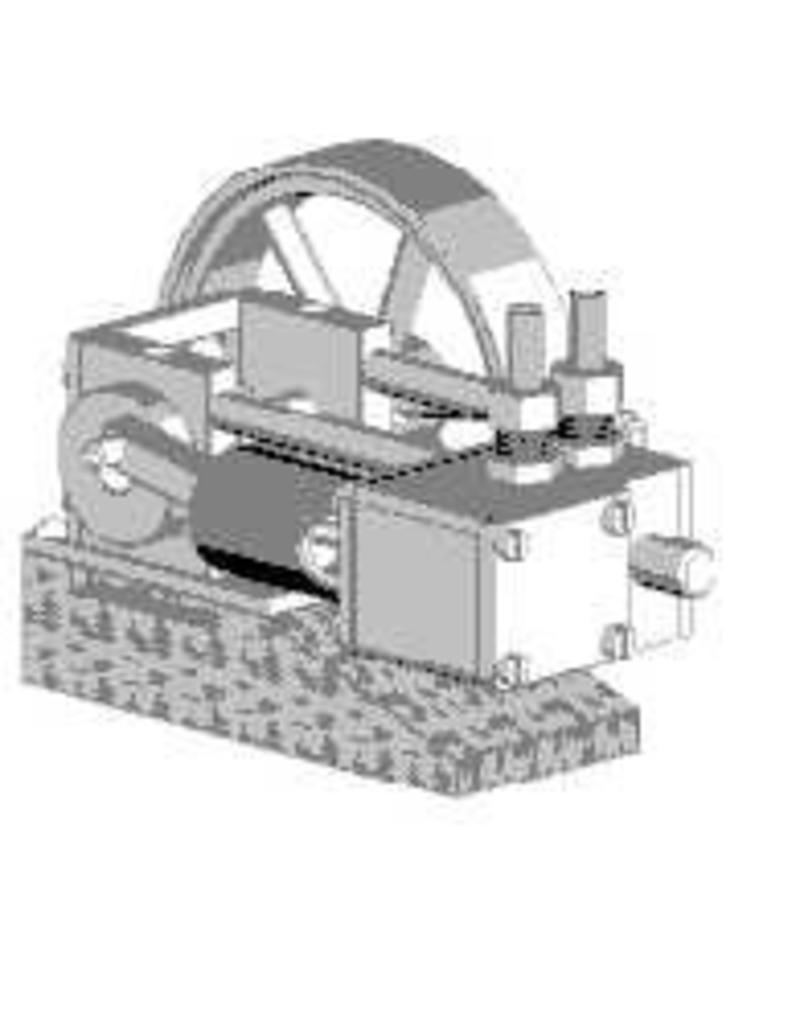

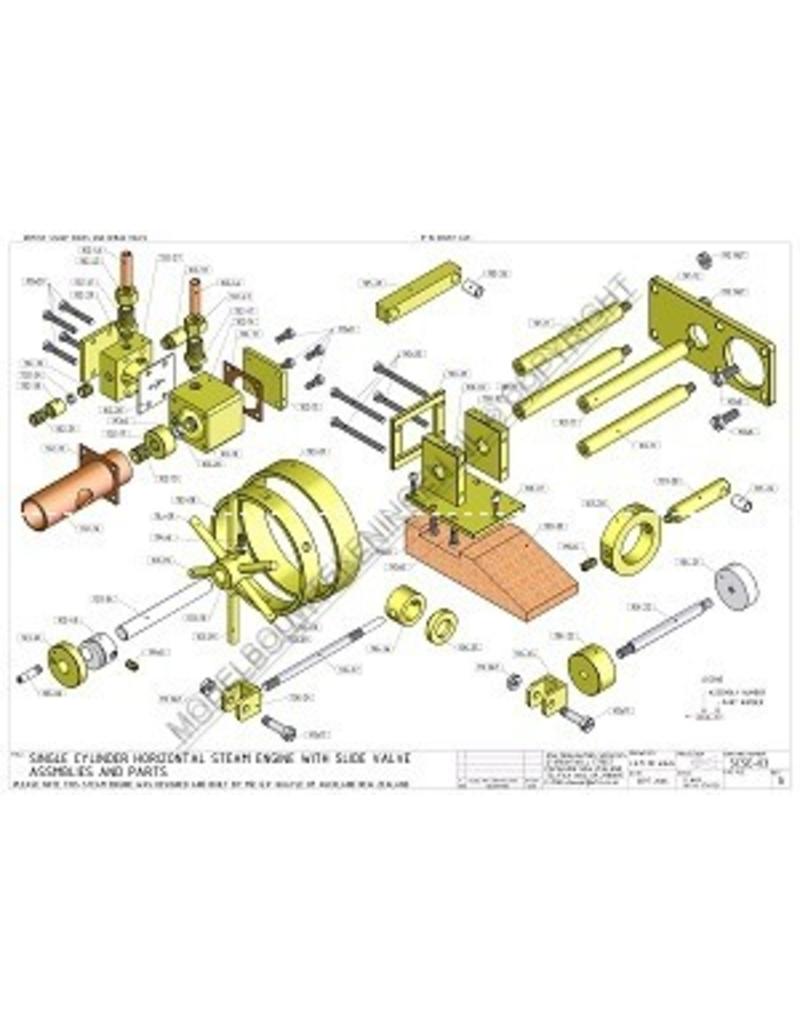

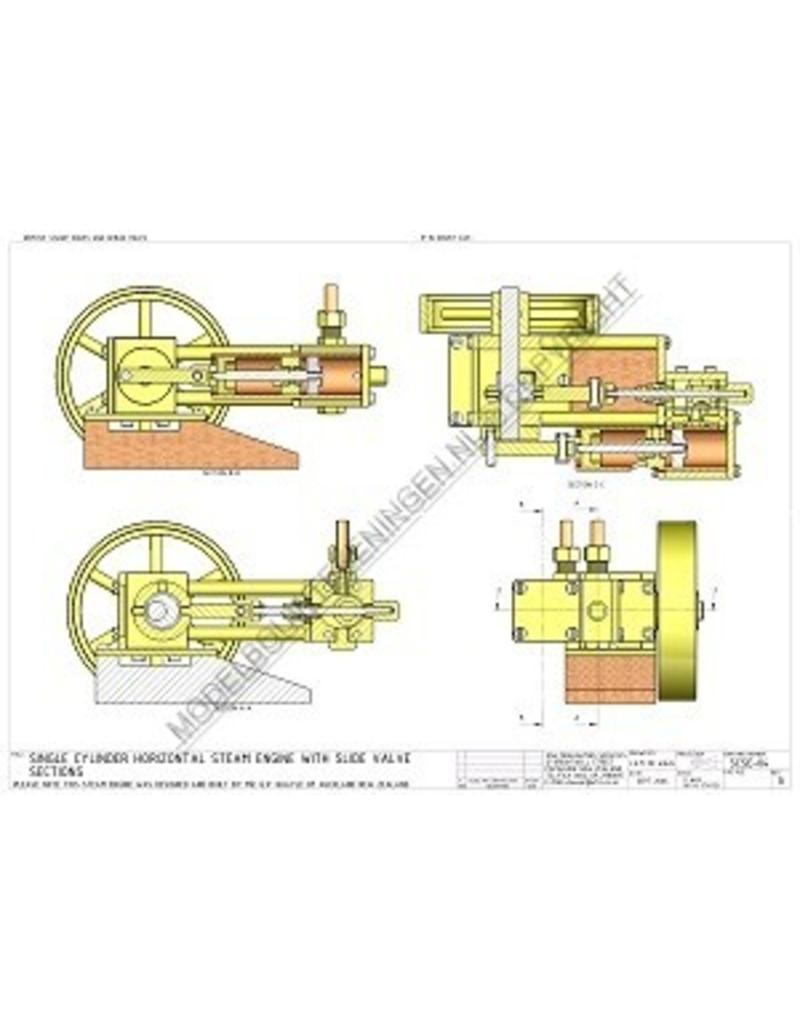

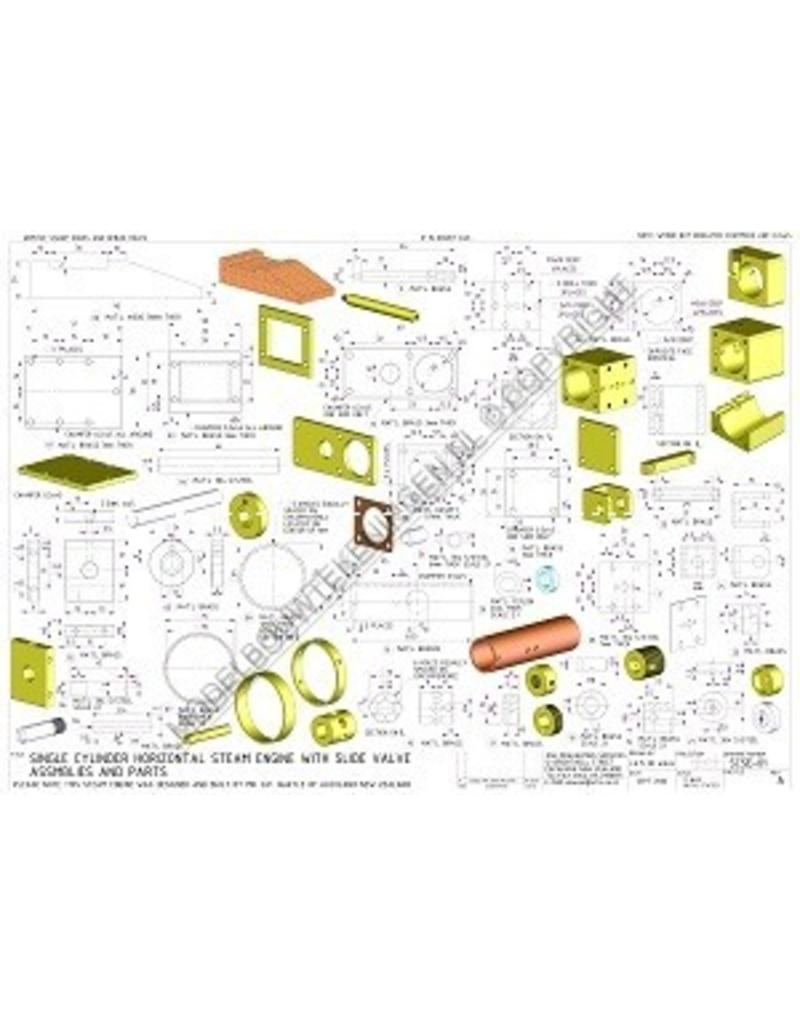

CD-1-cylinder horizontal steam engine |
|
Quality |
fully detailed construction drawings; additional information |
|
Difficulty level |
C |
|
Scale |
|
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
0 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
0 |
|
Details |

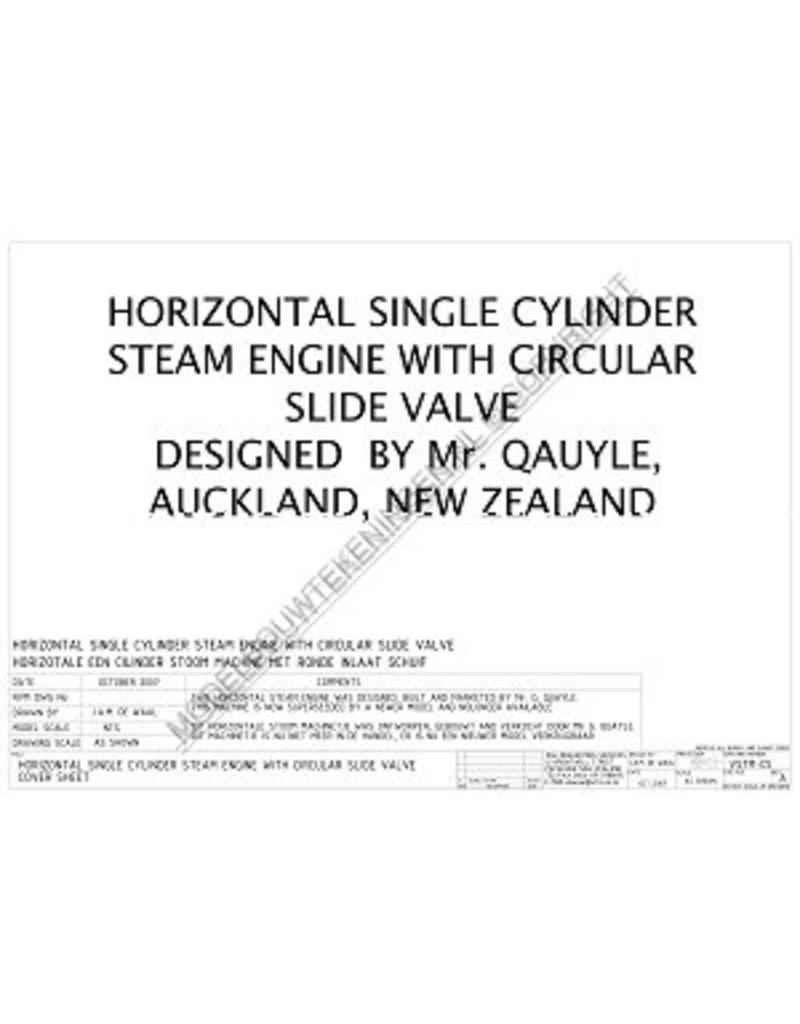

CD with drawings in SolidWorks and PDF format. The original material by G.P. Quayle is included. |
|
Notes |
