| Article number: | 60.01.055 |
Specifications :
|
Drawing number |
60.01.055 |
|
Author |
J.A.M. de Waal |
|
Description |

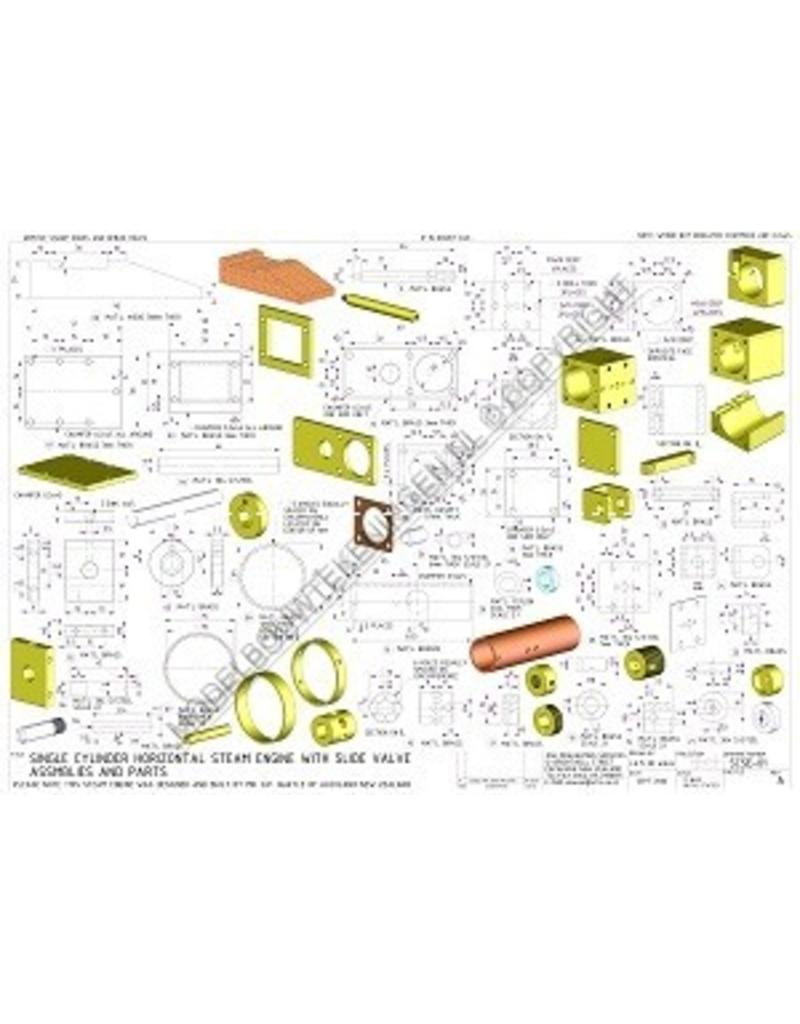

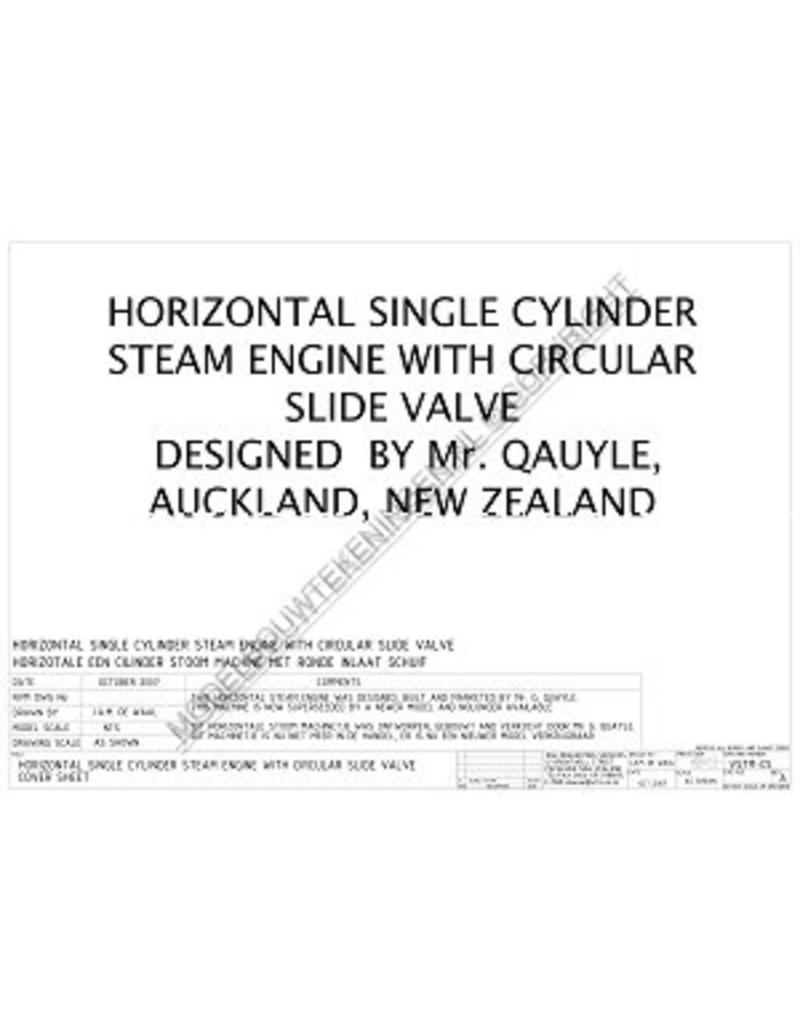

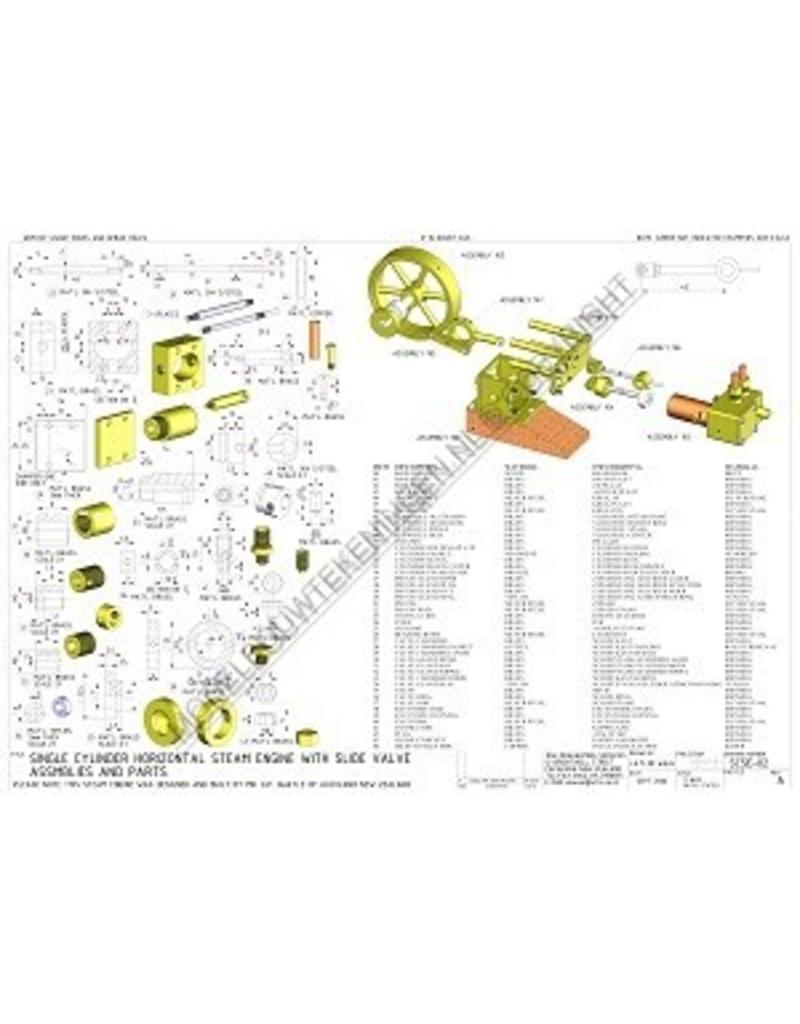

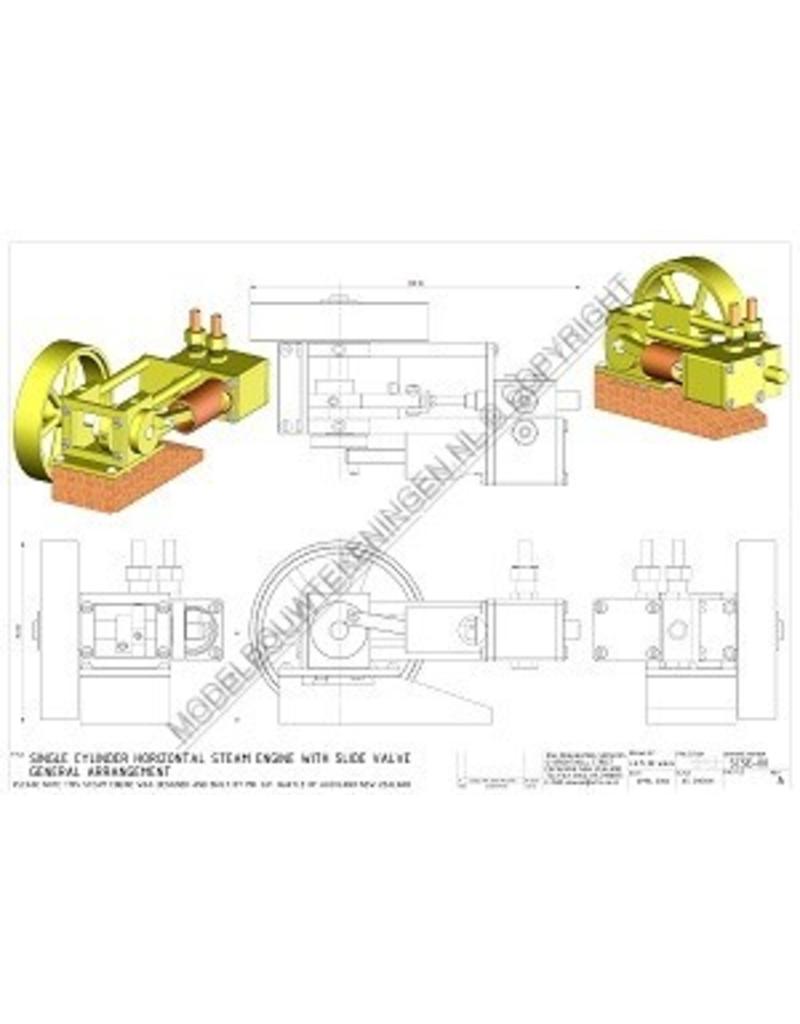

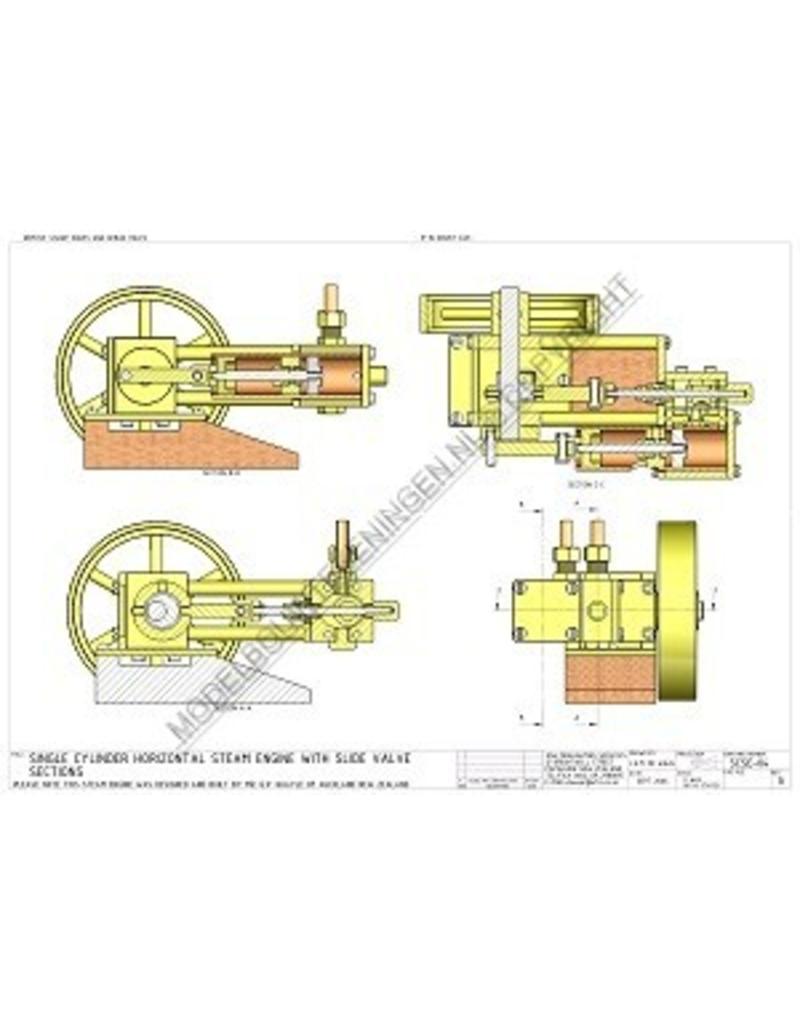

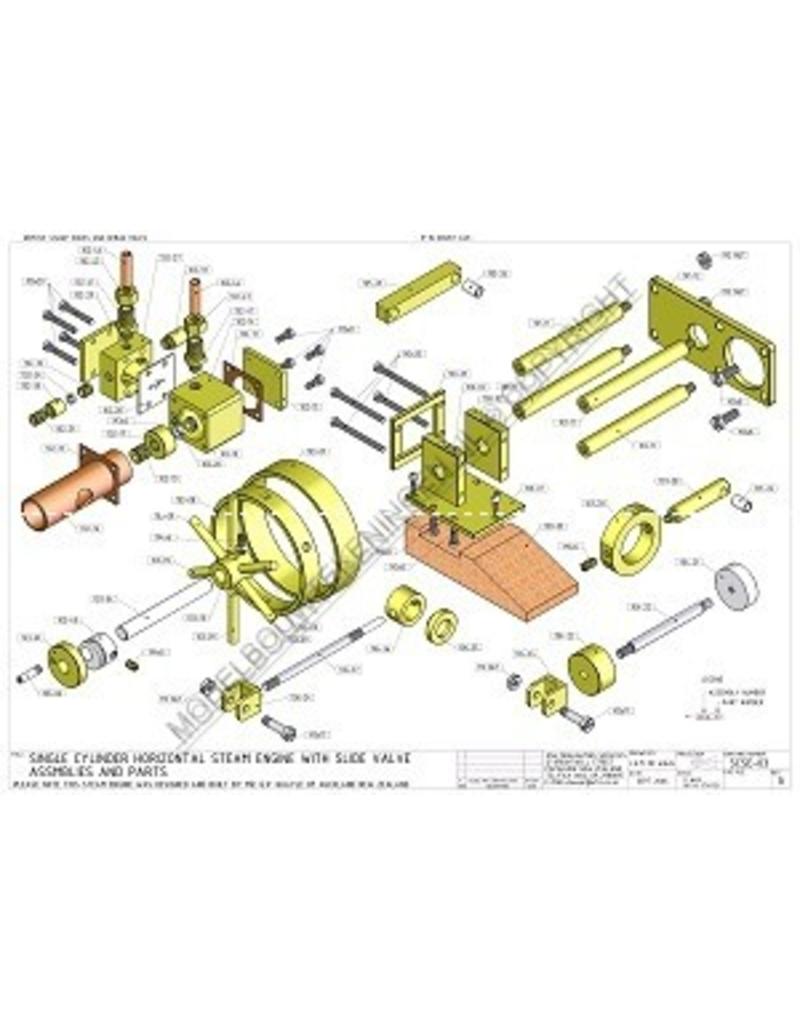

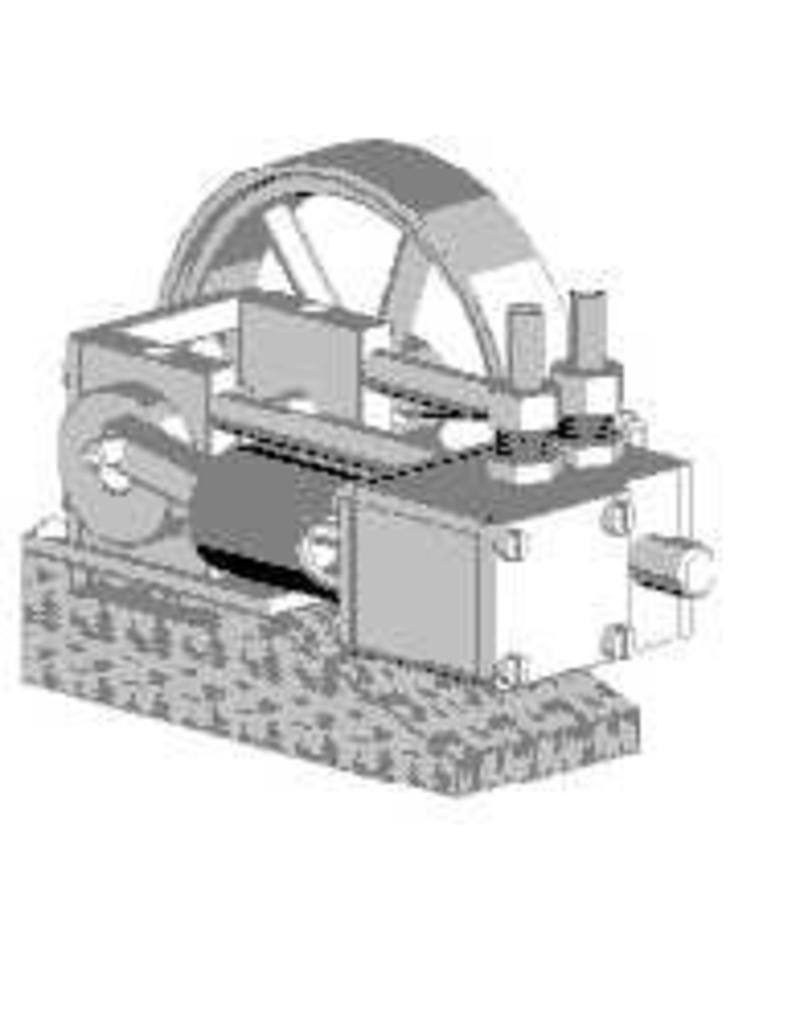

horizontal 1-cylinder steam engine |
|
Quality |
detailed construction drawings |
|
Difficulty level |
D |
|
Scale |
|
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
6 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
6 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
85 |
|
Special features |
Designed by G.P. Quayle |
|
Remarks |
