| Article number: | 60.01.056 |
Specifications :
|
Drawing number |
60.01.056 |
|
Author |
J.A.M. de Waal |
|
Description |

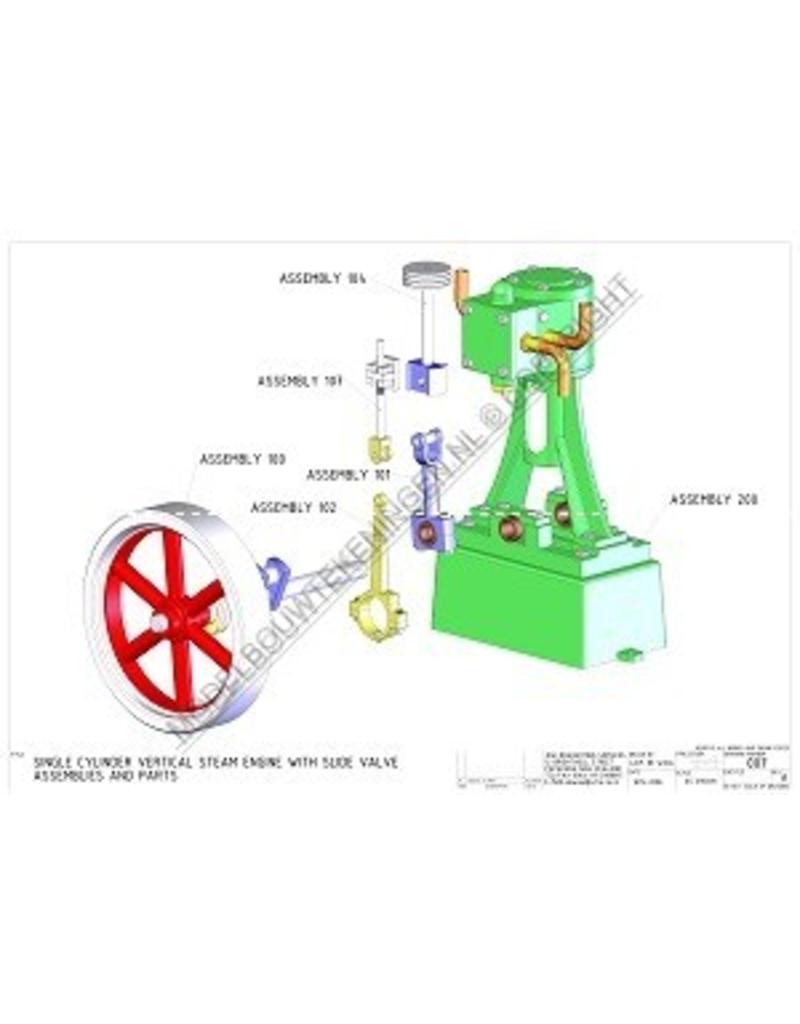

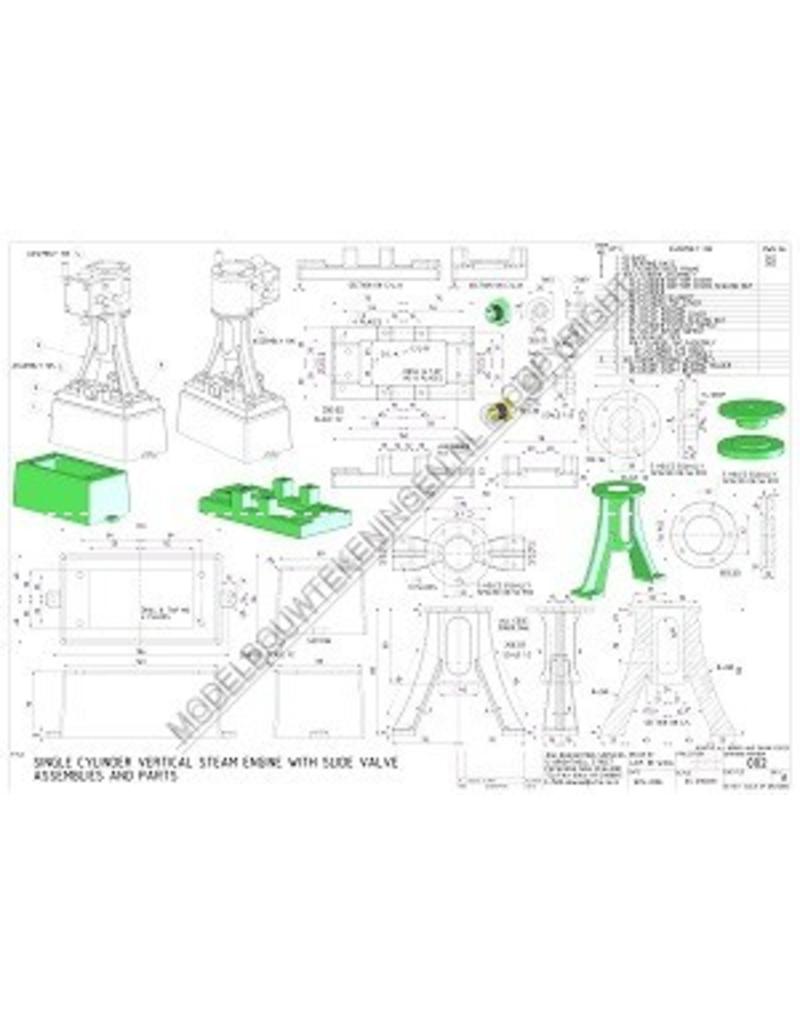

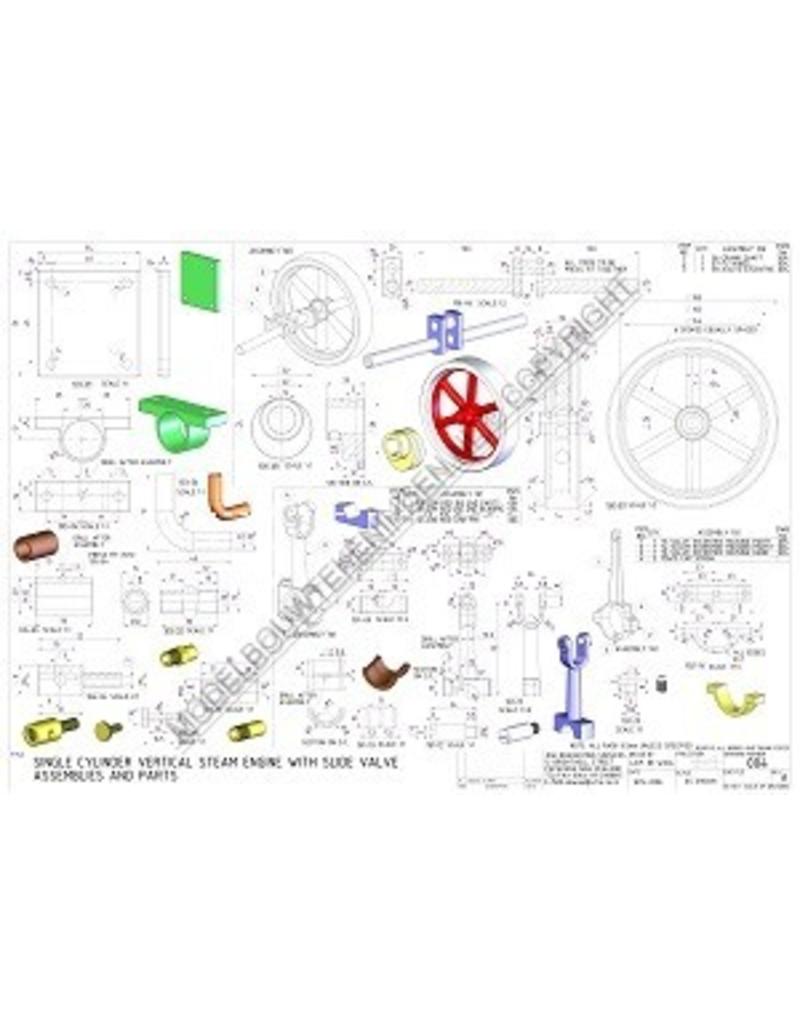

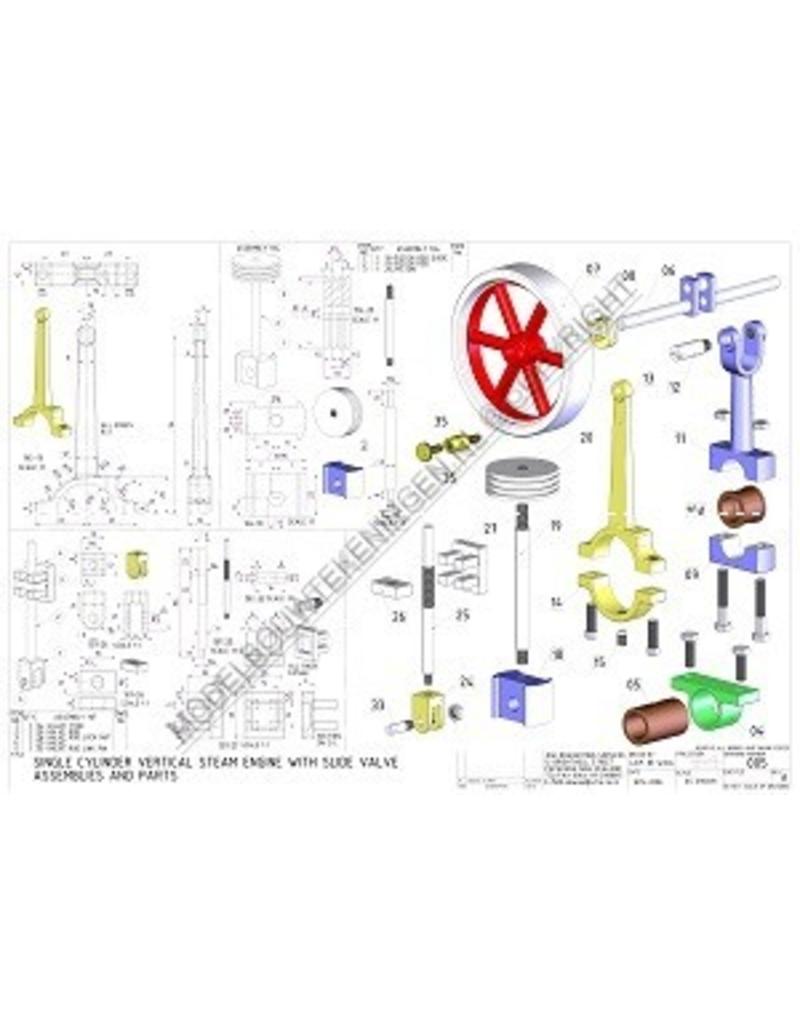

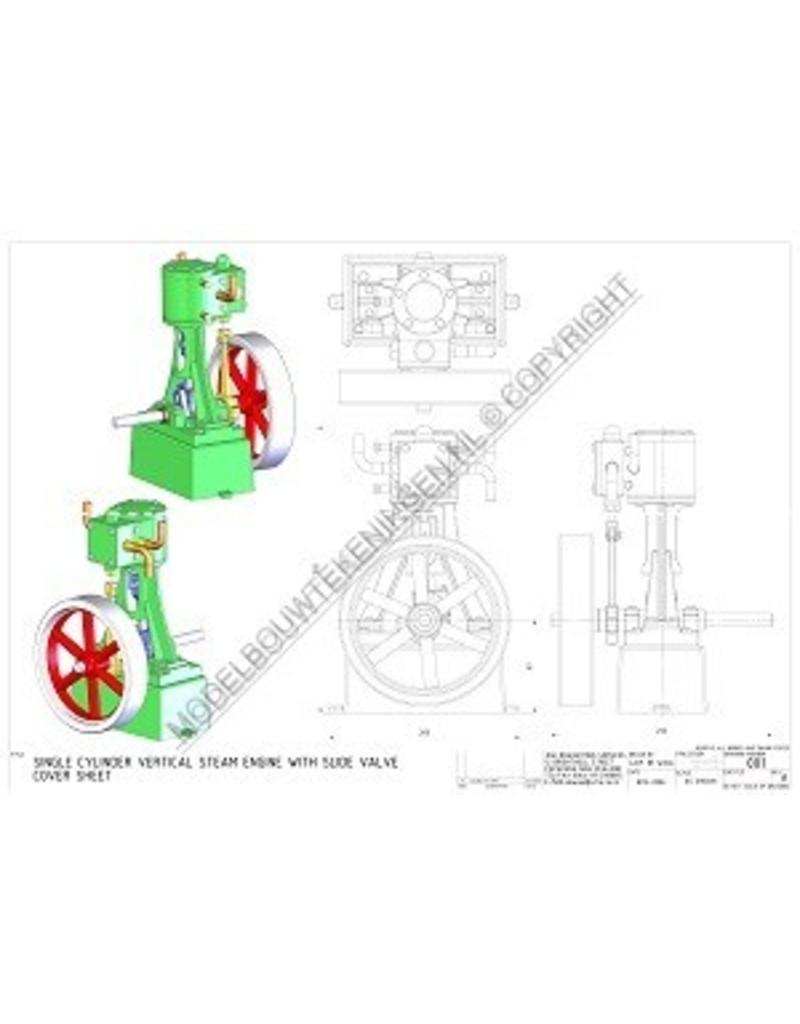

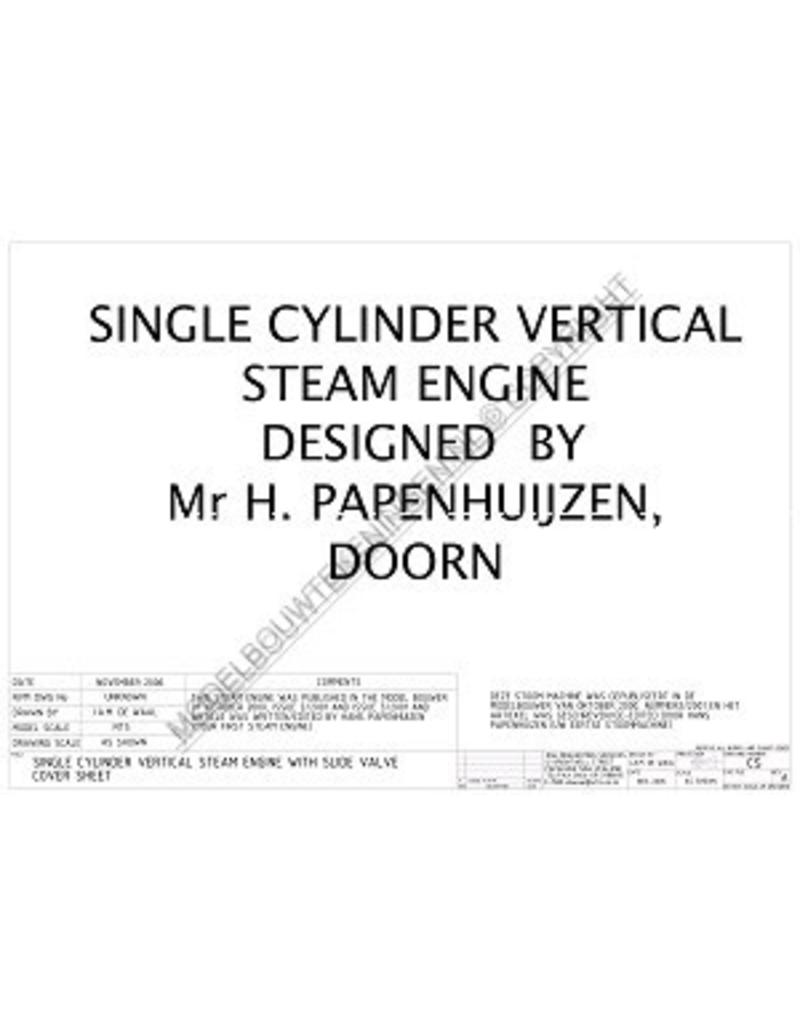

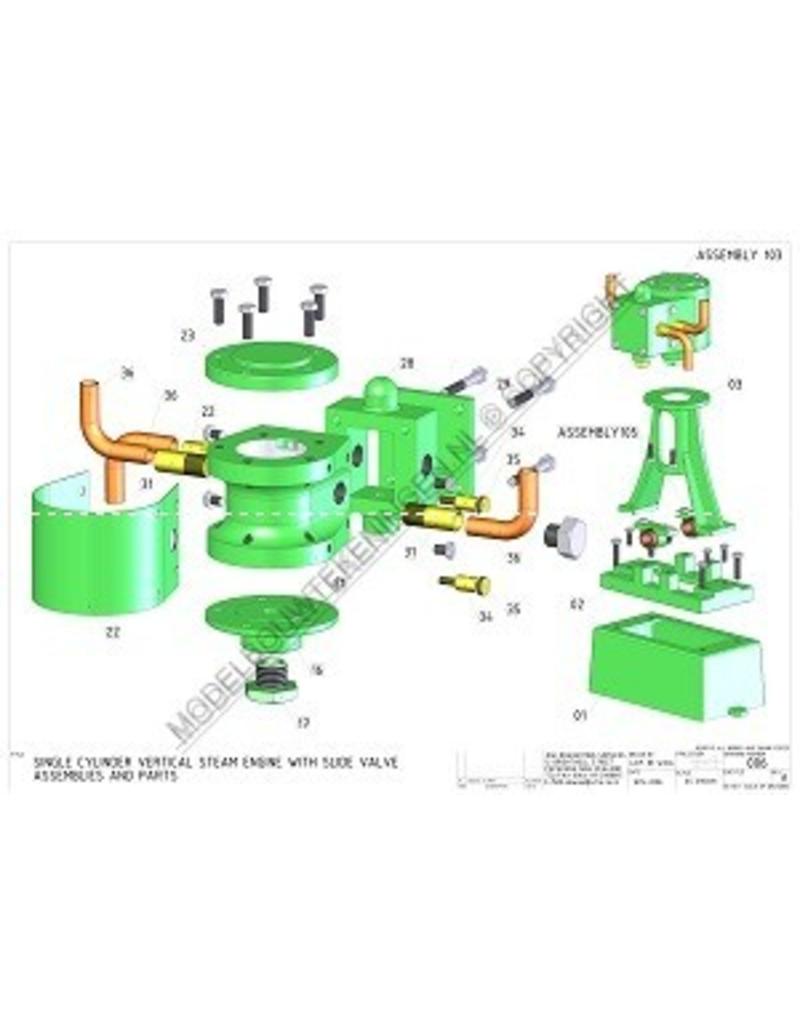

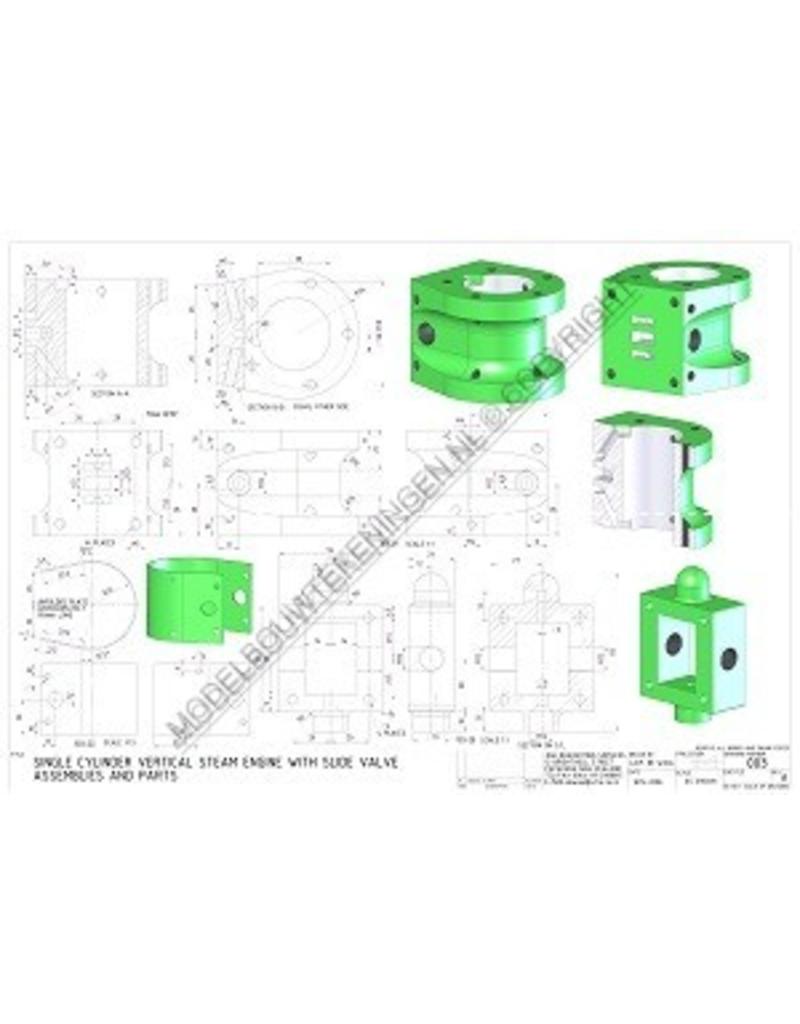

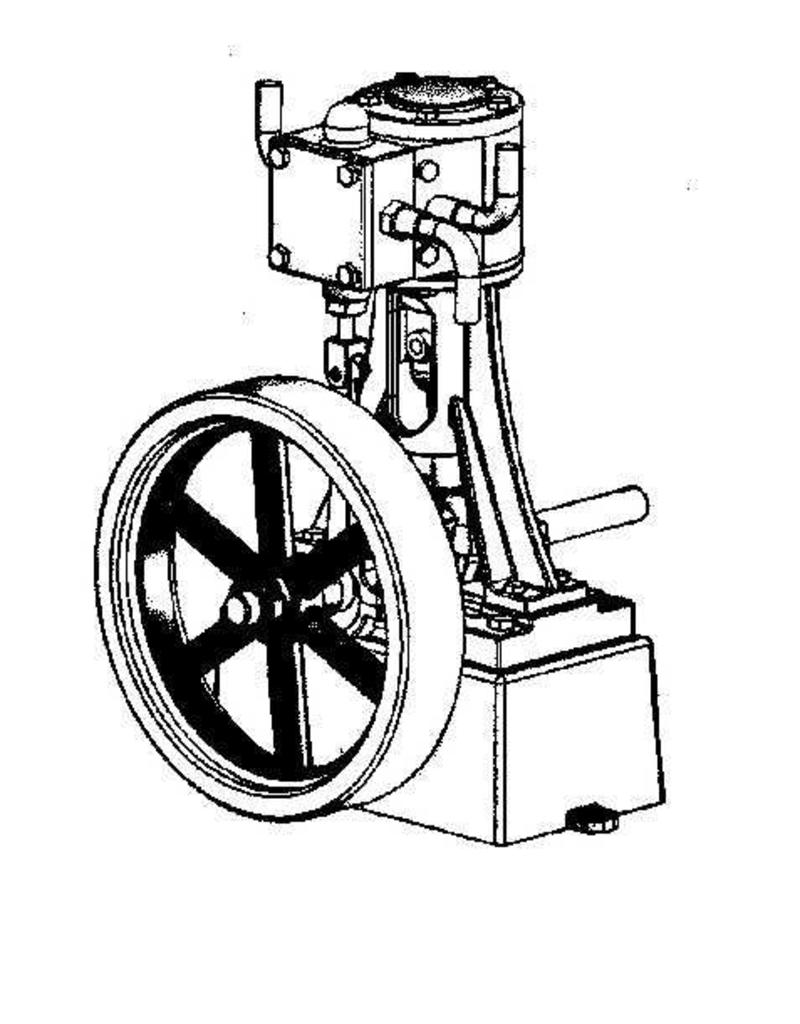

CD- vertical steam engine |
|
Quality |
detailed model building drawings |
|
Difficulty level |
B |
|
Scale |
n/a |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
0 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
0 |
|
Special features |
The CD contains the drawings in SolidWorks format and .pdf files thereof, plus scans of an article series from dM from 2000/2001 about the comparable Stuart-10V engine. |
|
Remarks |
