| Article number: | 60.01.061 |
Specifications :
|
Drawing number |
60.01.061 |
|
Author |
M. Lureman |
|
Description |

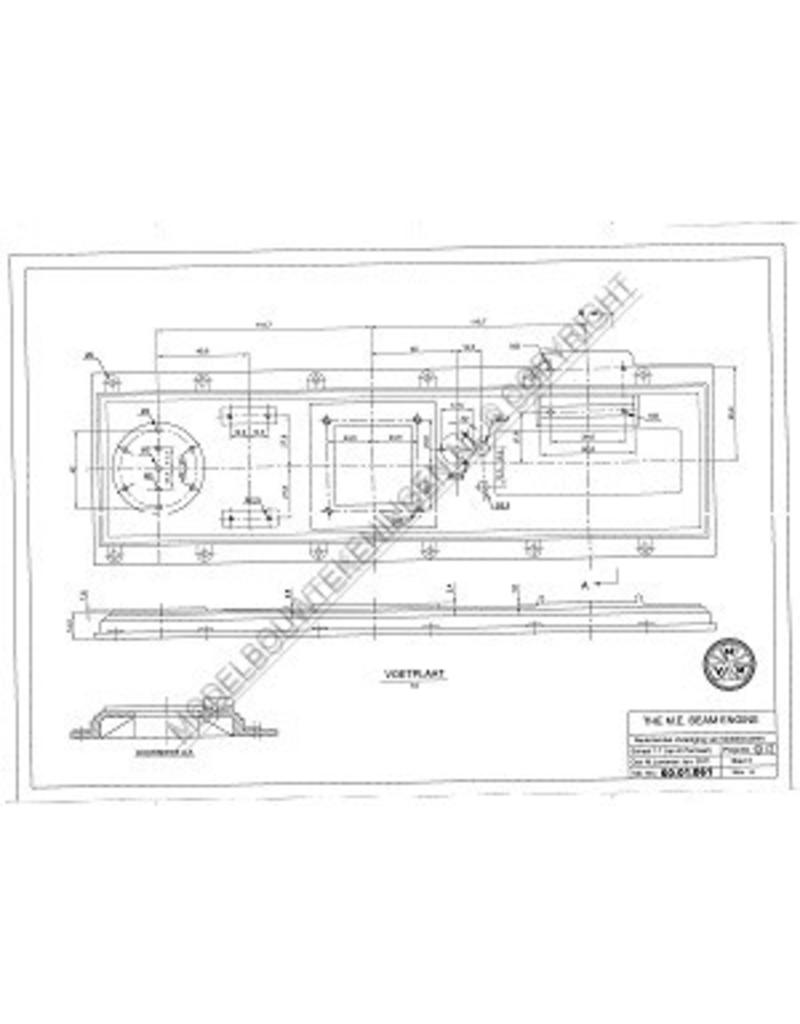

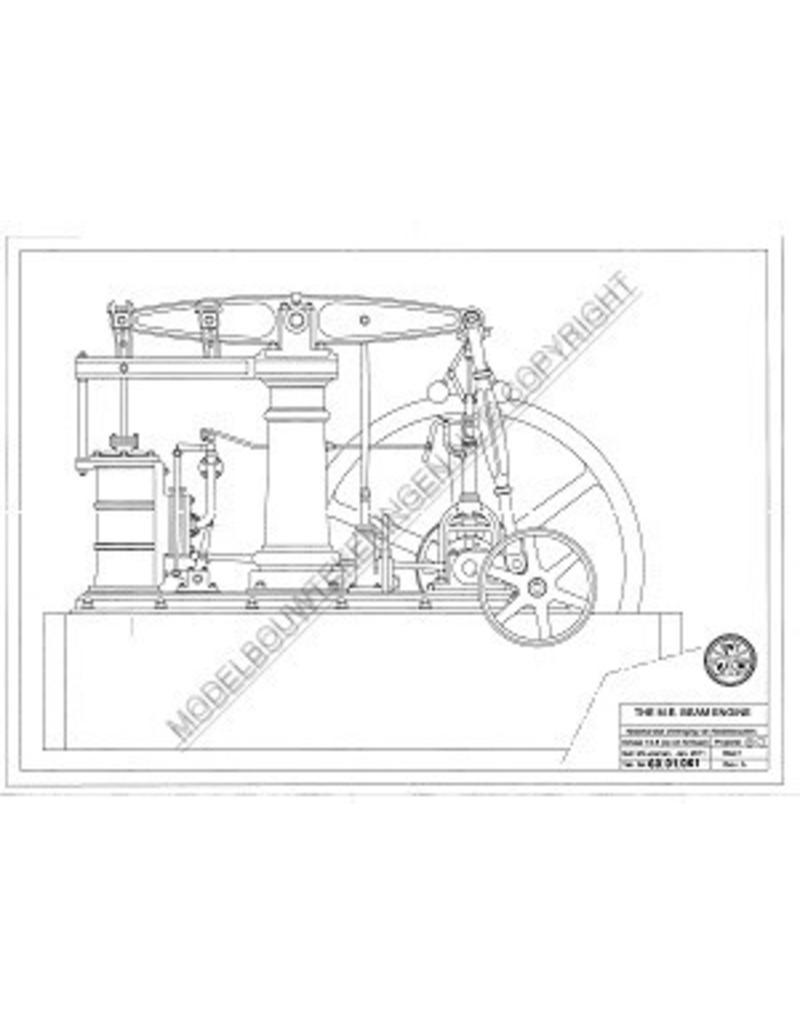

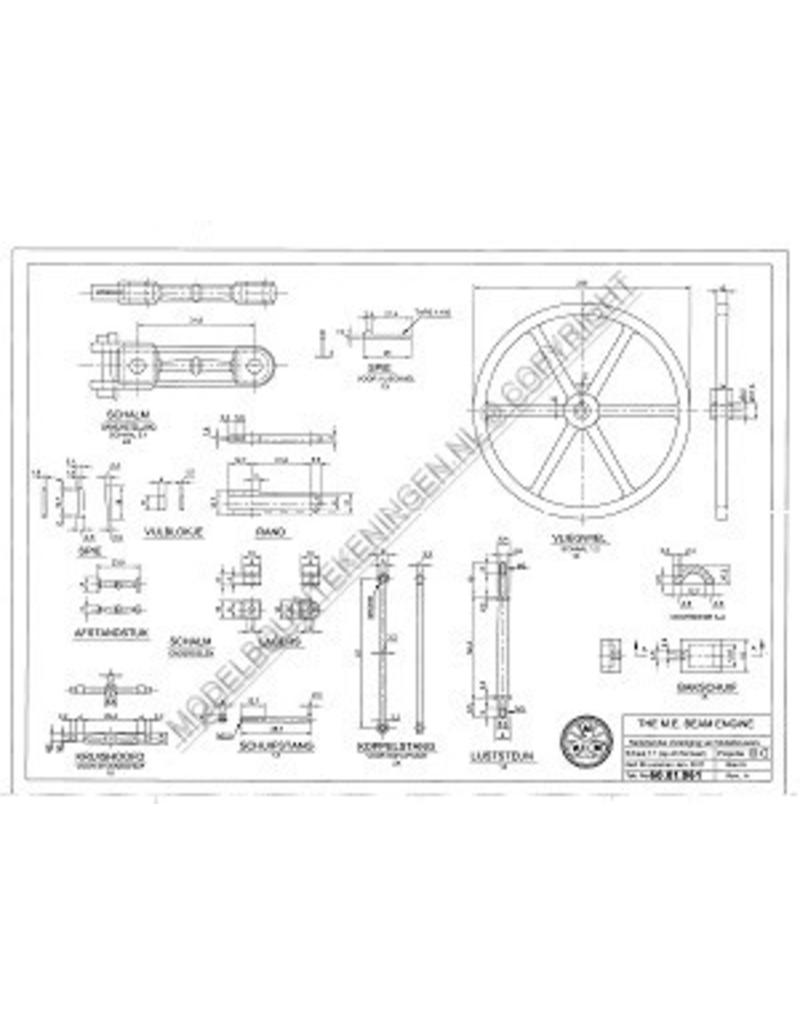

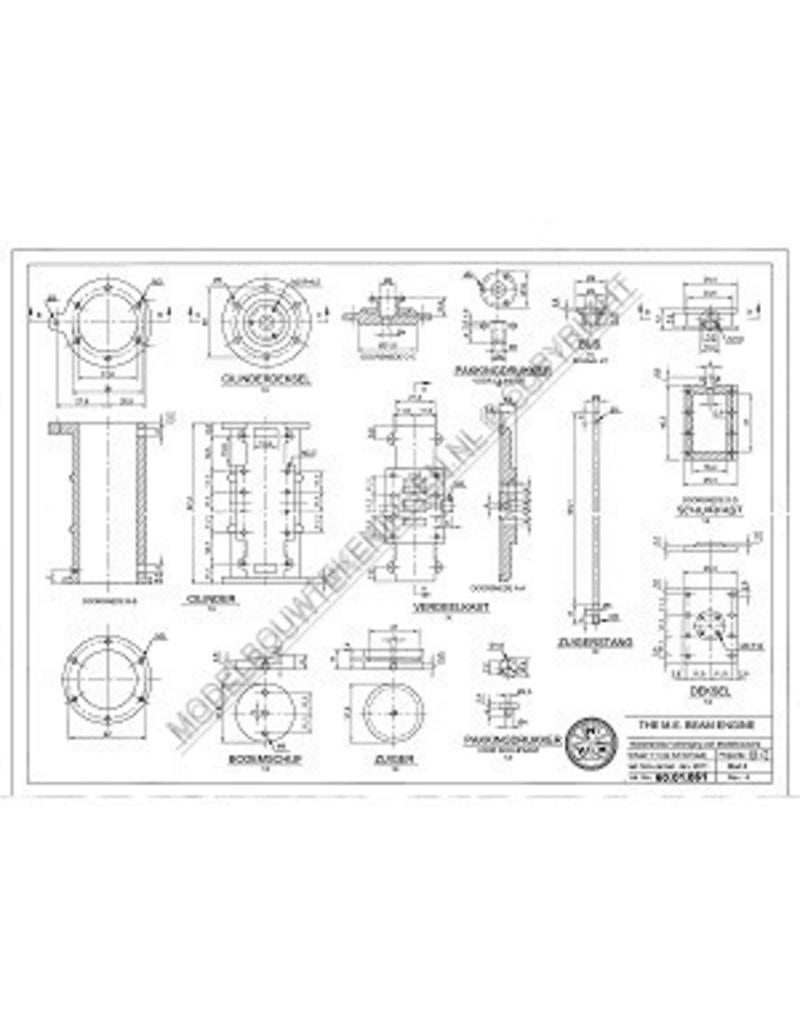

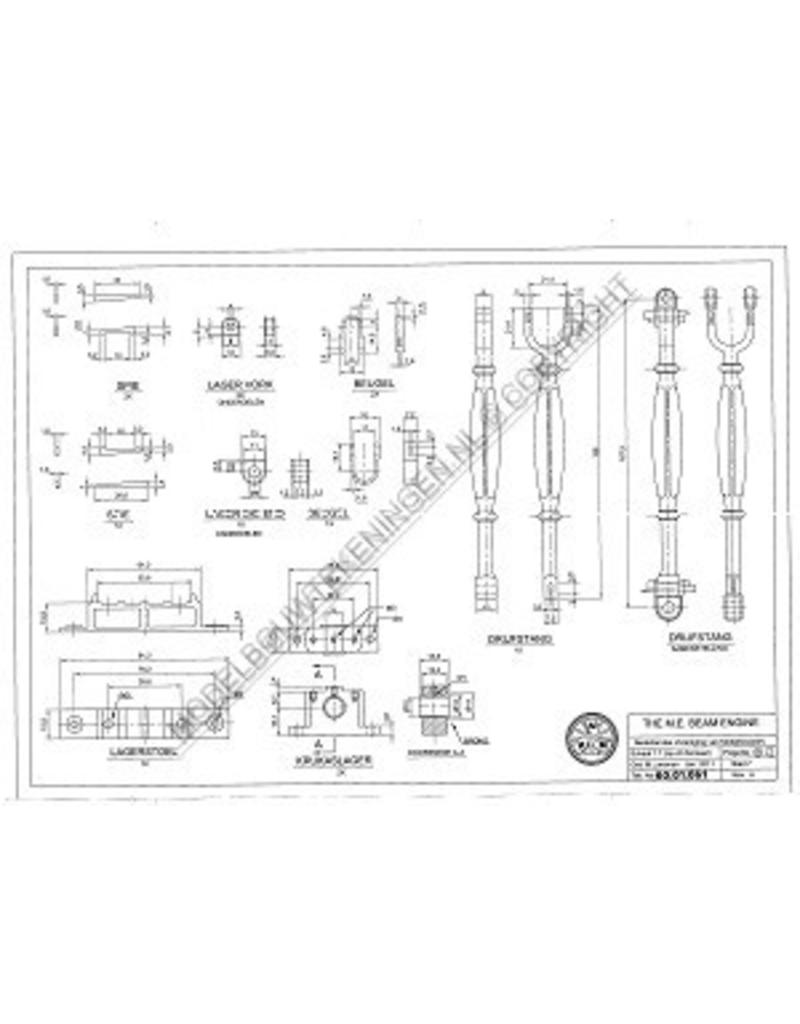

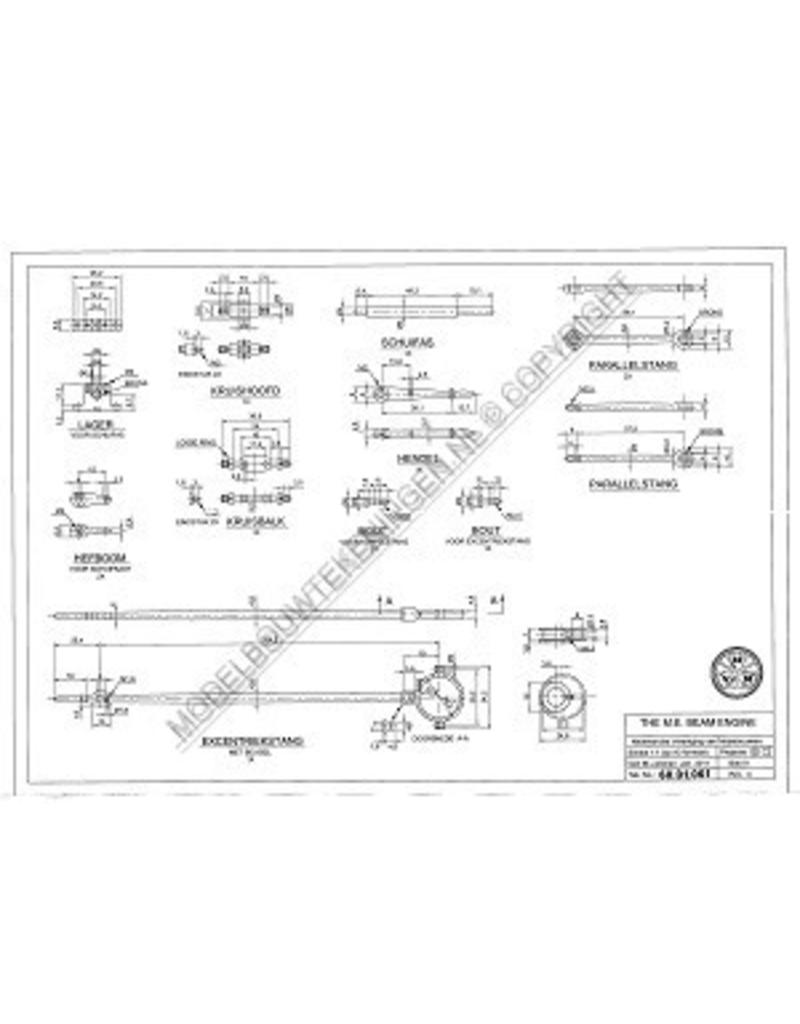

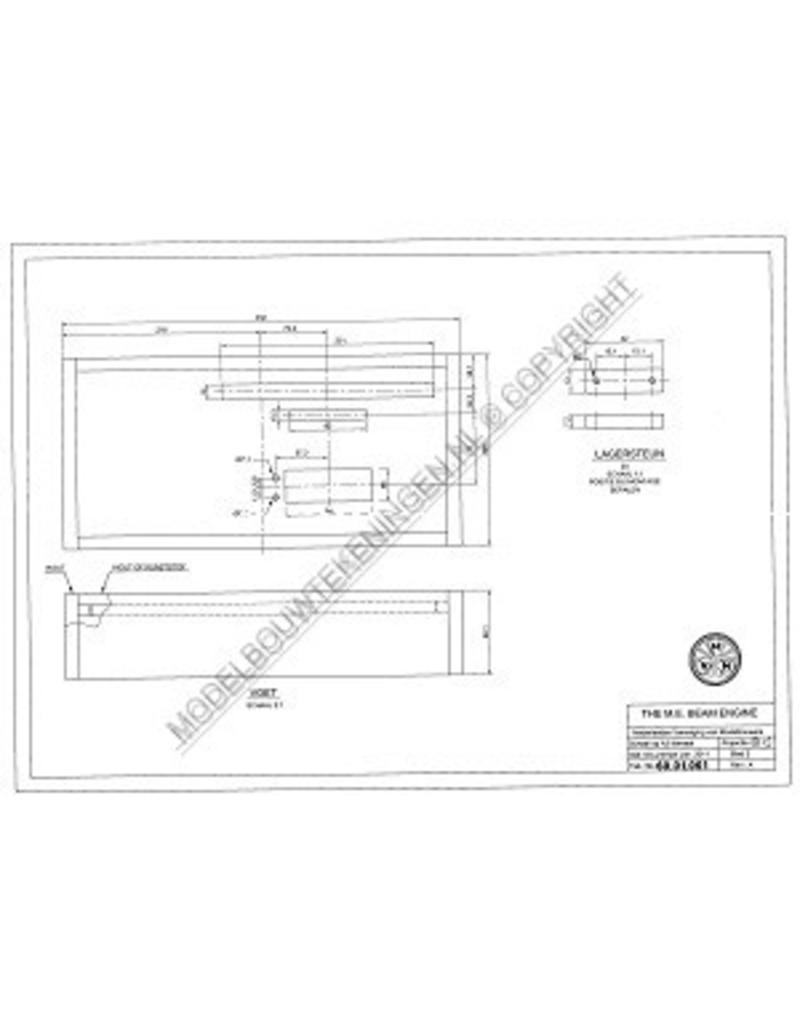

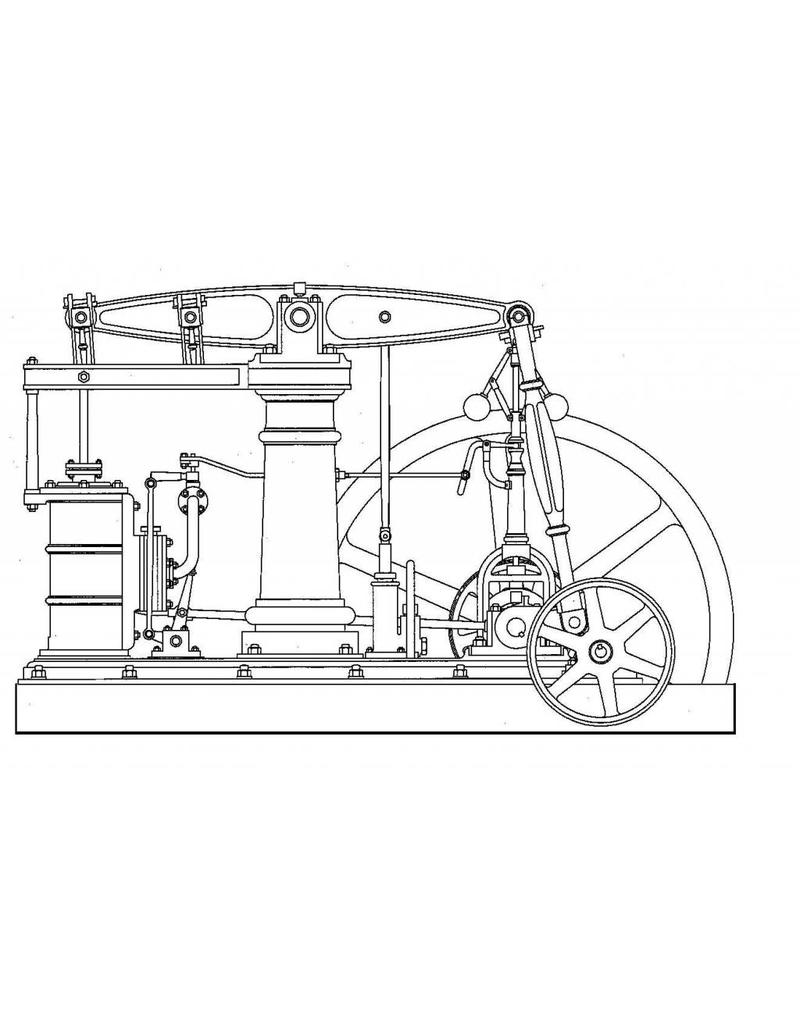

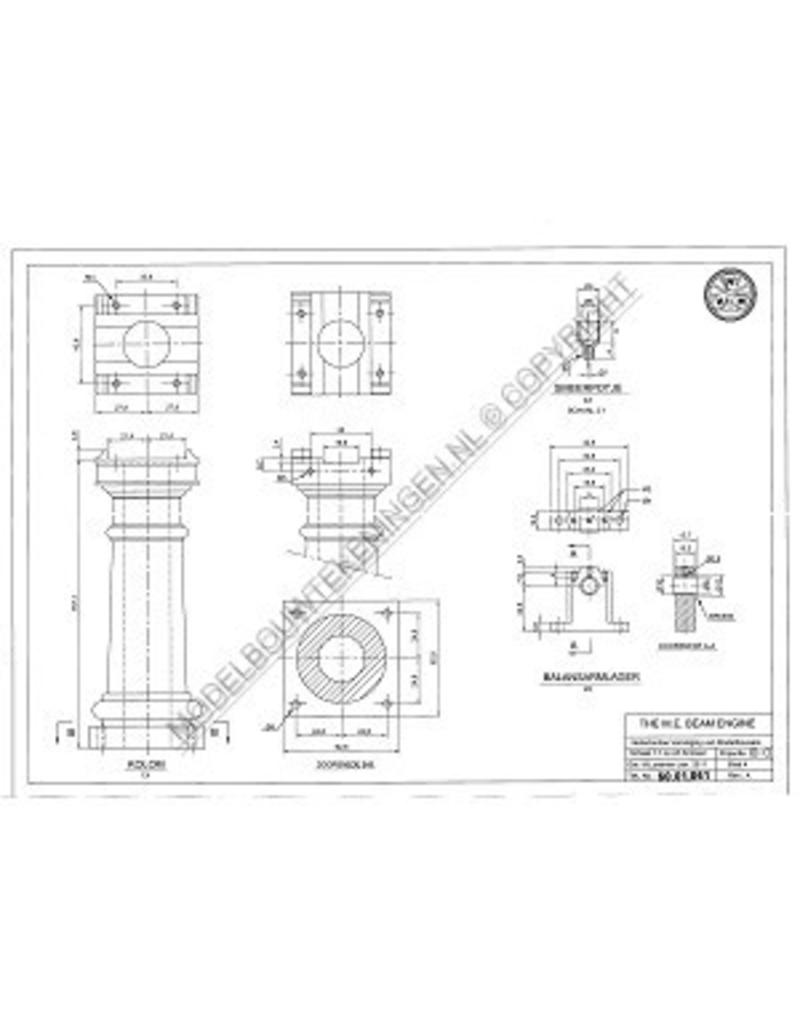

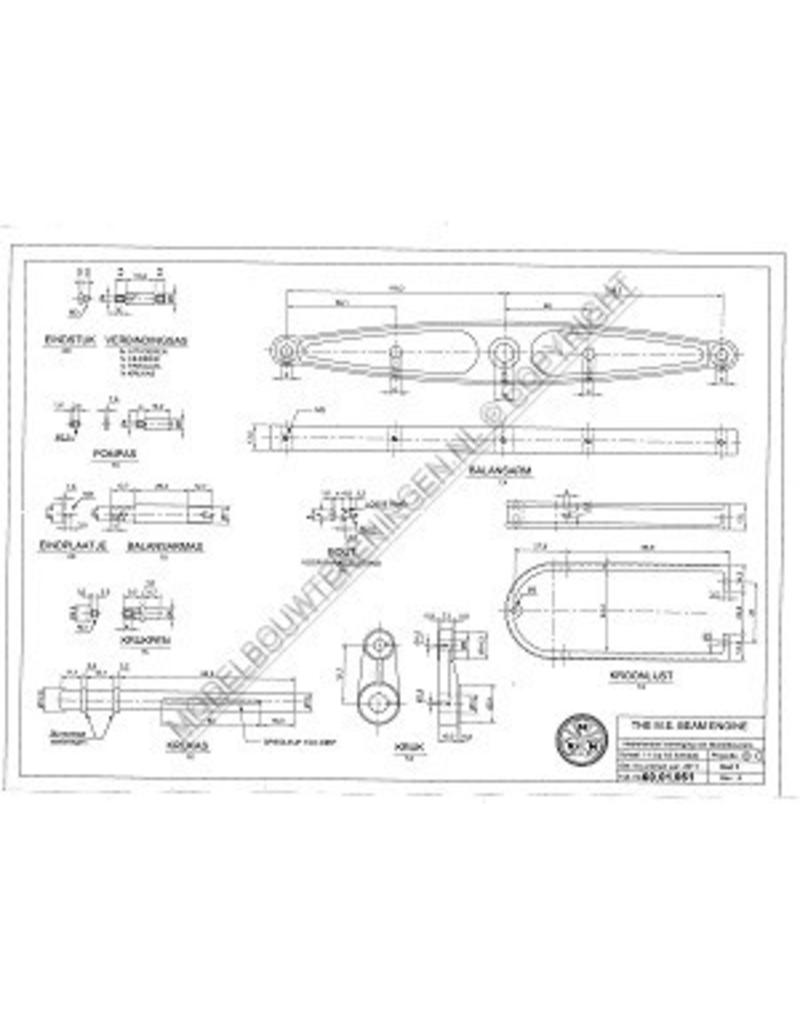

ME Beam Engine - beam steam engine |
|
Quality |
detailed model engineering drawing |
|
Difficulty level |
D |
|
Scale |
12 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
12 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
12 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
145 |
|
Special features |
a metric drawing of a large model beam steam engine |
|
Remarks |
