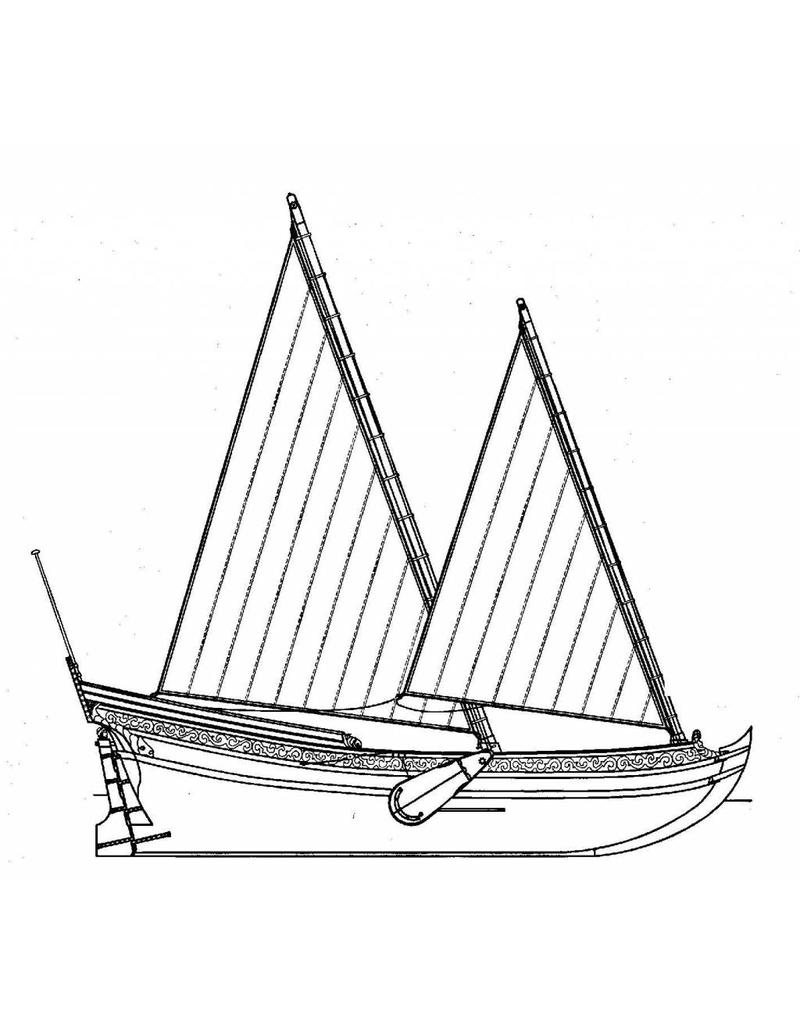

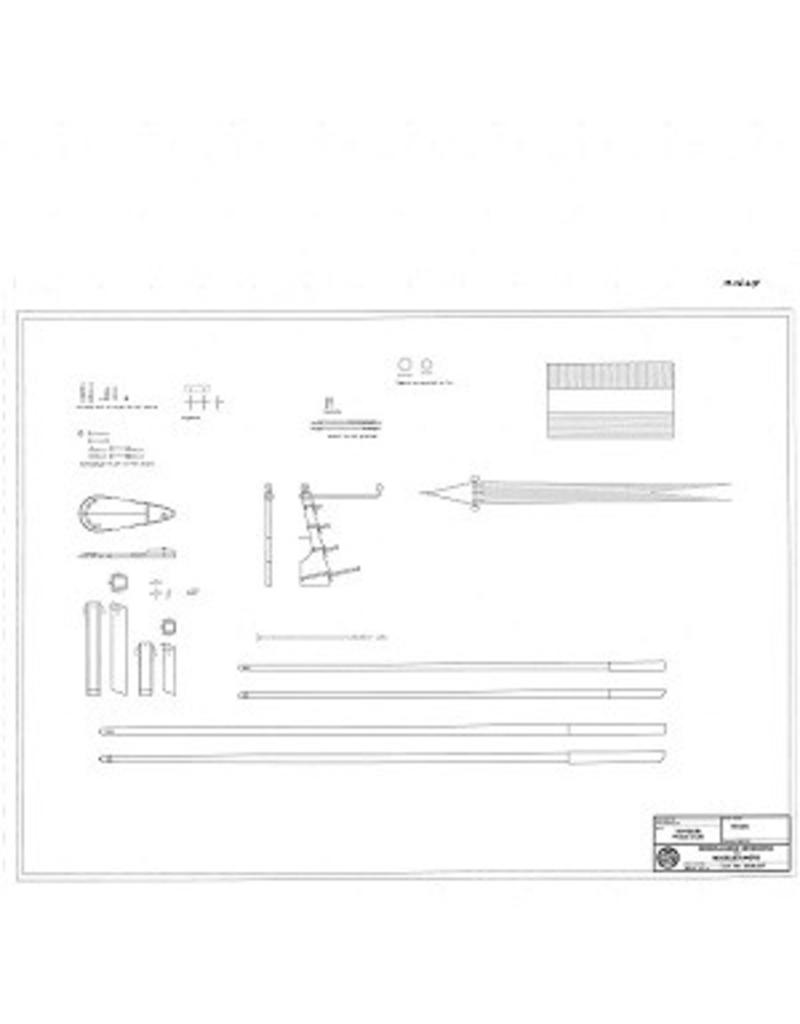

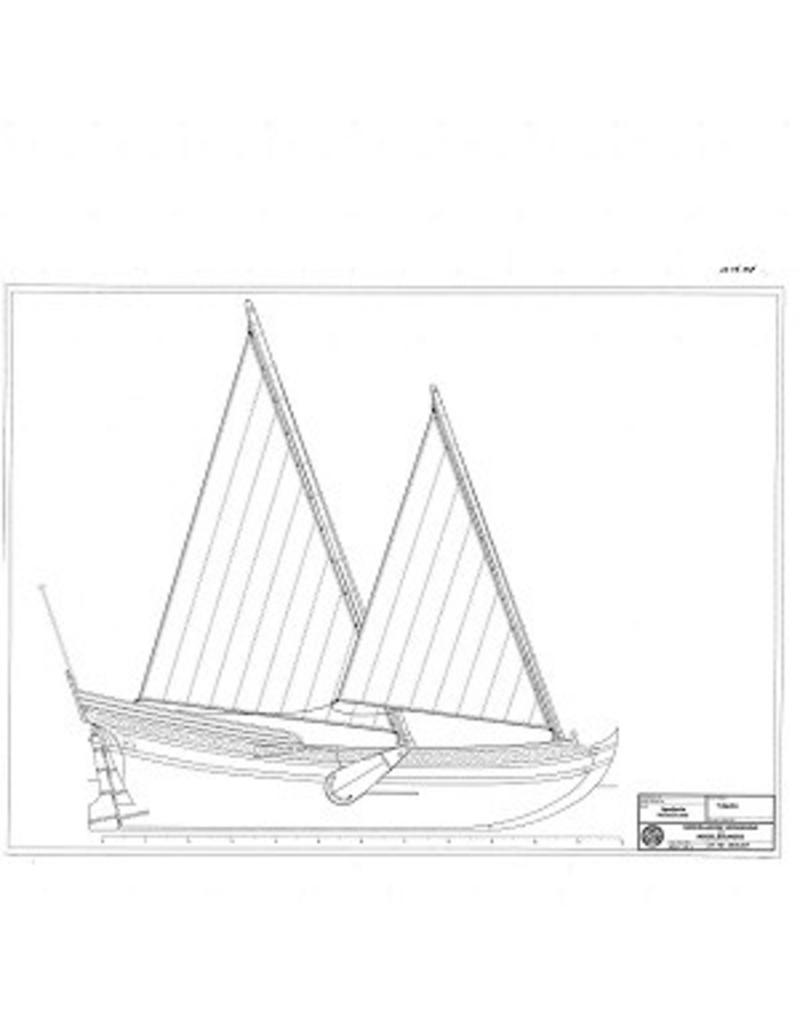

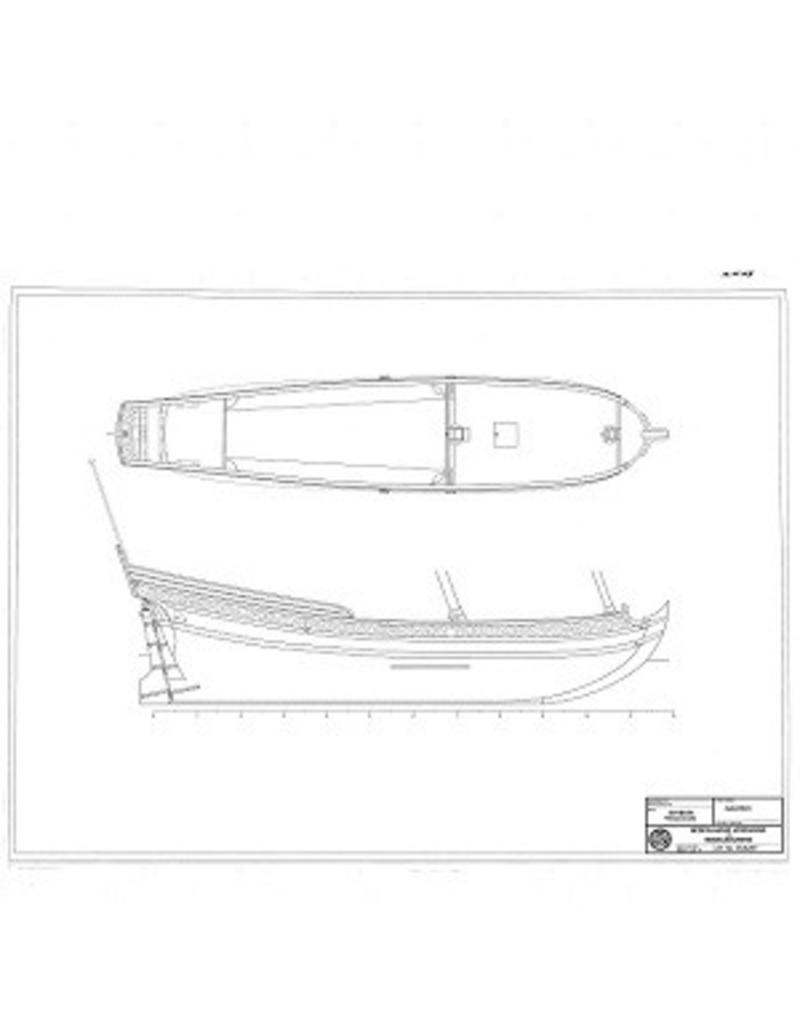

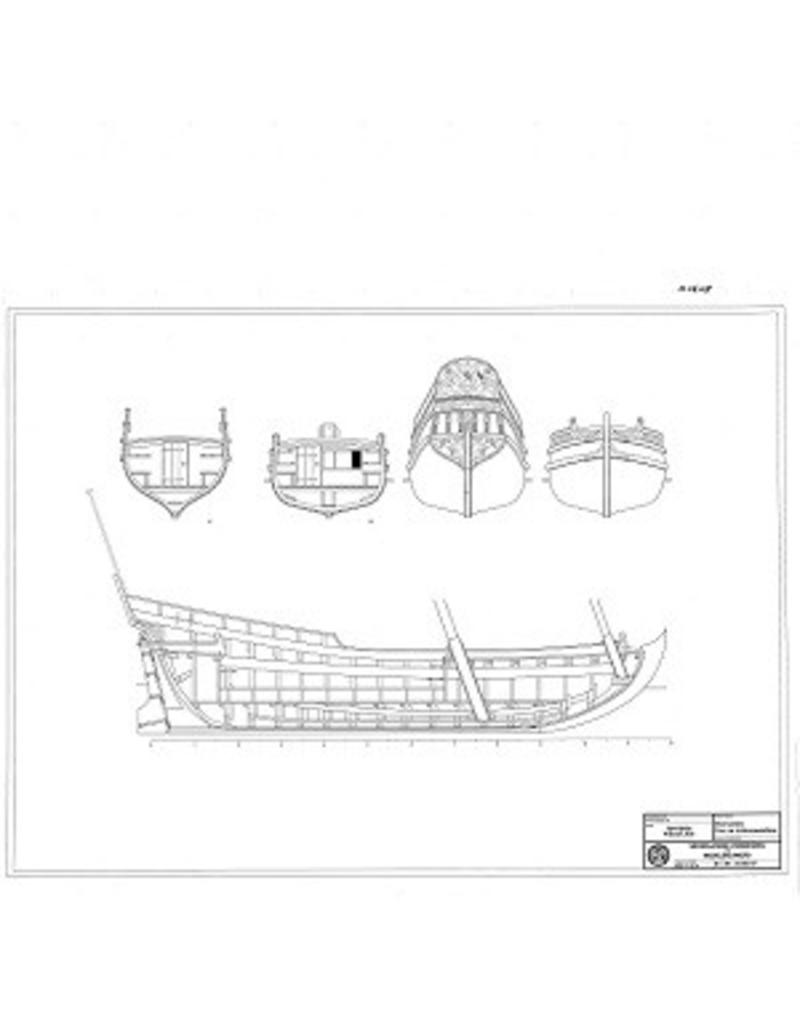

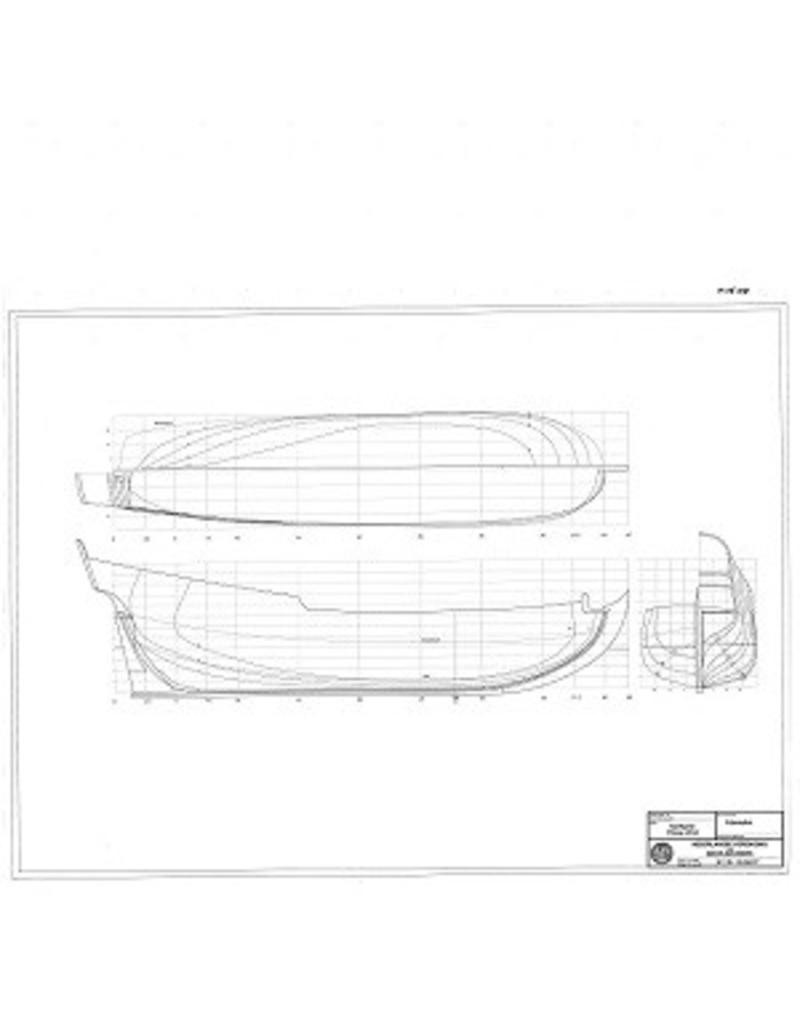

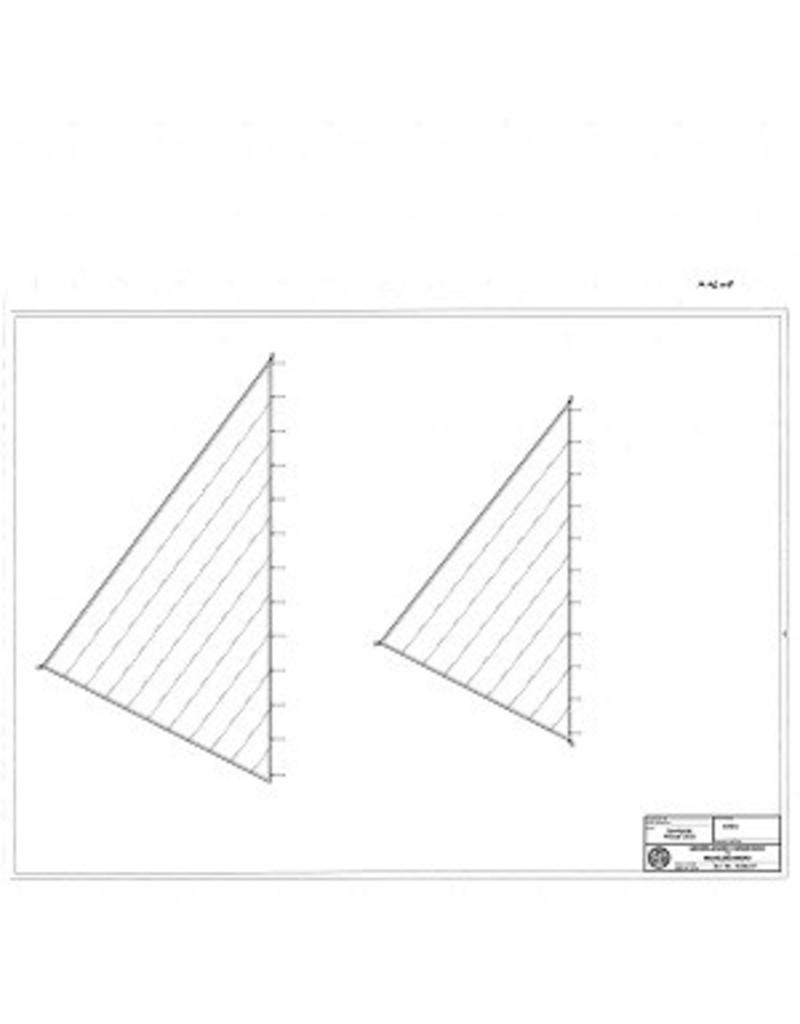

MBT Pleasure yacht according to Nicolaas Witsen (1671) - Construction Drawing Scale 1 : 25 (10.06.017)

Pleasure yacht according to Nicolaas Witsen (1671)

A pleasure yacht in Witsen's time was a relatively small, fast, and elegant vessel, primarily intended for recreation, sport, and representation, not for heavy cargo transport or war.

Characteristics of the pleasure yacht according to Witsen

Dimensions: Small to medium-sized vessel, often between 12 and 20 metres long.

Speed: Designed for speed and manoeuvrability. Witsen described pleasure yachts as fast and light, suitable for quick voyages.

Hull shape: Slender, streamlined hull with a low waterline, allowing the vessel to cut through the water easily.

Rigging: Usually equipped with a single mast with a large sail and jib, sometimes more rigging depending on the design.

Use: Primarily for pleasure and sport, for example for hunting parties, touring trips, or demonstrations.

Materials: Lightly built, often with attention to good quality wood for speed and durability.

Context of the pleasure yacht

Witsen described the pleasure yacht at a time when sailing, in addition to transport and trade, also gained a social and recreational function. The elite used these vessels to display their status and enjoy the sea and inland waterways.

What made Witsen's description special?

He provided detailed sketches and dimensions.

He explained how the balance between length, beam, and draught influences the vessel's behaviour.

He discussed the optimal rigging for speed and seaworthiness.

He provided guidelines for building the vessel, taking into account different types of waters (inland waters, coastal waters).

Why is it interesting?

The pleasure yacht demonstrates the transition from purely functional vessels to more recreational and representative craft.

It provides insight into 17th-century shipbuilding and how speed and elegance were pursued.

Specifications:
