| Article number: | 10.08.010 |
The B.M. class (in full: Bergummermeer class) is a classic Dutch open sailing yacht that remains popular, especially on lakes and inland waters such as the Braassemermeer, the Frisian Lakes and the Kaag. It is a traditional, wooden one-design class with a long history in Dutch sailing sports.
Type: Open keelboat / sailing yacht
Length overall: approx. 6.60 metres
Beam: approx. 2.00 metres
Draught: approx. 0.80 metres
Sail area: approx. 16 m² (mainsail + jib)
Crew: 2 to 3 people
Material: Traditionally made of wood (usually mahogany or oak), nowadays sometimes also with a fibreglass deck
Designed as a one-design class in 1928 for sailing races on the Braassemermeer
Classic lines: long overhangs, narrow hull
Sails sportily yet forgivingly, making it suitable for both youths and adults
Very stable due to the fixed keel
Known for its elegant appearance and good sailing performance in light winds
Active racing class with regional sailing clubs such as:
Koninklijke Watersport Vereniging Braassemermeer (KWV De Braassem)
Kaagsociëteit
Koninklijke Roei- en Zeilvereniging 'De Maas'
Annual events and championships
Often seen during classic sailing regattas in the Netherlands
Mostly traditional wooden boats → annual maintenance required (varnishing, woodwork inspection)
Fibreglass-deck versions require less maintenance while retaining the classic appearance
Fixed keel requires a crane or slipway for transport and maintenance
The B.M. class is:
A classic, open racing yacht
Designed for the Dutch lakes and inland waters
Stable, elegant and beloved by enthusiasts of traditional sailing classes
Still active in competitive sailing
Specifications:
|
Drawing number |
10.08.010 |
|
Author |
A.F.J. Dunweg |
|
Description |
B.M. class sailing yacht |
|
Contents |

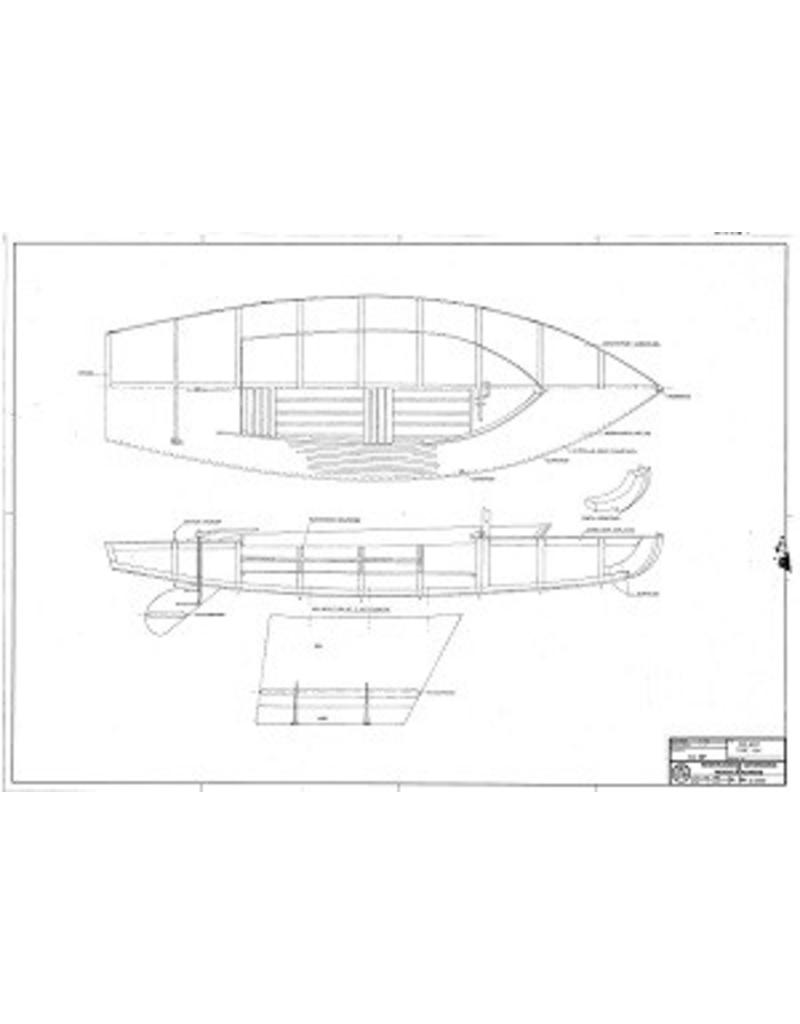

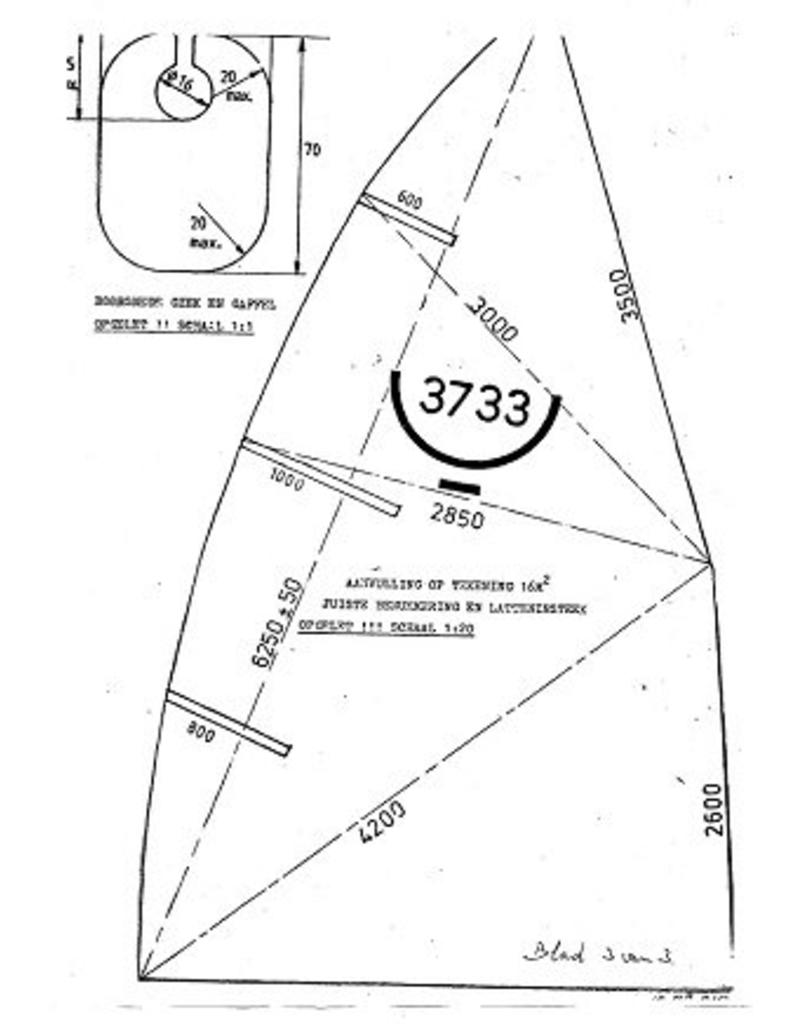

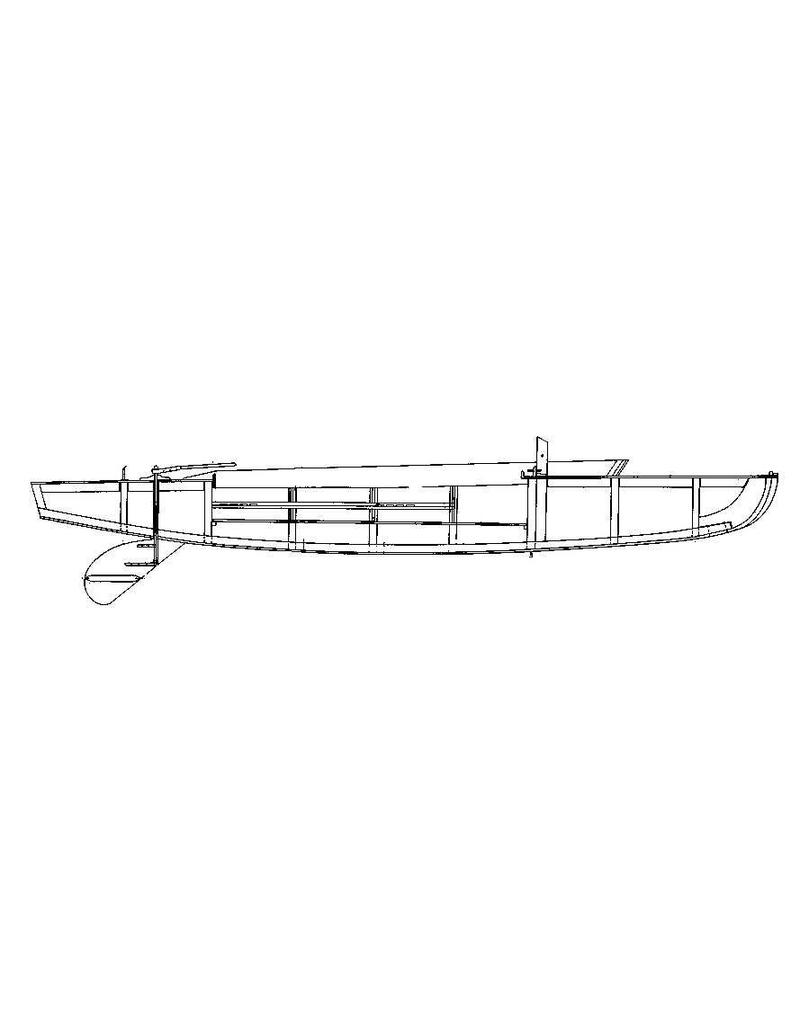

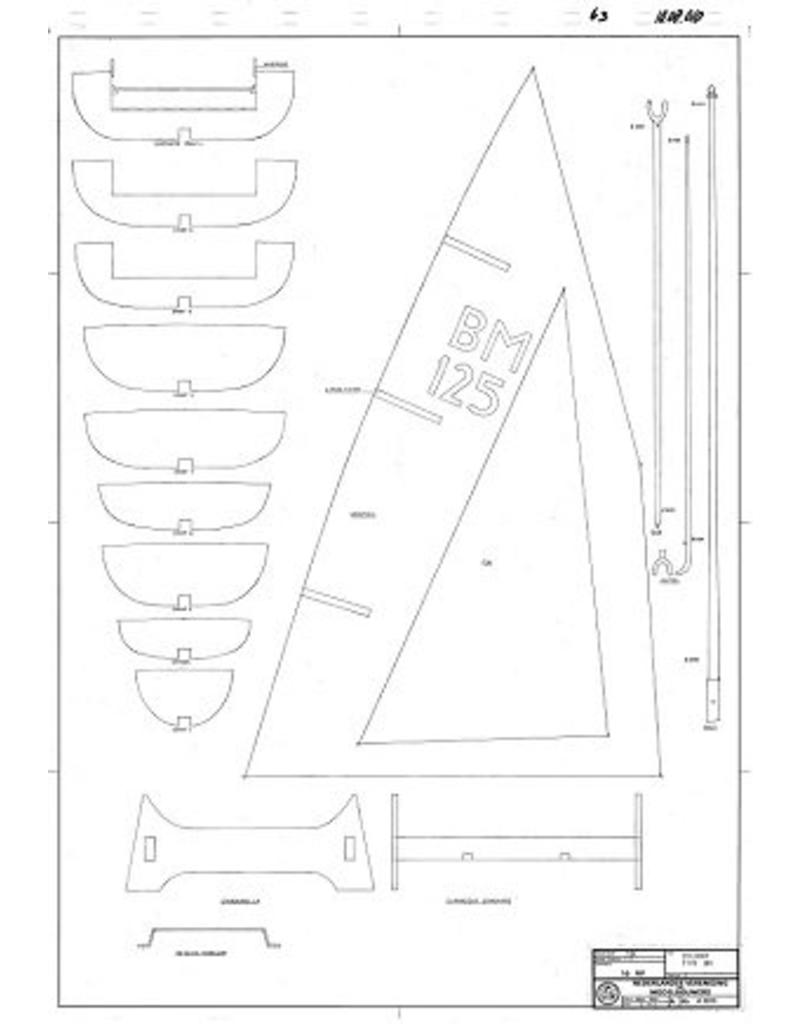

building frames; cross-sections; deck plan; sail plan |
|
Scale |
1 : 10 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
1 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
110 |
|
Details |
l.o.a. 59 cm |
|
Notes |
