MBT Wingboat "Ivil" - Construction Drawing Scale 1 : N/A (10.08.011)

Article number:

10.08.011

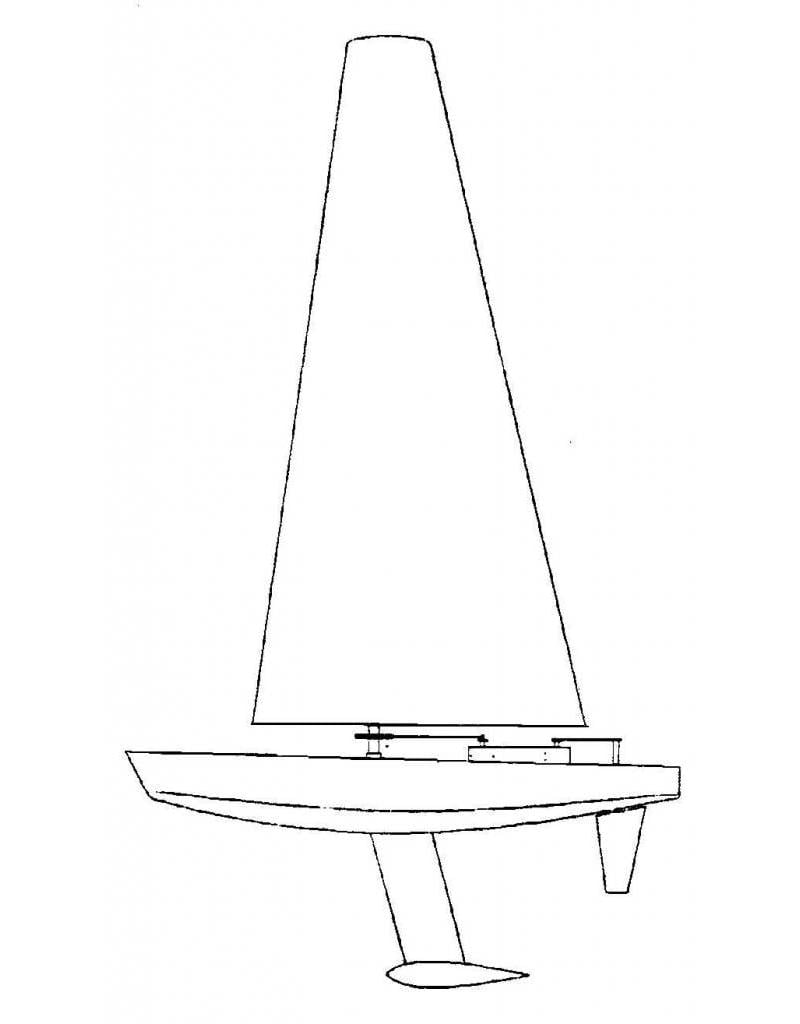

The wingboat "Ivil" is a model sailboat designed by F.P.J. Zwartjes and published under drawing number NVM 10.08.011 by the Dutch Association of Model Builders (NVM). This model is an example of a wingboat, a type of model sailboat that uses a mast with an aerofoil profile, ensuring an efficient and stable sailing experience.

---



Specifications of the wingboat "Ivil"

Length overall (l.o.a.): 56 cm

Sail type: Aerofoil profile that rotates around the mast

Control: Simple form of radio control possible

Construction drawings: Consists of 13 A4 sheets with hull frames and sail drawing

Author: F.P.J. ZwartjesModelbouwtekeningen.nl

---



Construction and Build

The drawing for the "Ivil" is divided over 13 A4 sheets which must be glued together according to the indicated markings to obtain the full shapes in the model's dimensions. This makes the model suitable for model builders interested in constructing a wingboat with an aerofoil profile





Specifications :

Drawing number	10.08.011
Author	'F.P.J. Zwartjes
Description	wingboat "Ivil"
Quality	hull frames; sail drawing
Scale
Number of A00 sheets	0
Number of A0 sheets	0
Number of A1 sheets	0
Number of A2 sheets	0
Number of A3 sheets	0
Number of A4 sheets	13
Total number of drawing sheets	13
Number of A4 text sheets	0
Weight in grams	90
Special features	l.o.a. 56 cm The sail has an aerofoil profile and rotates around the mast. This principle allows for a simple form of radio control. The drawing is divided over several A4 sheets, which must be glued together according to the indicated markings to obtain the full shapes in the model's dimensions.
Remarks	booklet
