MBT Two-masted schooner "Freelance" - Construction Drawing Scale 1 : N/A (10.08.019)

Drawing number

10.08.019

Author

J.L. Zegers

Description

two-masted schooner "Freelance"

Quality

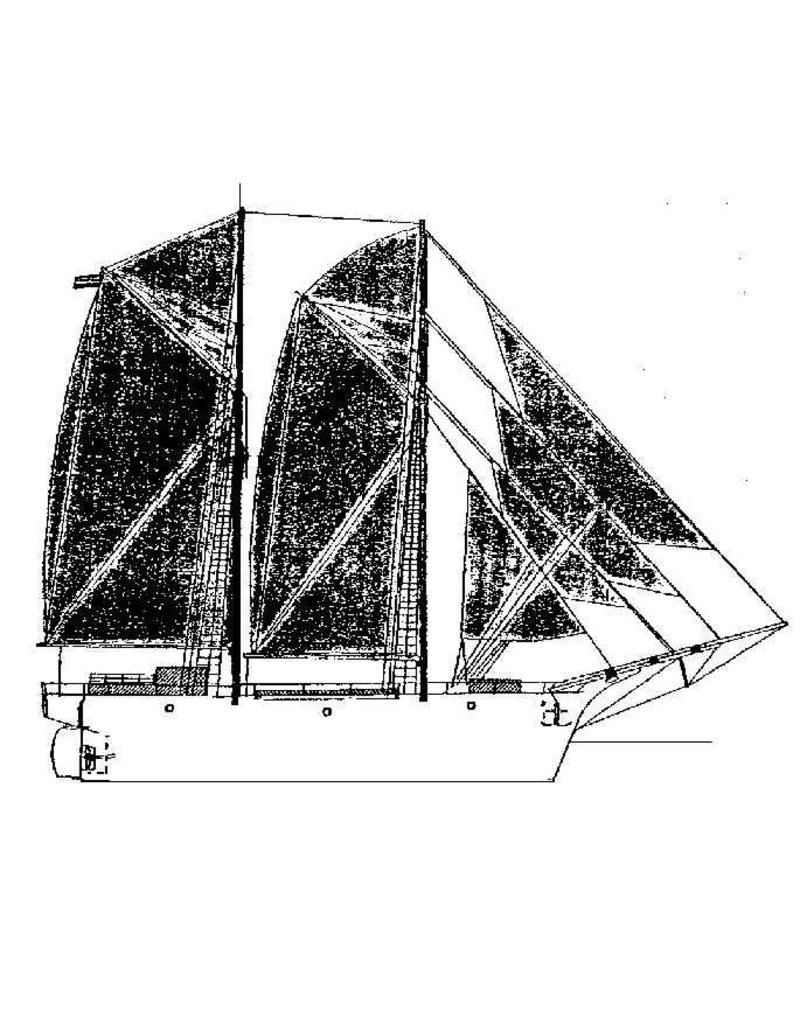

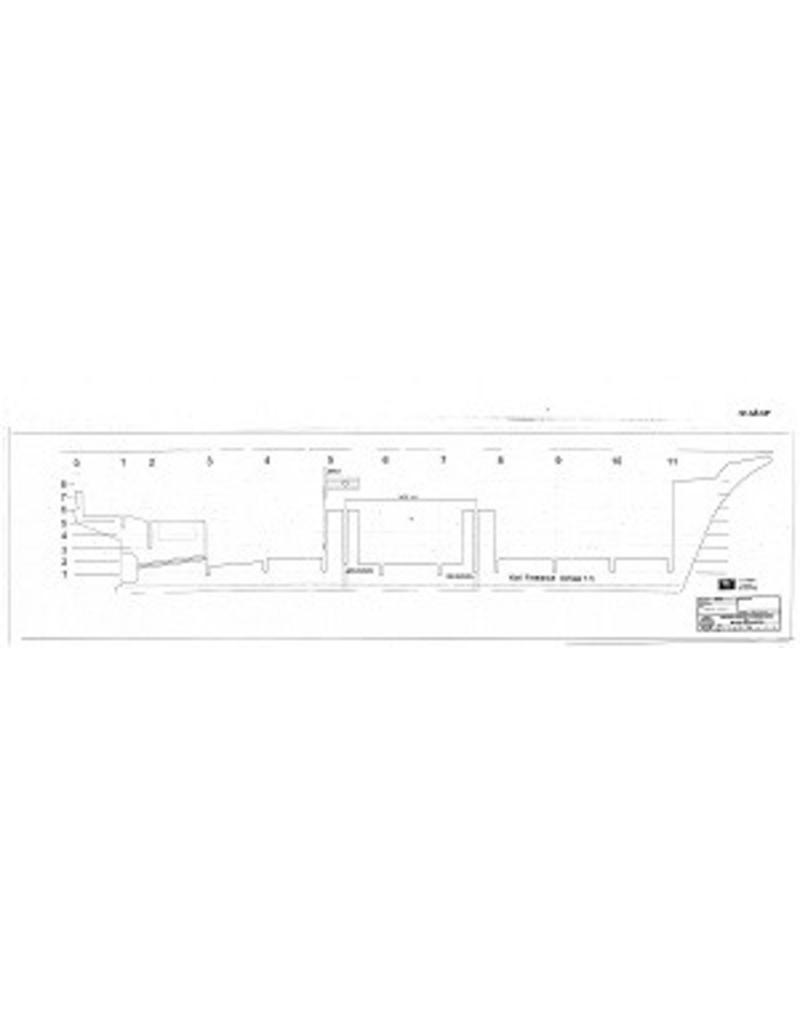

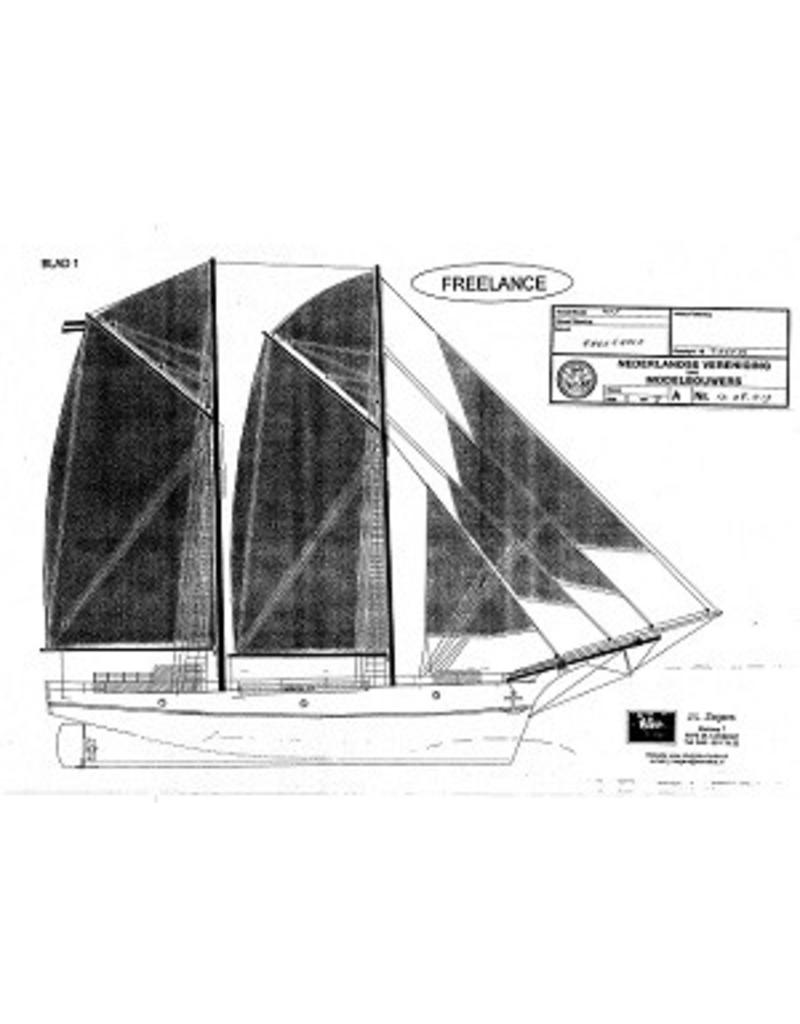

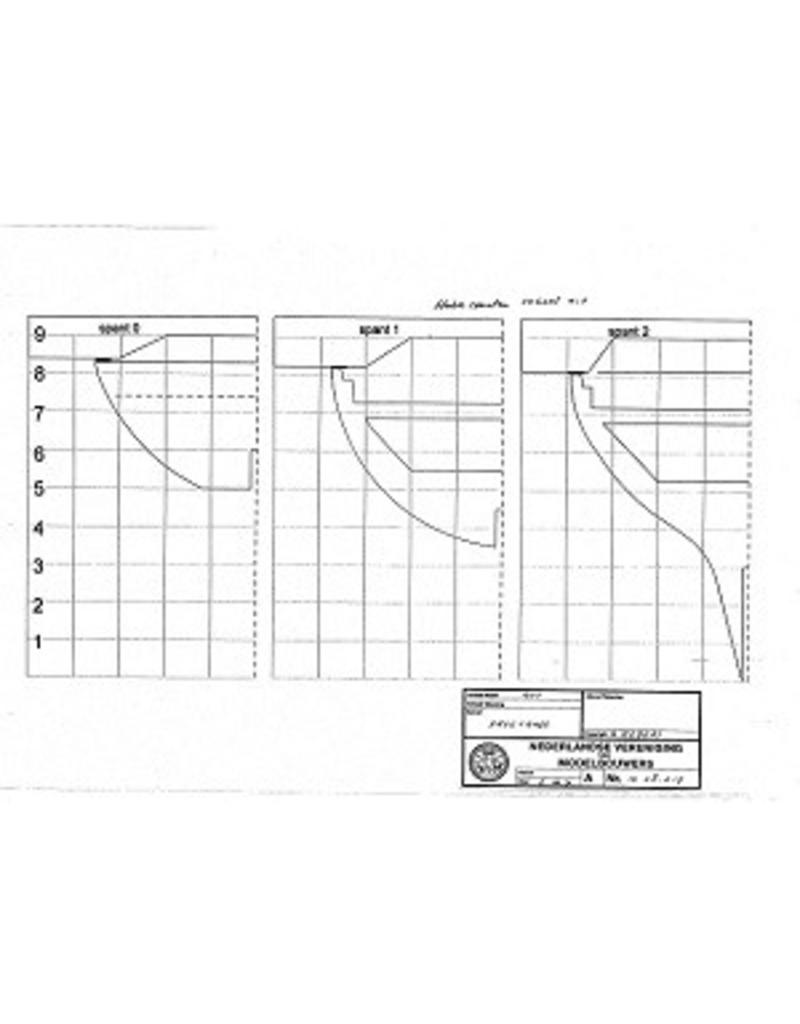

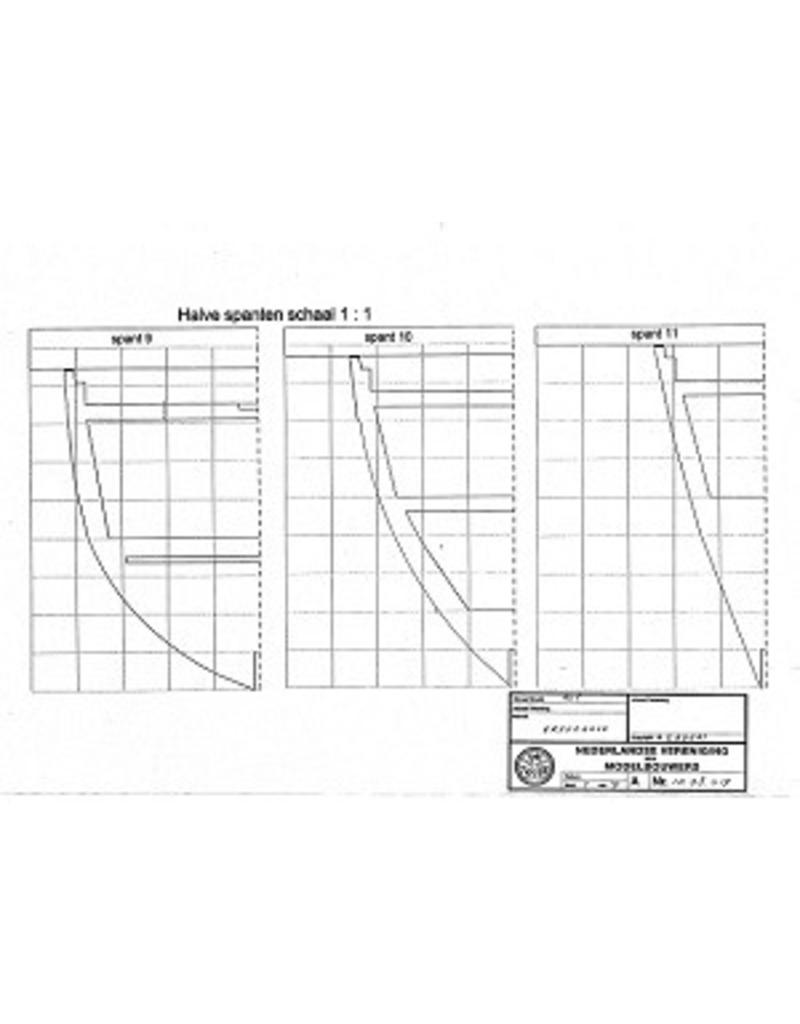

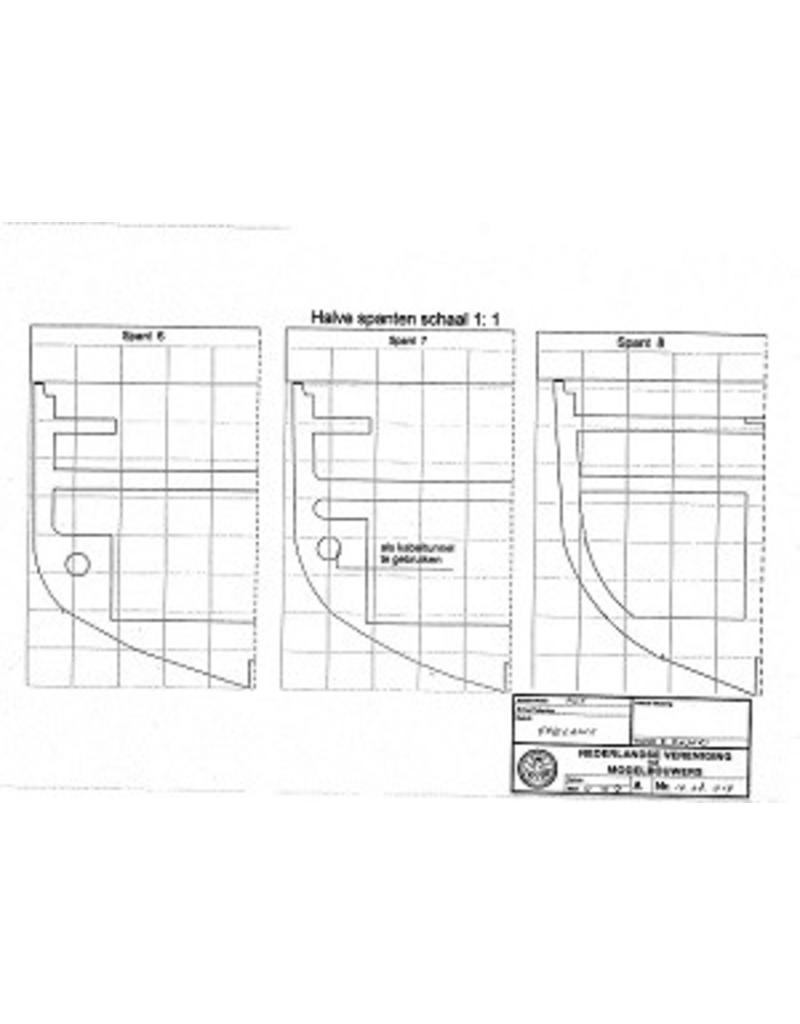

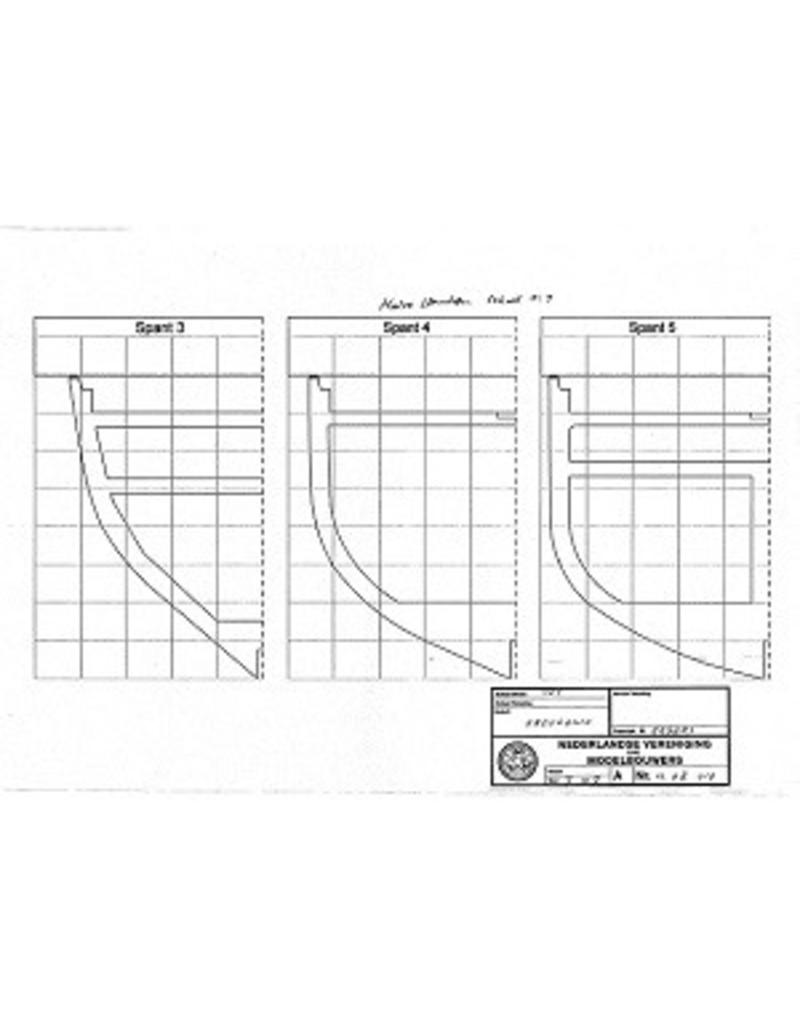

construction frames; side view/rigging plan on small scale

Scale

Number of sheets A00

0

Number of sheets A0

1

Number of sheets A1

0

Number of sheets A2

0

Number of sheets A3

6

Number of sheets A4

0

Total number of drawing sheets

7

Number of A4 text sheets

0

Weight in grams

165

Special features

l.o.a. 140 cm

dM 2001/1

Copy article 12.08.019 (5 pages)

The drawing has been revised since its original publication in 2001. A model designed for radio control

Remarks
