| Article number: | 10.08.026 |
Design: Designed by Eric van de Stadt, built by Cornelius Bruynzeel
Type: Maxi sailing yacht
Dimensions: Length: 22.72 metres, Width: 4.88 metres, Draught: 2.82 metres

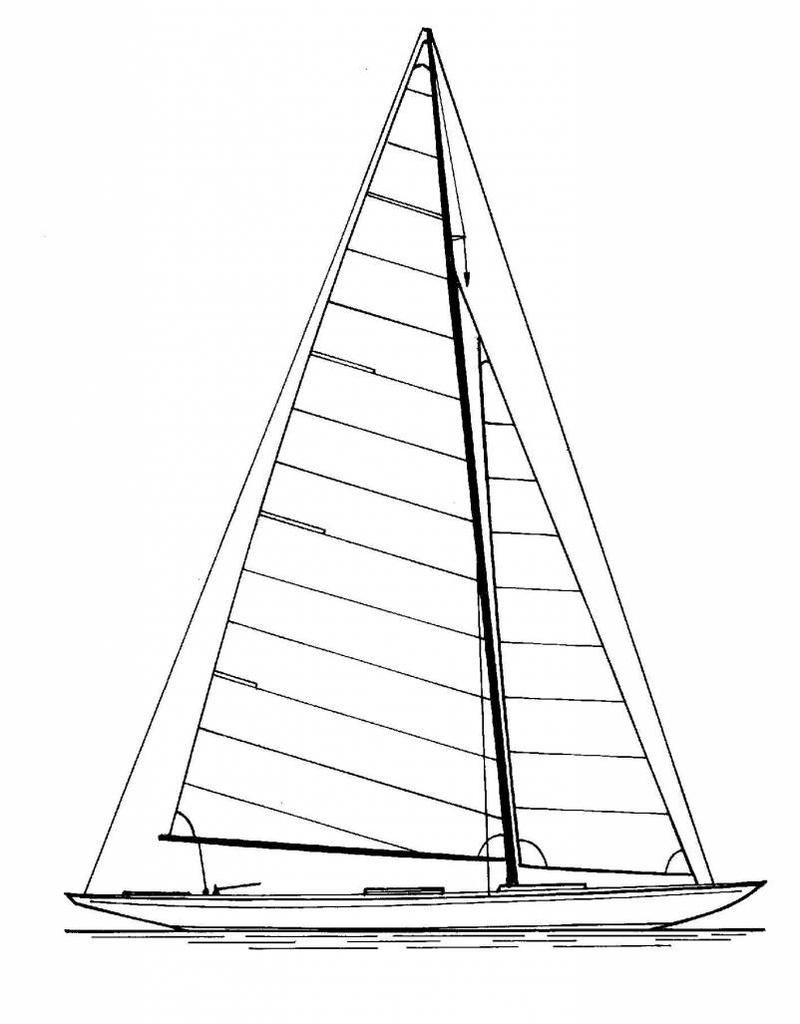

Rigging: Bermudan ketch
Sail Area: 238 m²
Material: African Khaya Mahogany for the hull
Construction Method: Lightweight wooden, cold-moulded shell with four laminates over bulkheads, frames, ribs and stringers
History: In 1961, she achieved Line Honours in the Fastnet Race
Current Status: The Stormvogel is still active and participates in sailing races, including the Fastnet Race .
Specifications :
|
Drawing Number |
10.08.026 |
|
Description |
sailing yacht Stormvogel |
|
Quality |

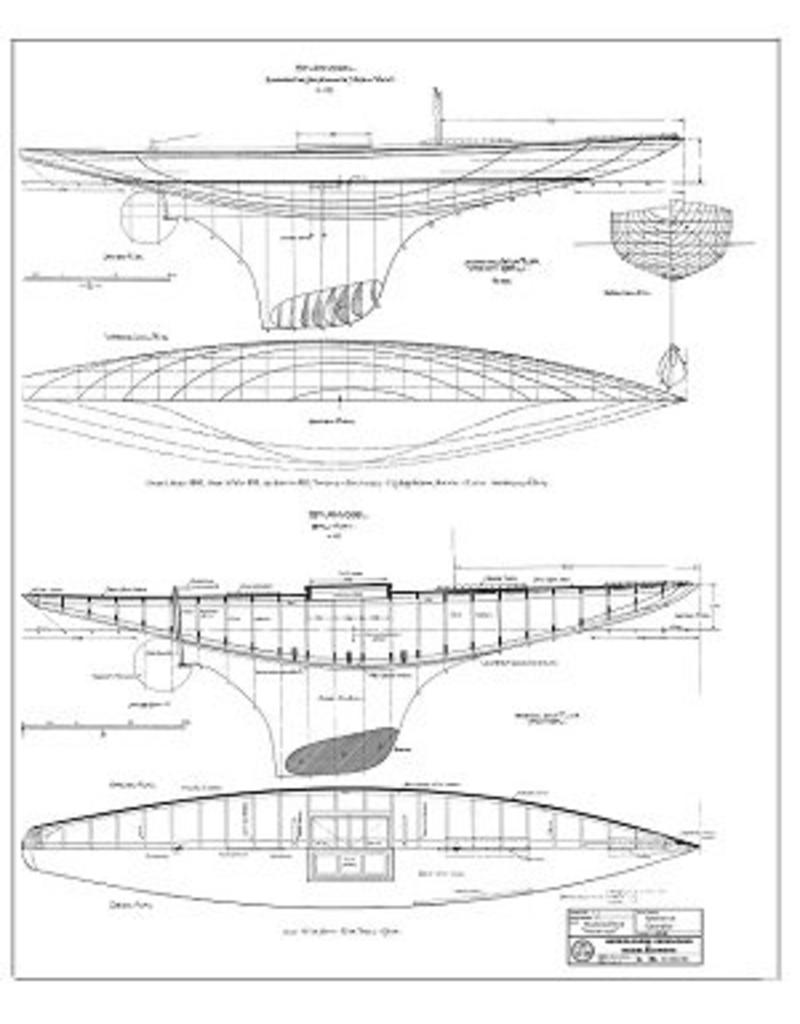

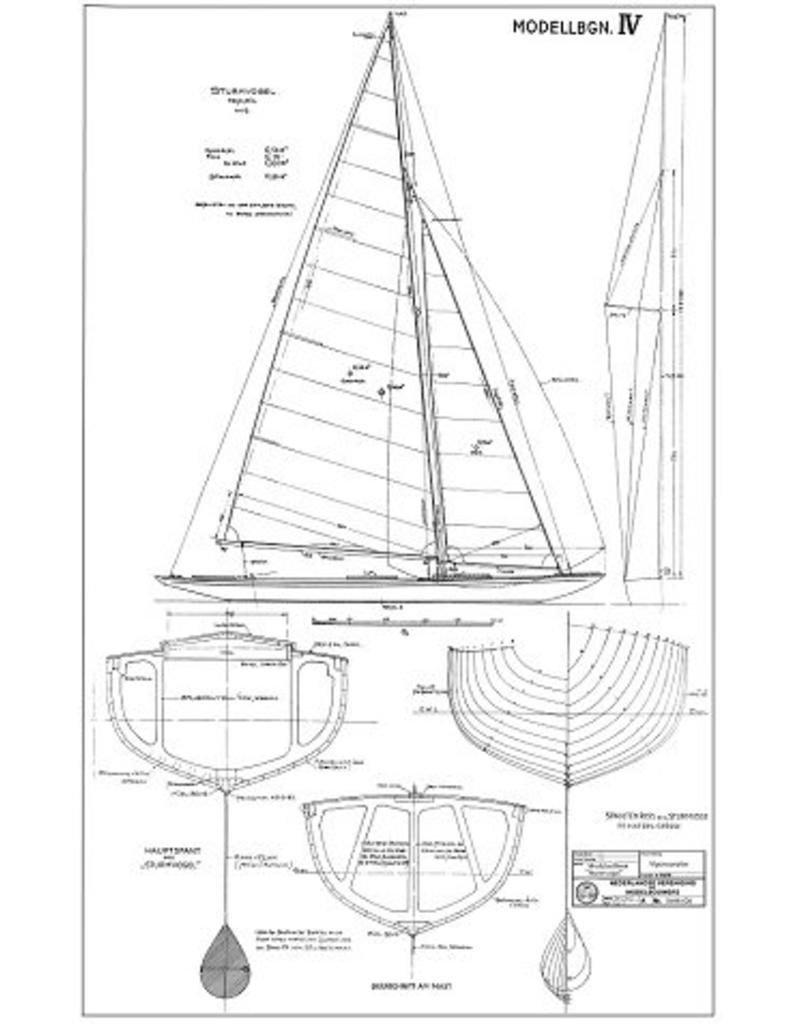

general plan; sp/lines plan |
|
Scale |
1 : 2 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Details |
l.o.a. 41 cm |
|
Remarks |
artek 4589 |
