| Article number: | 10.11.020 |

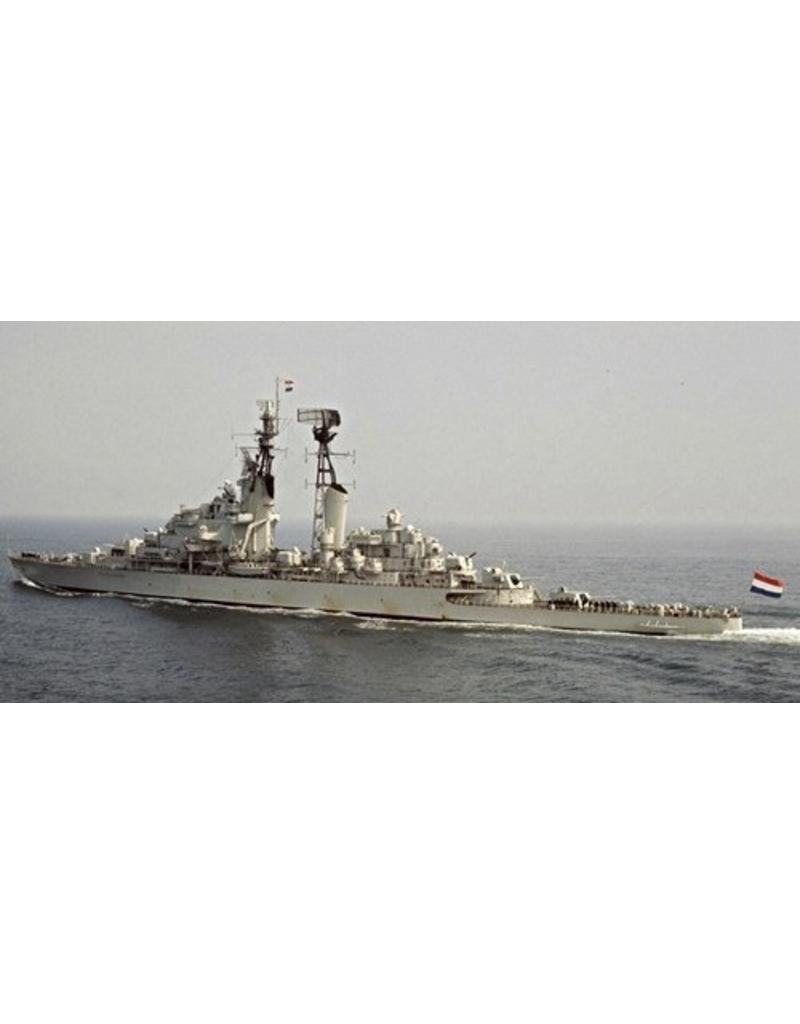

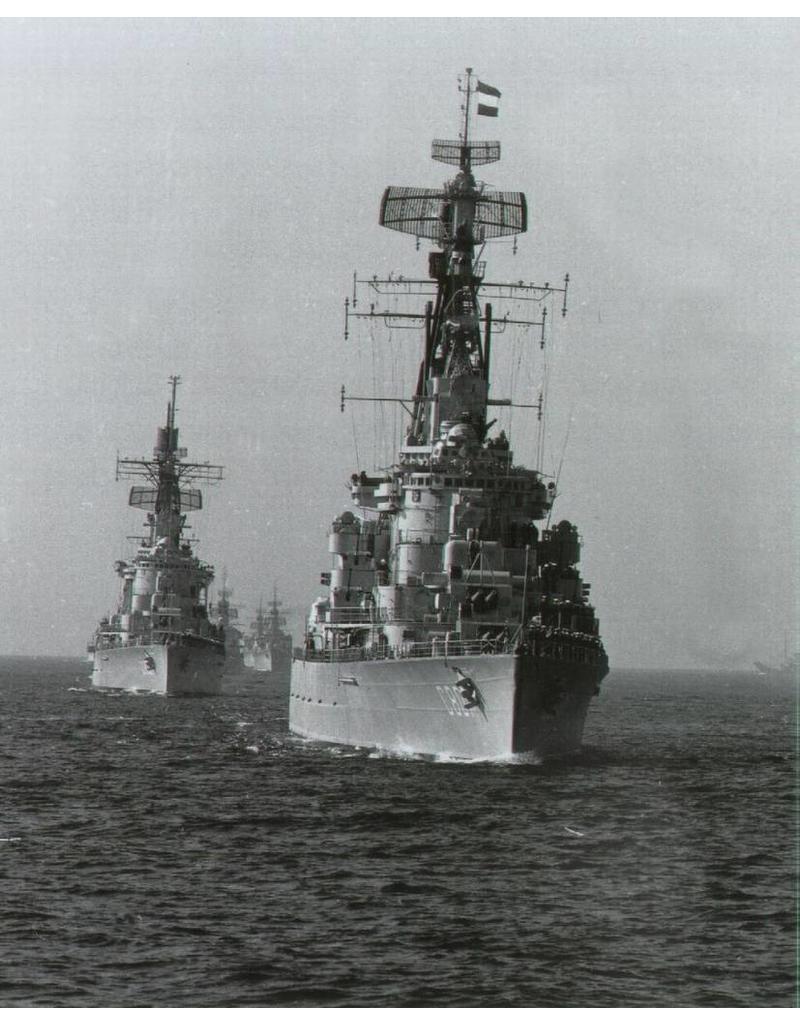

The Hr.Ms. De Ruyter (C801) and De Zeven Provinciën (C802) were light cruisers of the Royal Netherlands Navy, built in the late 1930s and early 1950s. Both ships were originally part of the De Zeven Provinciën class, but underwent significant modifications during their service.
| Characteristics | HNLMS De Ruyter (C801) | Hr.Ms. De Zeven Provinciën (C802) |
|---|---|---|
| Length | 187.32 m | 187.32 m |
| Beam | 17.25 m | 17.25 m |
| Draught | 6.80 m | 6.80 m |
| Displacement | 11,850 tonnes (fully loaded) | 12,250 tonnes (fully loaded) |
| Crew | 973 | 973 |
| Speed | 30+ knots | 30+ knots |
| Engine power | 85,000 hp | 85,000 hp |
| Propulsion | 2 × Parsons turbines | 2 × Parsons turbines |
| Armour | Belt: 100–75 mm | Belt: 100–75 mm |
| Armament | 8 × 152 mm Bofors guns | 8 × 152 mm Bofors guns |
| 8 × 57 mm Bofors anti-aircraft guns | 8 × 57 mm Bofors anti-aircraft guns | |
| 8 × 40 mm Bofors anti-aircraft guns | 8 × 40 mm Bofors anti-aircraft guns | |
| 2 × torpedo tubes | 2 × torpedo tubes | |
Shipyards: Wilton-Fijenoord, Schiedam
Keel laid: 5 September 1939
Launched: 24 December 1944
Commissioned: 18 November 1953
Decommissioned: 12 October 1972
Sold to Peru: March 1973
Peruvian name: BAP Almirante Grau (C81)
Decommissioned in Peru: March 1999
Scrapped: 2000

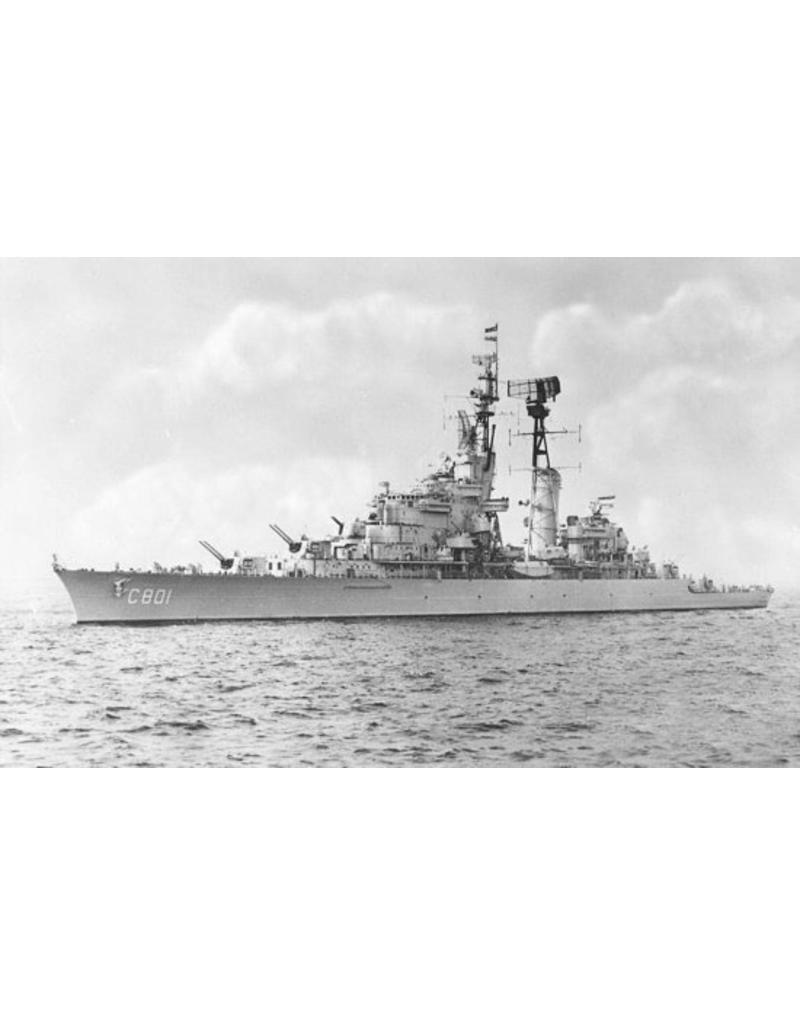

After the Second World War, De Ruyter was converted into a modern light cruiser. Between 1962 and 1964, she underwent extensive refitting, which included replacing the aft gun with a RIM-2 Terrier anti-aircraft system, and adding a hangar and helicopter deck for a Sea King helicopter.
Shipyards: Rotterdamsche Droogdok Maatschappij, Rotterdam
Keel laid: 19 May 1939
Launched: 22 August 1950
Commissioned: 17 December 1953
Decommissioned: 16 October 1975
Sold to Peru: August 1976
Peruvian name: BAP Almirante Aguirre (C84)
Decommissioned in Peru: 1999
Scrapped: 2000

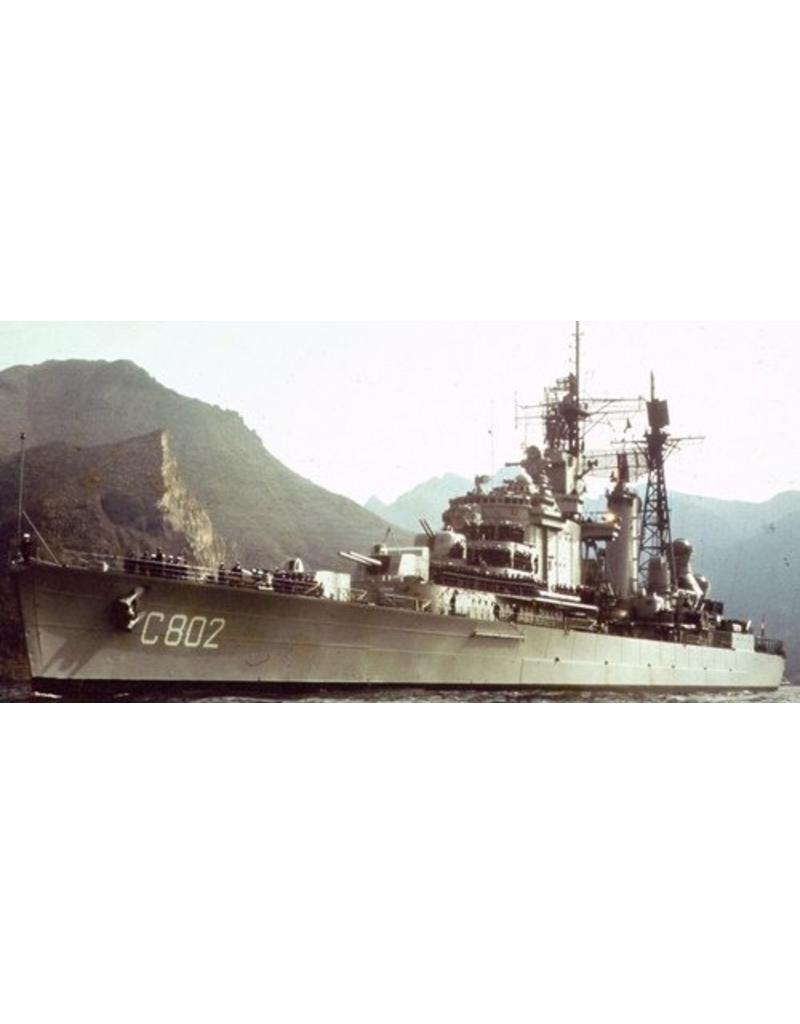

The Zeven Provinciën underwent similar modifications to De Ruyter, with the addition of the RIM-2 Terrier anti-aircraft system and a helicopter deck. After her service in the Royal Netherlands Navy, she was sold to Peru, where she served as BAP Almirante Aguirre until 1999.
Specifications:
|
Drawing number |
10.11.020 |
|
Author |
J.TH.M. Buter |
|
Description |

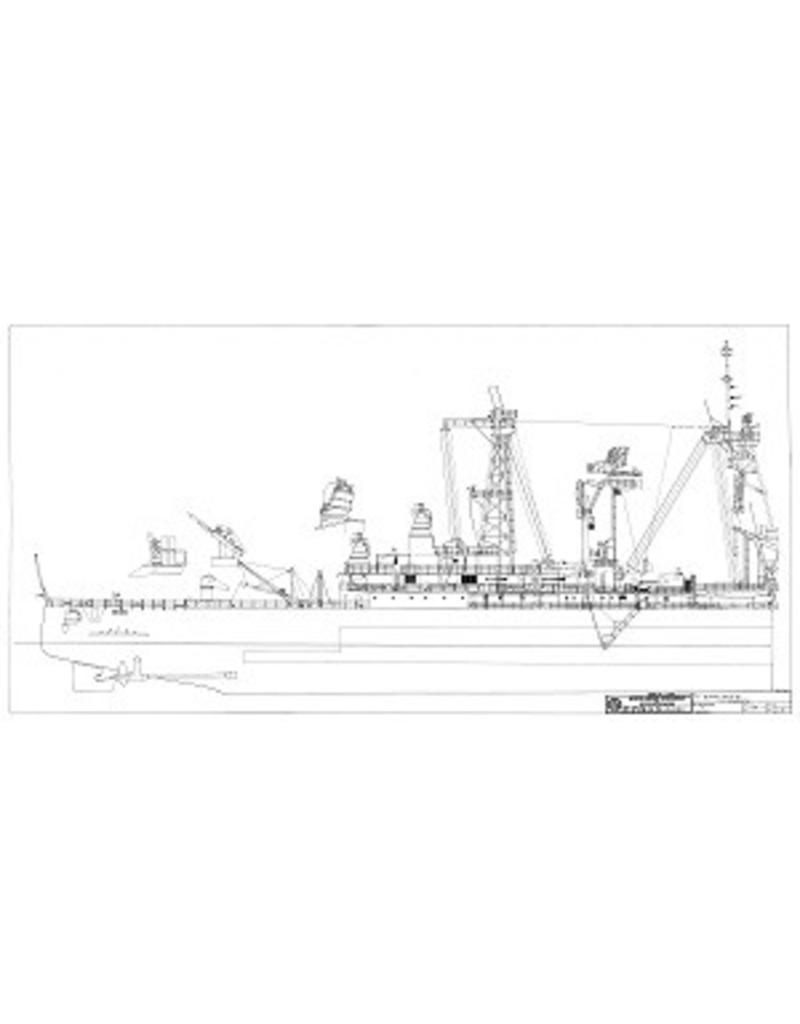

Royal Navy cruisers "De Ruyter" C801, "Zeven Provincien" C802 (1939/1953/54) |
|
Quality |

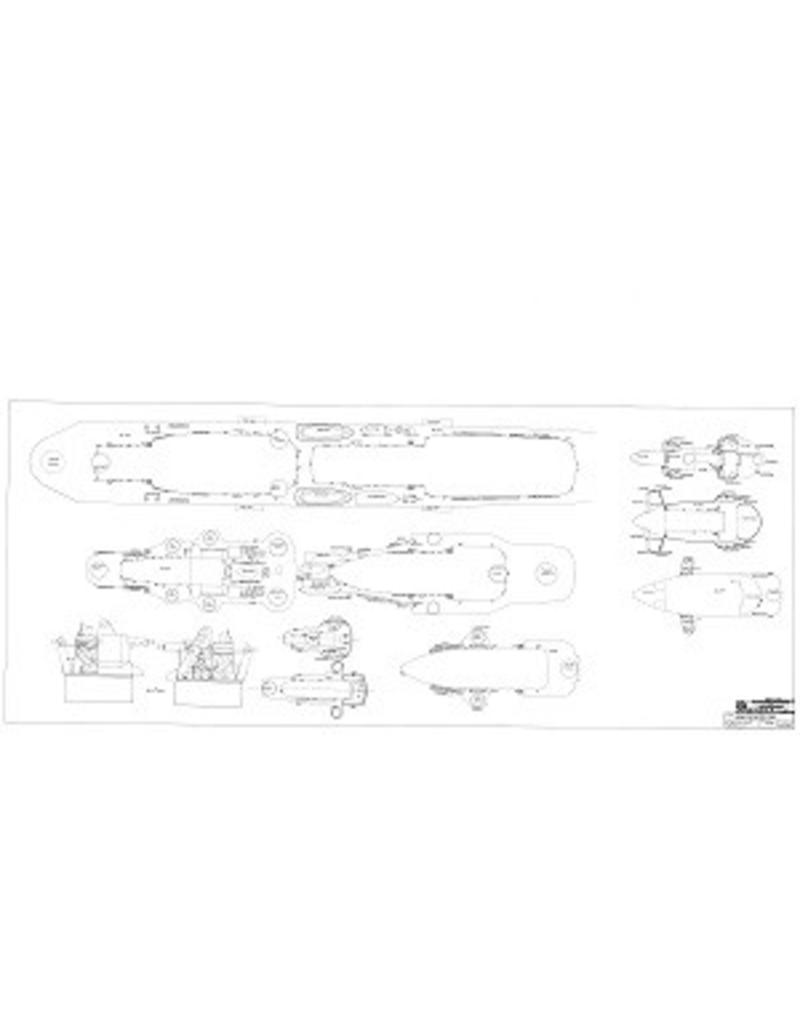

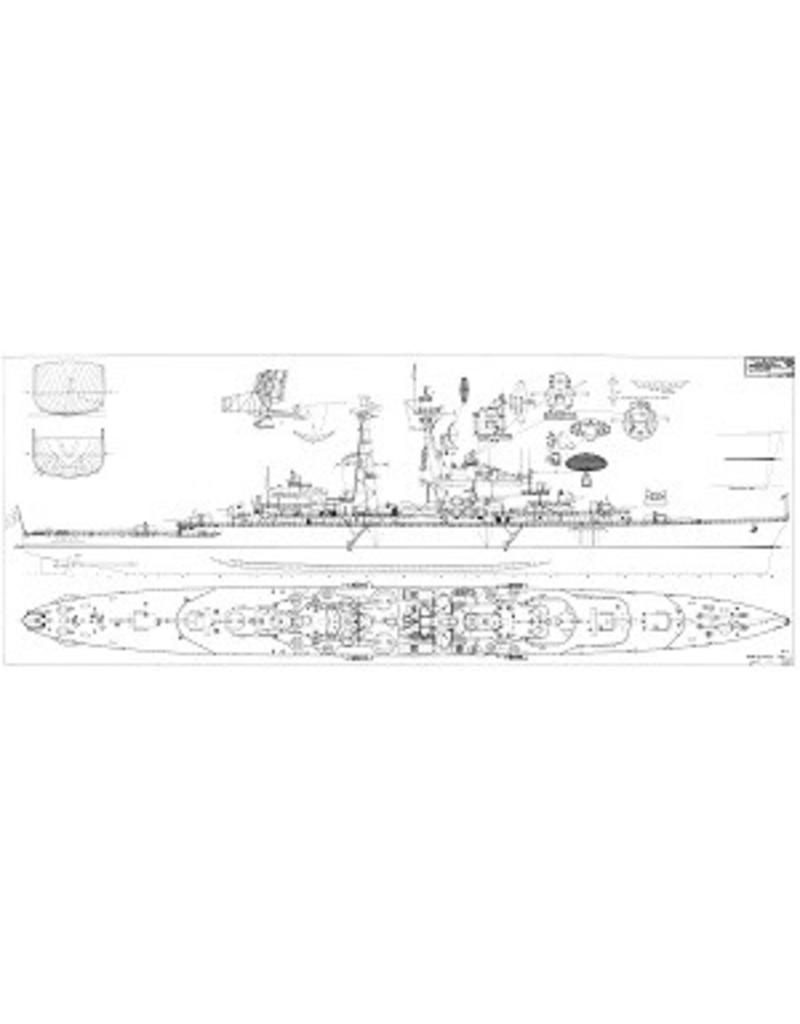

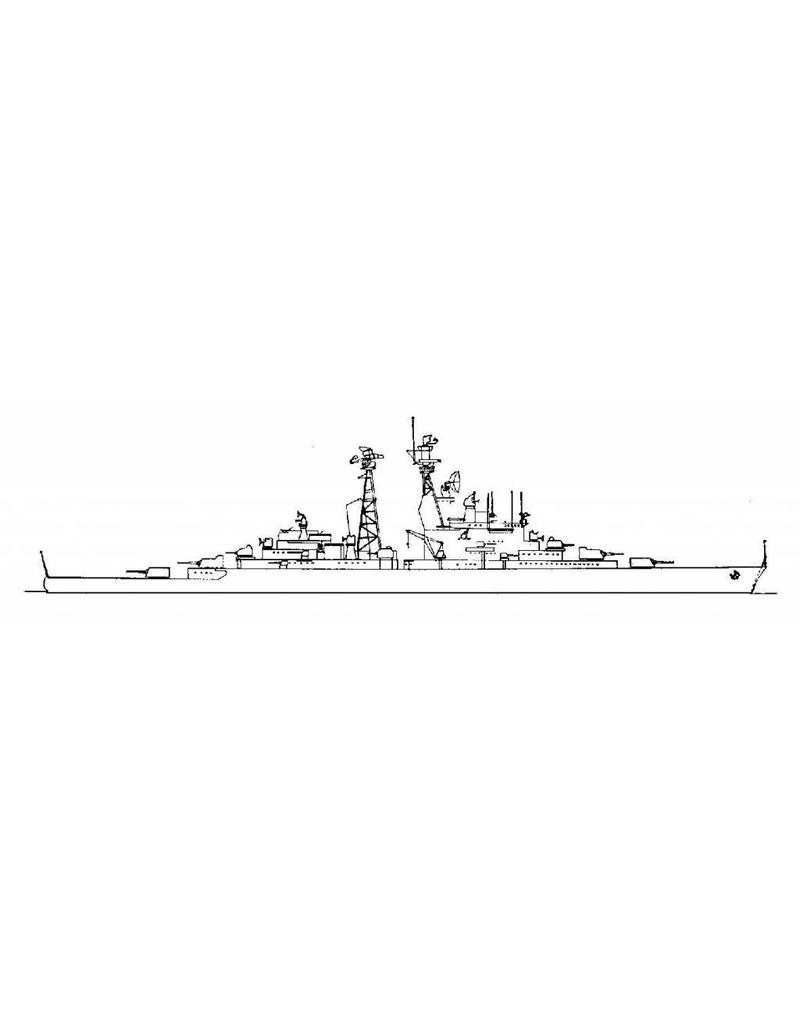

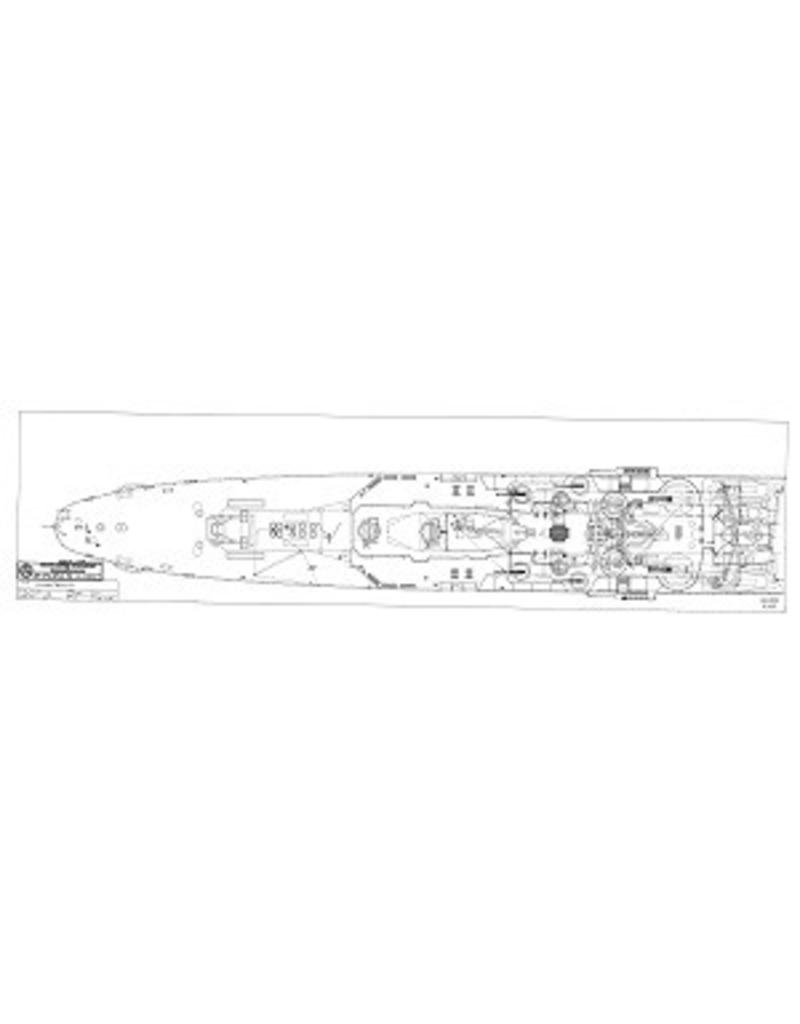

frames; side view; decks; rearmament of Zeven Provincien; sheets 3 and 4 combined on one sheet |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of A0 sheets |
3 |
|
Number of A1 sheets |
1 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
4 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
265 |
|
Details |
total length 184 cm |
|
Comments |
pages 3+4 combined |
