| Article number: | 10.11.039 |
The Dutch submarine Hr.Ms. O 24, originally known as K XXIV (or K 24), was an important vessel in the Royal Netherlands Navy, with a distinguished career during the Second World War. Below is a detailed overview of this submarine:
Type: Submarine (O 21 class)
Original name: K XXIV (originally intended for service in the Dutch East Indies)
Renamed: O 24 (May 1940)
Class: O 21 class
Built by: Rotterdamsche Droogdok Maatschappij (RDM), Rotterdam
Launched: 18 May 1939
Commissioned: 10 July 1940 (in England)
Decommissioned: 1955
Displacement:
approx. 990 tonnes (above water)
approx. 1,205 tonnes (submerged)
Length: 77.7 metres
Beam: 6.5 metres
Draught: 3.8 metres
Propulsion:
2 diesel engines (surface)
2 electric motors (for submerged operation)
Speed:
19 knots (surface)
9 knots (submerged)
Armament:
8 torpedo tubes (4 forward, 4 aft)
1 x 88 mm deck gun
Anti-aircraft machine guns
At the outbreak of the Second World War, the O 24 was not yet fully completed.
Together with HNLMS O 21, it managed to escape to England via the port of Vlissingen on 13 May 1940 to prevent the Germans from seizing the vessel.
It was completed at a British shipyard (Thornycroft, Southampton) and commissioned into the Royal Navy on 10 July 1940 under the Dutch flag.
O 24 was active in numerous areas:
North Atlantic
Mediterranean Sea
Indian Ocean
South China Sea
Sank several ships, including:
German, Italian and Japanese transport ships
Support vessels
Total wartime achievements include:
13 ships sunk
Numerous successful patrols, often under difficult conditions
One of the most successful Dutch submarines during the Second World War
Notable commanders: including Lieutenant Commander Jules Heringa
Part of combined Allied operations
After the war, O 24 was also used as a training vessel until it was decommissioned in 1955
Decommissioned in 1955
Scrapped in 1962
The O 24 is one of the most iconic Dutch submarines from the Second World War and is often cited in naval history as an example of Dutch commitment in exile.
Specifications:
|
Drawing number |
10.11.039 |
|
Author |
J.TH.M. Buter |
|
Description |

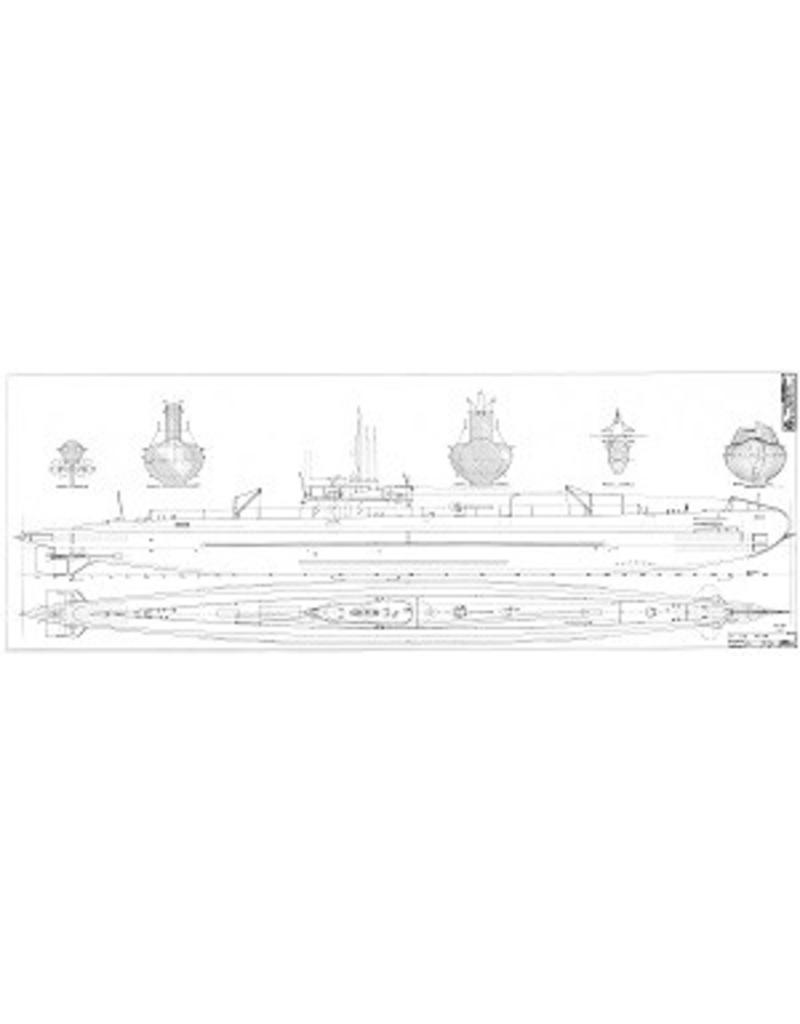

Royal Netherlands Navy submarine "0 24" (1940) ex "K XXIV" |
|
Quality |

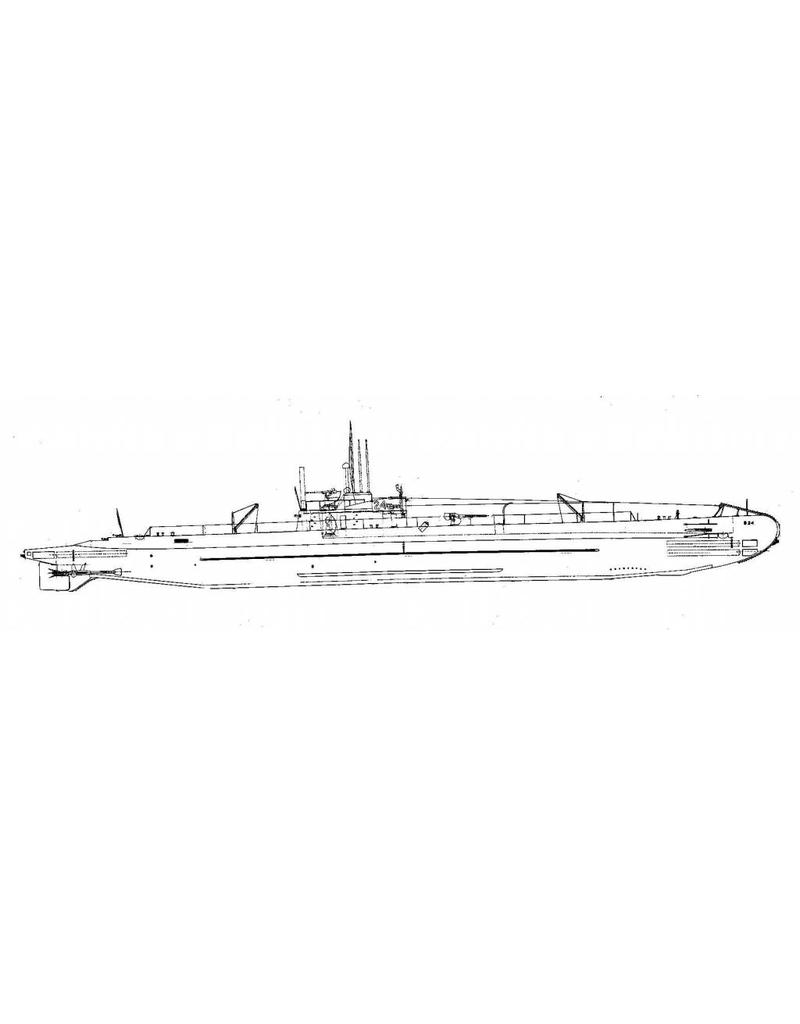

frames; side view; top view; cross-sections |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
0 |
|
Number of A0 sheets |
1 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Details |
Overall length 156 cm |
|
Remarks |
