| Article number: | 10.11.090 |

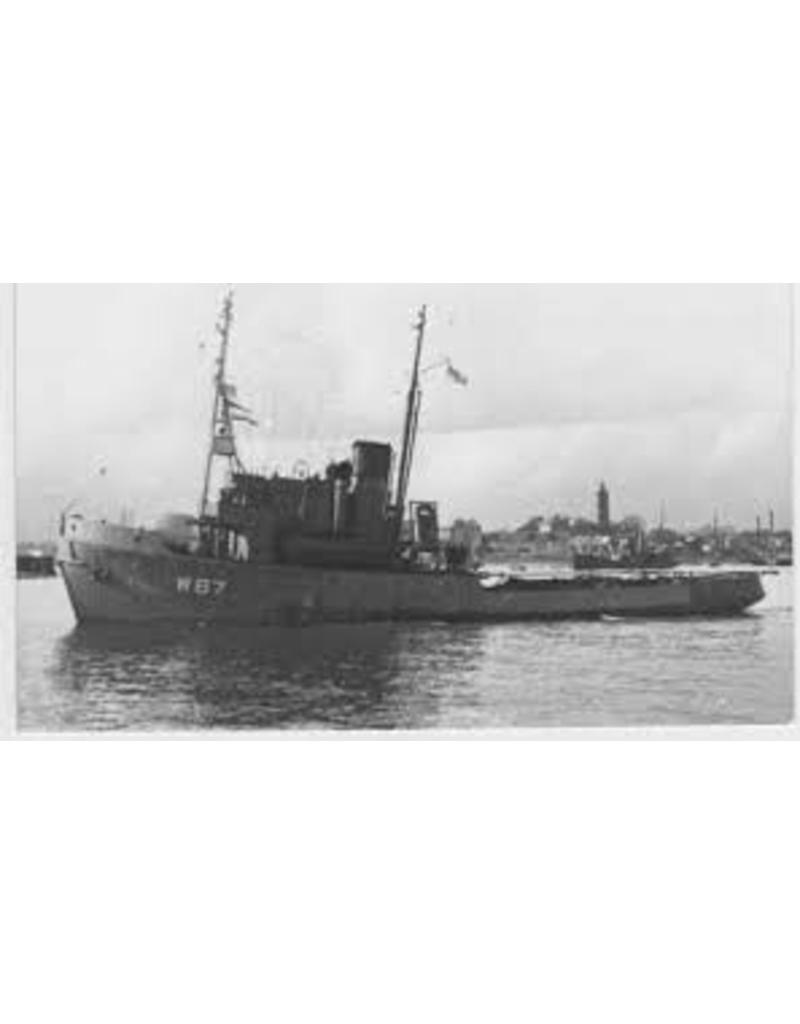

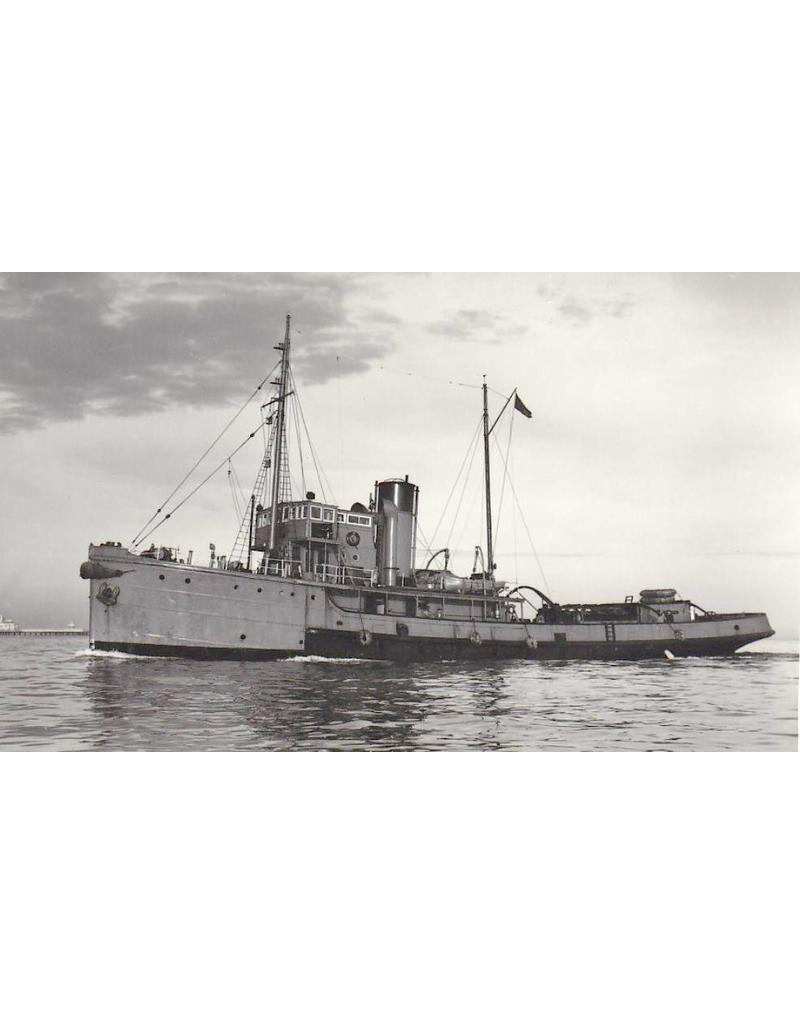

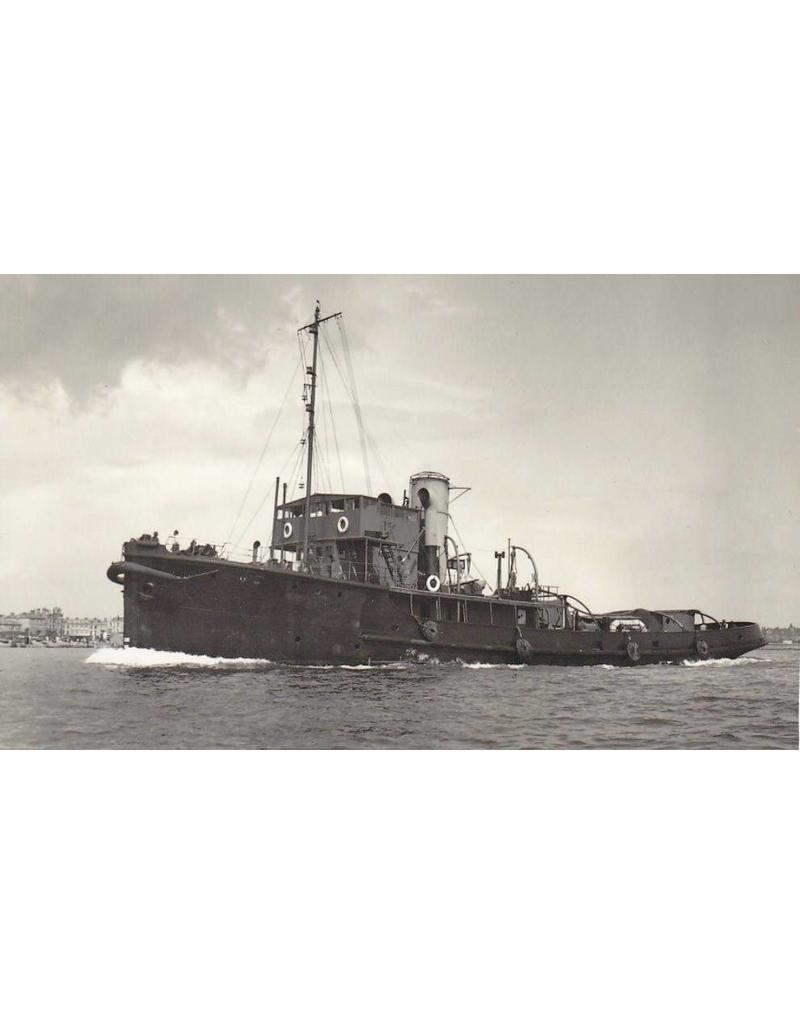

The St. Abbs is an ocean-going rescue tug of the "Saint-class rescue tug" that was built for the Admiralty (Royal Navy) during/after the First World War.
Builder: Ferguson Brothers (Port Glasgow) Ltd, yard no. 242, Port Glasgow.
Date launched: 17 December 1918. Commissioned (registered) 5 March 1919.
Pennant number: W 02.
Displacement: approx. 465 grt, 860 tons displacement.
Dimensions: length approximately 135.4 ft (≈ 41.3 m), beam approx. 29.1 ft (≈ 8.9 m), draught approx. 13.7 ft (≈ 4.2 m).
Propulsion: 1 propeller, three-cylinder triple-expansion (TE) steam engine, nominal 116 nhp / approx. 1,200 ihp, speed approximately 12 knots.
Armament (design): one 12-pounder gun.
The St. Abbs was initially deployed as a rescue tug and later also as a fleet tug and target towing vessel.
Location: registered in 1934 as based in Portsmouth.
Loss: sunk by German bombing near Dunkirk on 1 June 1940, coordinates approximately 51° 05′ N, 2° 27′ E
The Saint-class was developed because the Royal Navy needed stronger ocean-going rescue tugs during the First World War.
Although the St. Abbs was built in 1918/19, she still served in the Second World War and tragically lost many crew members in the 1940 bombing.
|
Drawing number |
10.11.090 |
|
Definition |
"St. Abbs"; Admiralty "Saint"-class rescue tug (1919) |
|
Quality |

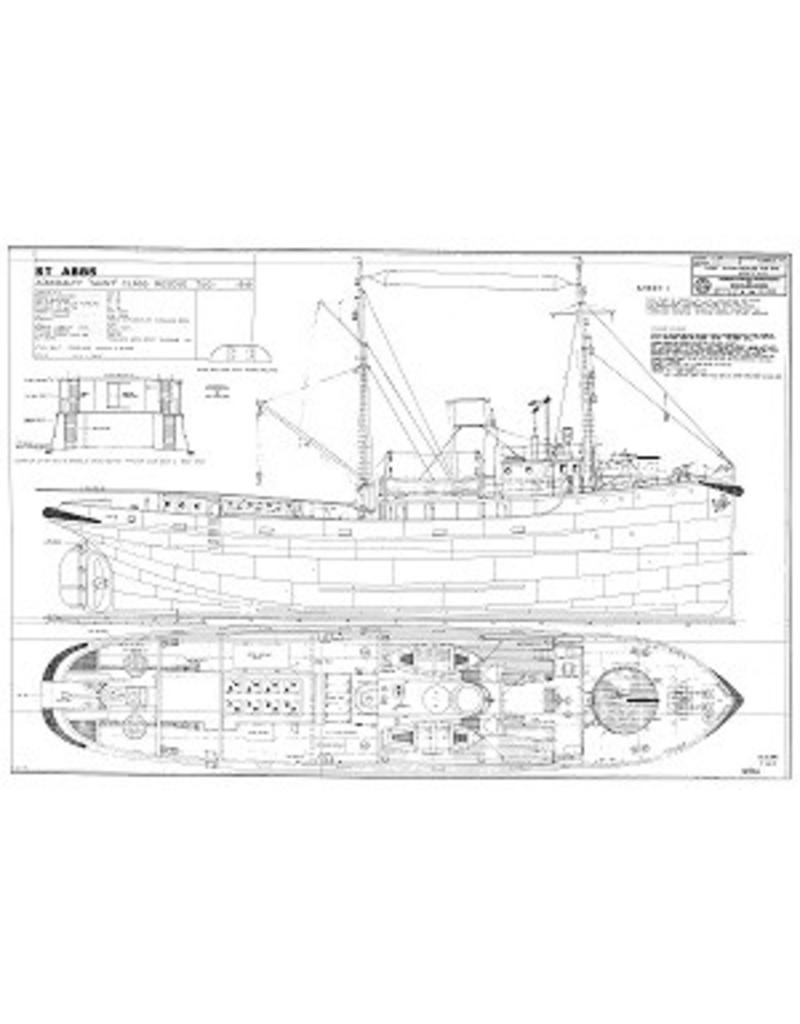

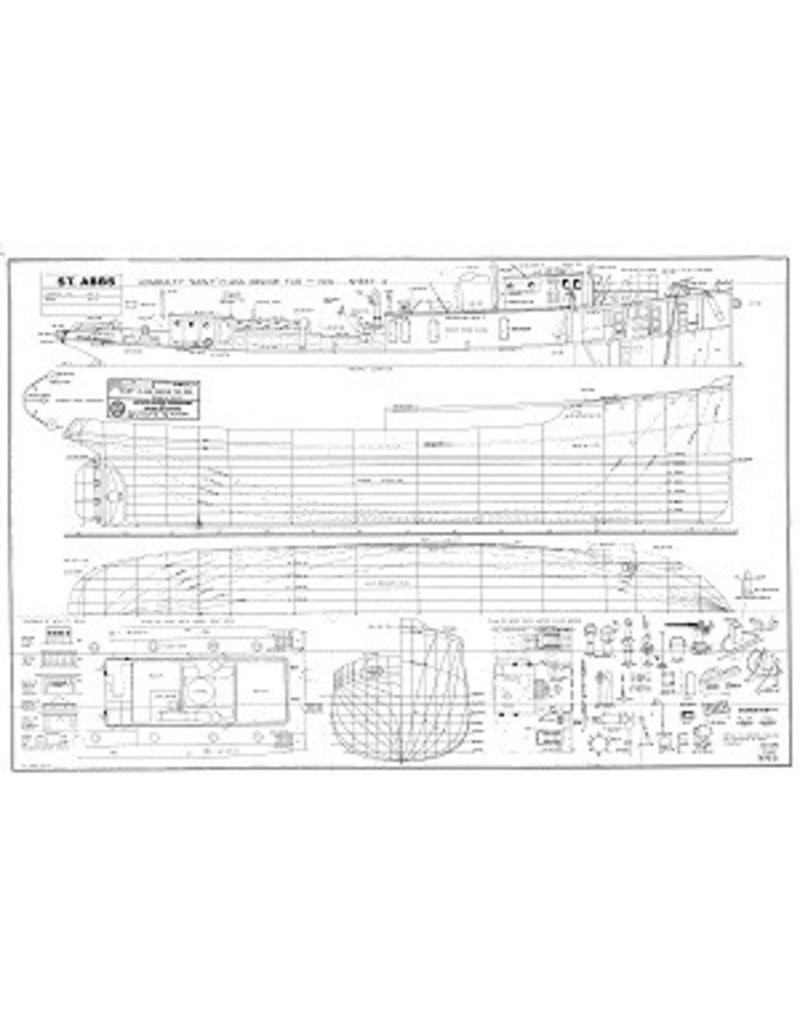

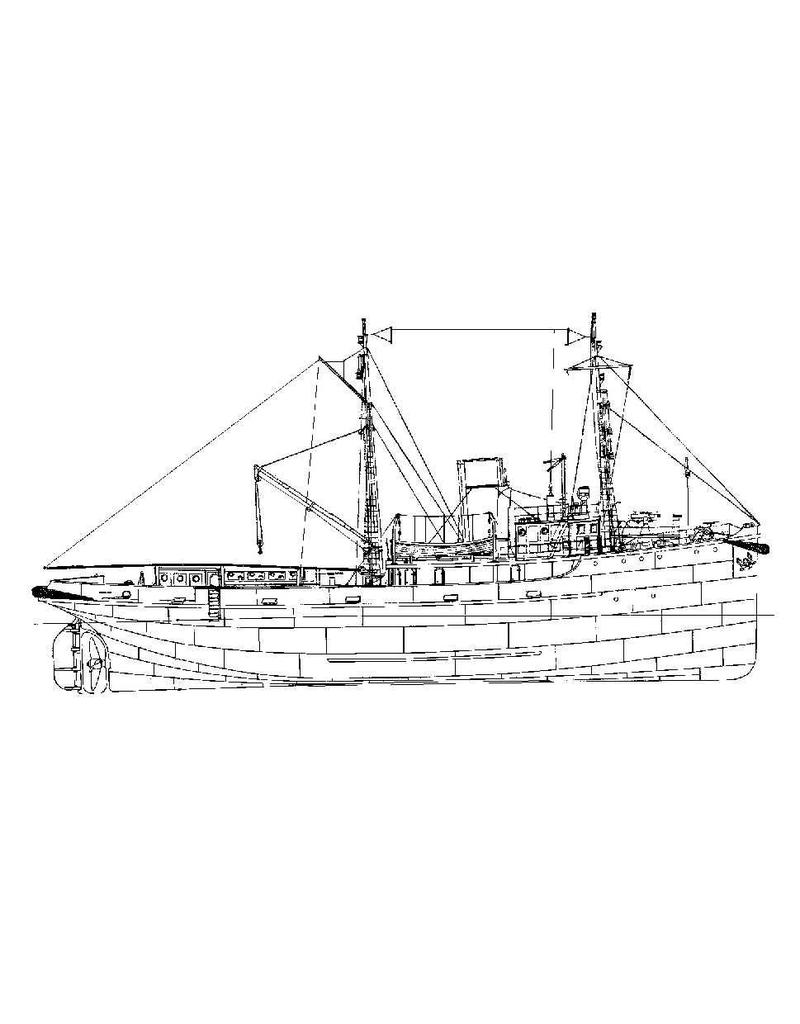

sp/lines; side view; deck plan; details; details at various scales; English text |
|
Scale |
1: 48 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total drawing sheets |
2 |
|
Number of sheets A4 Text |
0 |
|
Weight in grams |
105 |
|
Details |
loa 91 cm |
|
Comments |
Artek 0028 |
