MBT 10.13.009 motor trawler "Arie Jacob" KW-149 (1961) "Bellatrix" KW139

Drawing number

10.13.009

Author

D.Veerman

Description

motor trawler "Arie Jacob" KW-149 (1961) "Bellatrix" KW139

Quality

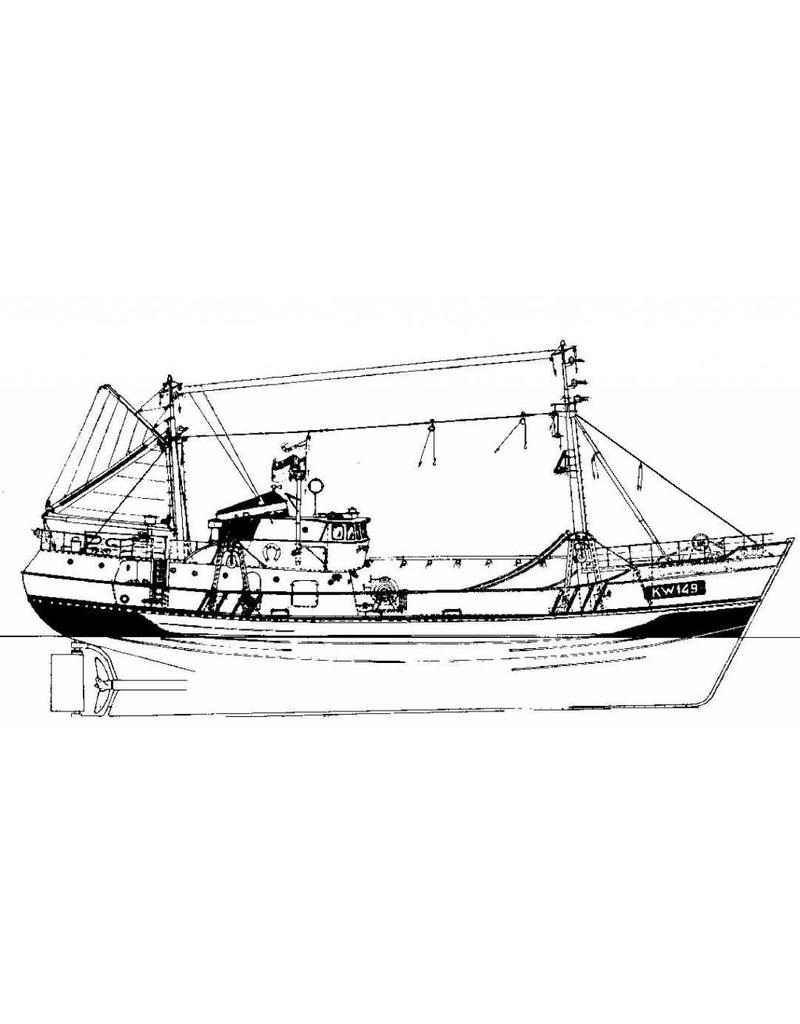

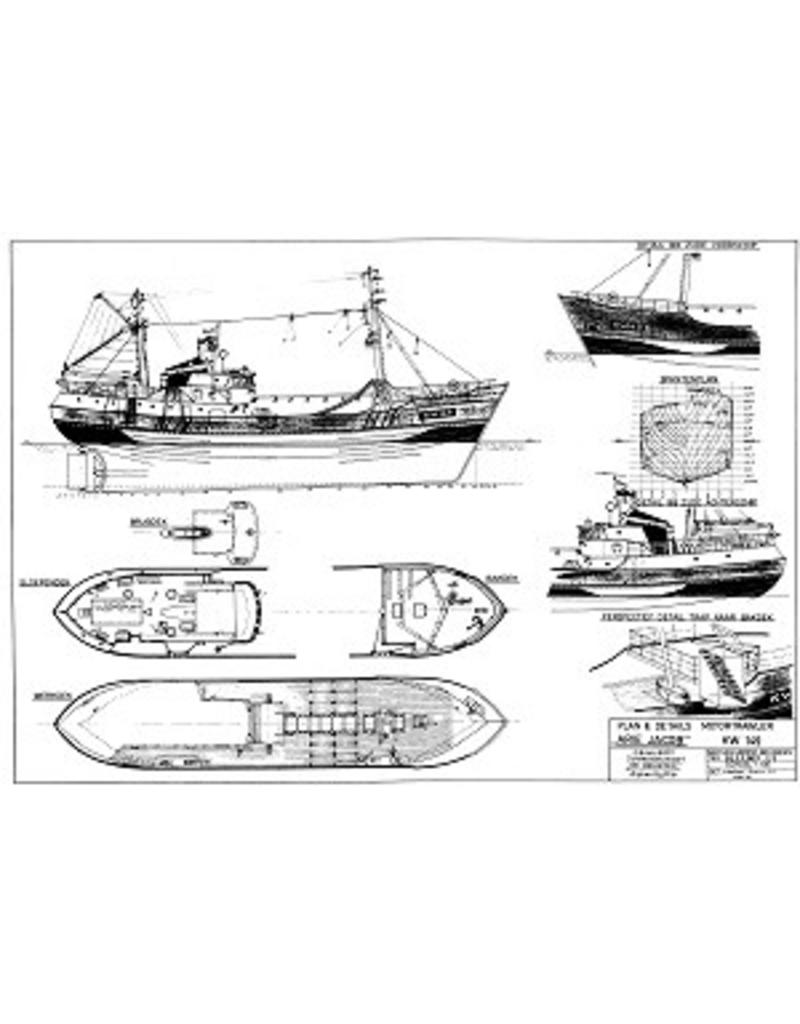

frames; side view; deck plans; some details

Scale

1 : 100

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

1

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

1

Number of A4 text sheets

0

Weight in grams

45

Particulars

l.o.a. 34 cm

dM 1968/7

Article copy: 12.13.009 (2 pp)

owner of "Arie Jacob" was NV Katwijksche Rederij en Haringhandel v.h. A. van Dulk

The sister ship "Bellatrix" was sold to S.Africa in 1965

Remarks
