| Article number: | 10.13.004 |
Specifications :
|
Drawing number |
10.13.004 |
|
Author |
A.J. Boes |
|
Description |

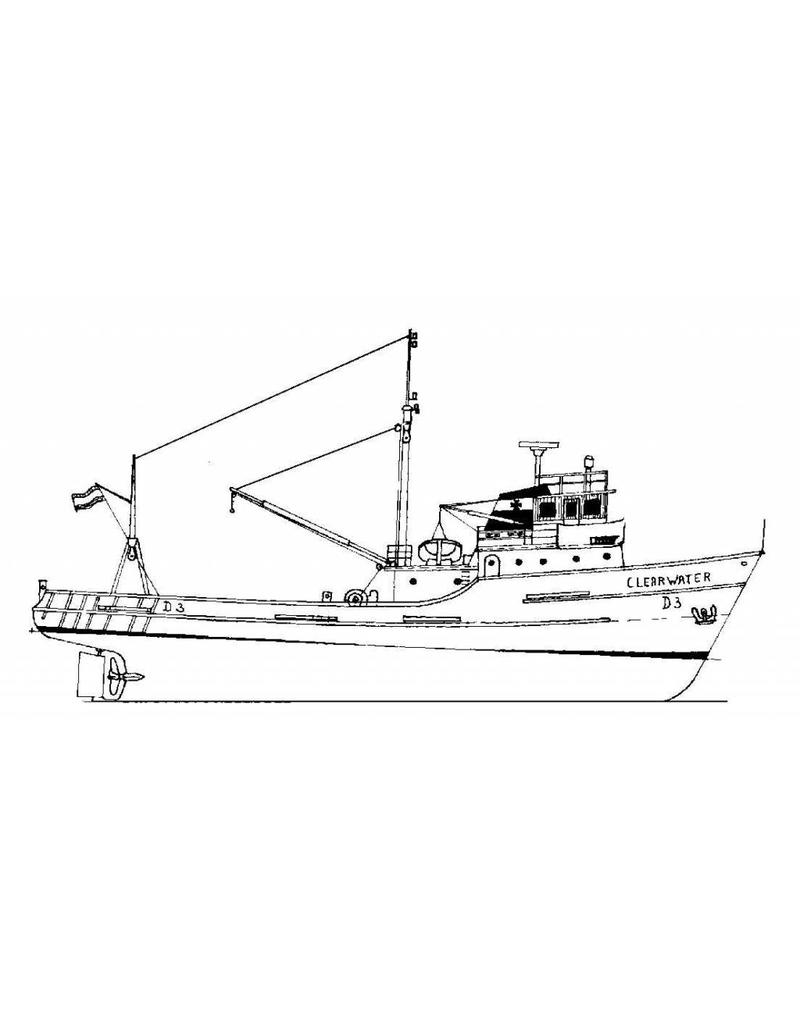

stern trawler "Clearwater" (1963) - Shamrock Shipping Co, Dublin |
|
Quality |

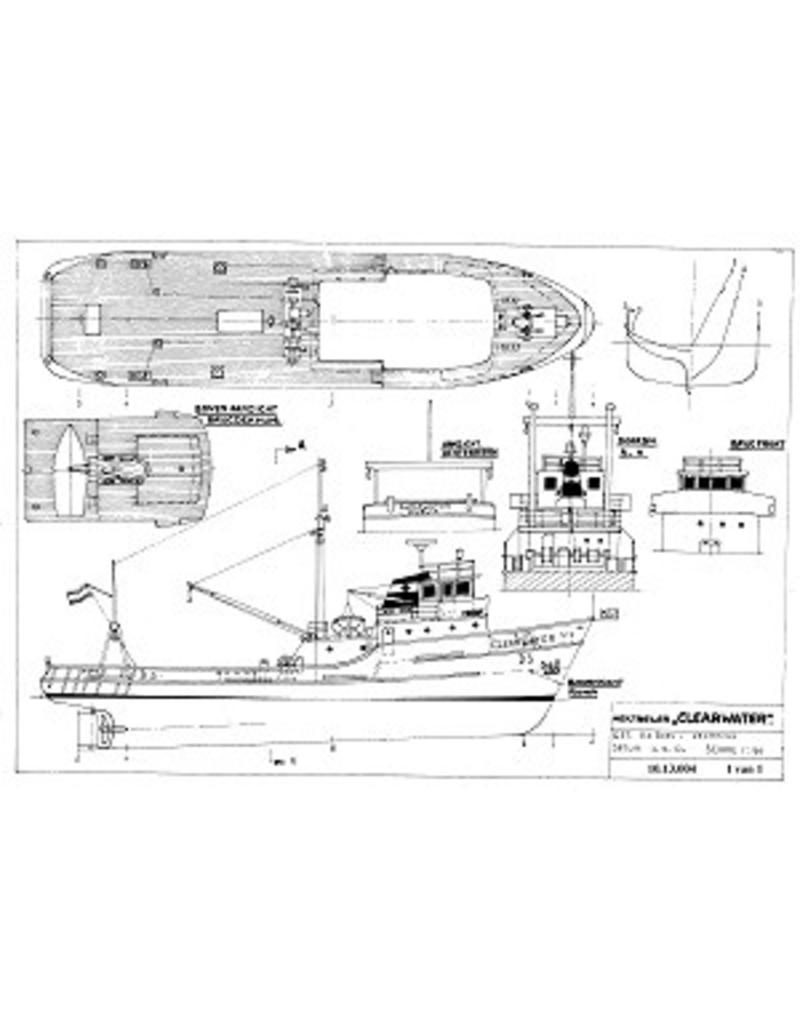

6 frames; side view; deck plans; some details |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
1 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
35 |
|
Particulars |
l.o.a. 29 cm |
|
Remarks |
