| Article number: | 10.13.010 |
Specifications :
|
Drawing number |
10.13.010 |
|
Author |
D.Veerman |
|
Description |
stern trawler "Cornelis Vrolijk Fzn" SCH 171(1960), "Cornelis van den Dulk" KW 144 |
|
Quality |

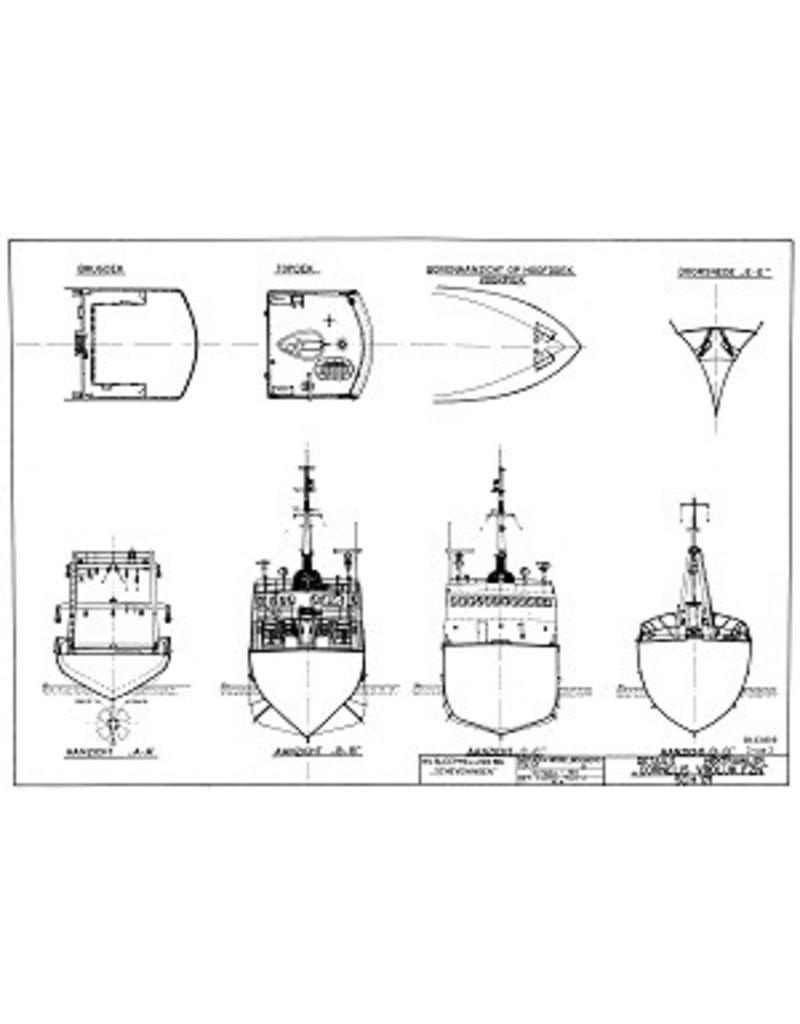

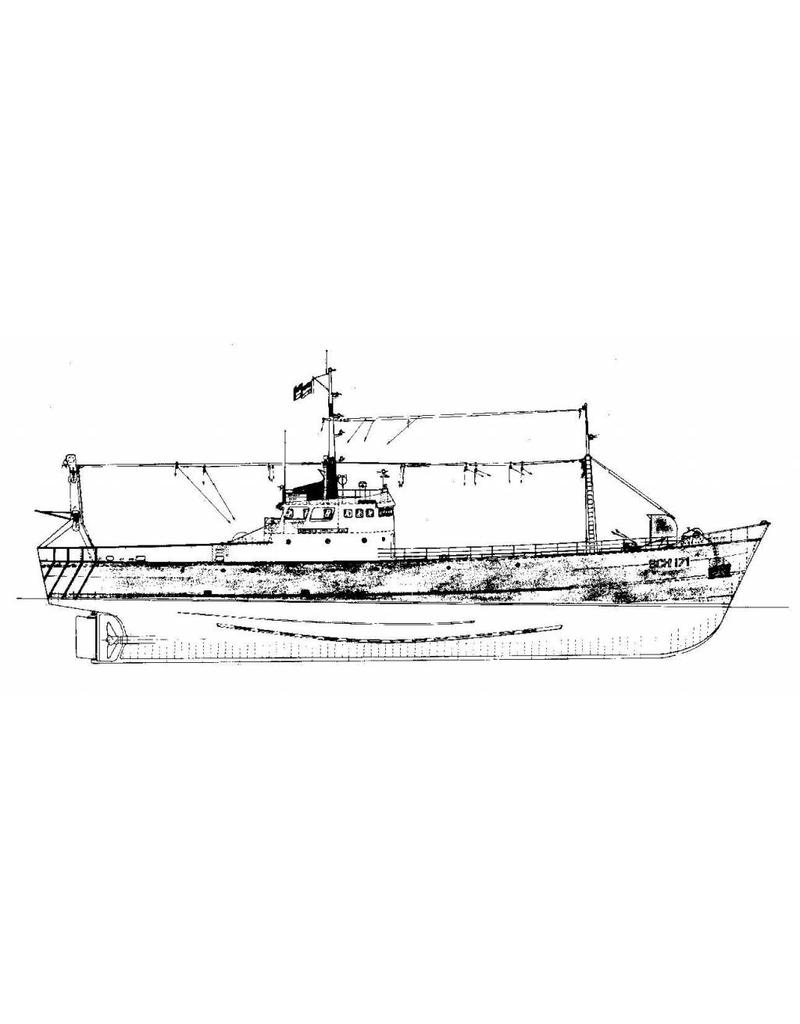

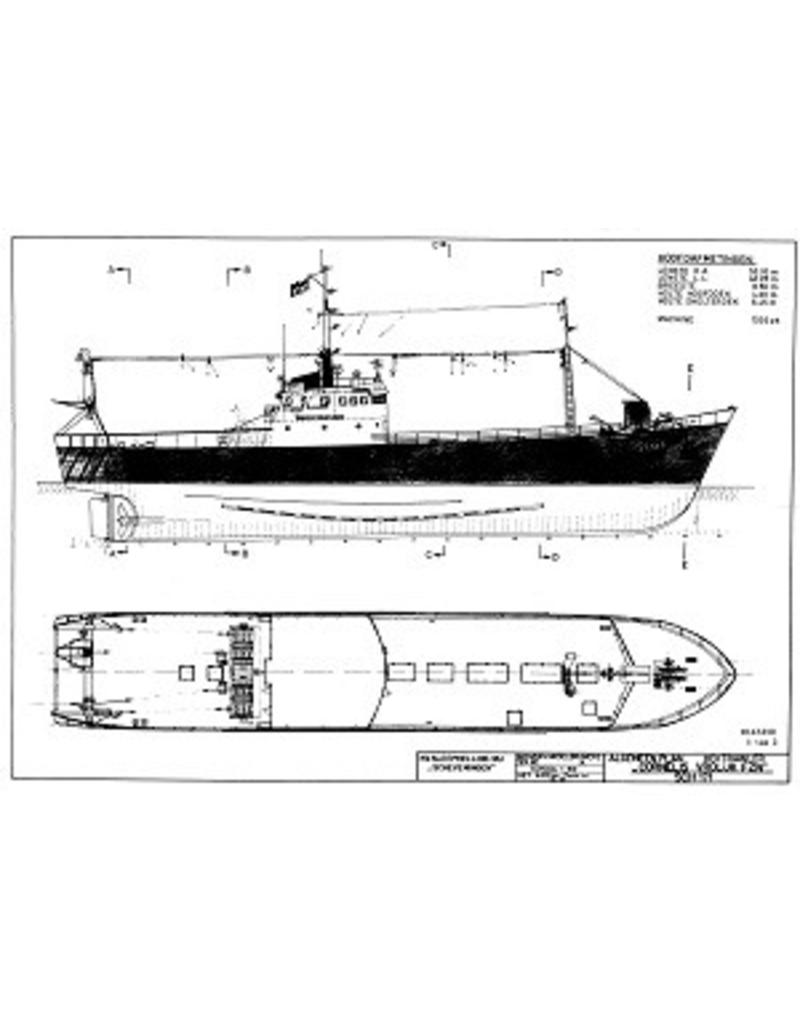

sections; side view; deck plan |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
2 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Details |
l.o.a. 50,5 cm |
|
Remarks |
