| Article number: | 10.13.001 |
Specifications :
|
Drawing number |
10.13.001 |
|
Author |
J. van Rijswijk |
|
Description |
steam trawler IJM.1"' Tzonne" (1949) - Petten II Fishing Co. (1951); ex SCH 93 |
|
Quality |

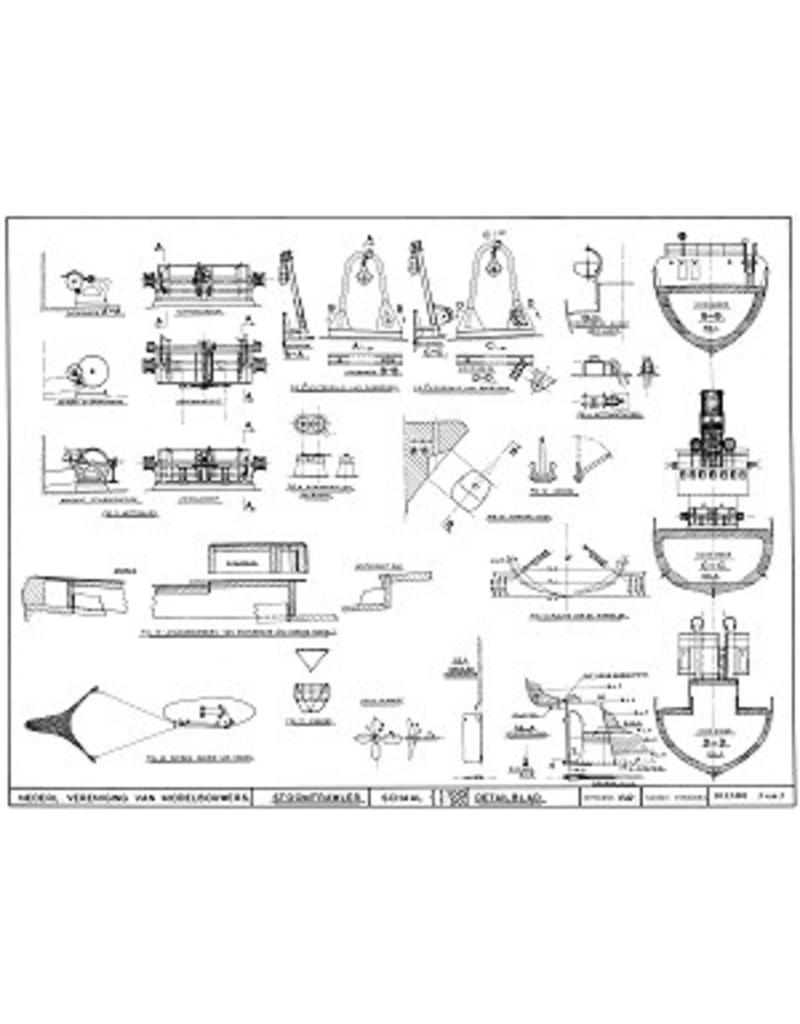

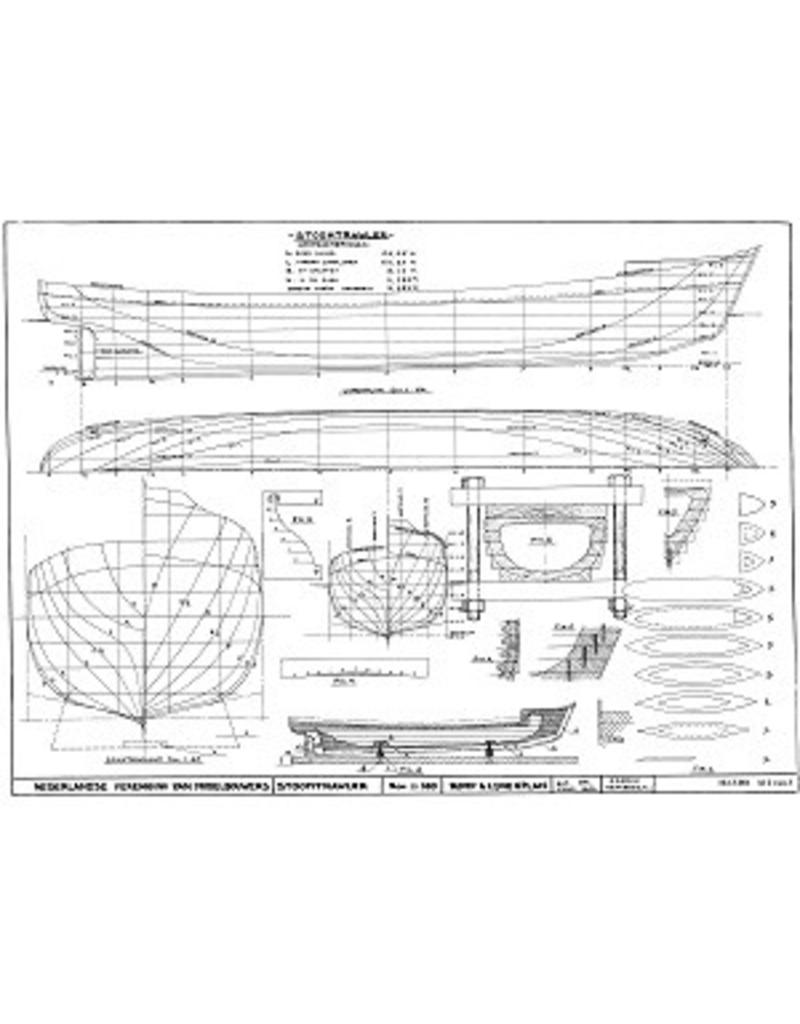

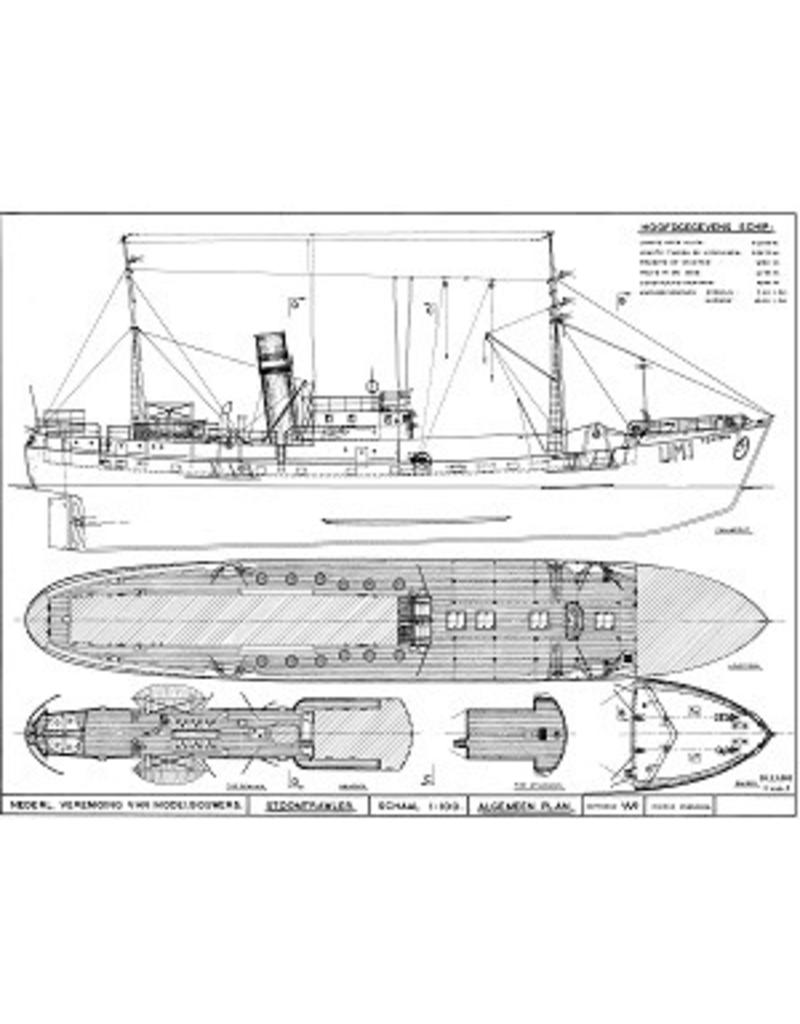

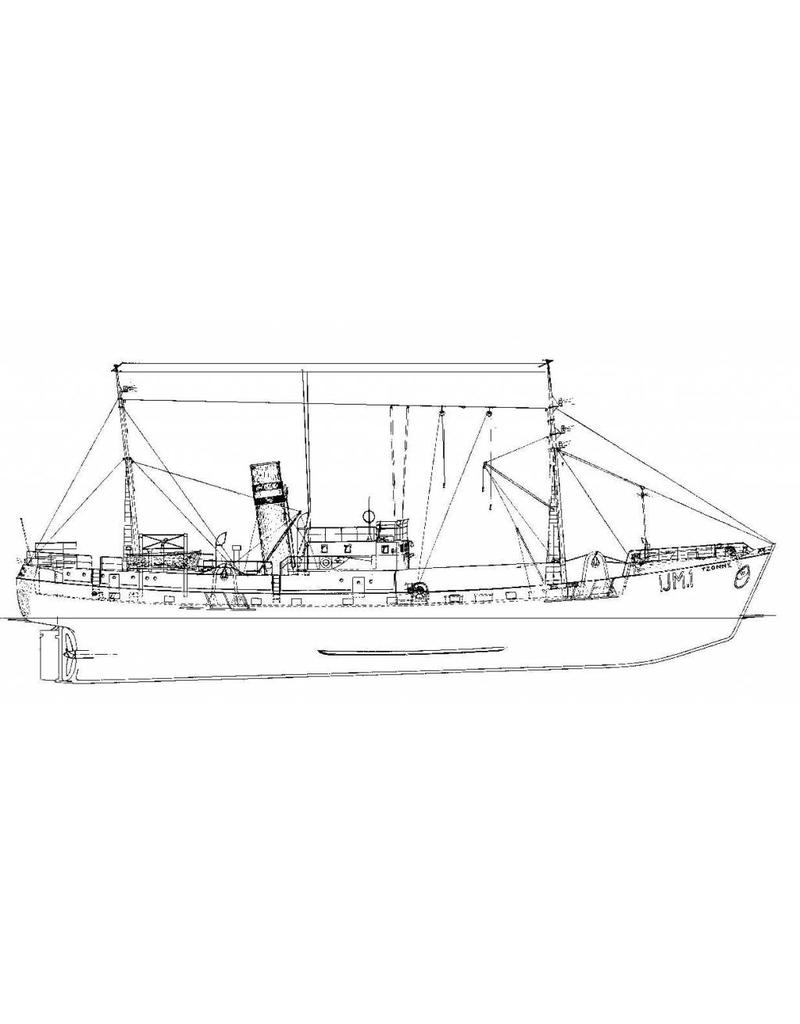

sp/lines; side view; deck plans; assembly instructions; details |
|
Scale |
1 : 100 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
3 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
85 |
|
Particulars |
l.o.a. 46.5 cm |
|
Notes |
