MBT 10.15.046 passenger ship ss "Alkmaar" - Alkmaar Packet, C. Bosman

Drawing number

10.15.046

Author

H. Tjaberinga

Description

passenger ship ss "Alkmaar" - Alkmaar Packet, C. Bosman

Quality

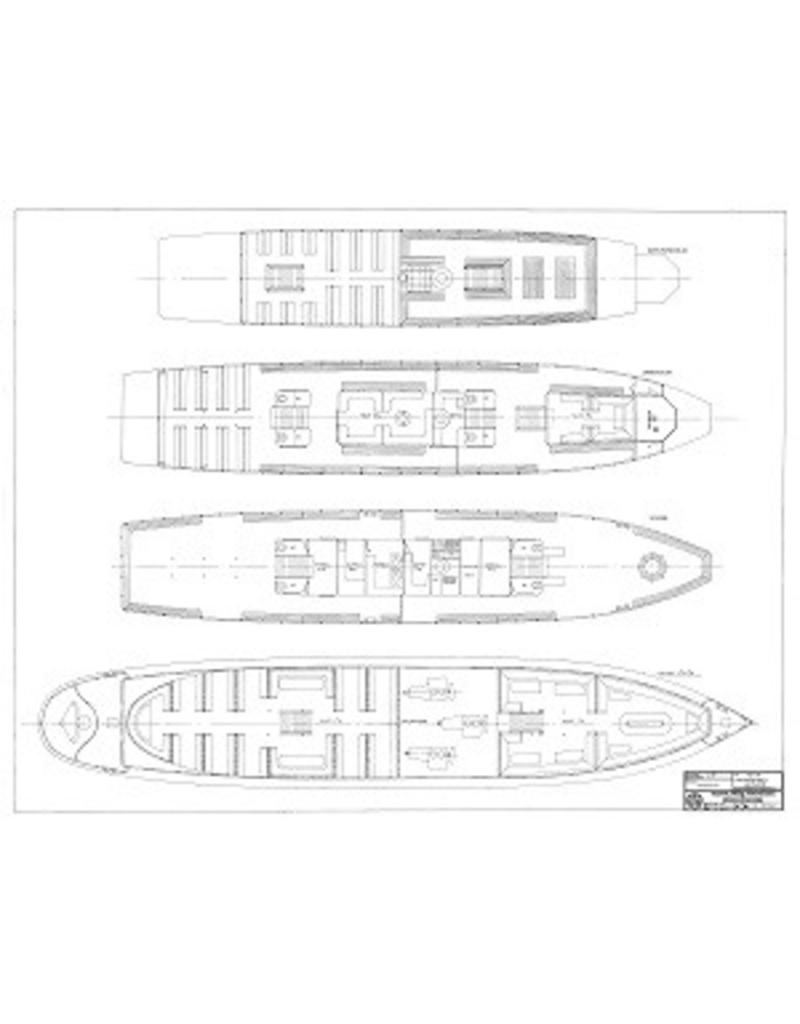

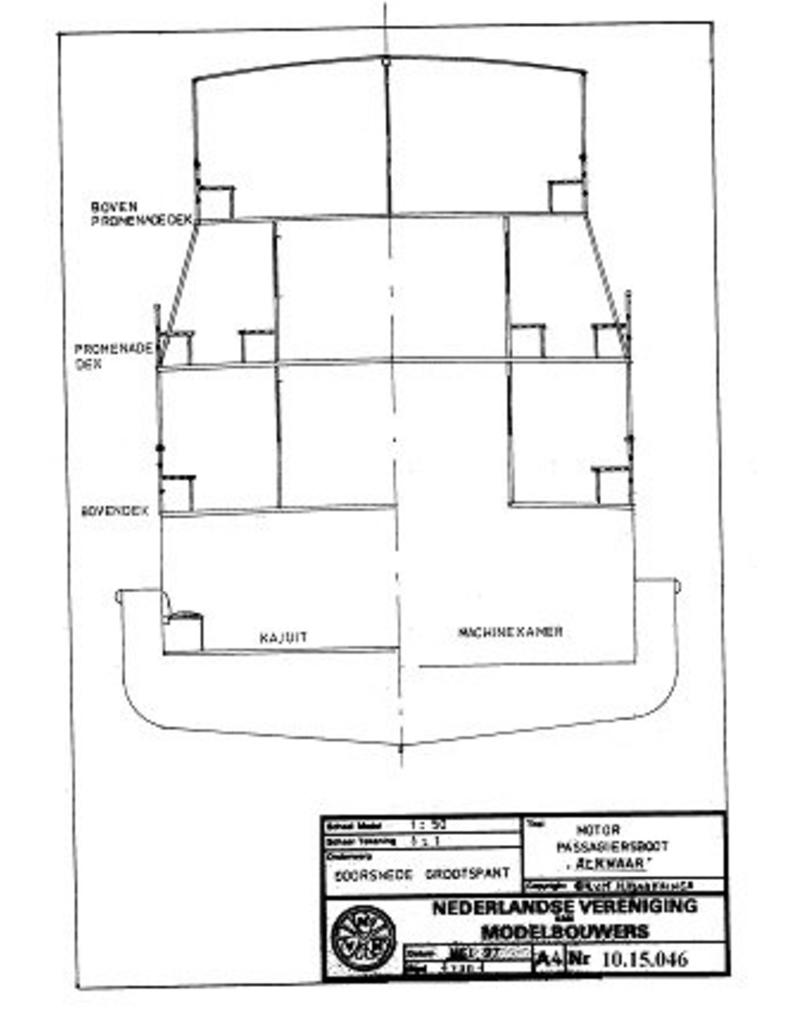

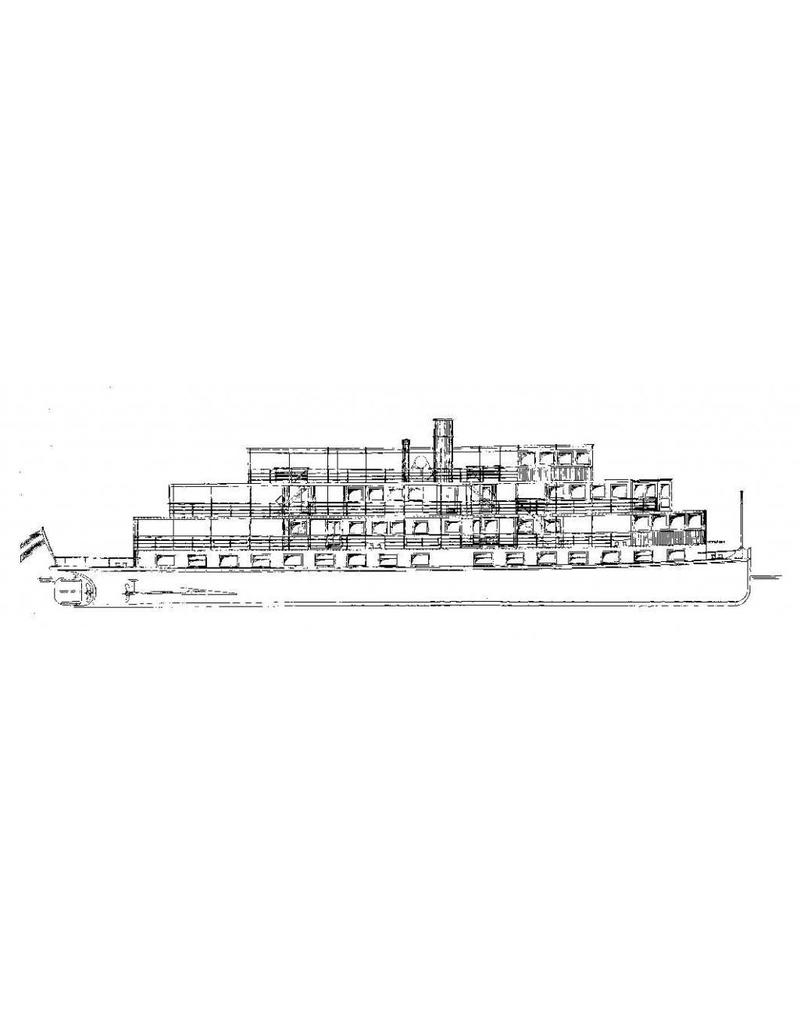

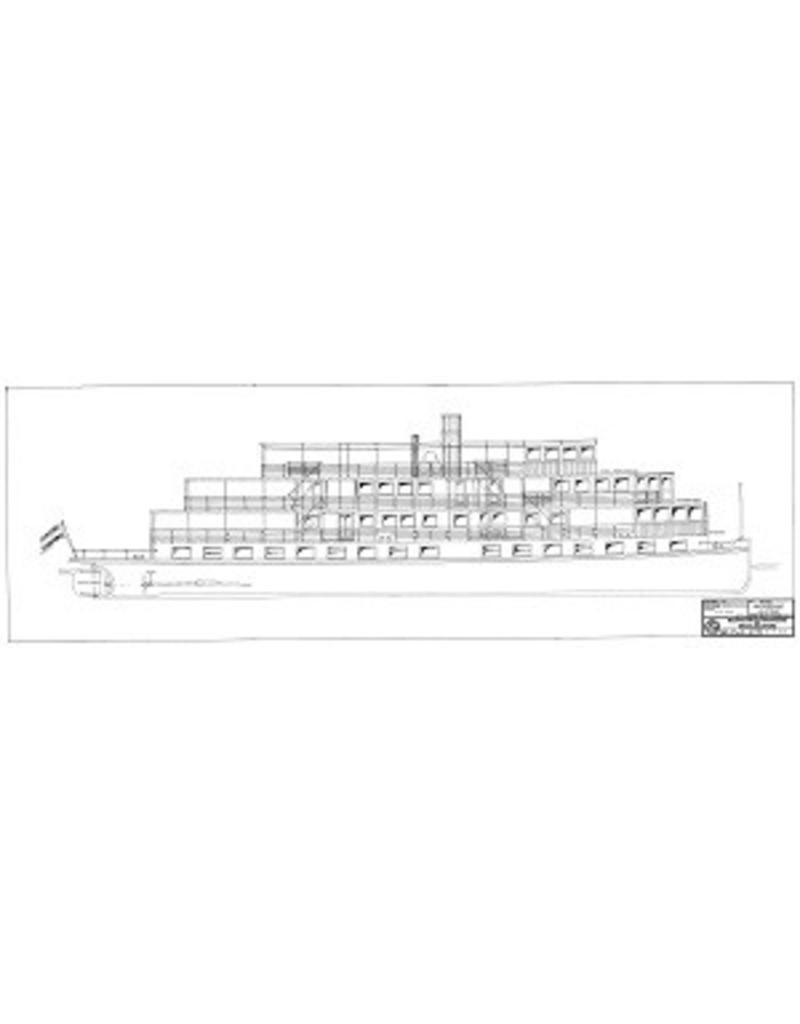

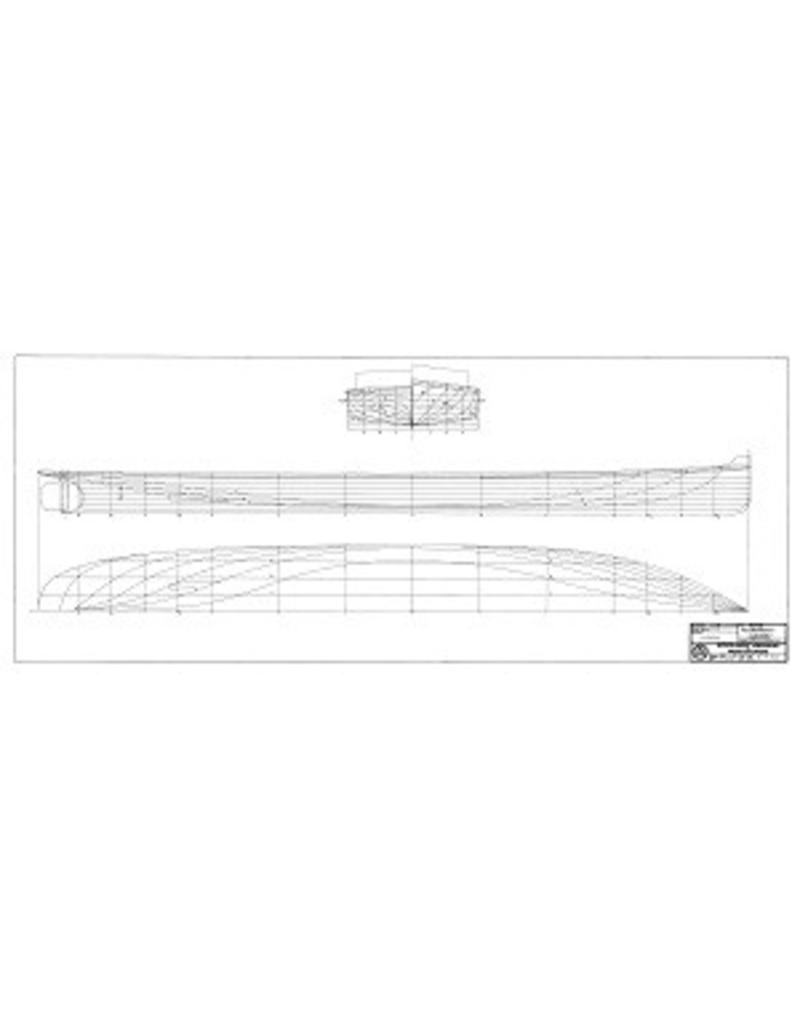

frames/lines; side view; deck plans; cross-section

Scale

1 : 50

Number of sheets A00

0

Number of sheets A0

3

Number of sheets A1

0

Number of sheets A2

0

Number of sheets A3

0

Number of sheets A4

1

Total number of drawing sheets

4

Number of A4 text sheets

0

Weight in grams

150

Particulars

l.o.a. 89 cm

The name may not be correct; The ships of this company bore the name "Alkmaar Packet", followed by a number.

Remarks
