| Article number: | 10.16.024 |
Specifications :
|
Drawing number |
10.16.024 |
|
Description |
motor sailing yacht Dagmar (1987) |
|
Quality |

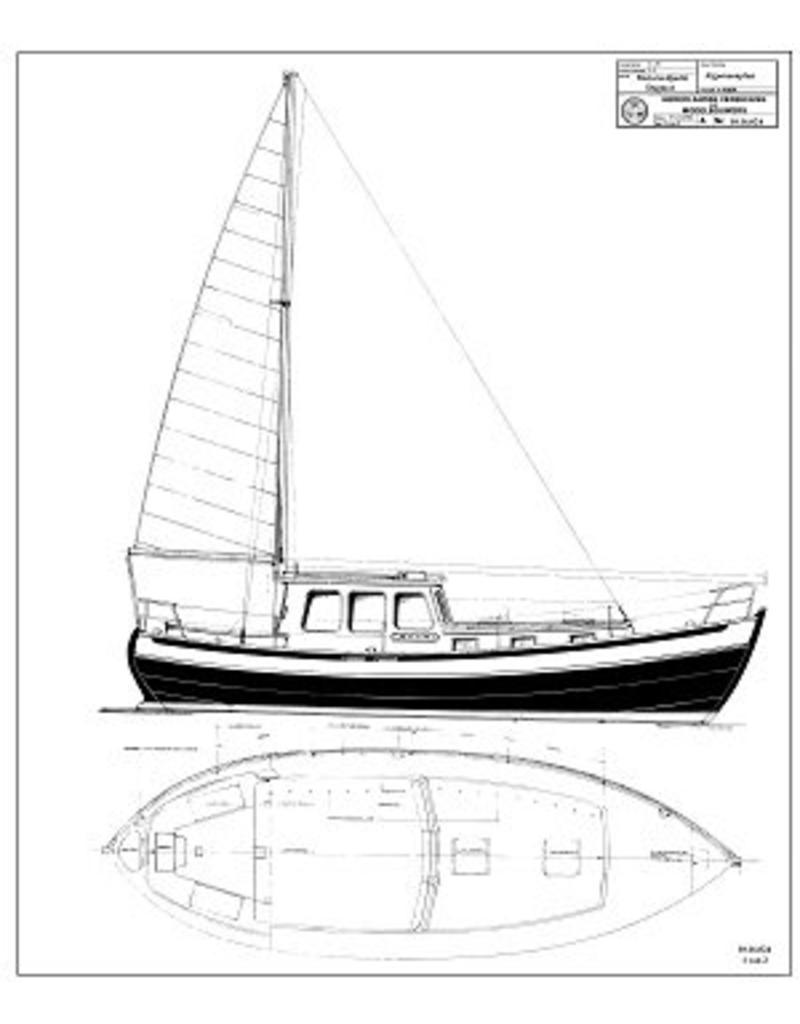

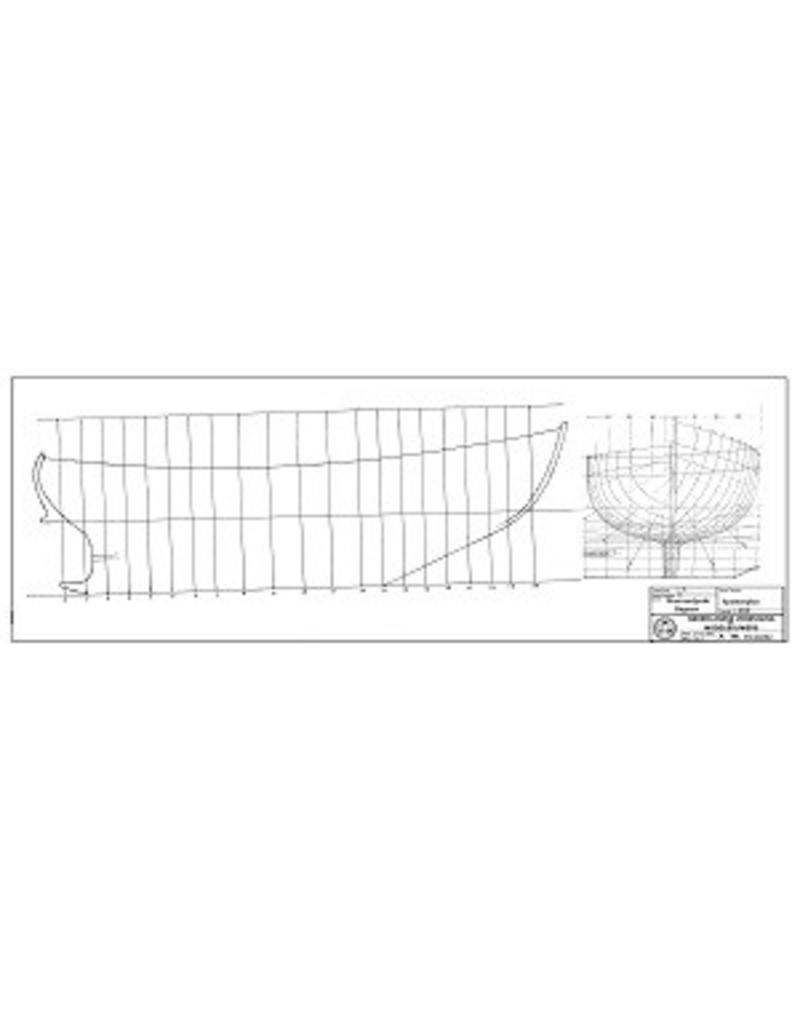

general arrangement plan; frame plan |
|
Scale |
1 : 25 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
85 |
|
Particulars |
l.o.a. 48 cm |
|
Remarks |
artek 4556 |
