| Article number: | 10.18.016 |
Specifications :
|
Drawing number |
10.18.016 |
|
Description |

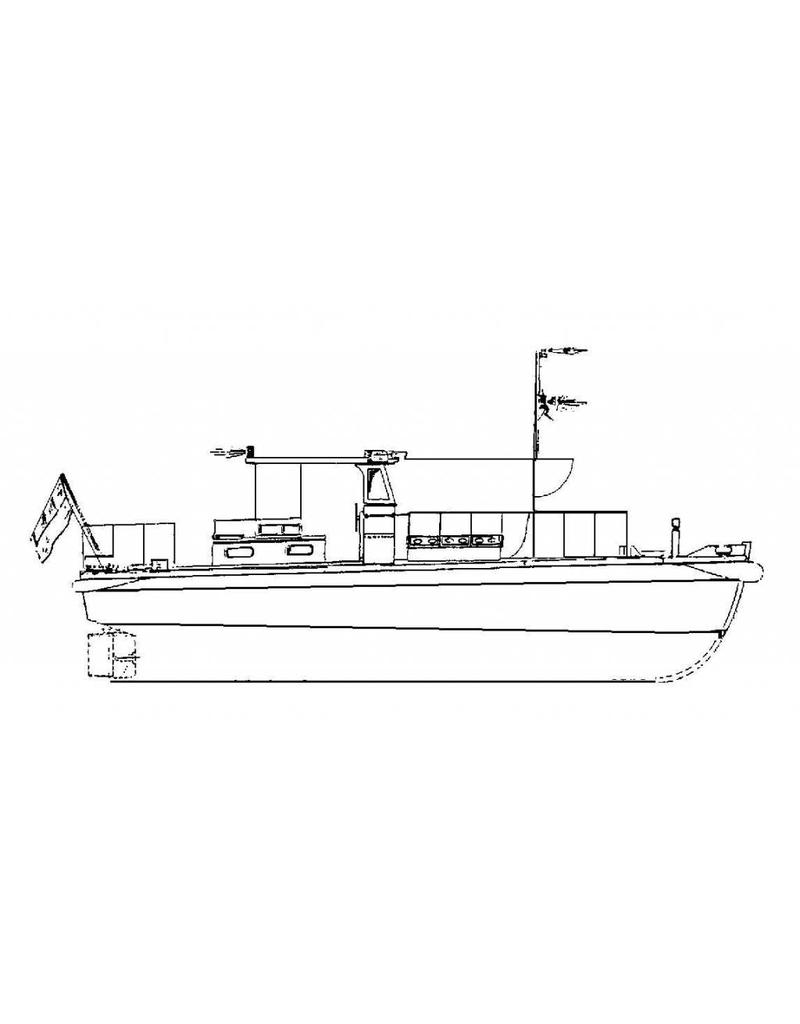

Indonesian wooden pilot boat (1952) |
|
Quality |

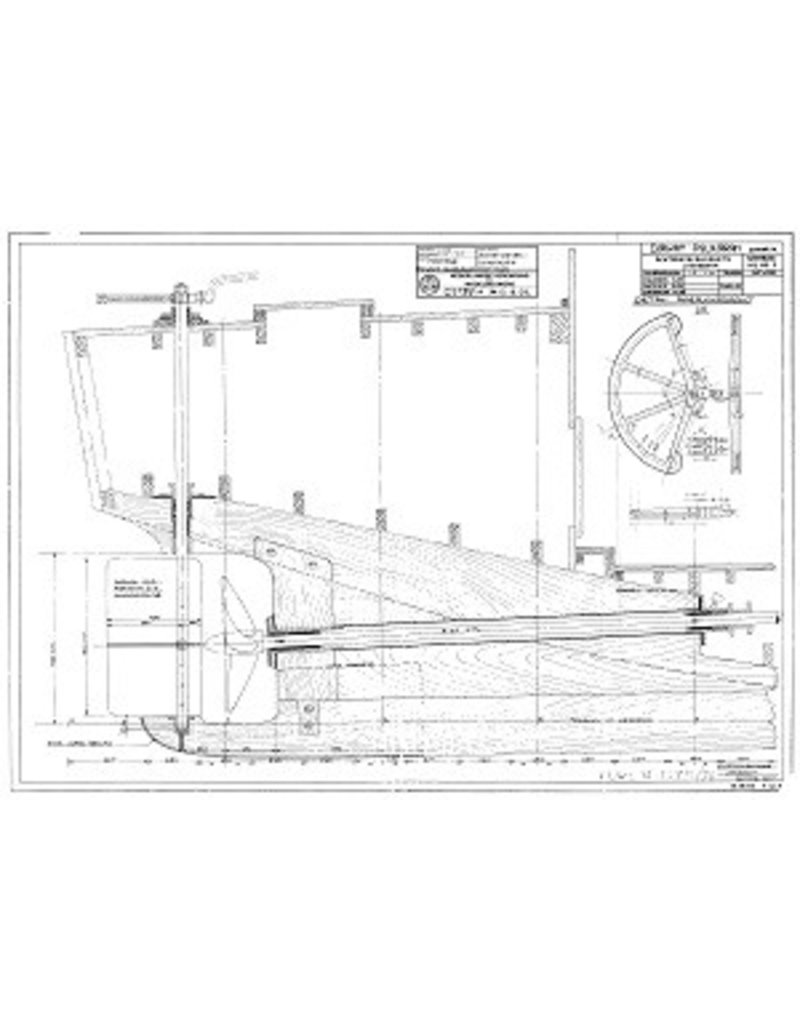

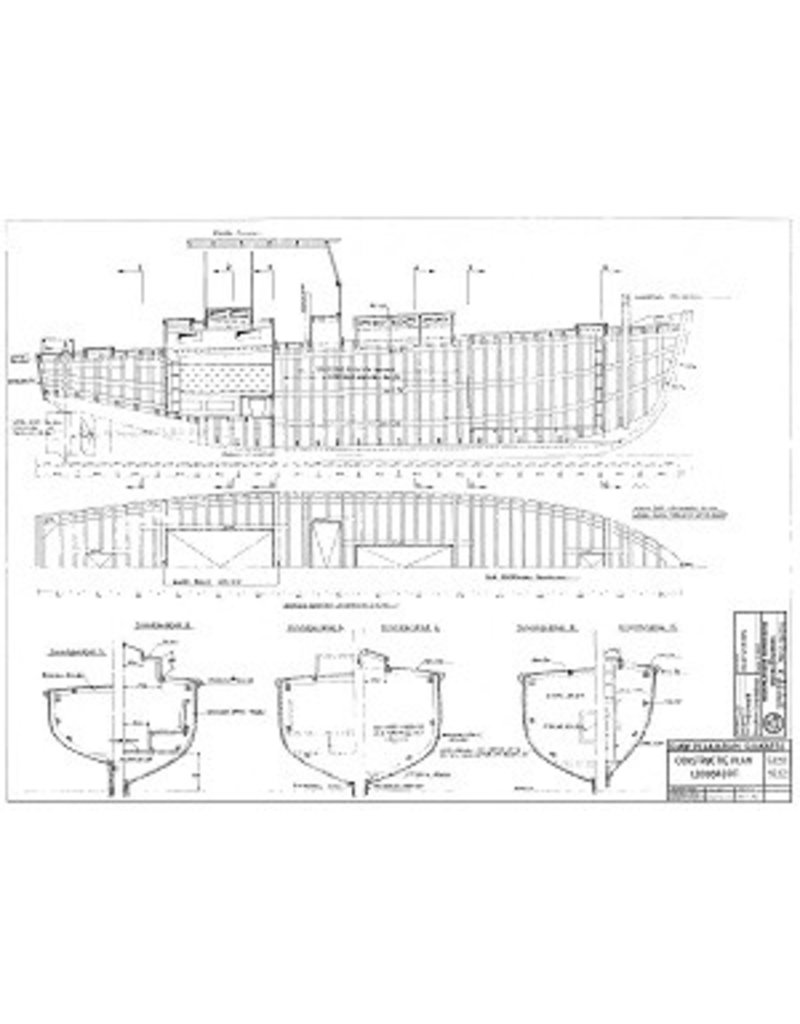

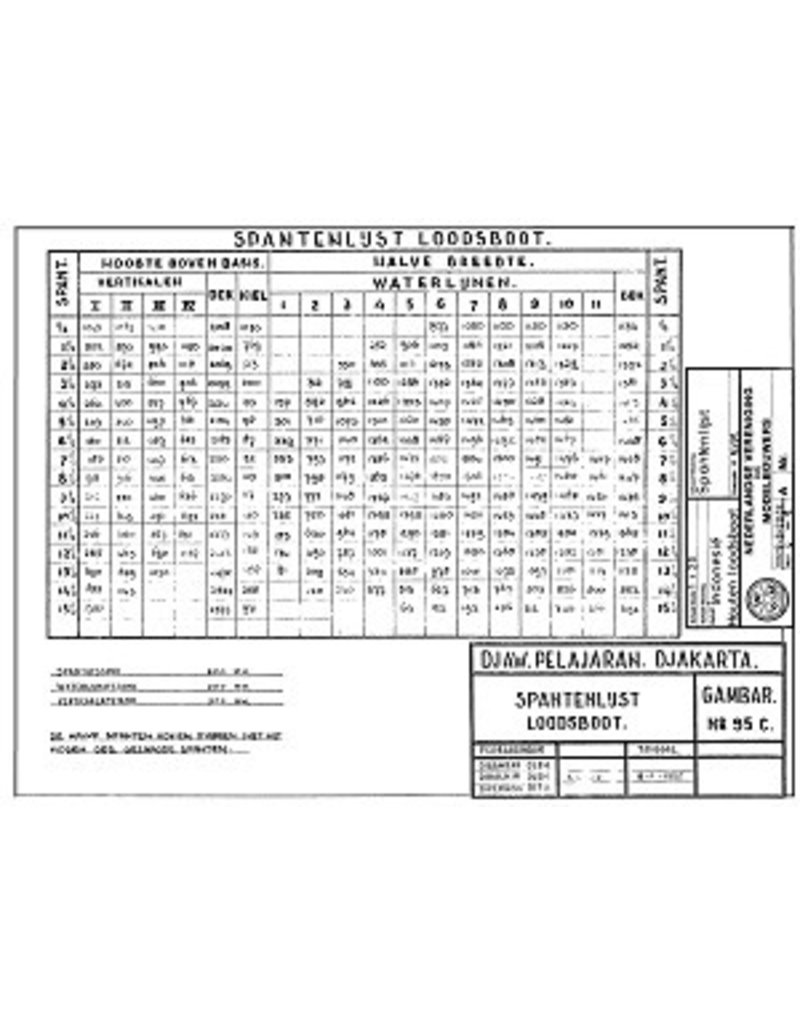

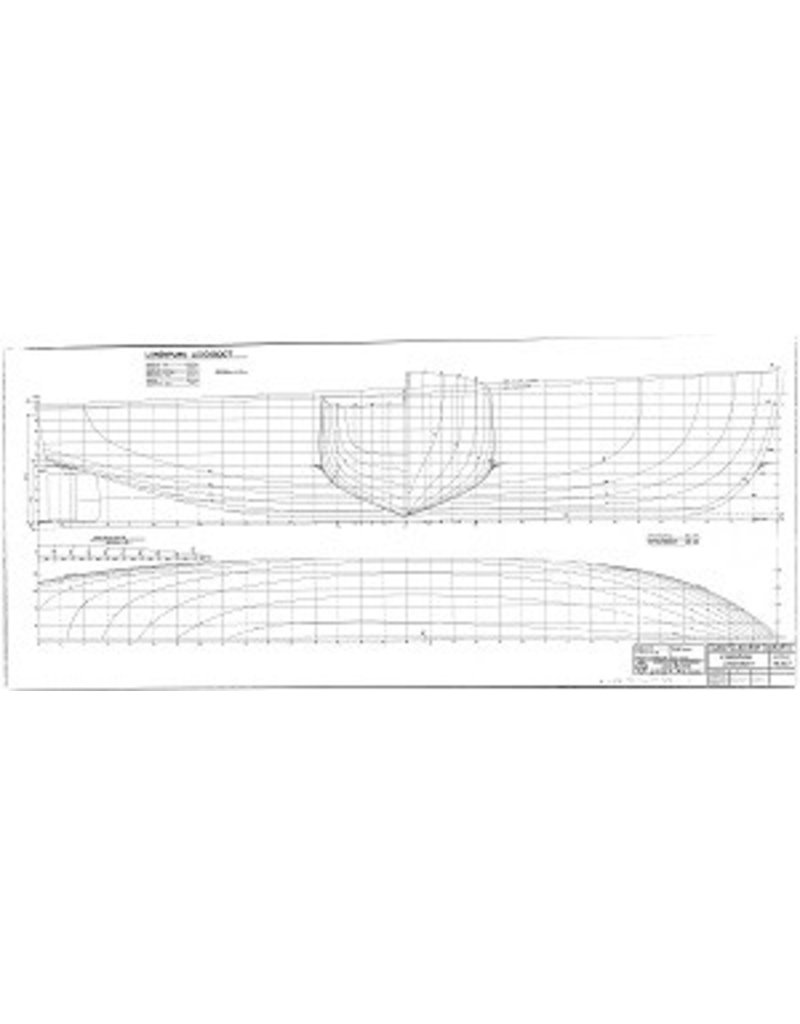

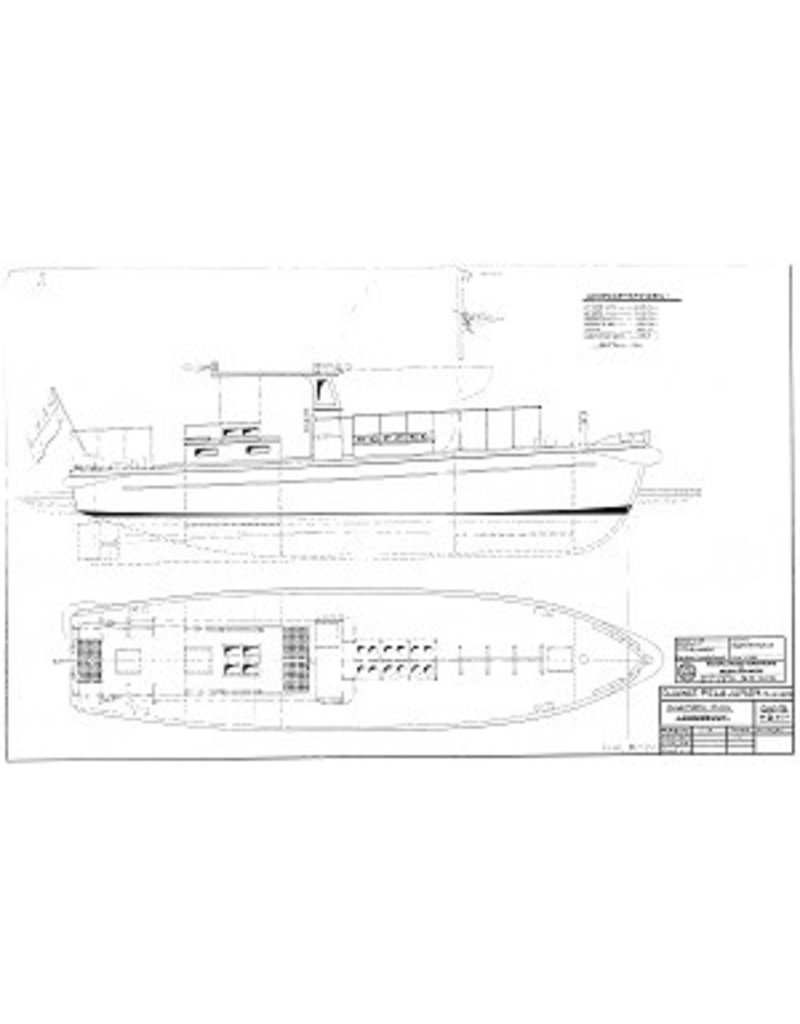

sp/lines; frame list; side view; deck plan; longitudinal section; sections; details |
|
Scale |
1 : 20 |
|
Number of sheets A00 |
1 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
1 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
5 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
235 |
|
Particulars |
l.o.a. 65 cm |
|
Remarks |
