| Article number: | 10.18.017 |
Specifications :
|
Drawing number |
10.18.017 |
|
Description |

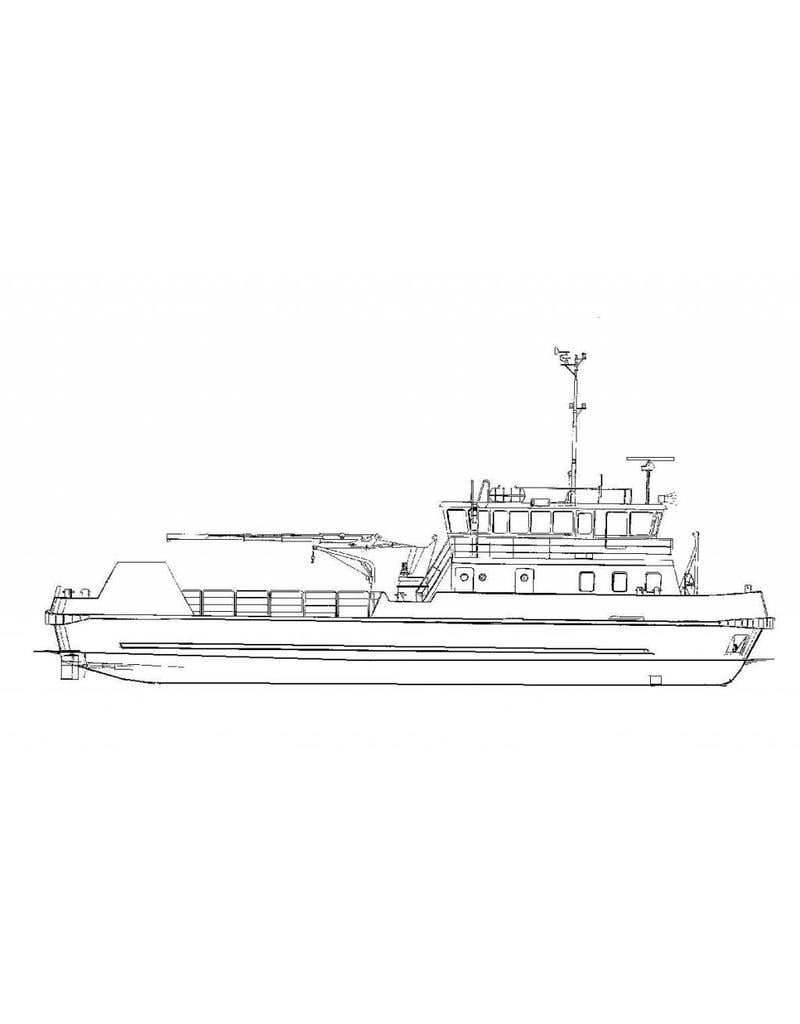

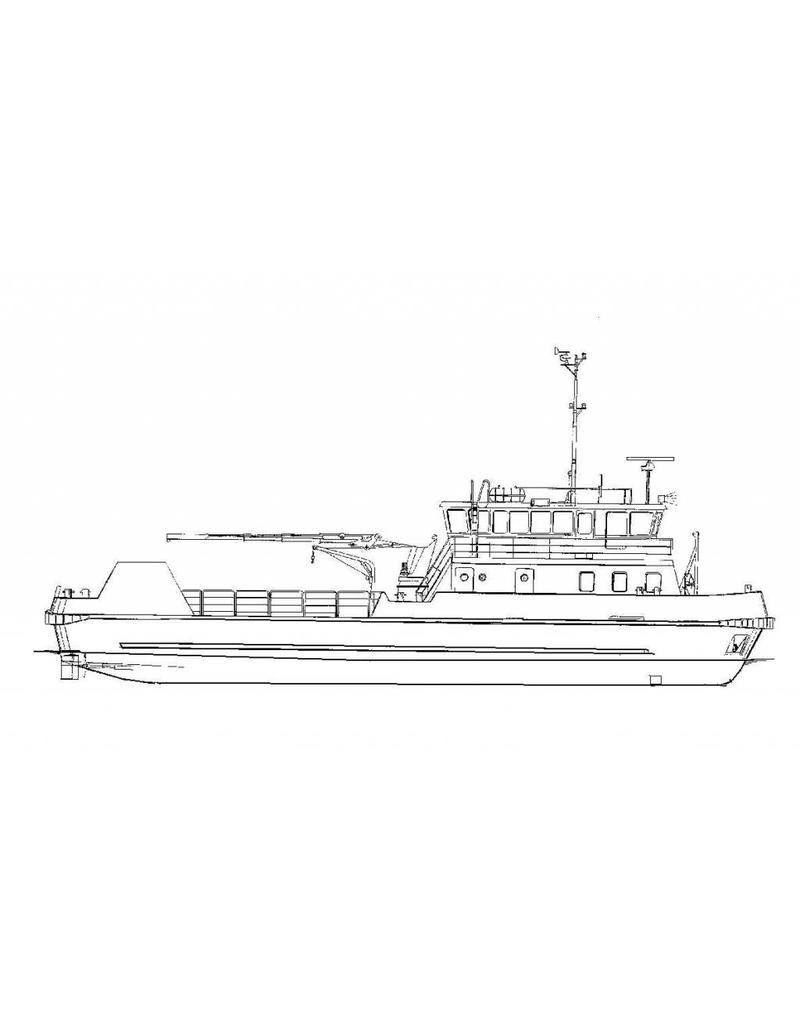

Rijkswaterstaat vessel |
|
Quality |

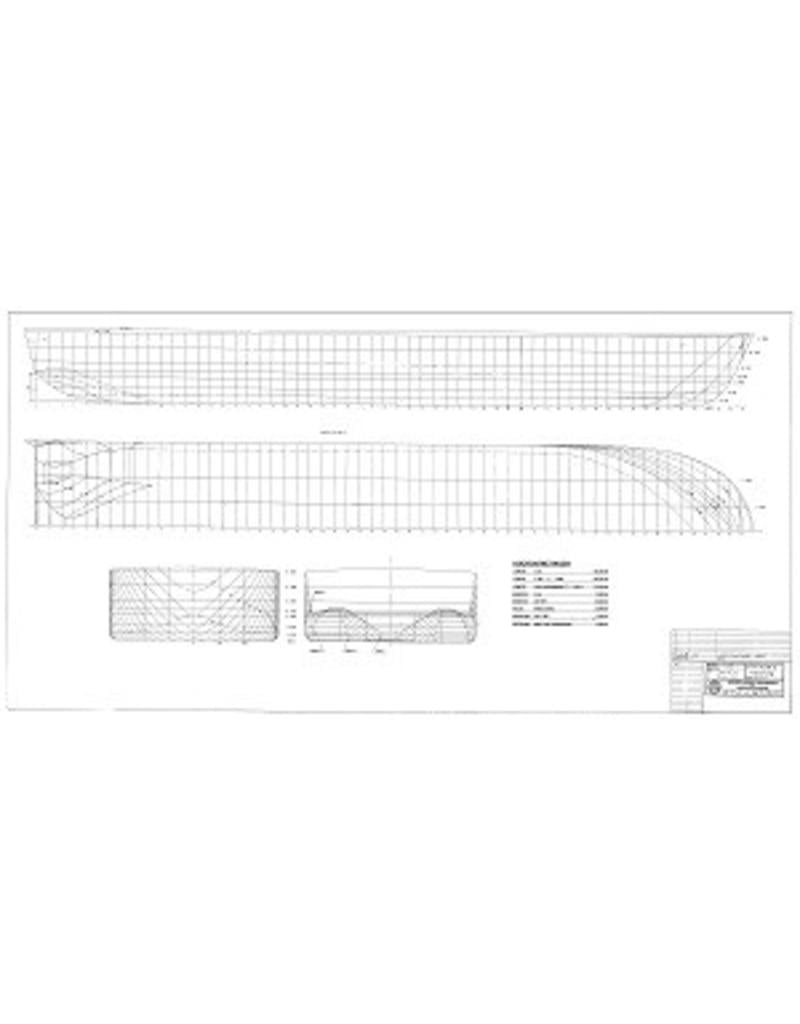

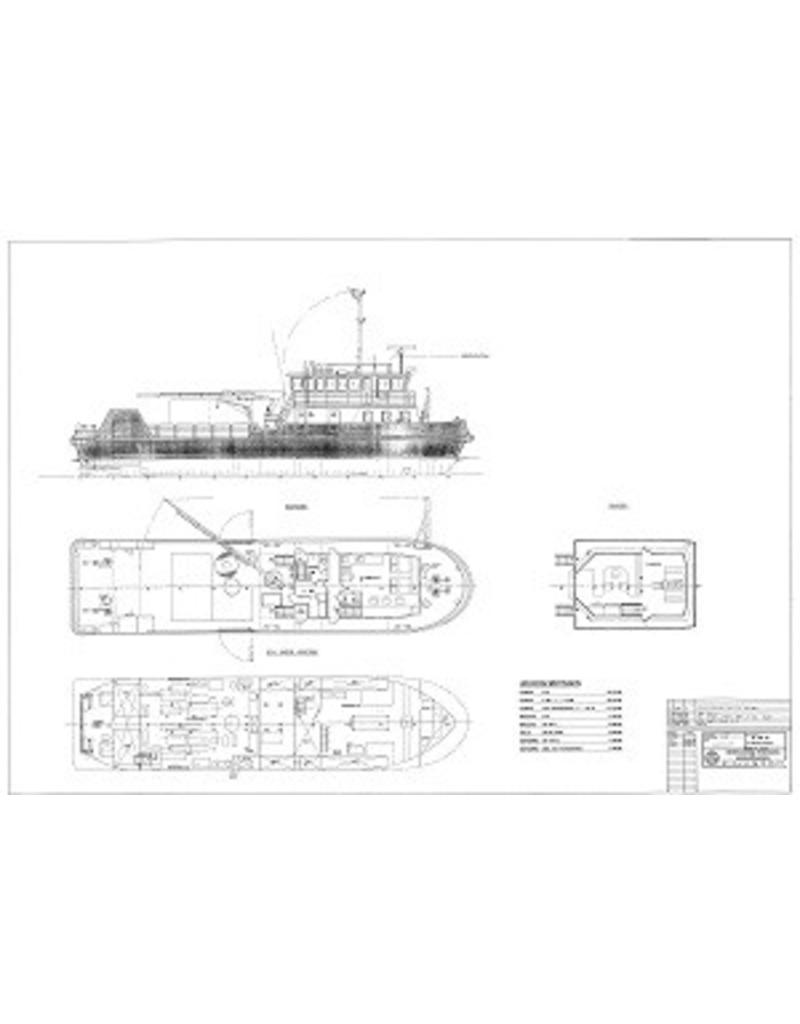

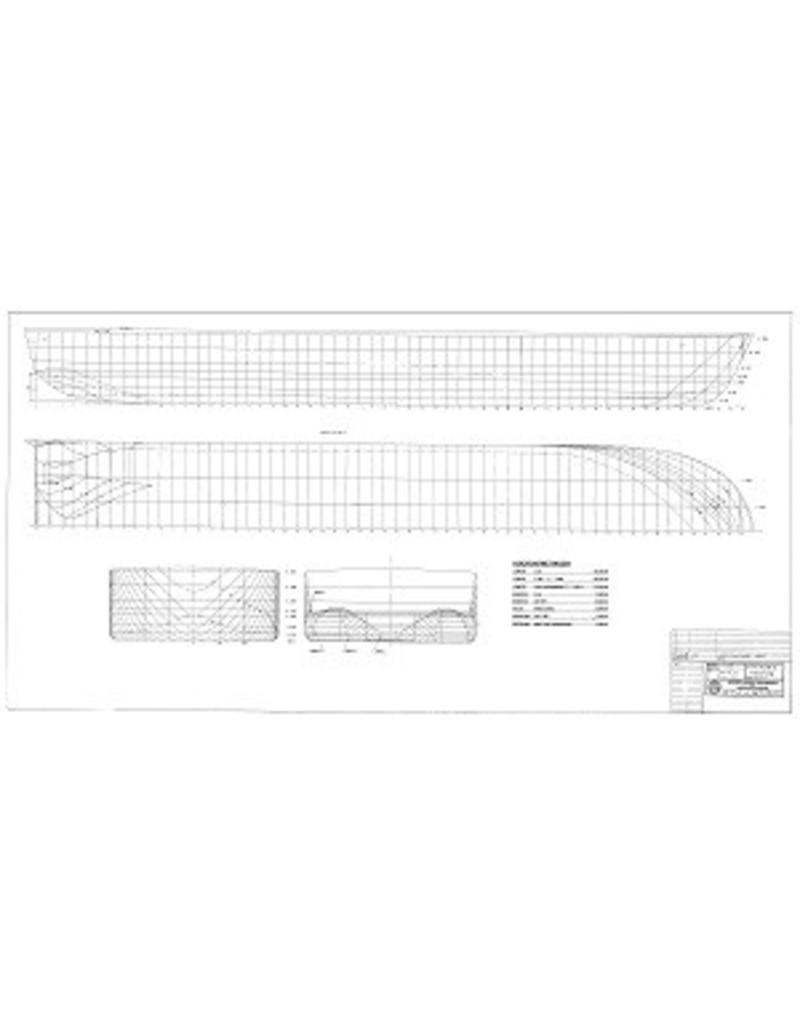

frames/lines 1:25; side view; deck plan; layout |
|
Scale |
1 : 50 |
|
Number of A00 sheets |
1 |
|
Number of A0 sheets |
1 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
185 |
|
Particulars |
l.o.a. 60 cm |
|
Remarks |
check origin |
