MBT 10.18.022 director's launch "Freccia"

Drawing number

10.18.022

Description

director's launch "Freccia"

Content

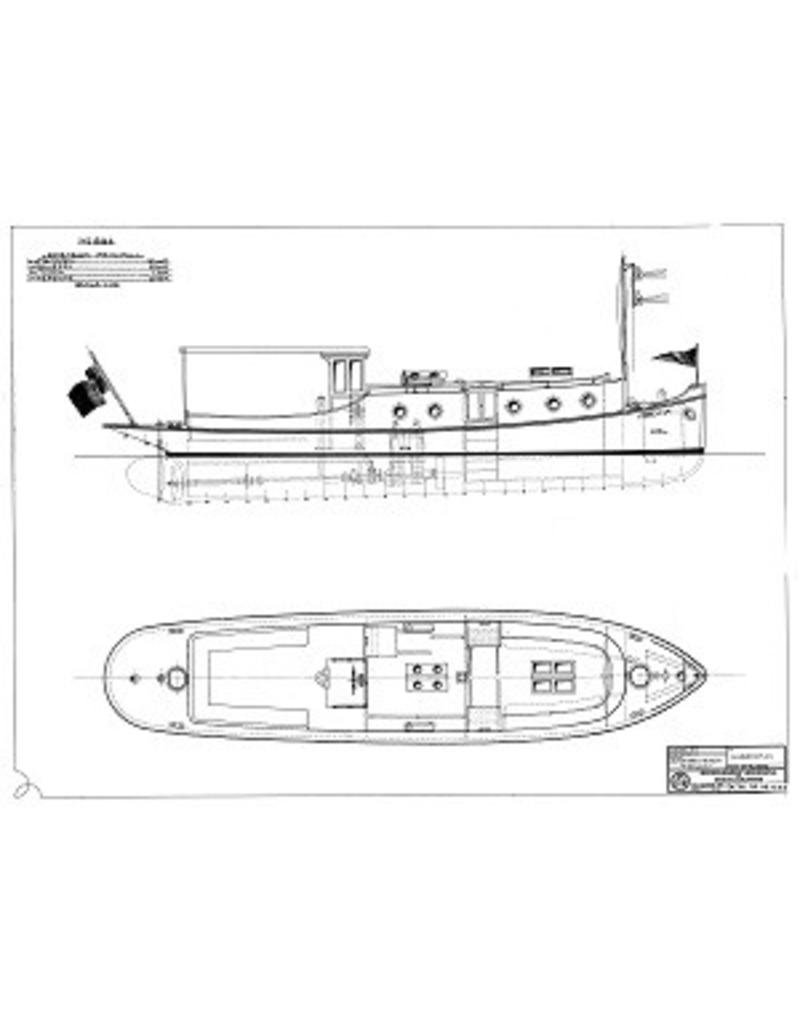

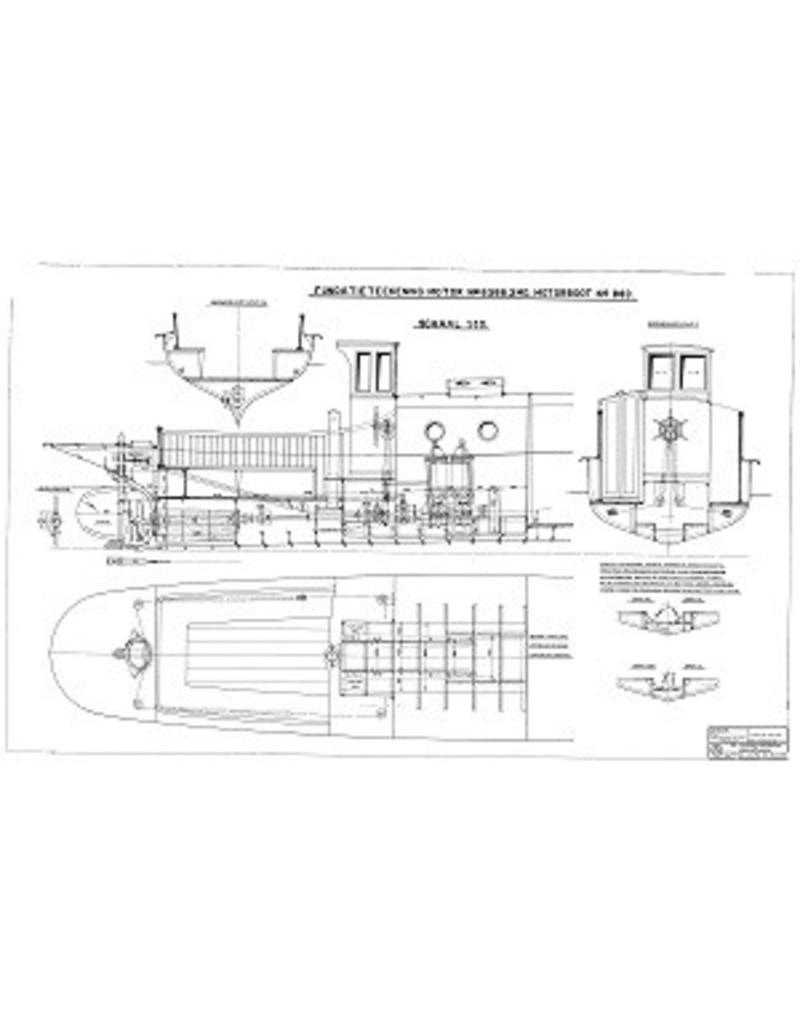

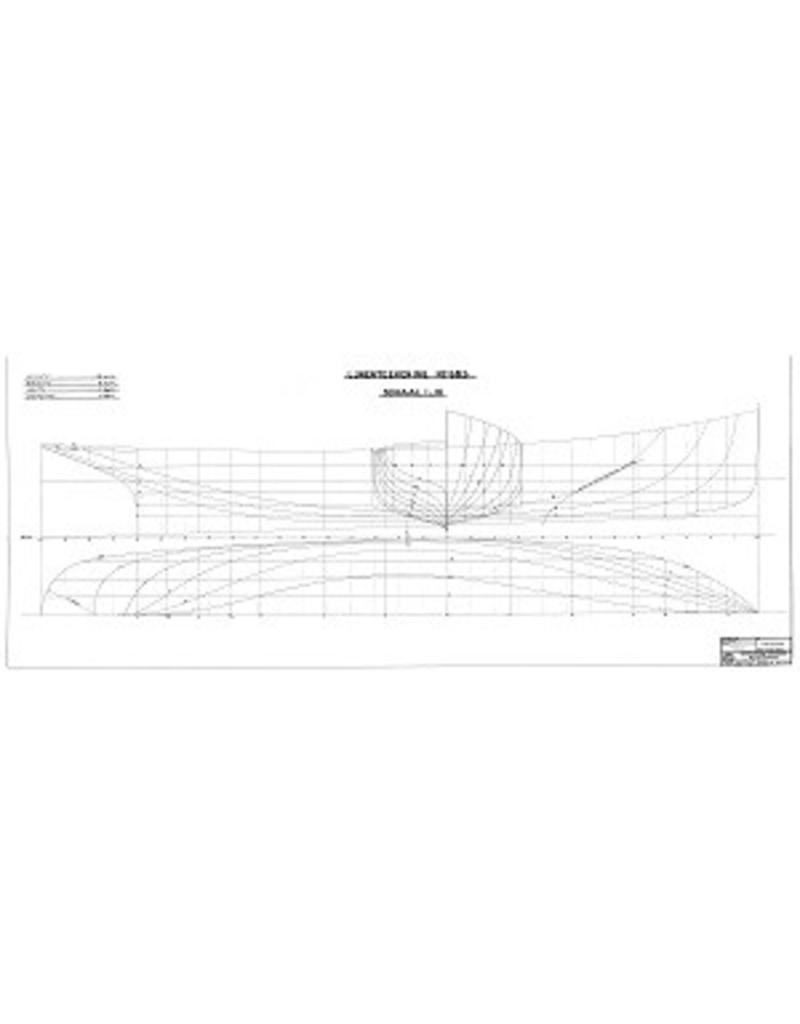

sp/lines; side view; deck plan; sections; engine room details

Scale

1 : 20

Number of A00 sheets

1

Number of A0 sheets

2

Number of A1 sheets

1

Number of A2 sheets

0

Number of A3 sheets

2

Number of A4 sheets

0

Total number of drawing sheets

6

Number of A4 text sheets

4

Weight in grams

345

Particulars

l.o.a. 61 cm

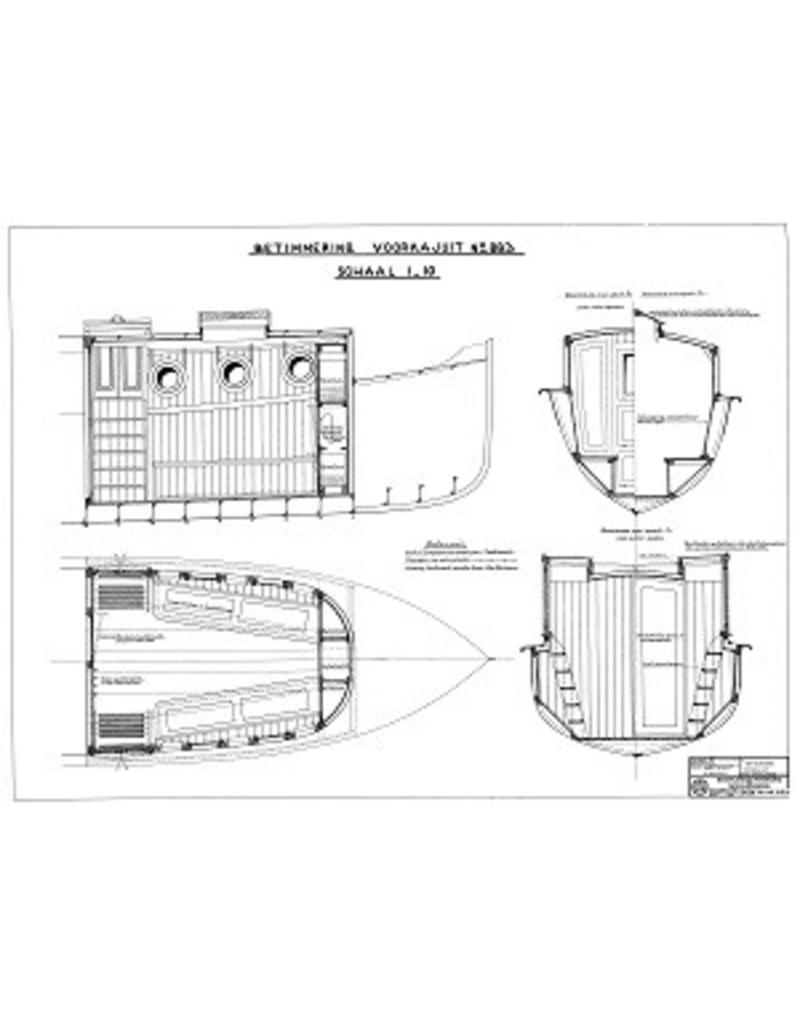

The drawing set also includes engine foundation plan, interior panelling and the specification

Remarks

was 10.16.010
