| Article number: | 10.19.006 |
Specifications :
|
Drawing number |
10.19.006 |
|
Author |
A.F.J Dunweg |
|
Description |

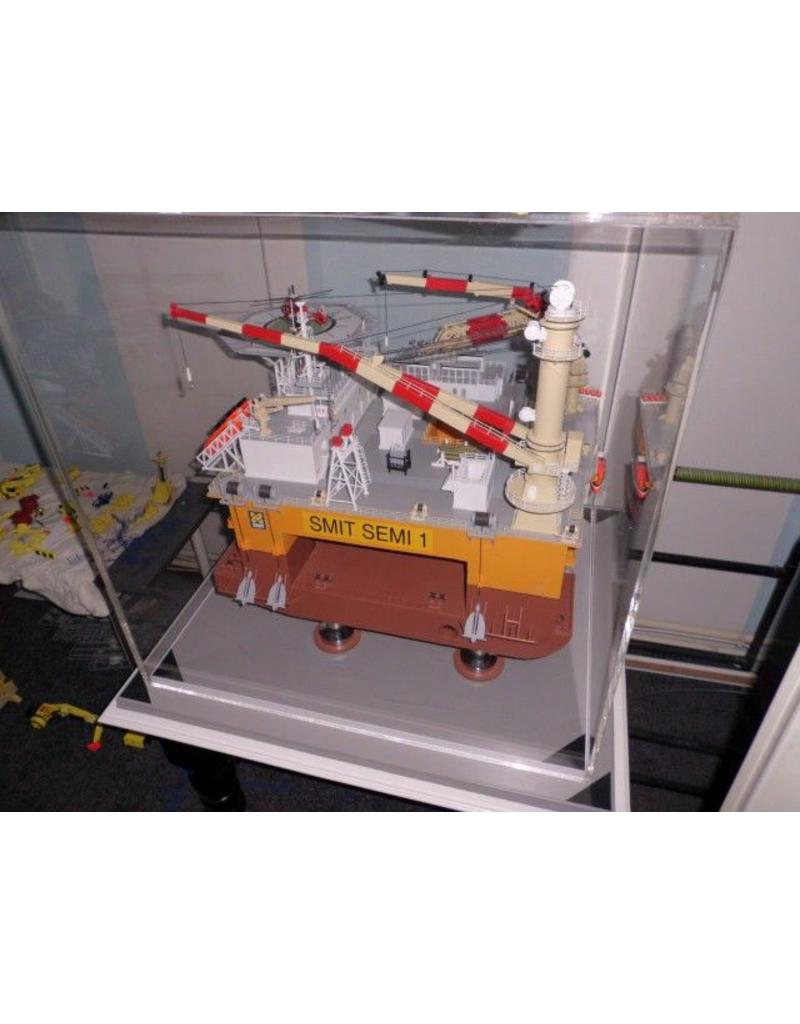

self-propelled semi-submersible work platform "Smit Semi 1" (1986) |
|
Quality |

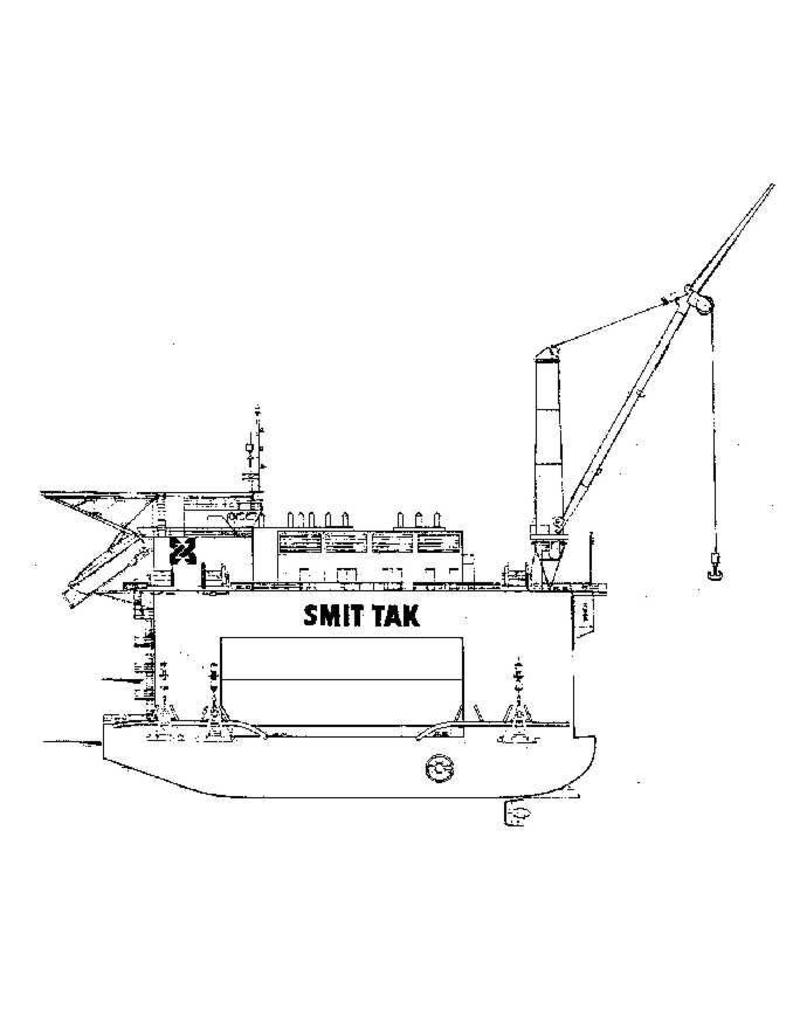

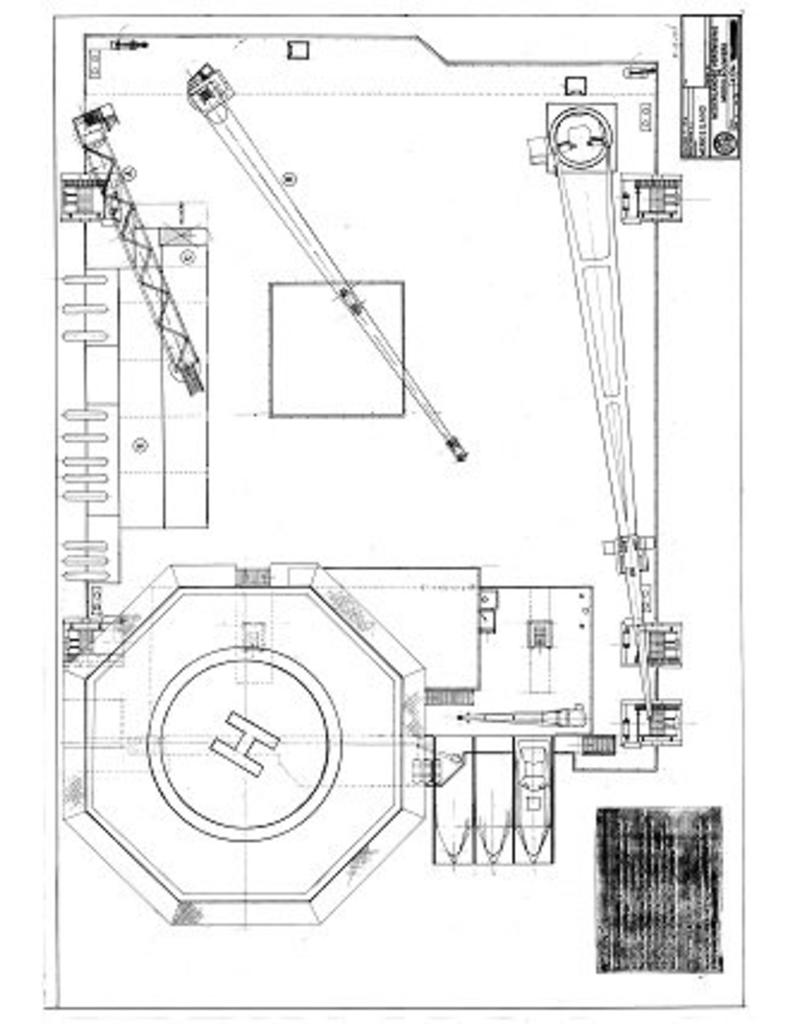

side view; deck plan |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
145 |
|
Particulars |
l.o.a. 63 cm, width 47 cm |
|
Remarks |
