| Article number: | 10.19.009 |
Specifications :
|
Drawing number |
10.19.009 |
|
Author |
H. Esveldt |
|
Description |

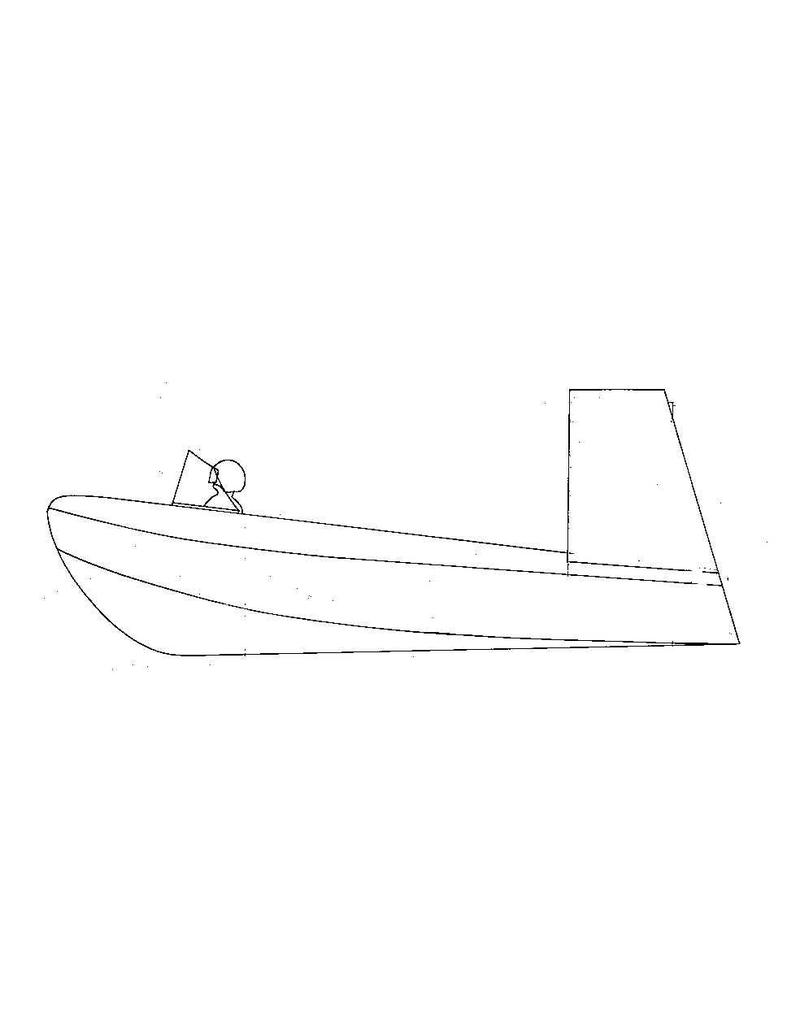

air-propeller driven hydroplane |
|
Quality |

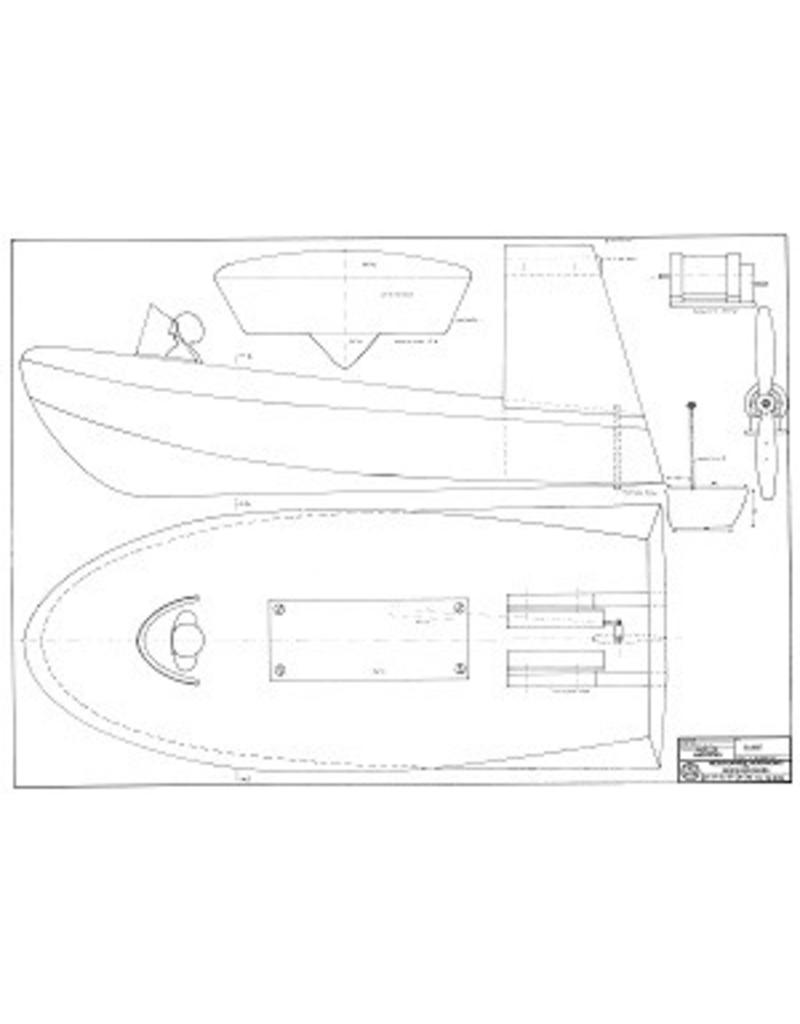

side view; top view; cross-section |
|
Scale |
|
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Particulars |
LOA 68 cm |
|
Remarks |
to 10.16? |
