| Article number: | 10.20.042 |
Specifications :
|
Drawing number |
10.20.042 |
|
Author |
B.P. Tunderman |
|
Description |

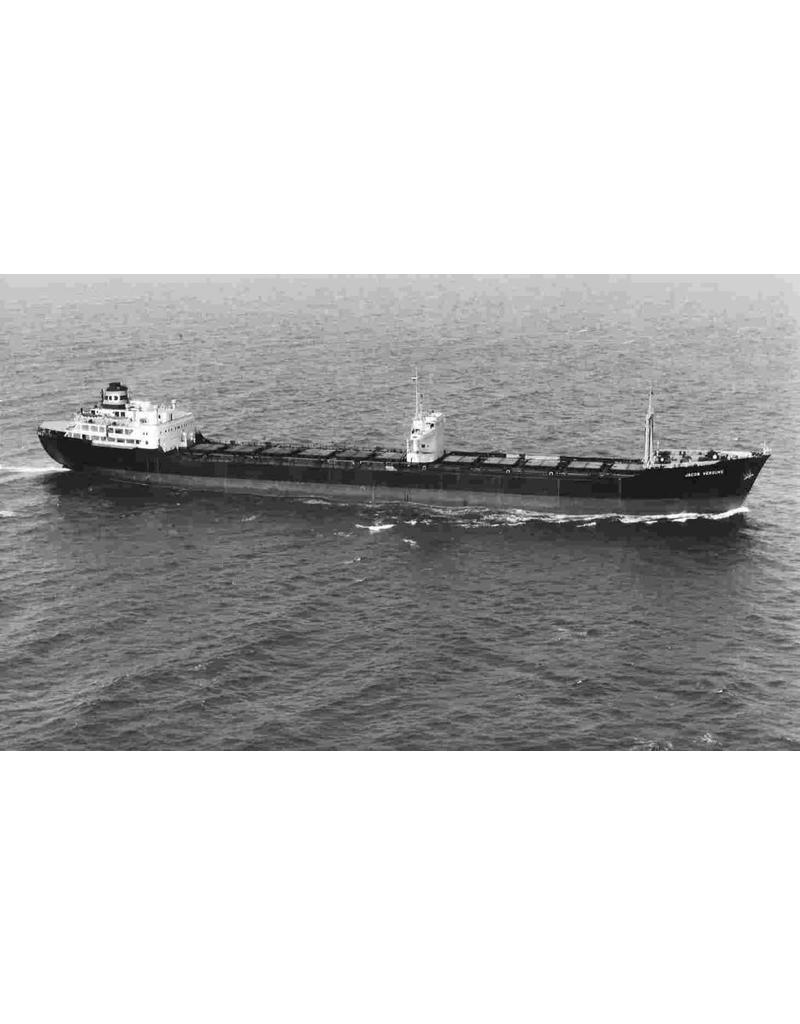

ore tanker ms "Jacob Verolme" (1957) - Ned.Erts Tanker Mij. |
|
Quality |

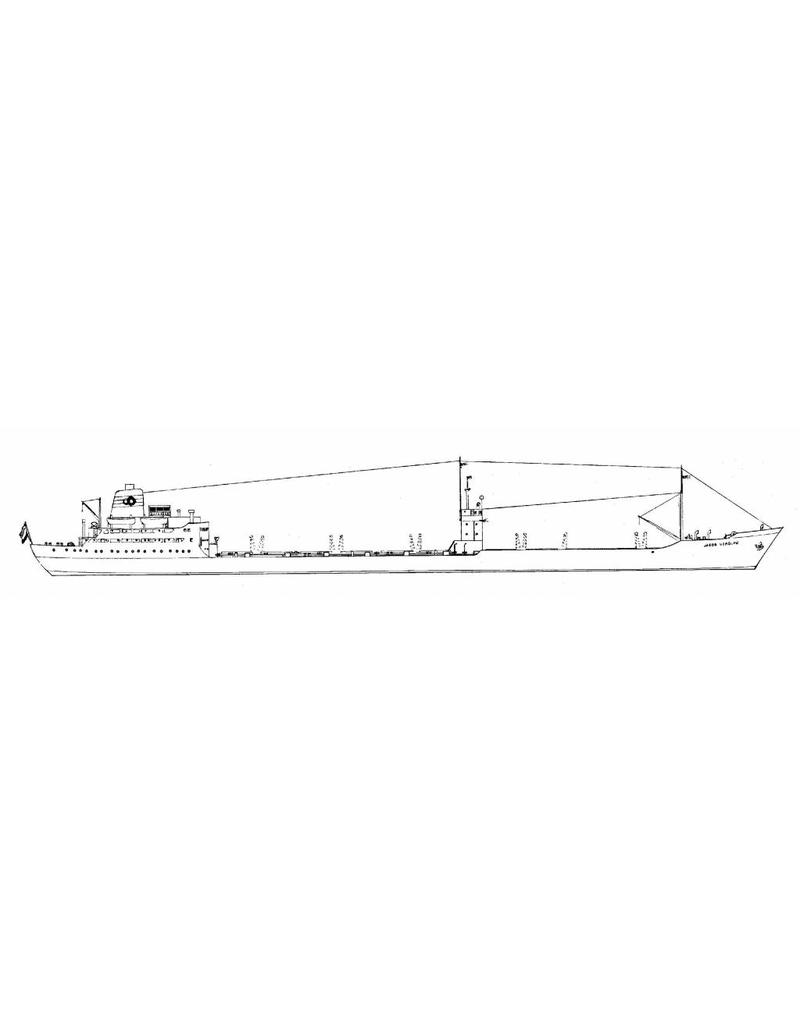

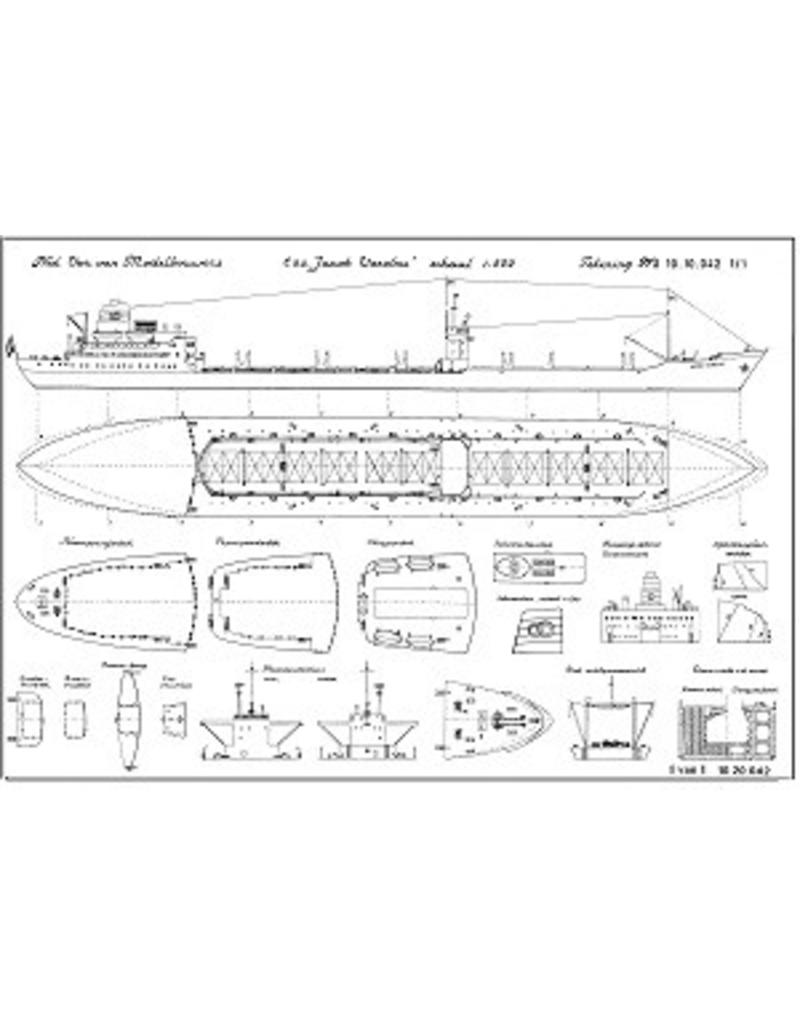

frames to the waterline; side view; deck plans; details |
|
Scale |
1 : 500 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
1 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
35 |
|
Particulars |
l.o.a. 39 cm |
|
Remarks |
