| Article number: | 10.20.049 |
Specifications :
|
Drawing number |
10.20.049 |
|
Author |
P. Akkerman |
|
Description |

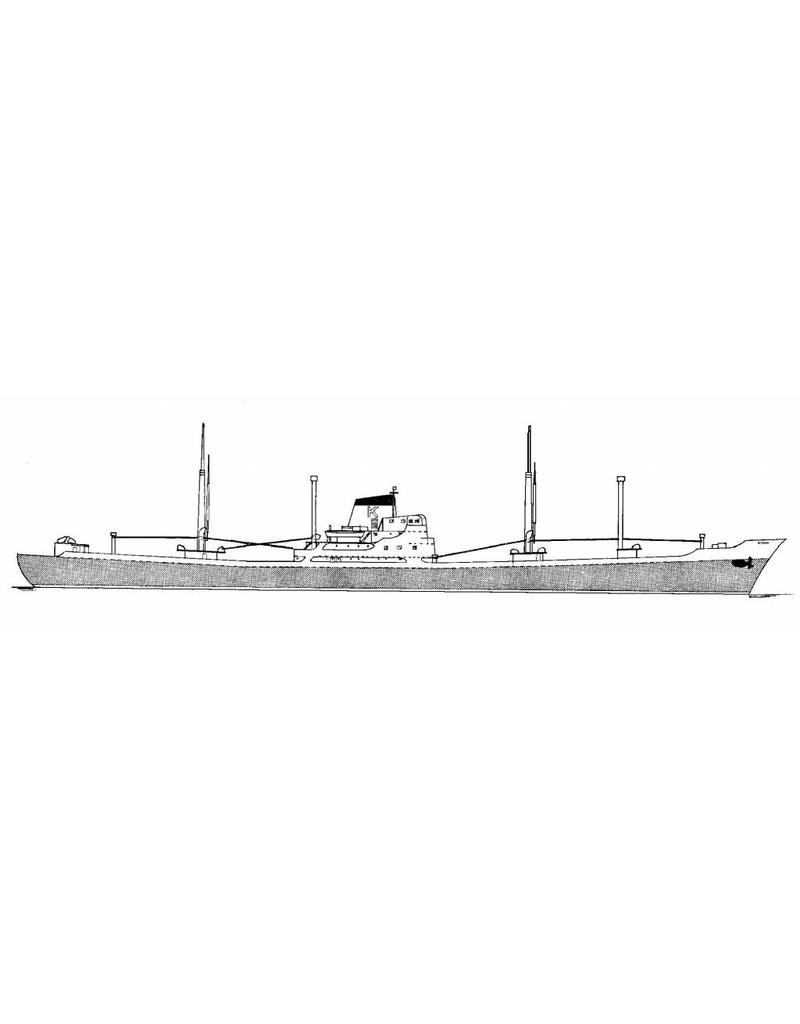

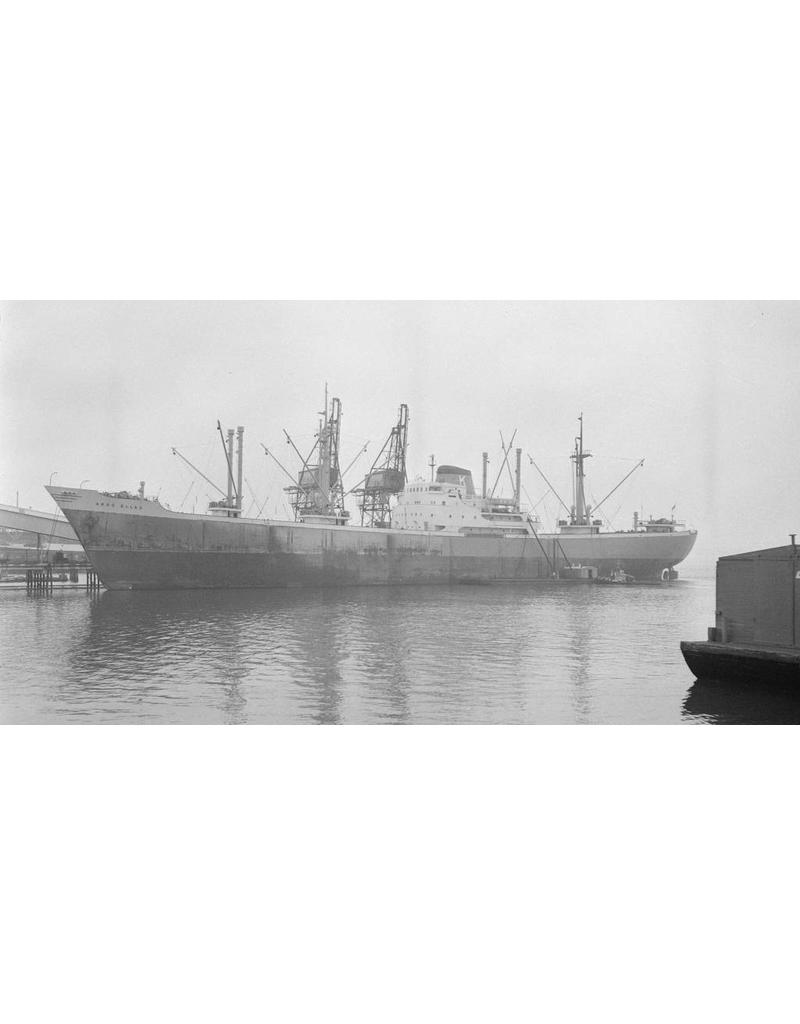

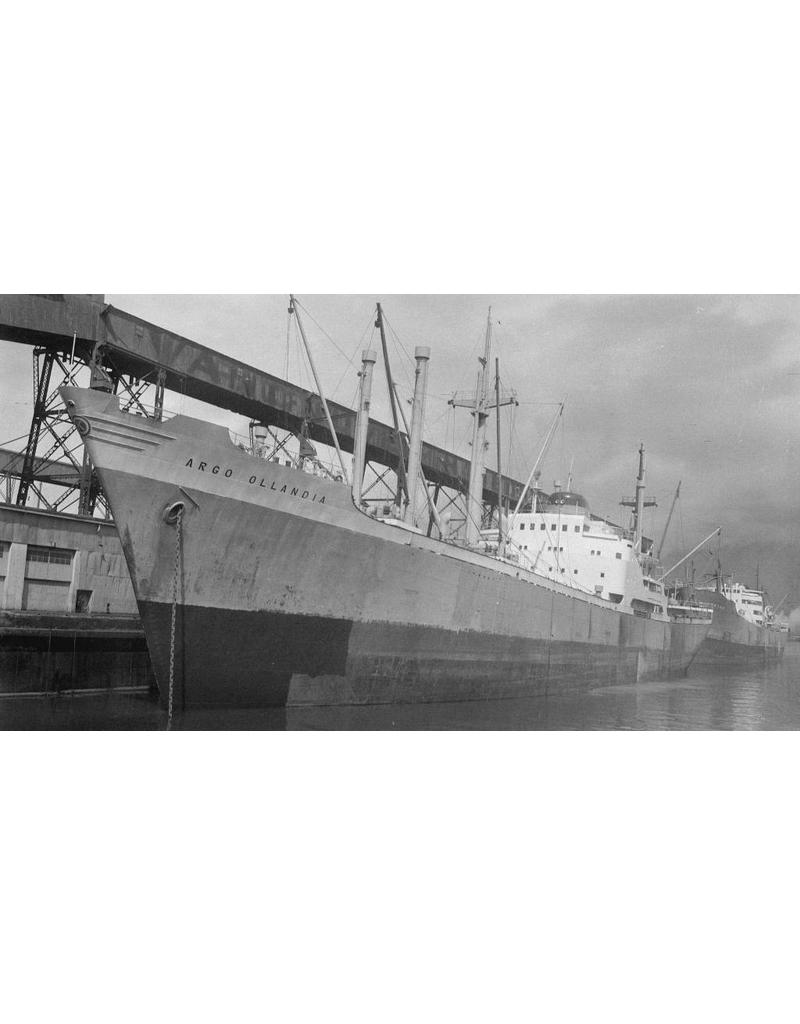

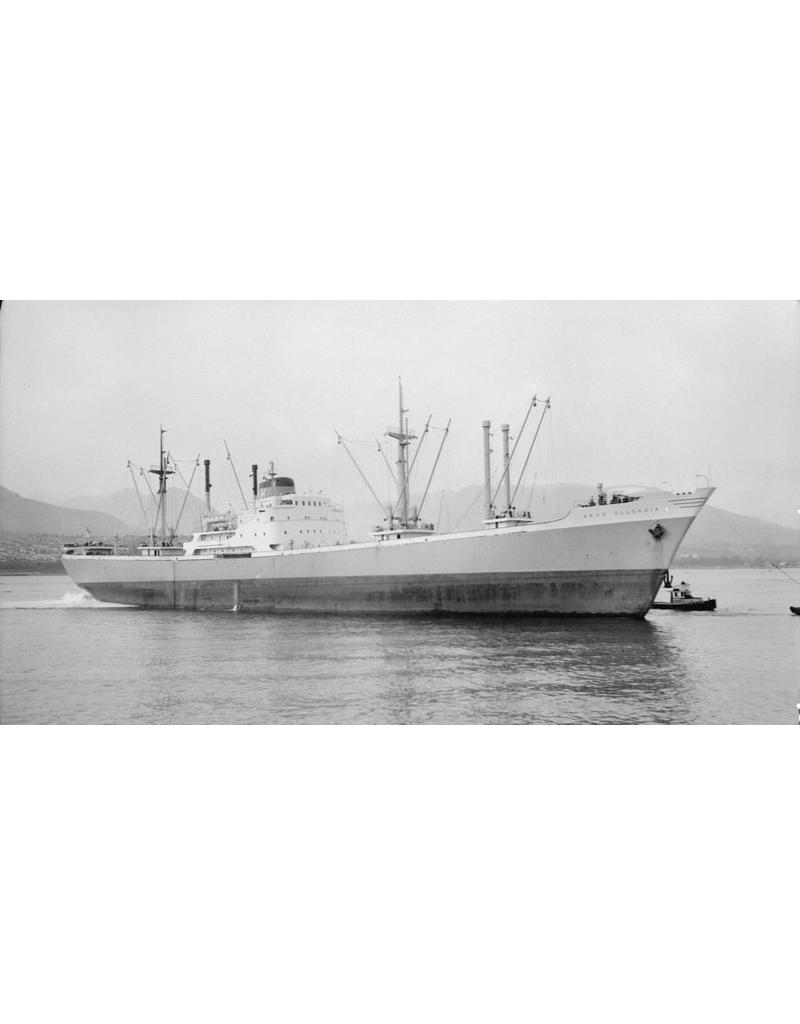

cargo ship ms "Argo Ollandia" (1957) |
|
Quality |

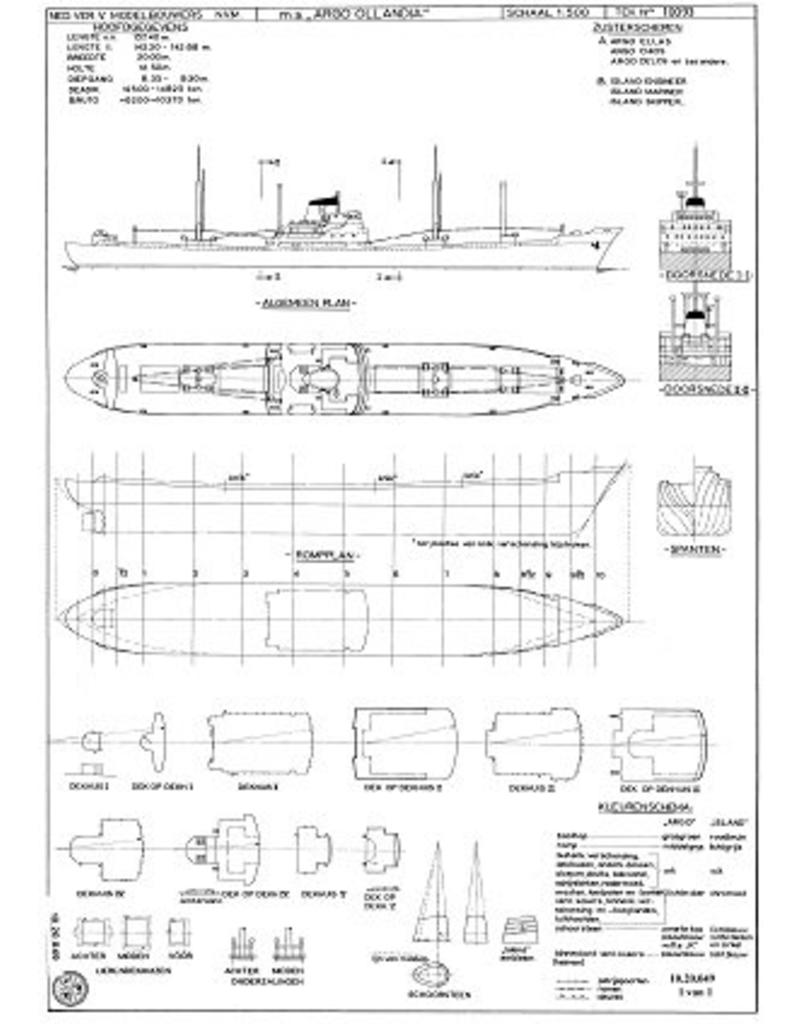

frames; waterlines; side view; deck plans; sections to the waterline |
|
Scale |
1 : 500 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Details |
l.o.a. 29 cm |
|
Remarks |
Ì´Ì_ |
