MBT 10.20.051 cargo ship ms " Baikal" (1957) - Sudoimport; "Angara", "Indigirka"

Drawing number

10.20.051

Author

P. Akkerman

Description

cargo ship ms " Baikal" (1957) - Sudoimport; "Angara", "Indigirka"

Quality

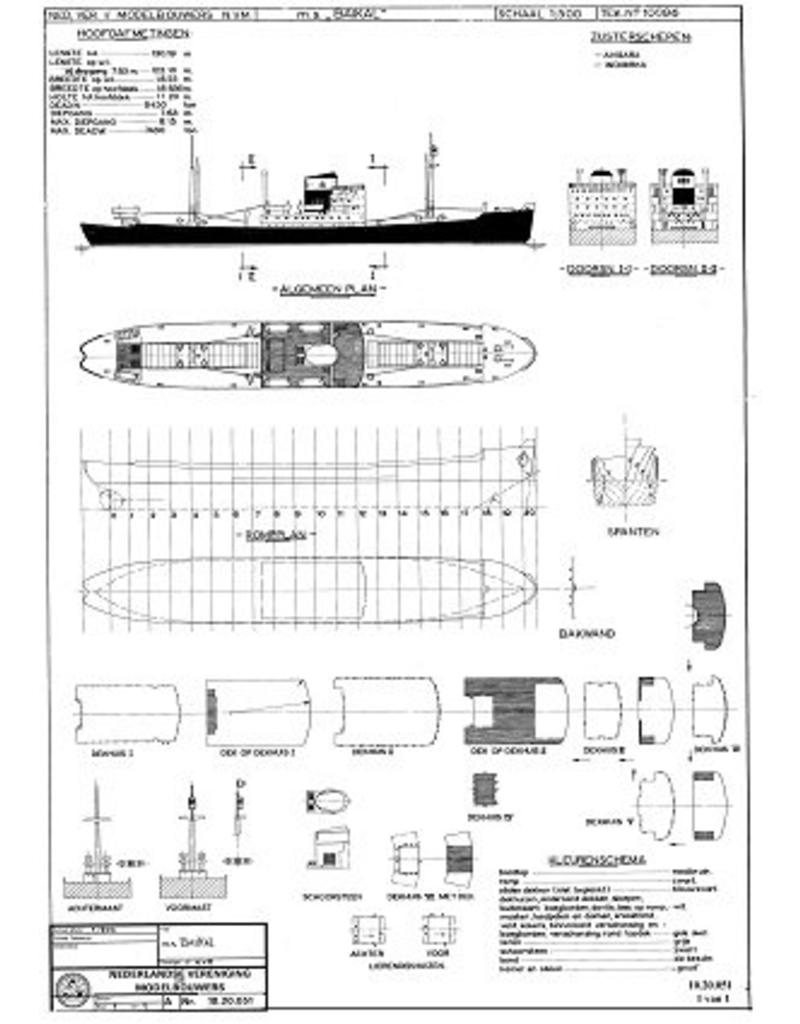

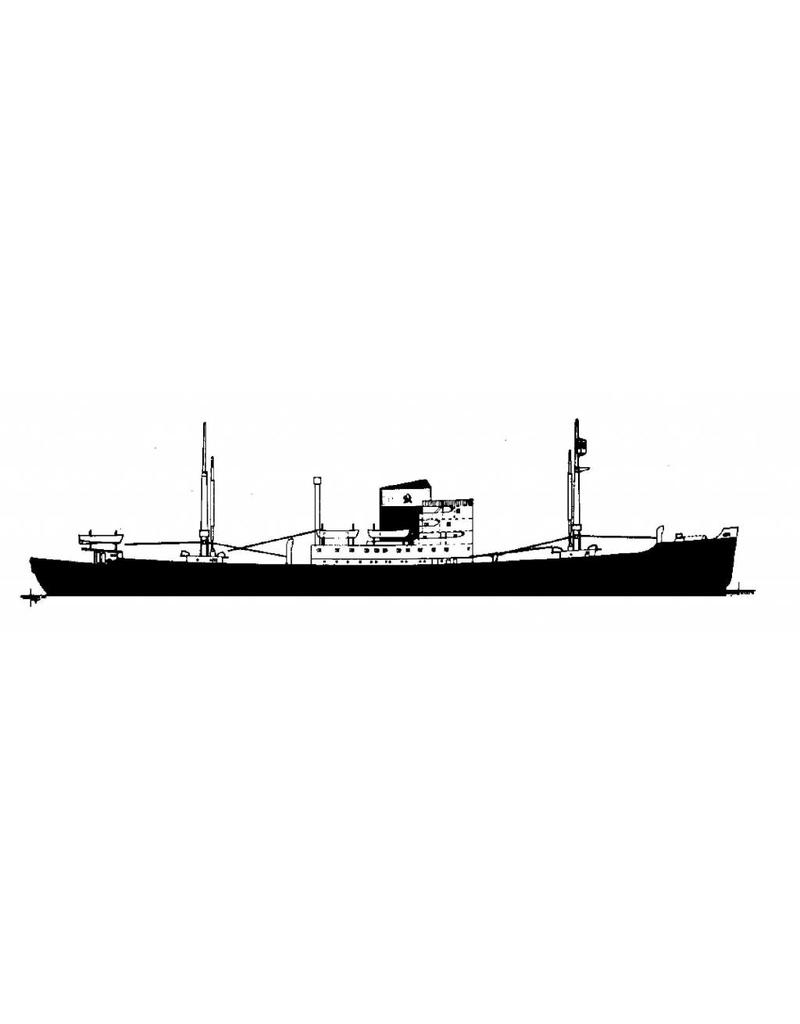

frames; side view; deck plans; sections to the waterline; details

Scale

1 : 500

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

1

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

1

Number of A4 text sheets

0

Weight in grams

45

Particulars

l.o.a. 26 cm

dM 1960/3,4

Copy of article: 12.20.051 (5 pages)

Remarks
