| Article number: | 10.20.079 |

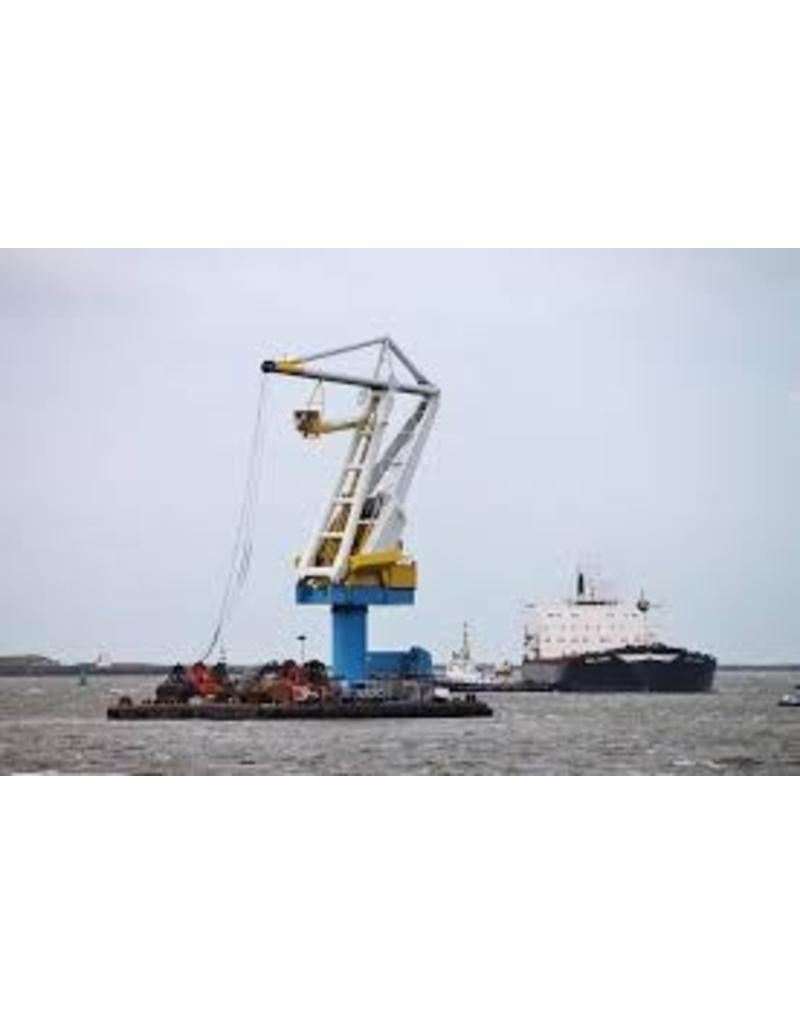

The crane pontoon or hydraulic excavator is a common stationary dredging machine. The main component is the hydraulic excavator crane that dredges from a pontoon. The ‘Backacter’ is the largest dredging excavator in the world and features a completely new excavator concept.
Specifications :
|

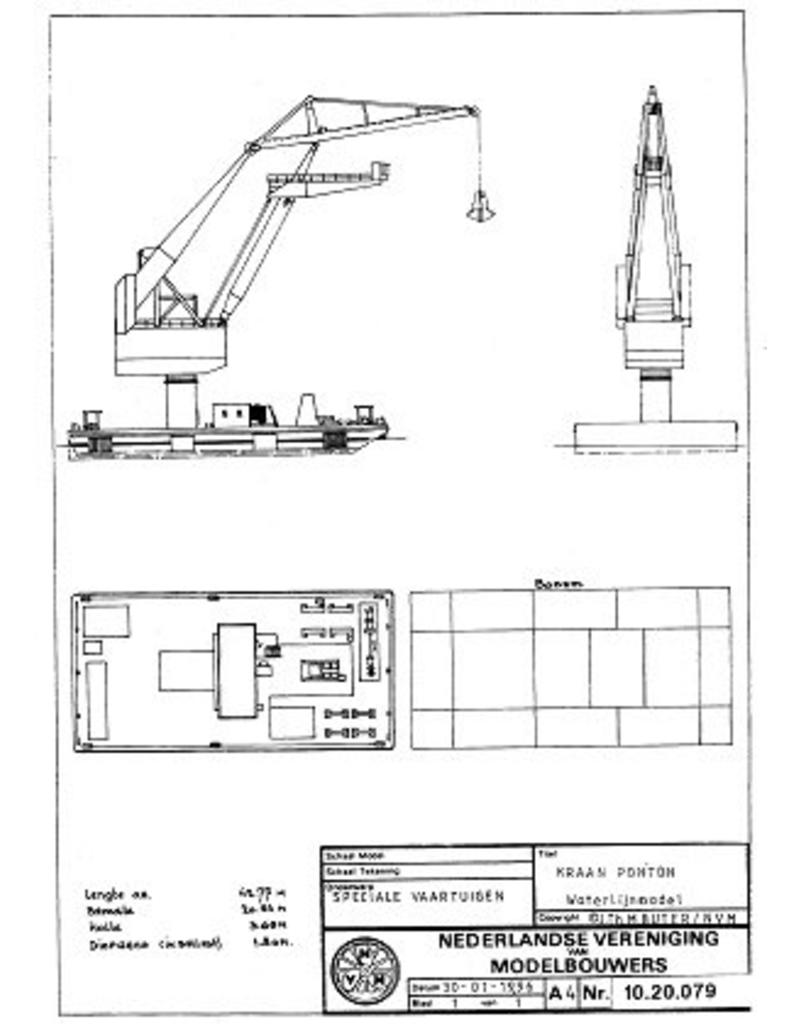

Drawing number |
10.20.079 |
|
Author |
J.TH.M. Buter |
|
Description |
crane pontoon |
|
View |

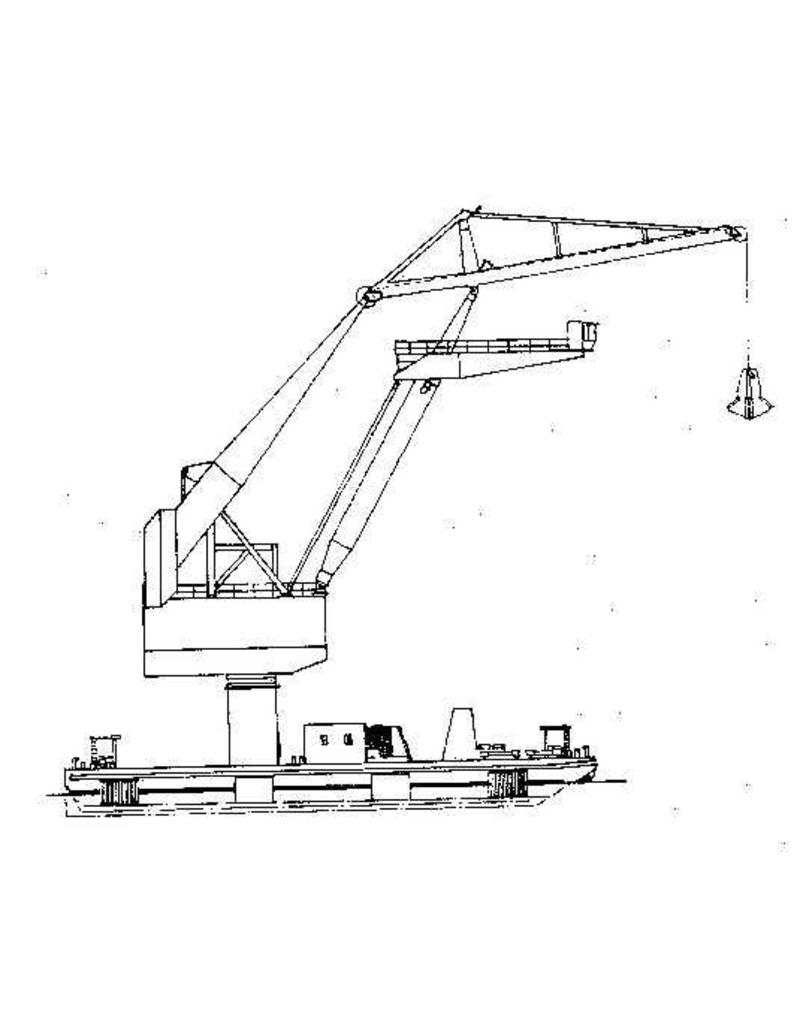

side view; top view; front view |
|
Scale |
1 : 240 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
1 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
30 |
|
Particulars |
l.o.a. 8.8 cm |
|
Remarks |
Terneuzen?? |
