| Article number: | 10.20.119 |
Specifications :
|
Drawing number |
10.20.119 |
|
Author |
G. van Schaik - Zillesen |
|
Description |

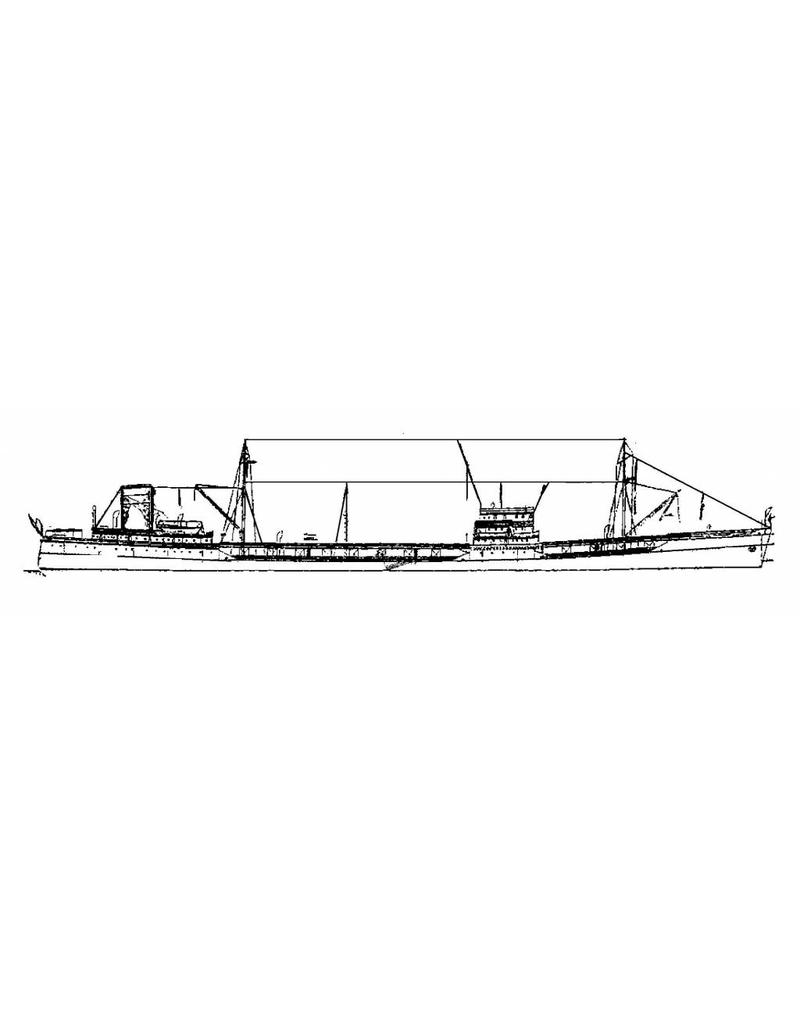

motor tanker |
|
Quality |

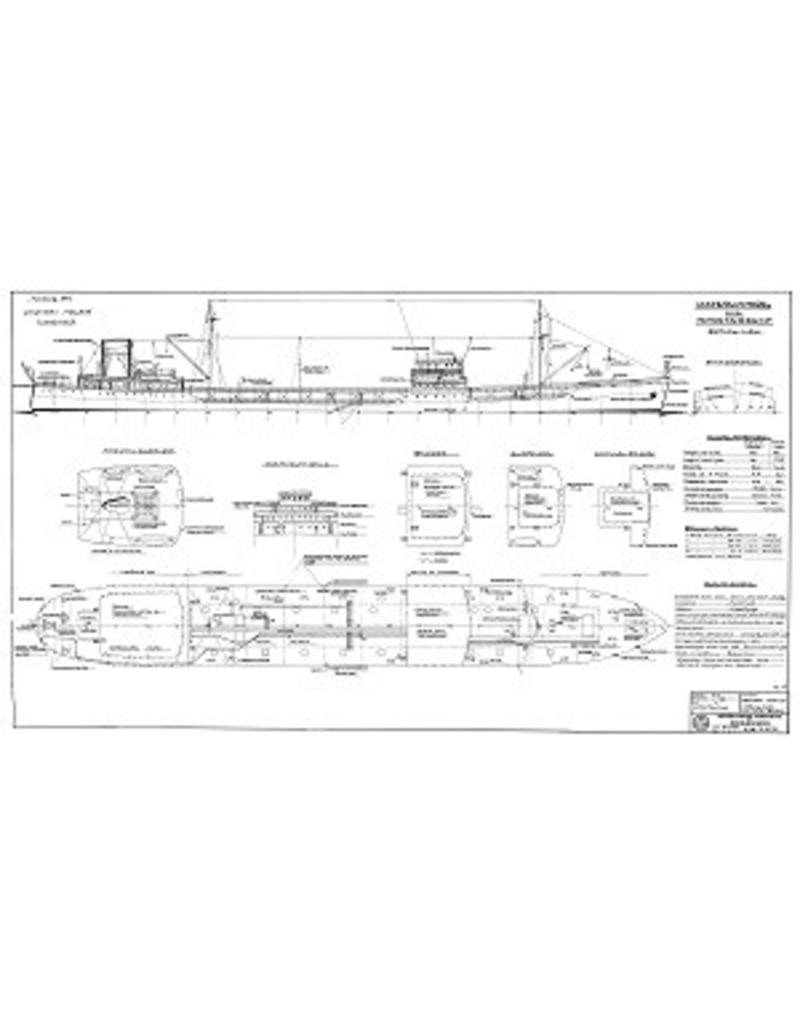

frames to the waterline; side view; deck plans |
|
Scale |
1 : 200 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Particulars |
Orig. Publ. Holland, Slikkerveer |
|
Remarks |
