| Article number: | 16.11.013 |
|
Drawing number |
16.11.013 |
|
Description |

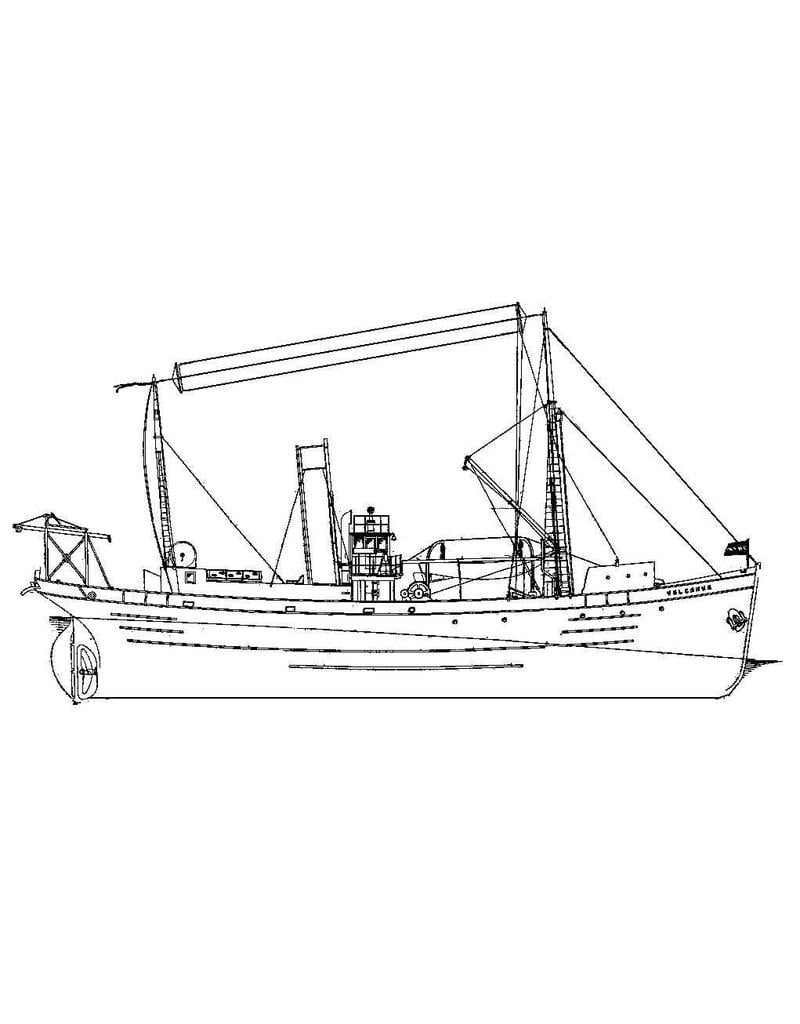

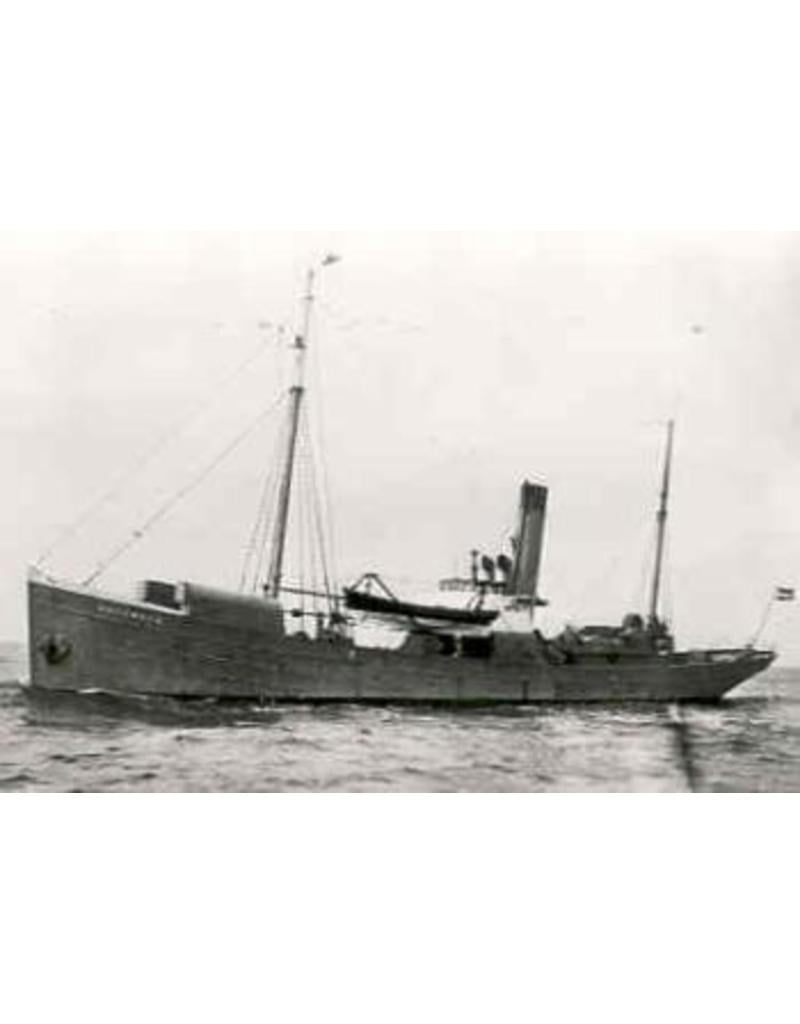

HrMs Minelayer "Vulcanus" (1917) - ex steam trawler "Azalea" (1902) |
|
Quality |
sp/lines; general plan |
|
Difficulty |
D |
|
Scale |
1 : 40 |
|
Number of sheets A00 |
1 |
|
Number of sheets A0 |
4 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
5 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
225 |
|
Particulars |
l.o.a. 94 cm |
|
Remarks |
artek 0061 |
