| Article number: | 16.11.015 |
Specifications:
|
Drawing number |
16.11.015 |
|
Description |

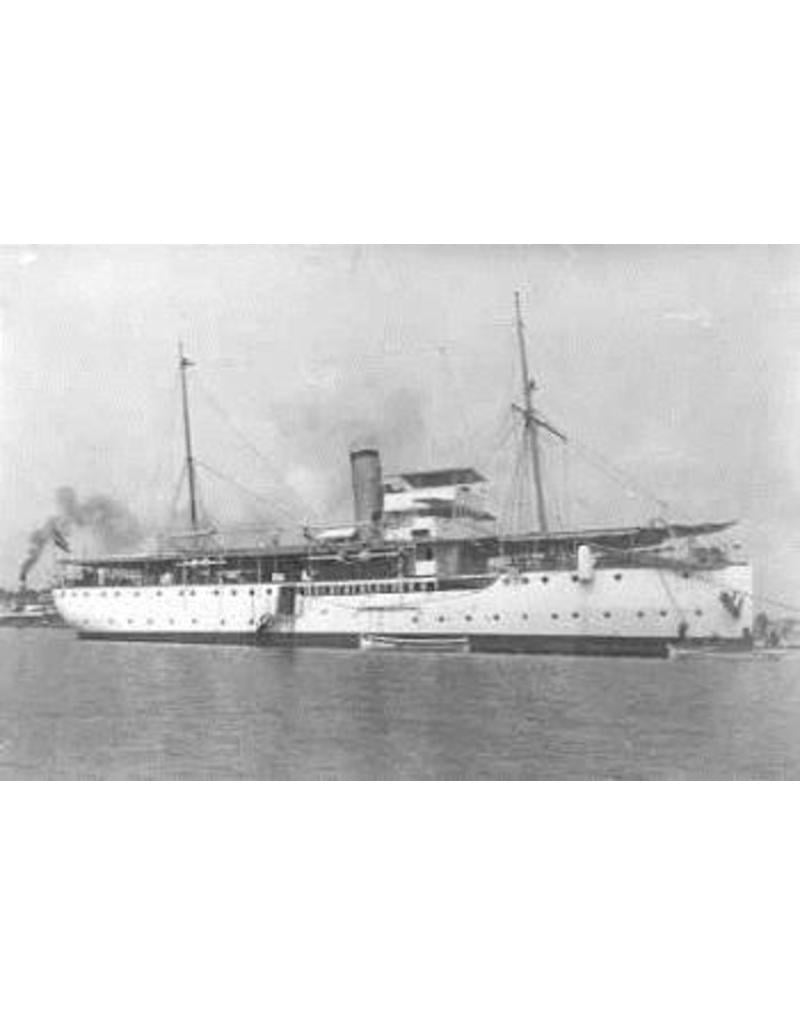

HrMs flotilla vessel "Edi" (1897) |
|
Quality |

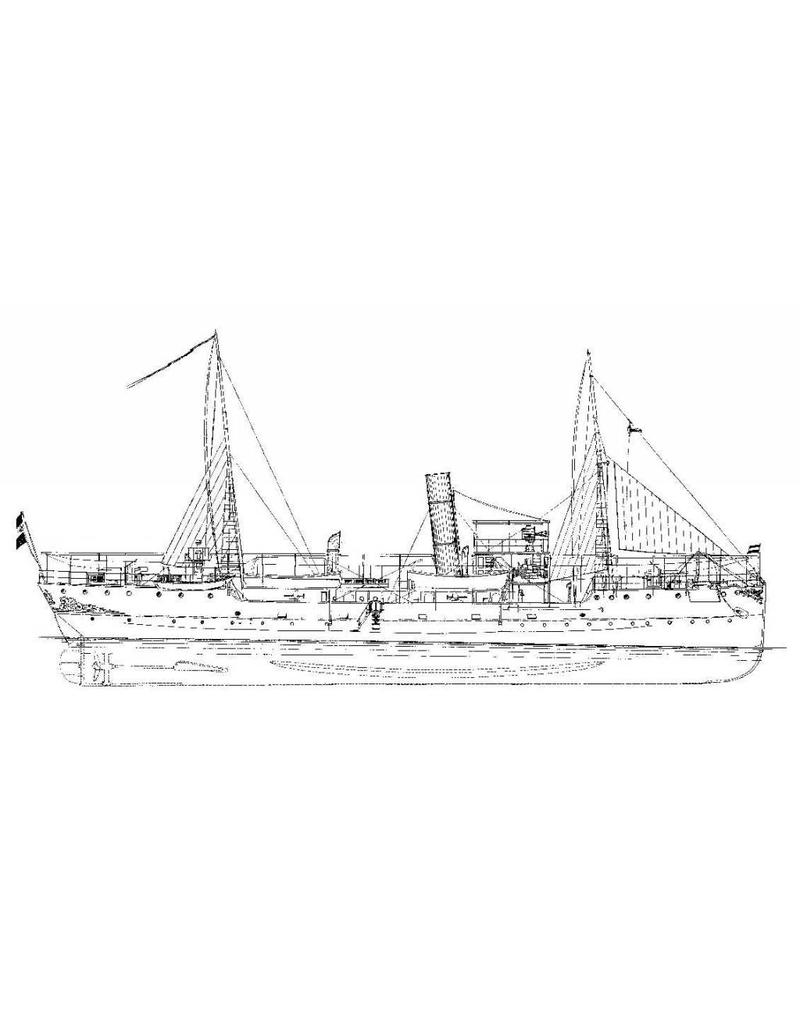

sp/lines; general plan; side view 1:100; sections |
|
Difficulty level |
D |
|
Scale |
1 : 40 |
|
Number of sheets A00 |
6 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
7 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
365 |
|
Particulars |
l.o.a. 130 cm |
|
Remarks |
artek 0063 Ì´Ì_
|
