| Article number: | 16.11.018/A |
Specifications :
|
Drawing number |
16.11.018/A |
|
Description |

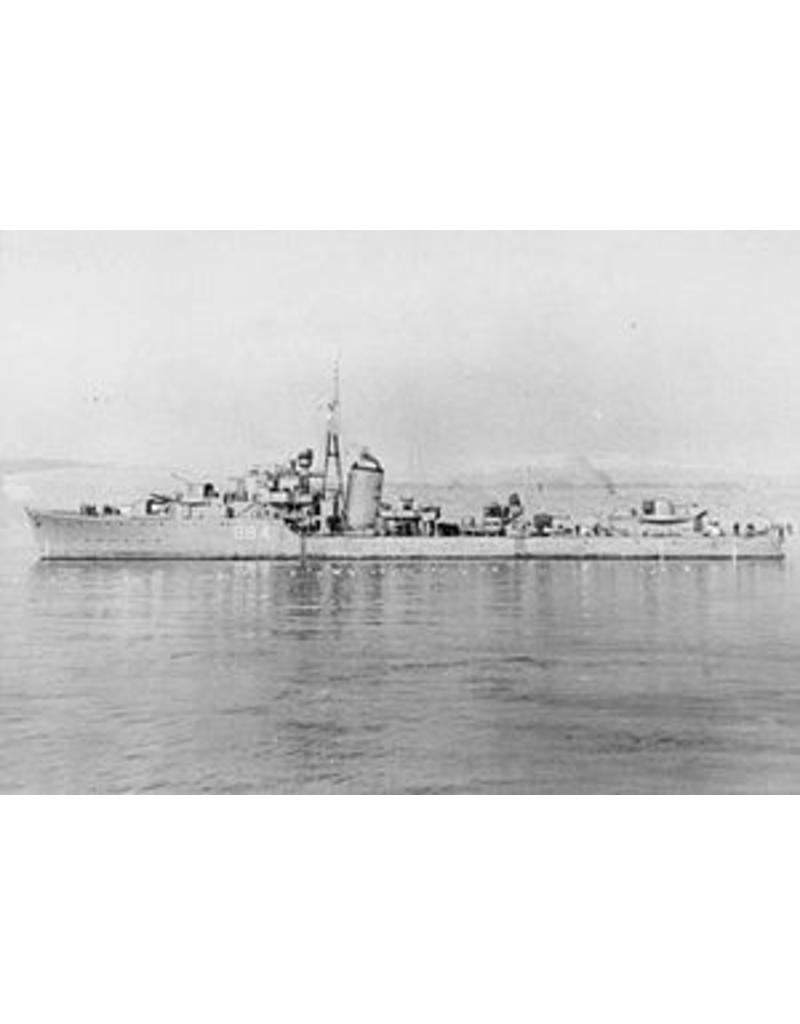

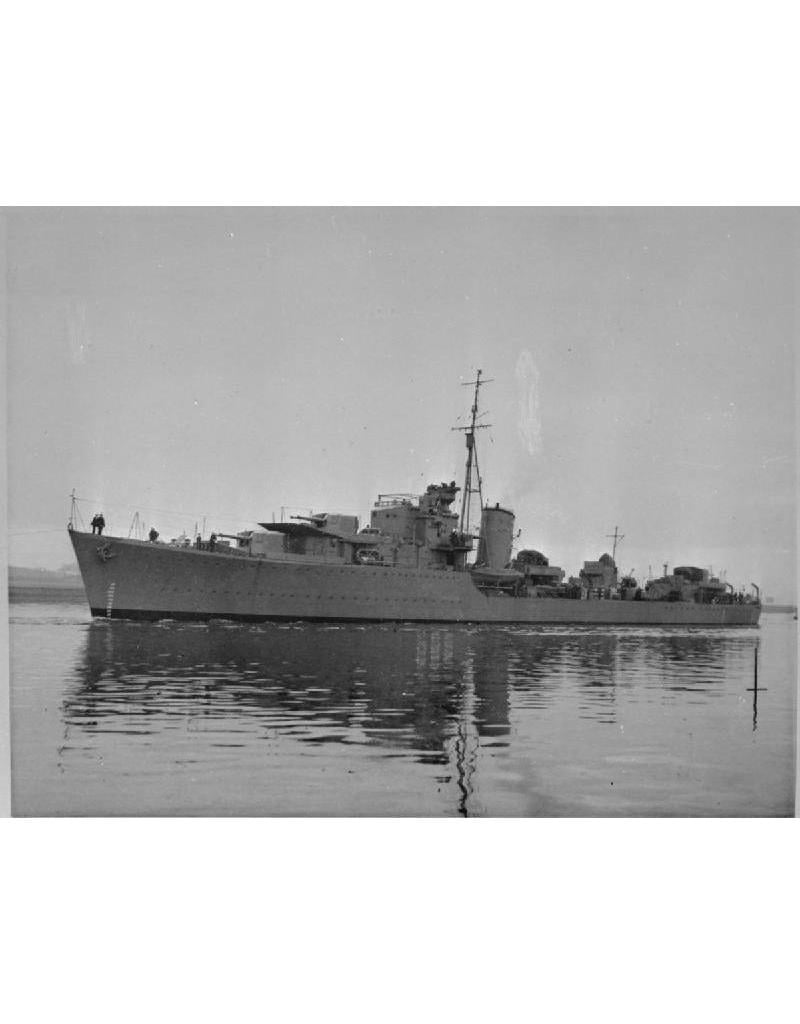

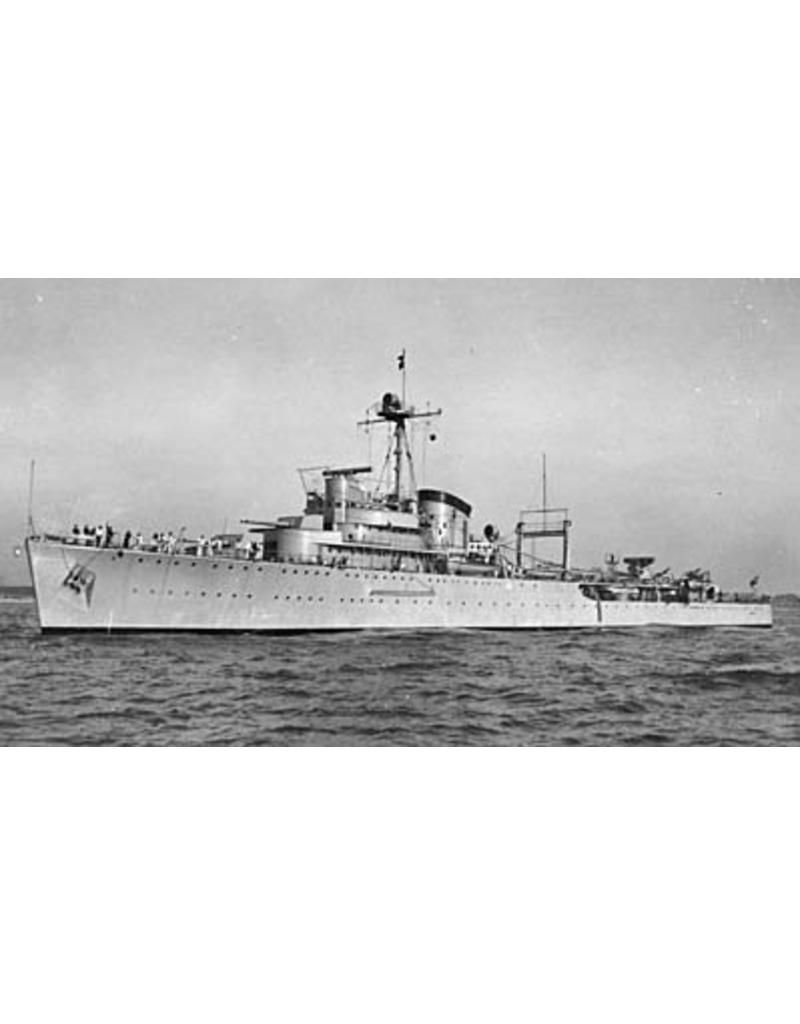

destroyer HNLMS "Van Galen" (1942) - ex HMS" Noble" (1939) |
|
Quality |

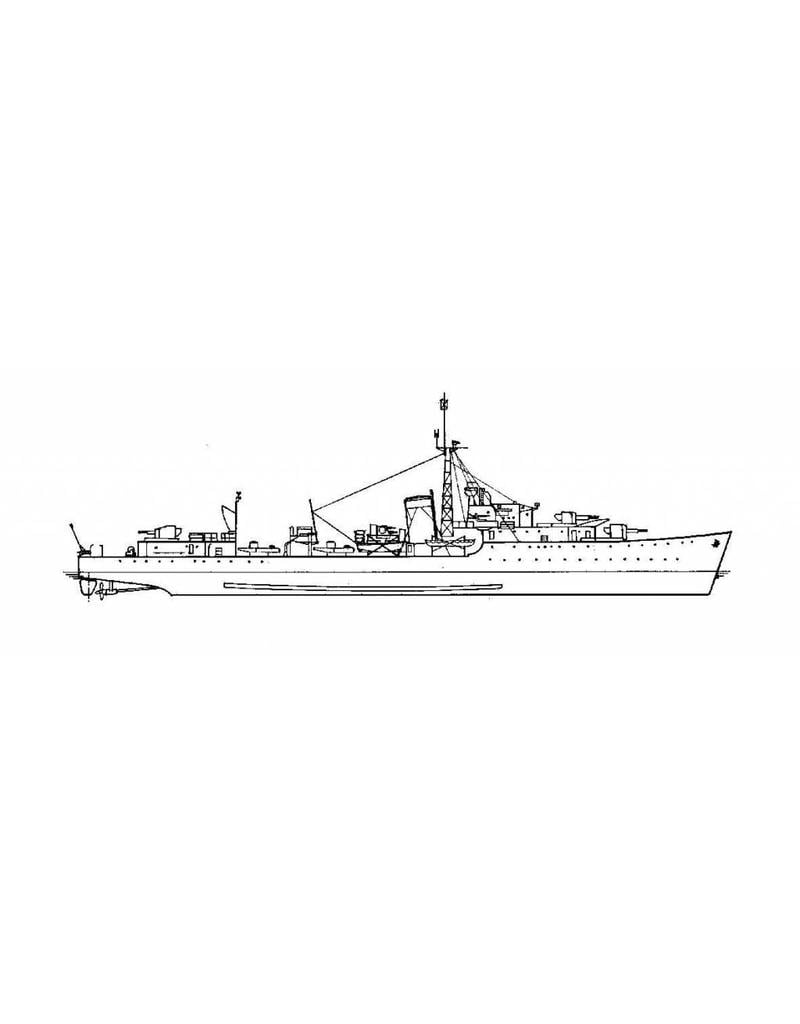

number of cross-sections; general plan; exploded view; |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
2 |
|
Number of sheets A0 |
2 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
4 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
305 |
|
Particulars |
l.o.a. 100 cm |
|
Remarks |
artek 0065/A |
