| Article number: | 16.11.020 |
Specifications:
|
Drawing number |
16.11.020 |
|
Description |

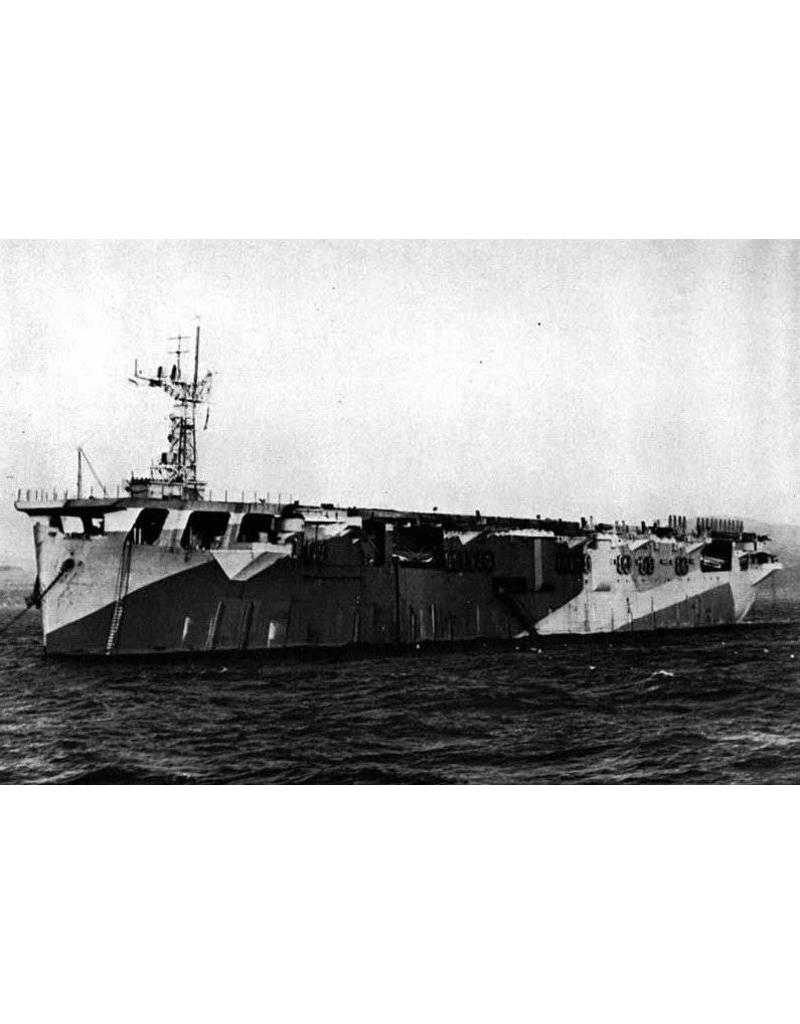

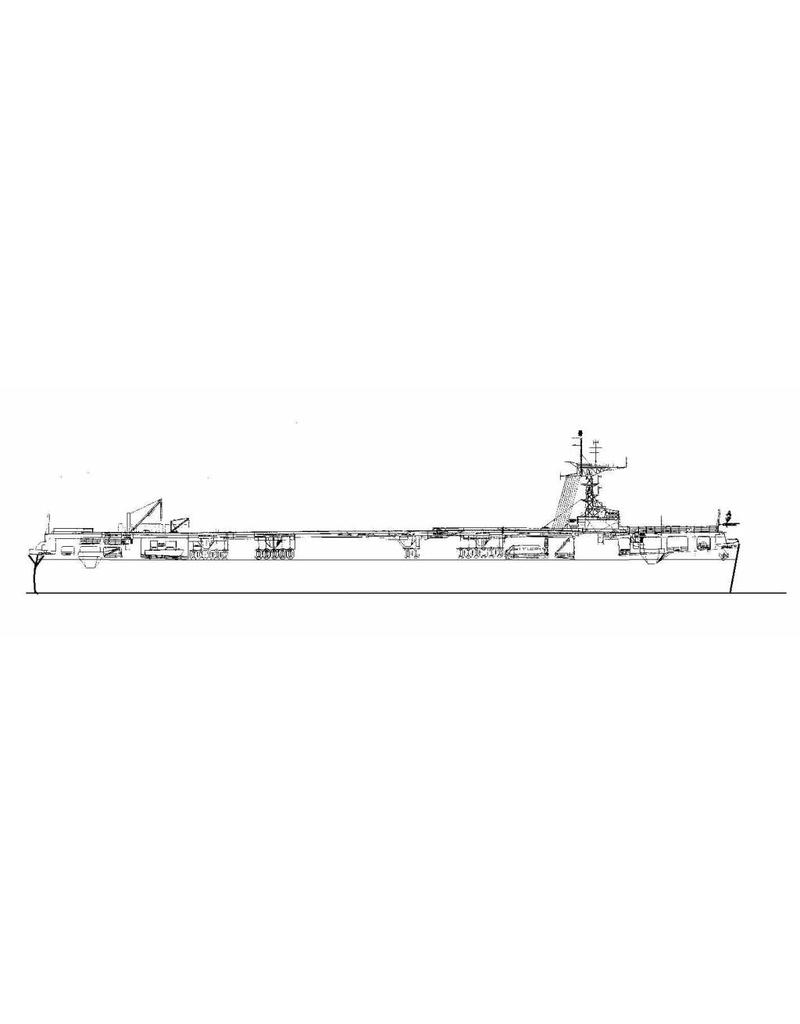

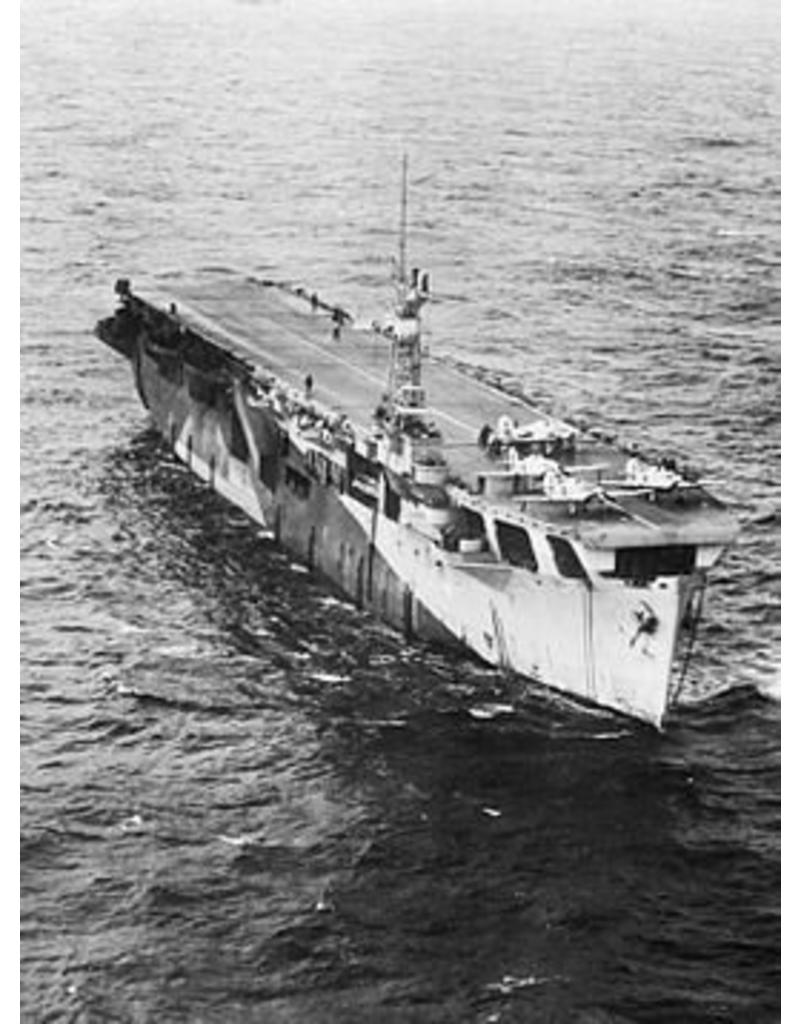

HNLMS "Karel Doorman" aircraft carrier (1946) - ex "Nairana" (1943) |
|
Quality |
no sp/lines; large number of sections; general plan; rigging plan |
|
Difficulty level |
D |
|
Scale |
1 : 96 |
|
Number of sheets A00 |
7 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
7 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
1-1-1900Ì´Ì_ |
|
Particulars |
l.o.a. 166 cm |
|
Remarks |
artek 0068 |
