| Article number: | 16.11.022 |
Specifications :
|
Drawing number |
16.11.022 |
|
Description |

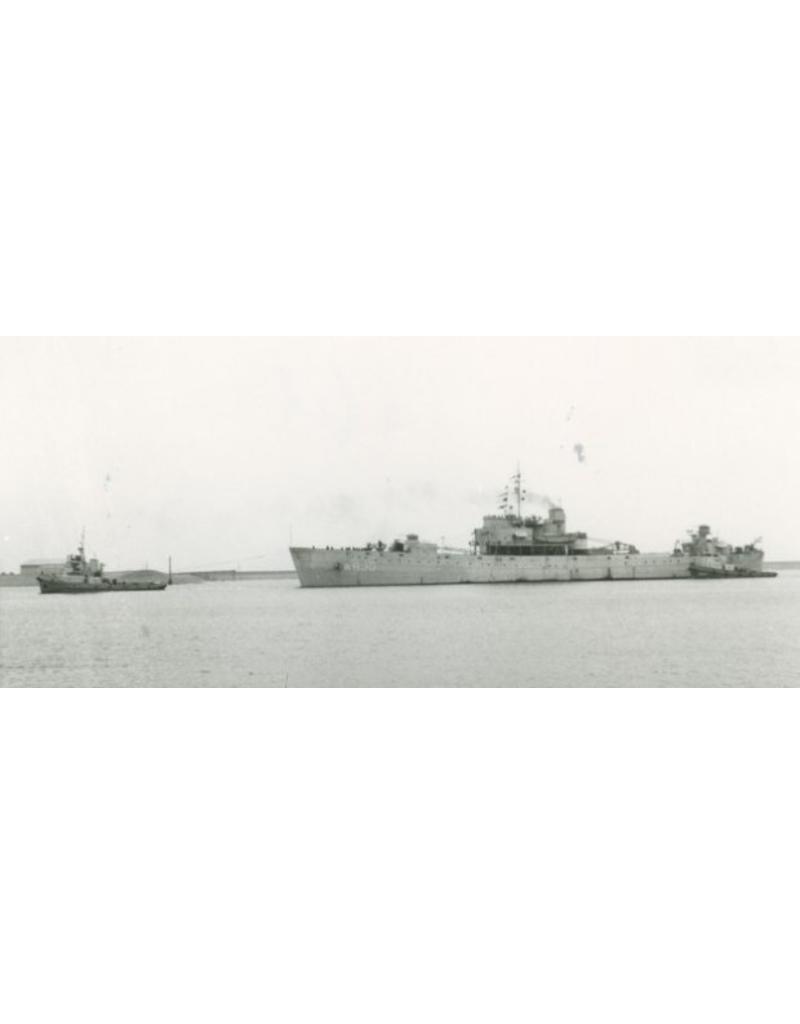

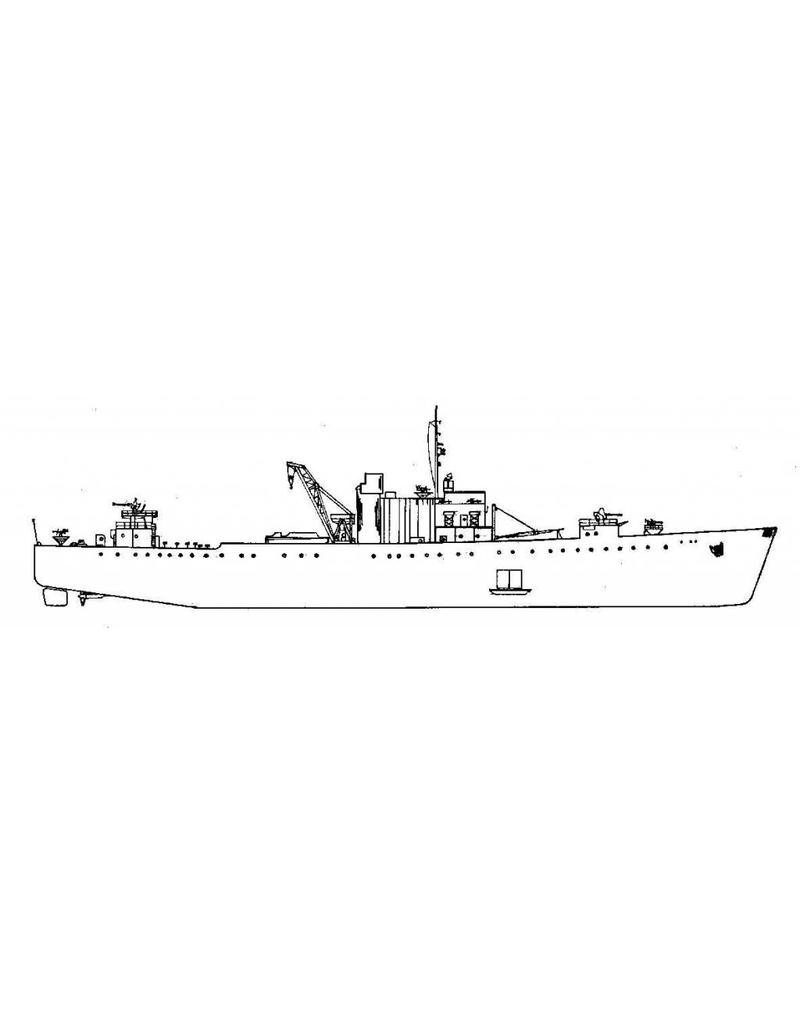

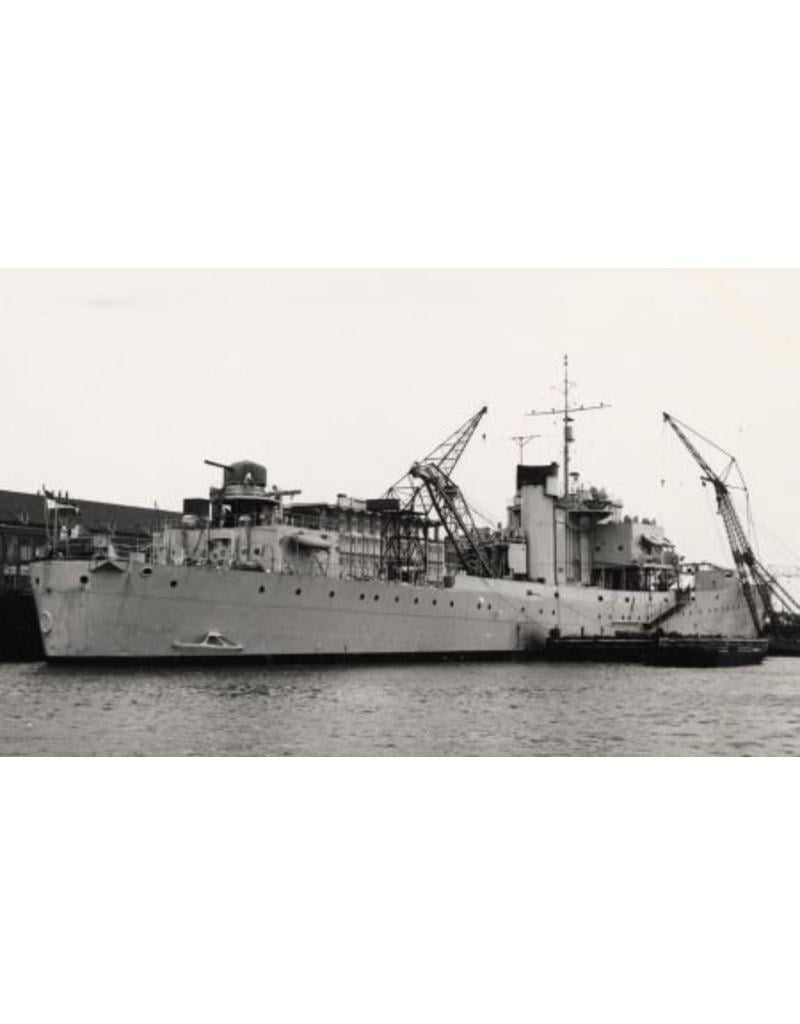

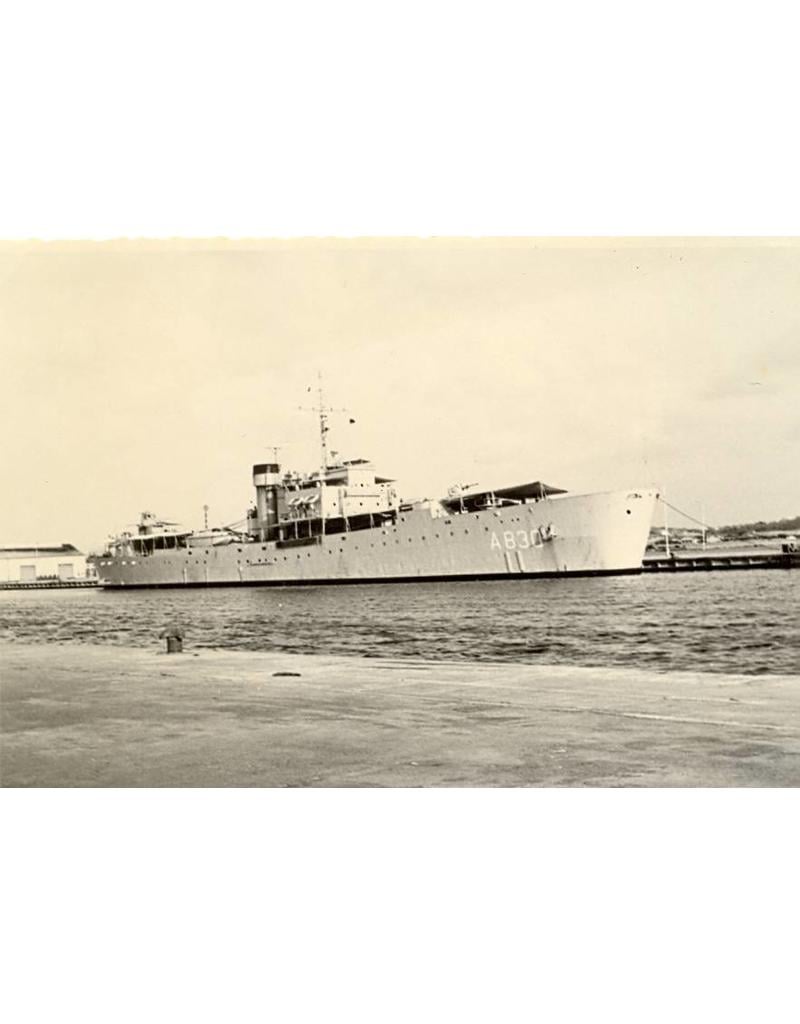

Storeship HNLMS "Pelikaan" (191:48) - ex HMS "Thruster" (191:43) |
|
Quality |
frames/docking plan 1:1:48; general plan |
|
Difficulty level |
D |
|
Scale |
1 : 96 |
|
Number of sheets A00 |
4 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
4 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
305 |
|
Particulars |
l.o.a. 11:25 cm |
|
Remarks |
artek 0075 Ì´Ì_
|
