| Article number: | 16.11.023 |
Specifications :
|
Drawing number |
16.11.023 |
|
Description |
torpedo workshop ship HrMs "Mercuur" A829 (1935) |
|
Quality |

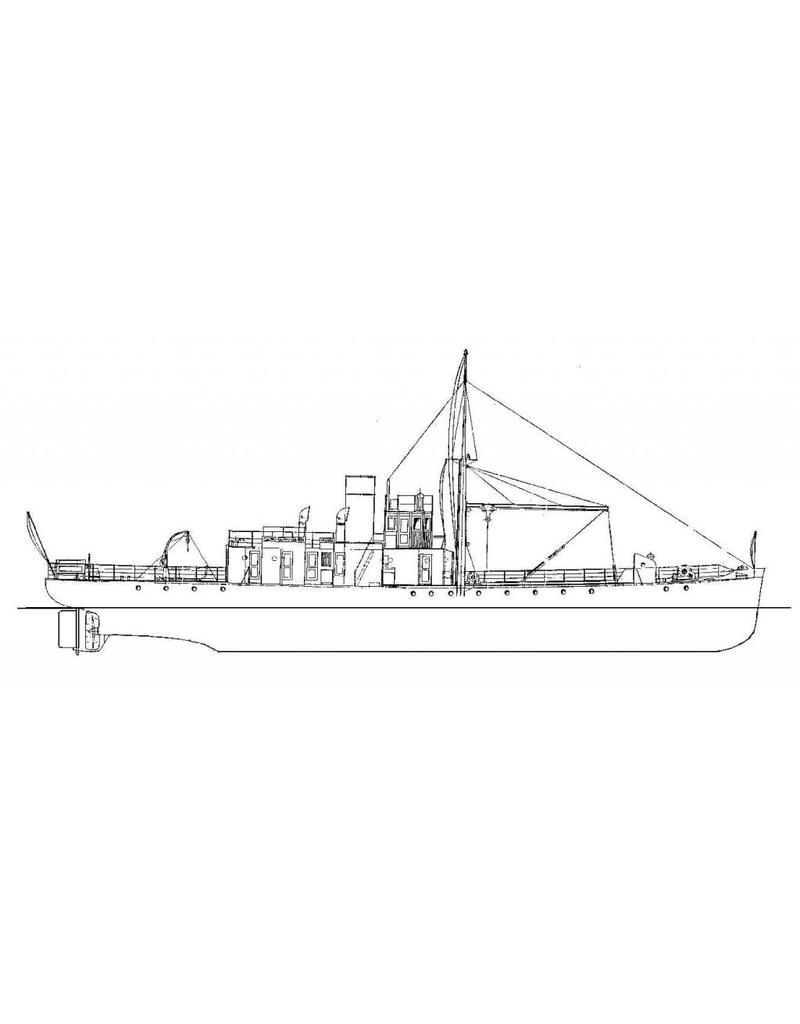

frames/lines 1:25/1:50; general arrangement plan |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
85 |
|
Particulars |
l.o.a. 41.5 cm |
|
Remarks |
artek 0078 |
