| Article number: | 16.11.025 |
Specifications :
|
Drawing number |
16.11.025 |
|
Description |

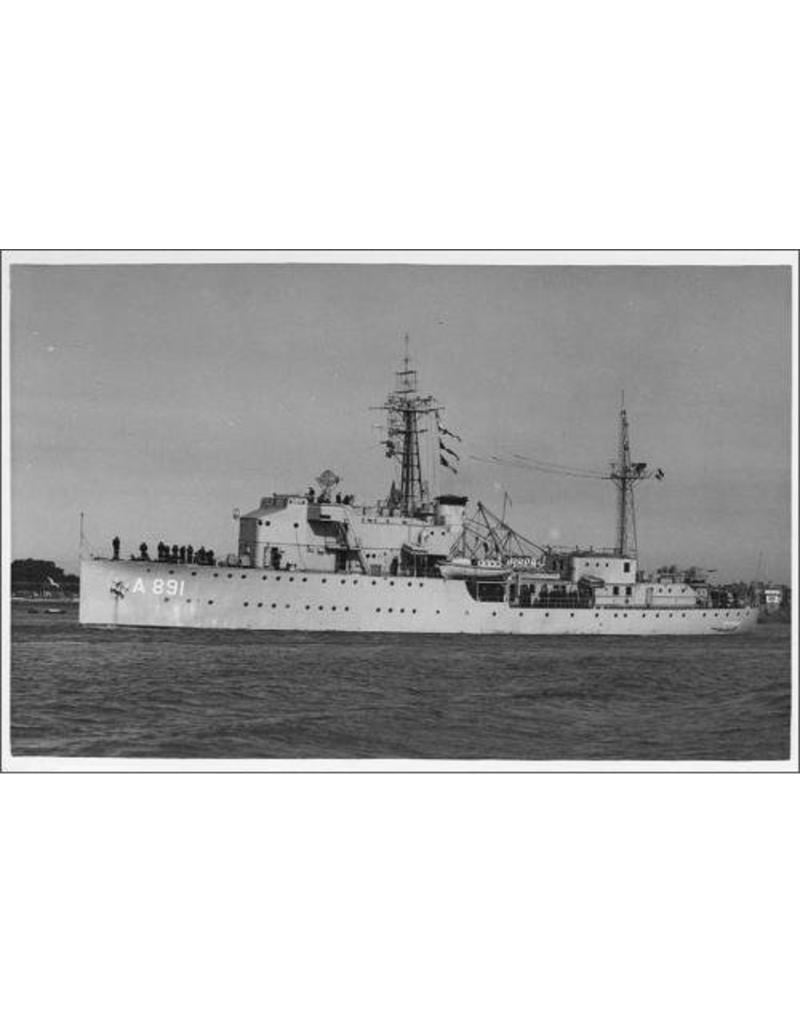

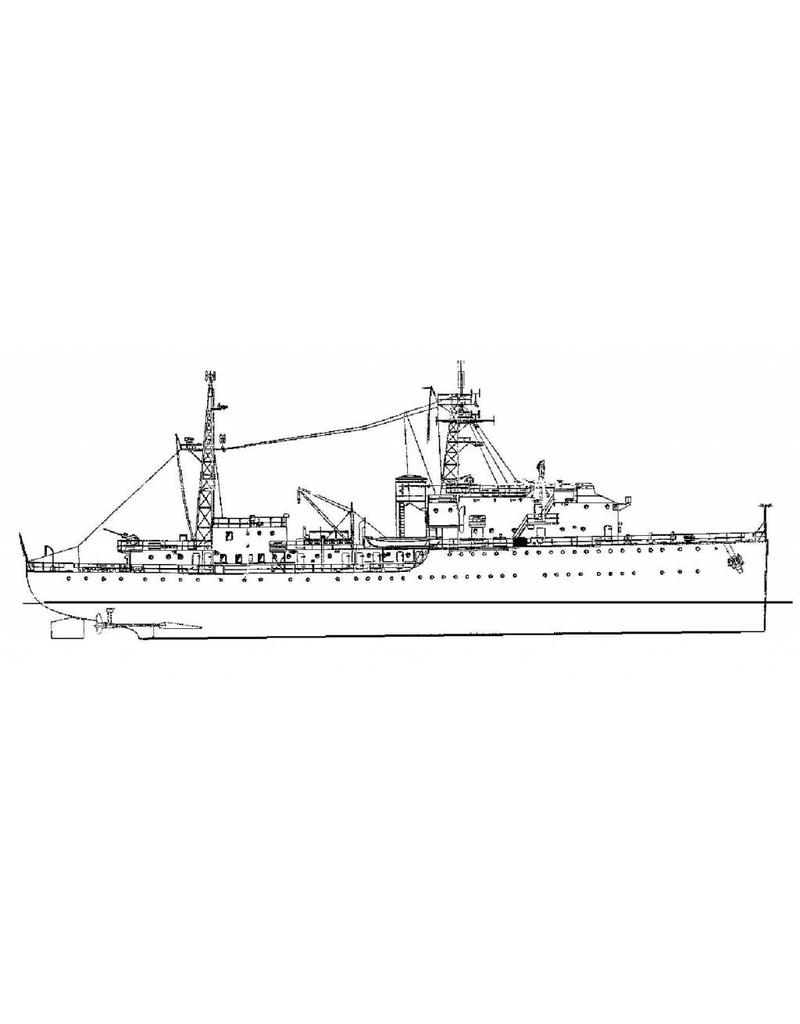

radar instruction ship HrMs "Soemba" (after conversion, 1957) |
|
Quality |
no frame plan; dock plan; general plan |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
1 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
4 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
6 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
|
|
Particulars |
l.o.a. 75 cm |
|
Remarks |
artek 0079 |
