| Article number: | 16.11.030 |
Specifications :
|
Drawing number |
16.11.030 |
|
Description |

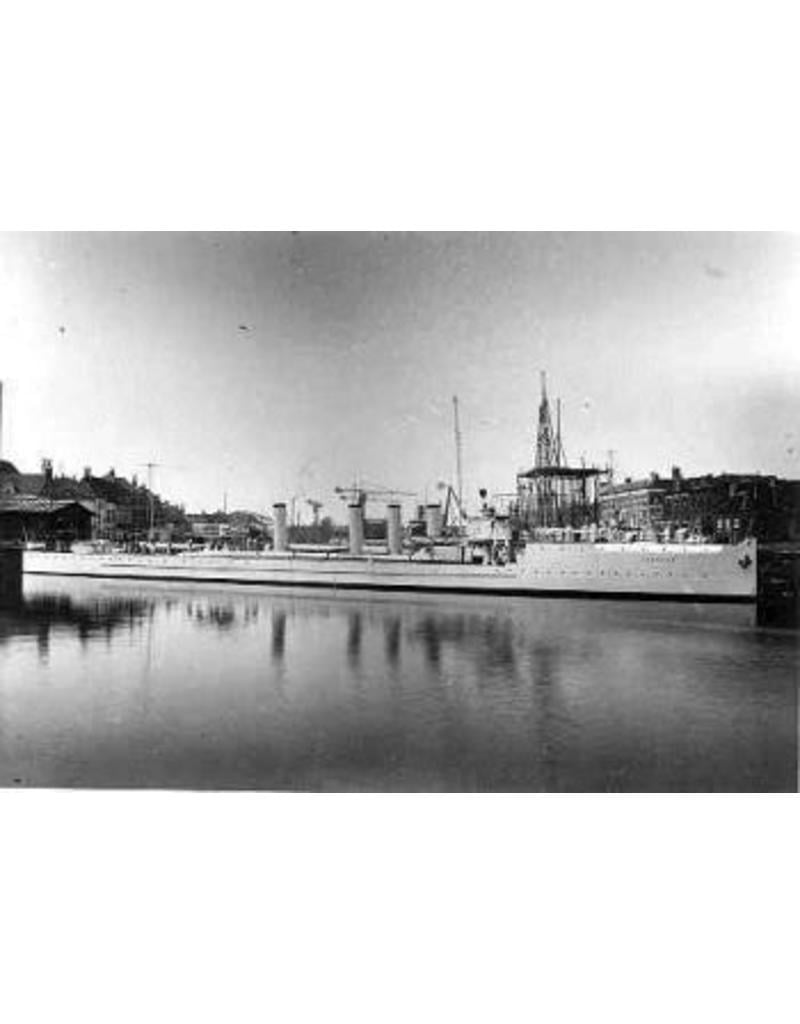

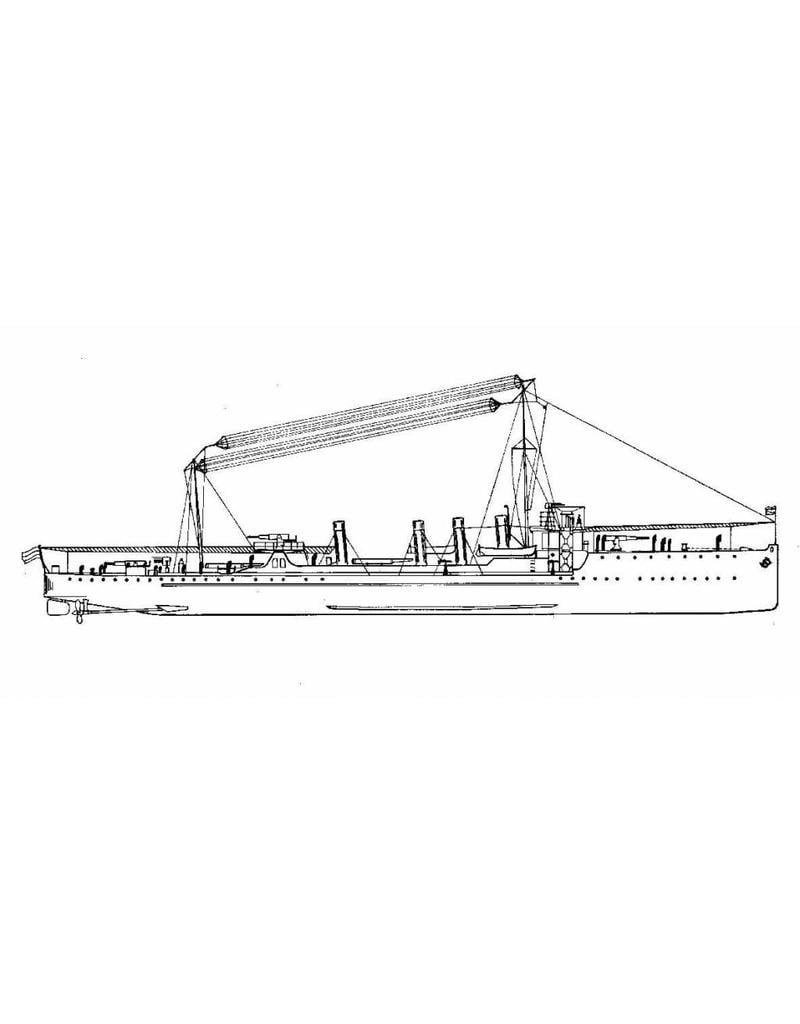

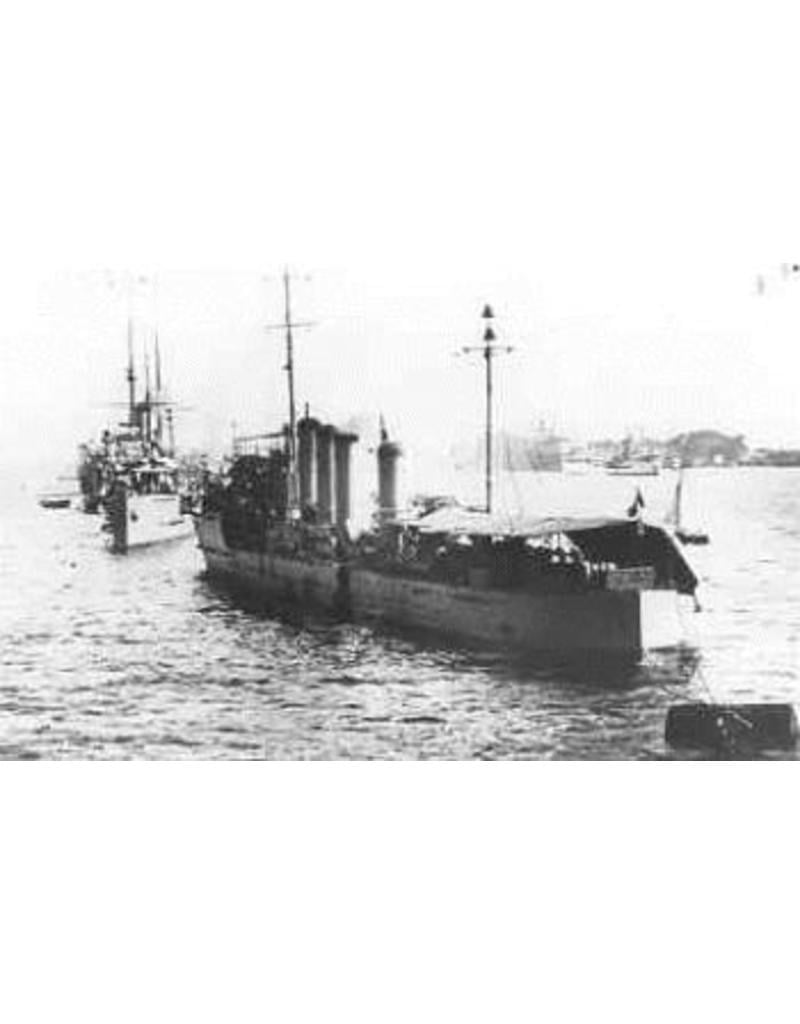

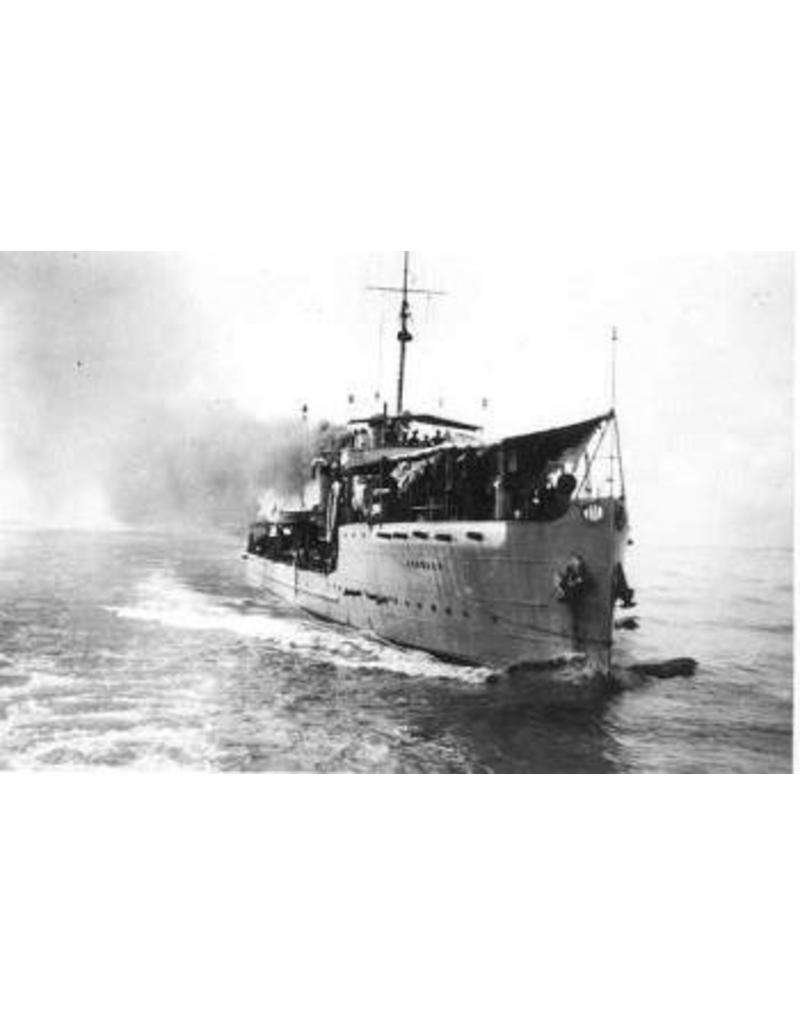

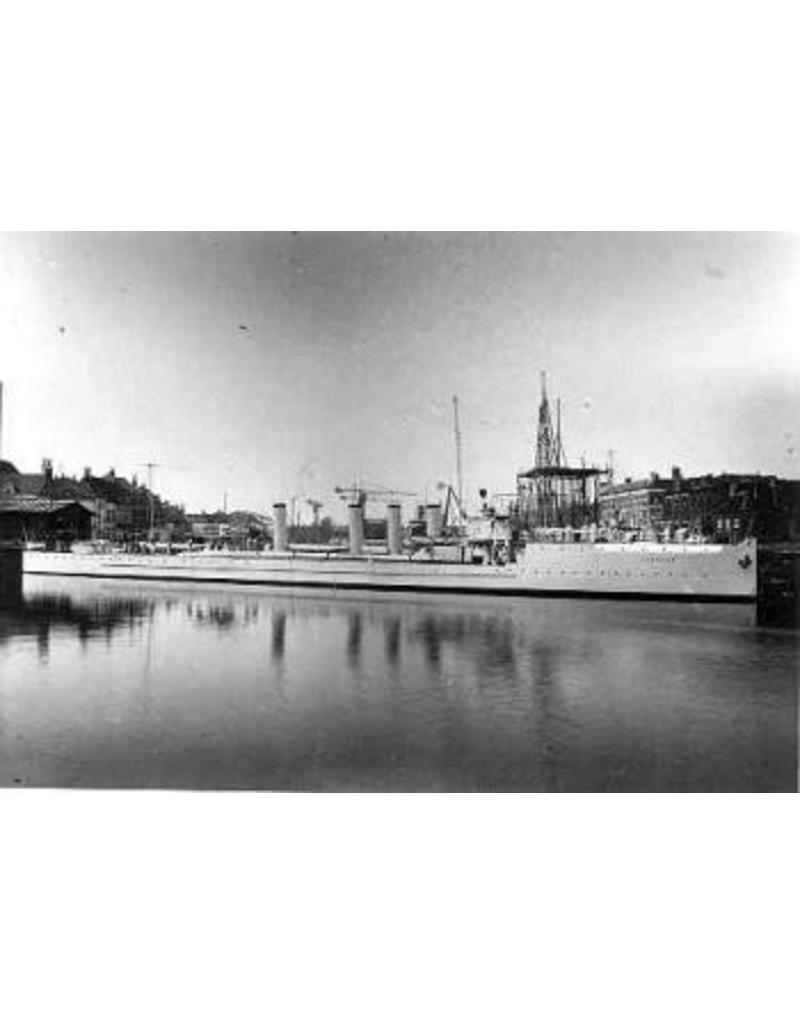

destroyer HrMs "Jakhals" (1912) |
|
Quality |
frames/lines 1:25; general arrangement plan |
|
Difficulty level |
D |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
3 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
21:25 |
|
Particulars |
l.o.a. 140 cm |
|
Remarks |
