MBT 16.11.033 HrMs motor tugboat "Hercules" (1951); ex tugboat "Walcheren XII" (1950); ex "Atlas" (1944), Luftwaffe

Drawing number

16.11.033

Description

HrMs motor tugboat "Hercules" (1951); ex tugboat "Walcheren XII" (1950); ex "Atlas" (1944), Luftwaffe

Quality

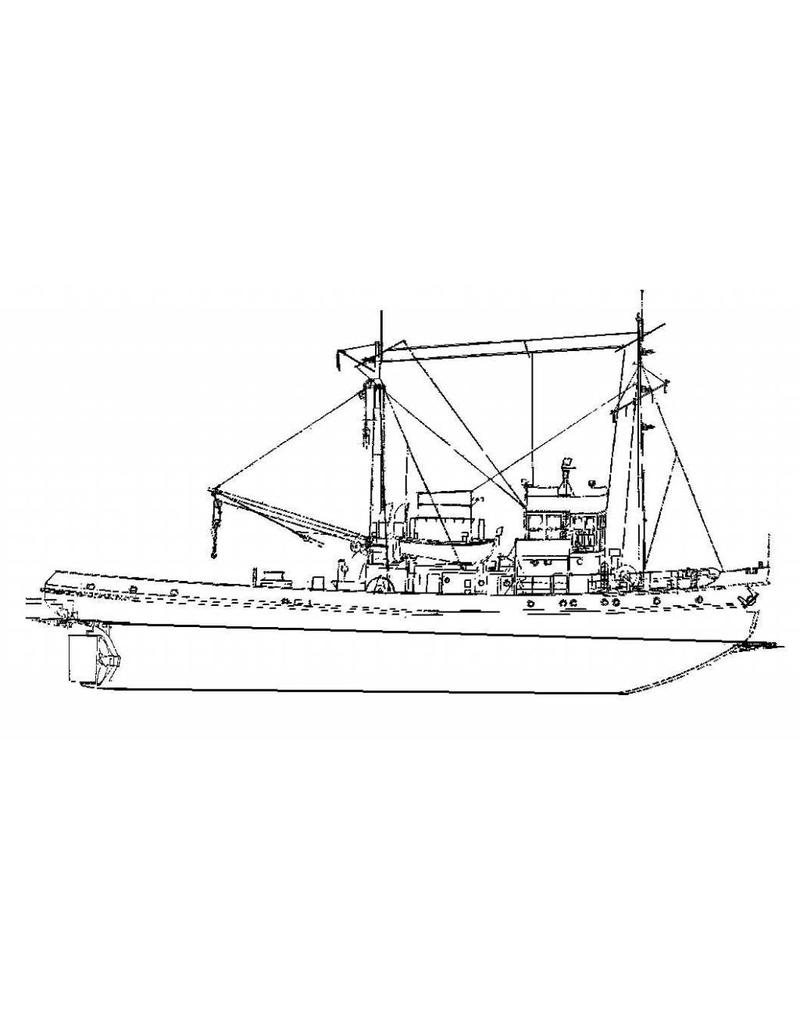

frames; general arrangement plan; rigging plan

Difficulty level

D

Scale

1 : 50

Number of sheets A00

1

Number of sheets A0

1

Number of sheets A1

2

Number of sheets A2

0

Number of sheets A3

0

Number of sheets A4

1

Total number of drawing sheets

5

Number of A4 text sheets

0

Weight in grams

0

Particulars

l.o.a. 76 cm

decommissioned in 1962; thereafter "TEMI IV", in Vlissingen

Remarks

artek 0095
