MBT 16.11.035 HNLMS torpedo boat "Cerberus" (1888)

Drawing number

16.11.035

Description

HNLMS torpedo boat "Cerberus" (1888)

Quality

sp/lines; general plan; sections

Difficulty level

D

Scale

1 : 20

Number of sheets A00

3

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

0

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

3

Number of A4 text sheets

0

Weight in grams

265

Particulars

l.o.a. 195 cm

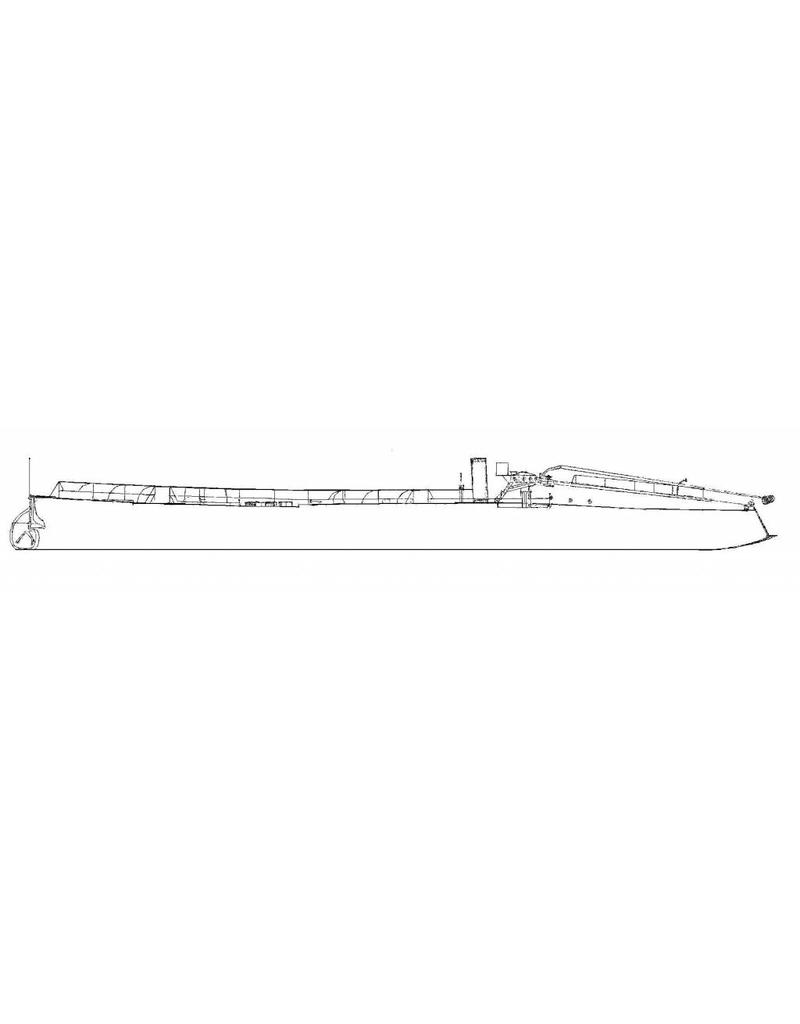

The drawing shows the original design as a spar torpedo boat. In 1898, the ship was rearmed as a fish torpedo boat and fitted with 2 bow tubes.

Remarks

artek 0098
