| Article number: | 16.11.043 |
Specifications :
|
Drawing number |
16.11.043 |
|
Description |

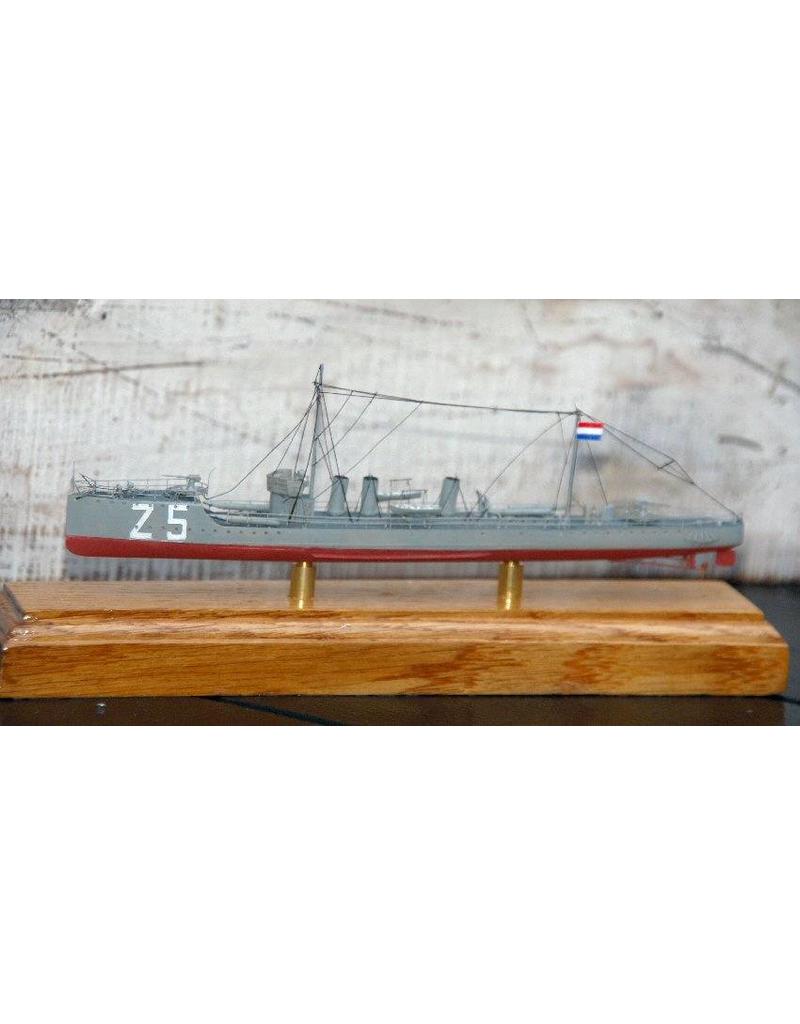

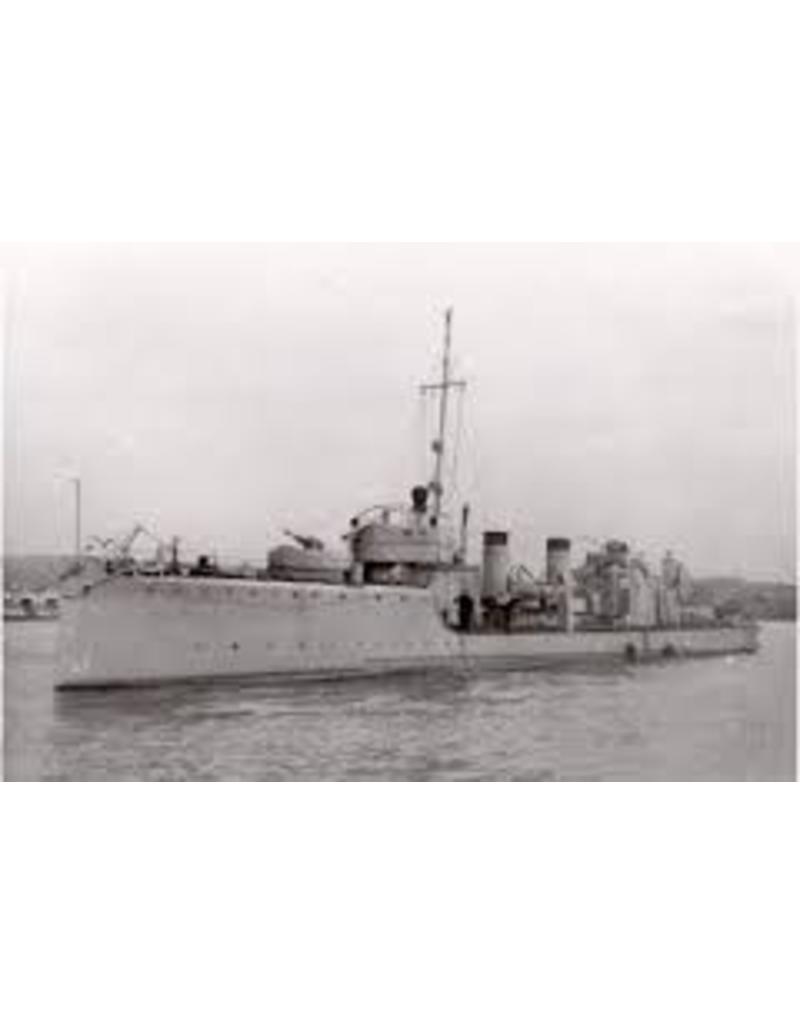

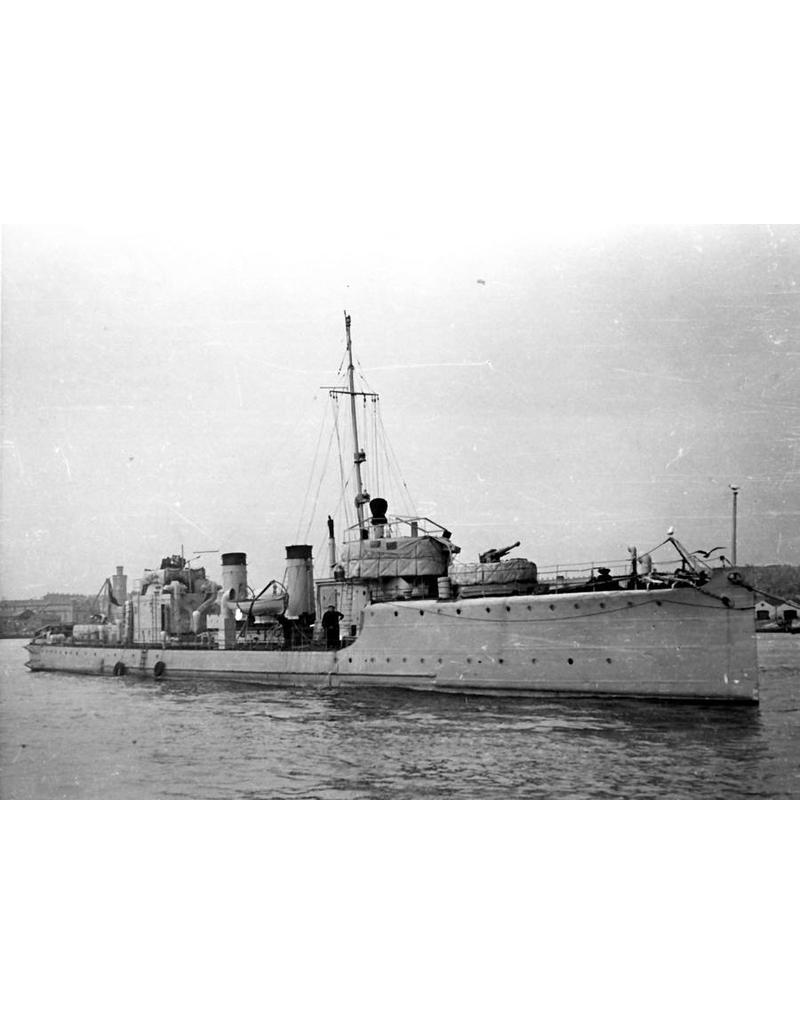

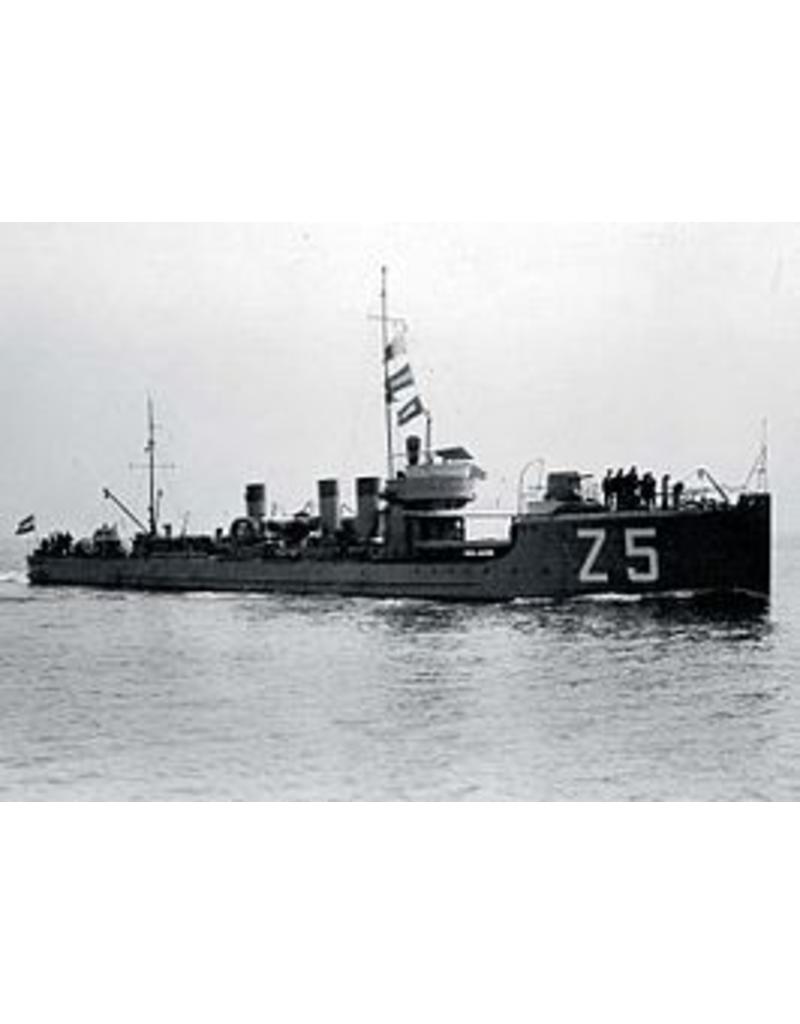

HrMs torpedo boat "Z5" (191:17) |
|
Quality |

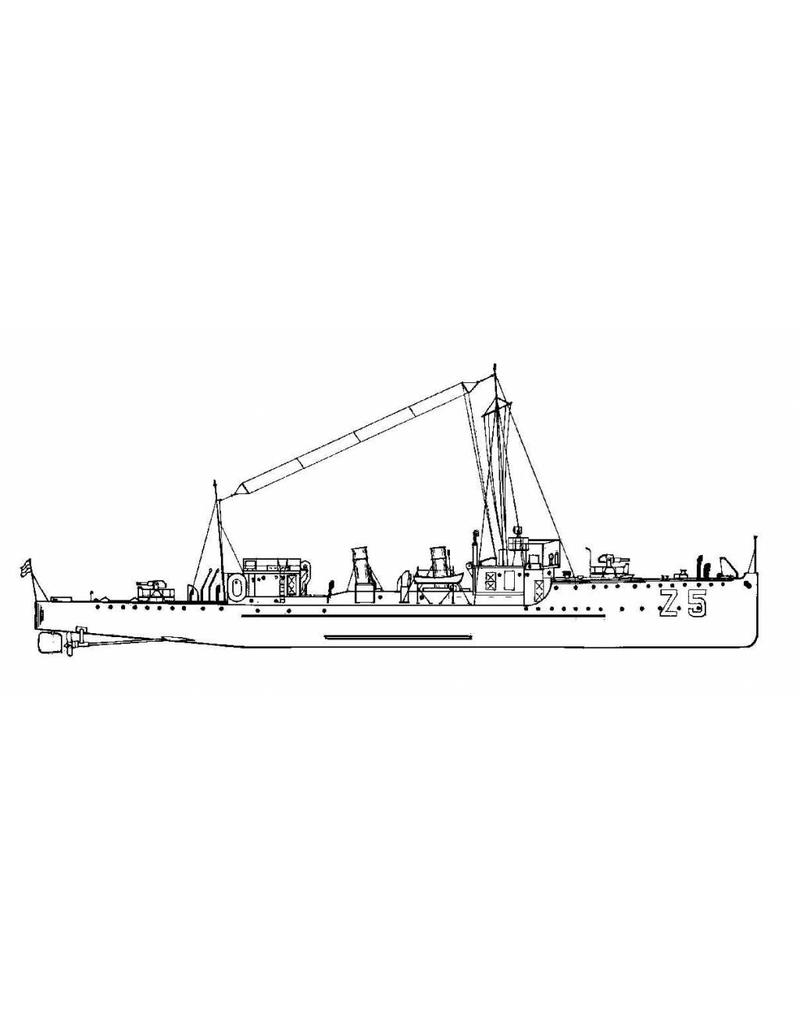

sp/lines 1:50; side view 1:50; general plan 1:25 |
|
Difficulty level |
D |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
3 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
1 |
|
Total number of drawing sheets |
4 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
150 |
|
Particulars |
l.o.a. 116 cm |
|
Remarks |
artek 0096 Ì´Ì_
|
