| Article number: | 16.15.015 |
Specifications :
|
Drawing number |
16.15.015 |
|
Description |

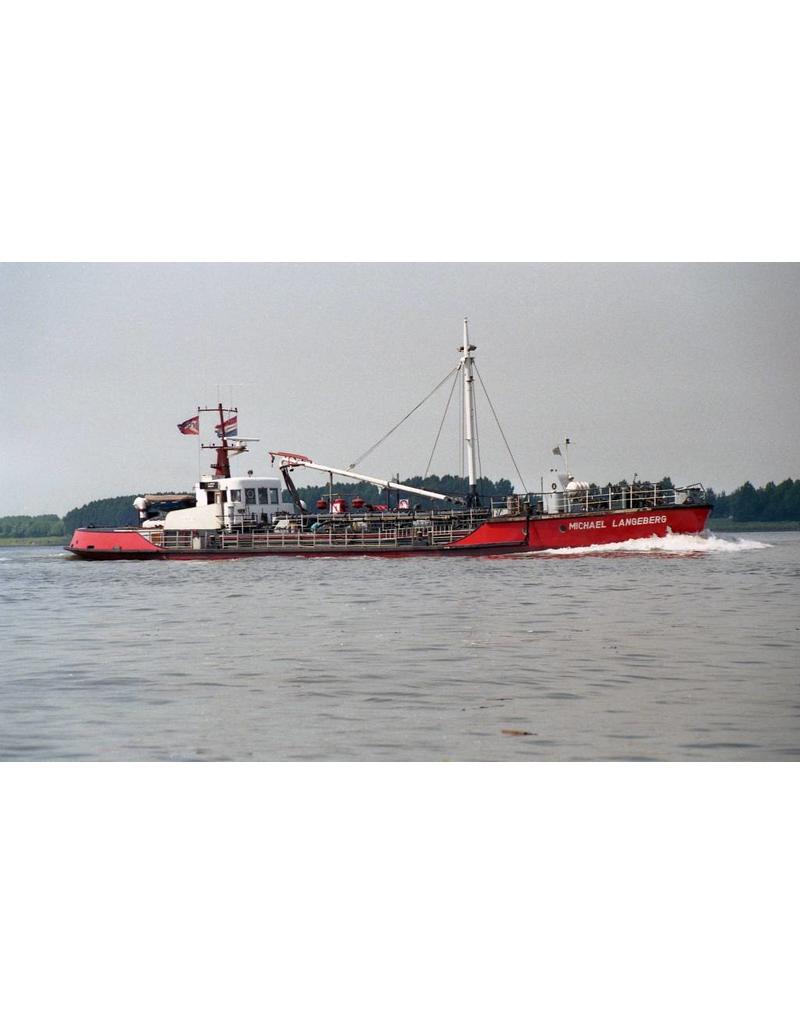

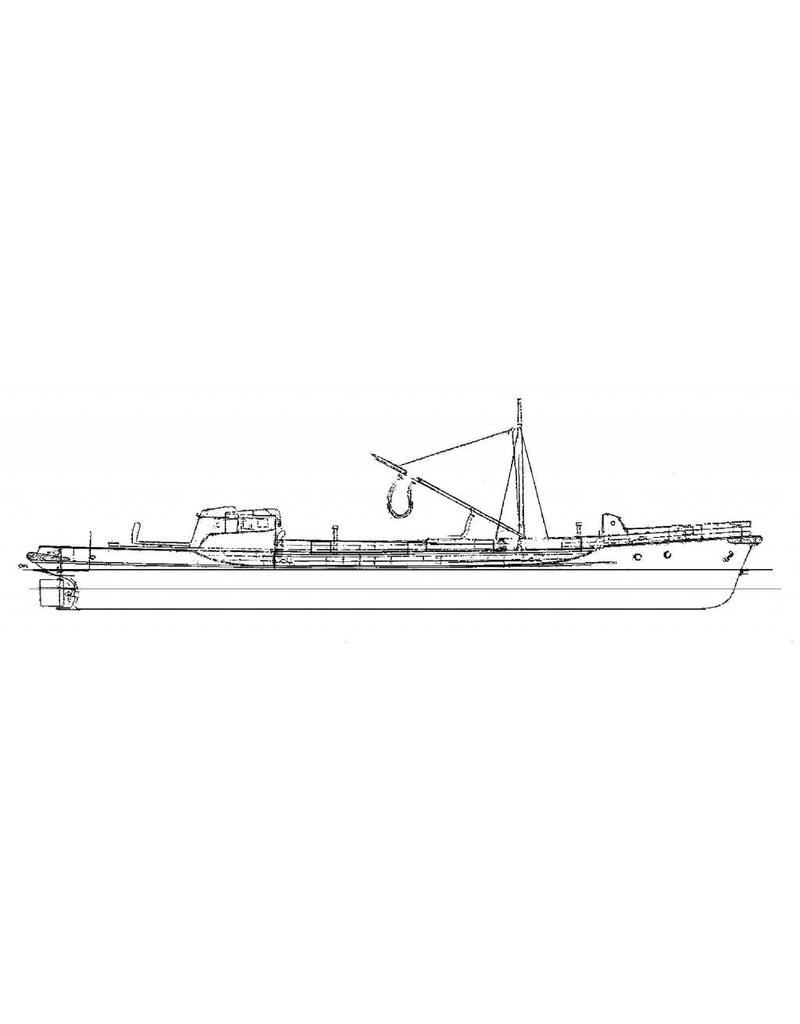

tank cleaning vessel ms Michael Langenberg (1958) - Langenberg |
|
Quality |
general plan; sp/lines on a slightly different scale; steel construction |
|
Difficulty level |
D |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
2 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
4 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
|
|
Particulars |
l.o.a. 90 cm |
|
Remarks |
artek 4336 |
