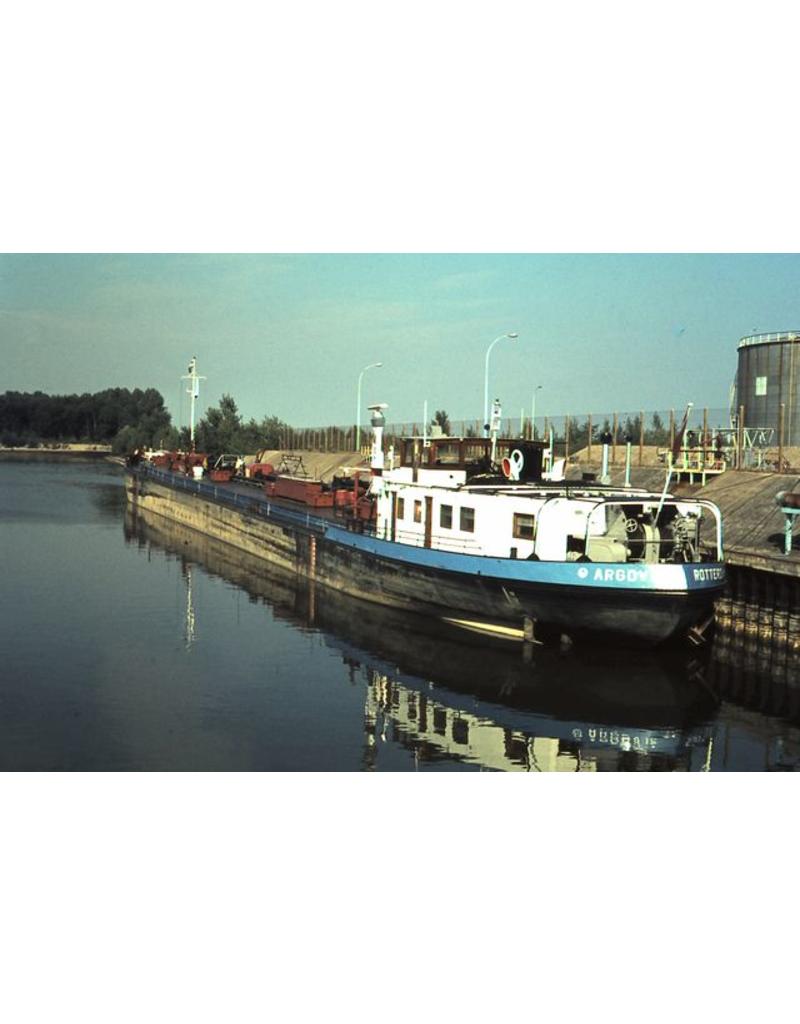

MBT 16.15.024 tanker ms Argovia - (1956) - Int. River Tanker Shipping Co.

Drawing number

16.15.024

Description

tanker ms Argovia - (1956) - Int. River Tanker Shipping Co.

Quality

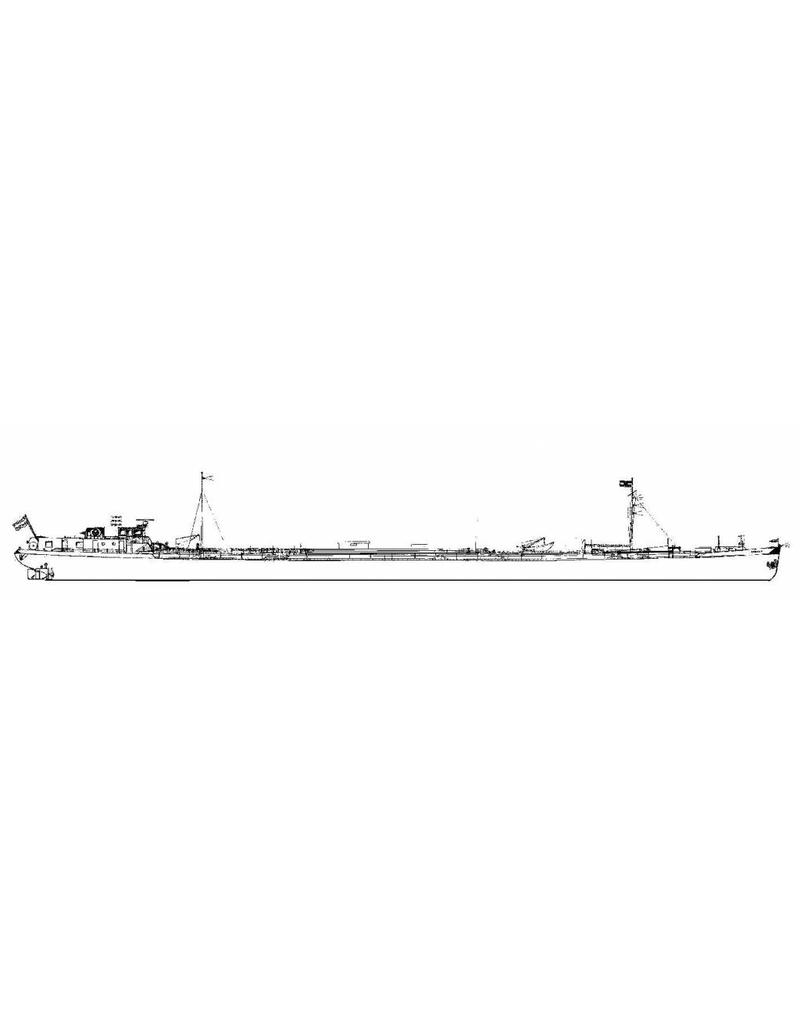

general arrangement plan; frame plan

Difficulty level

D

Scale

1 : 100

Number of sheets A00

1

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

0

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

1

Number of A4 text sheets

0

Weight in grams

0

Particulars

l.o.a. 1:100 cm

The drawing shows the situation after extension to 1:100 m in 1969

Remarks

artek 4394
