| Article number: | 16.15.055 |
Specifications :
|
Drawing number |
16.15.055 |
|
Description |

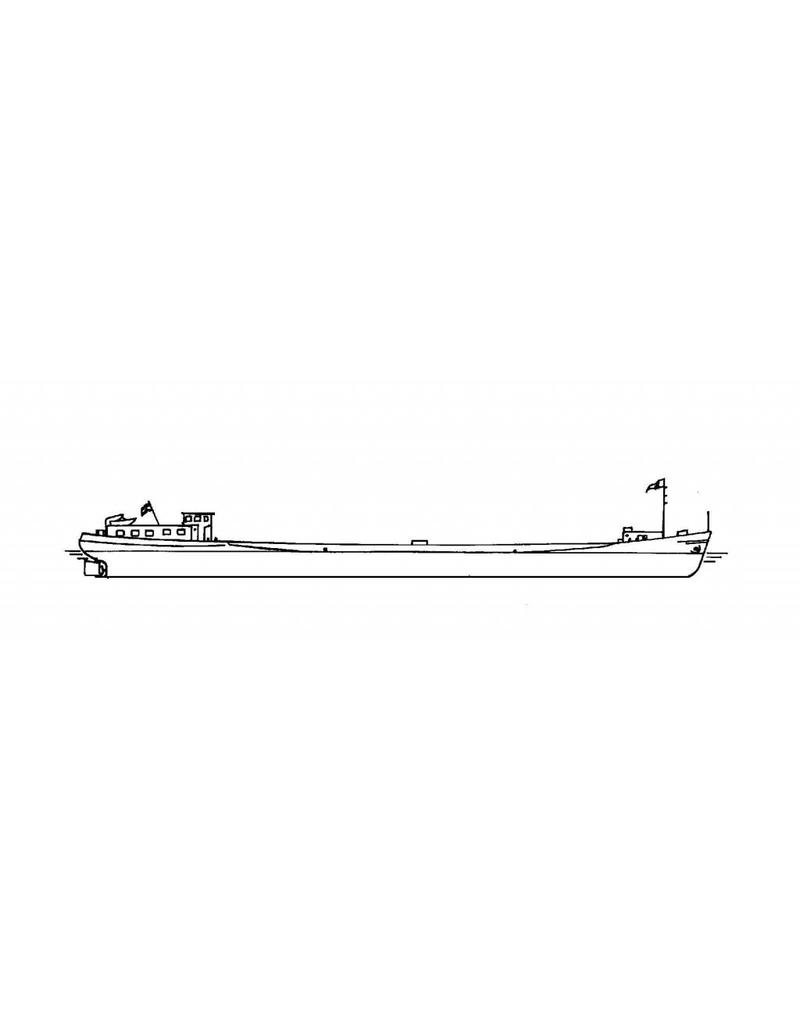

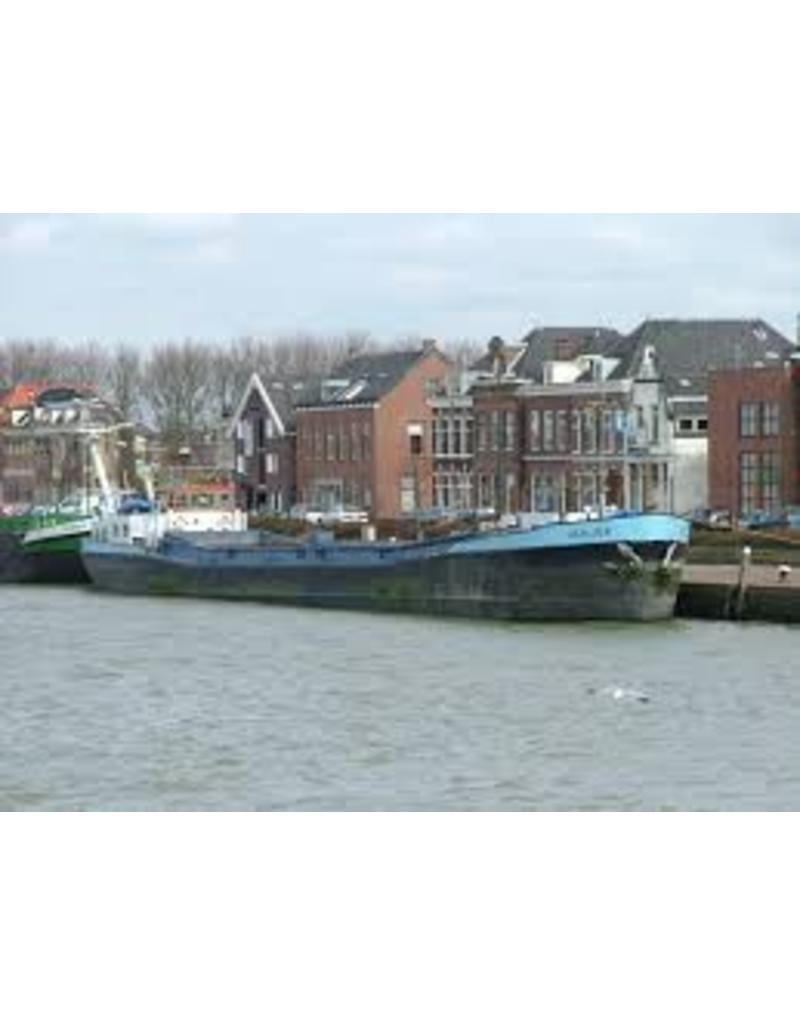

Motor hopper barge ms Zagri 10 (1965) - Joh. Boele, Rotterdam; 1992 Henjor - v.d. Gaag, Maassluis |
|
Quality |
general plan; sp/lines 1:20 |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
2 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
225 |
|
Particulars |
l.o.a. 64 cm |
|
Remarks |
