| Article number: | 16.18.017 |
Specifications :
|
Drawing number |
16.18.017 |
|
Description |

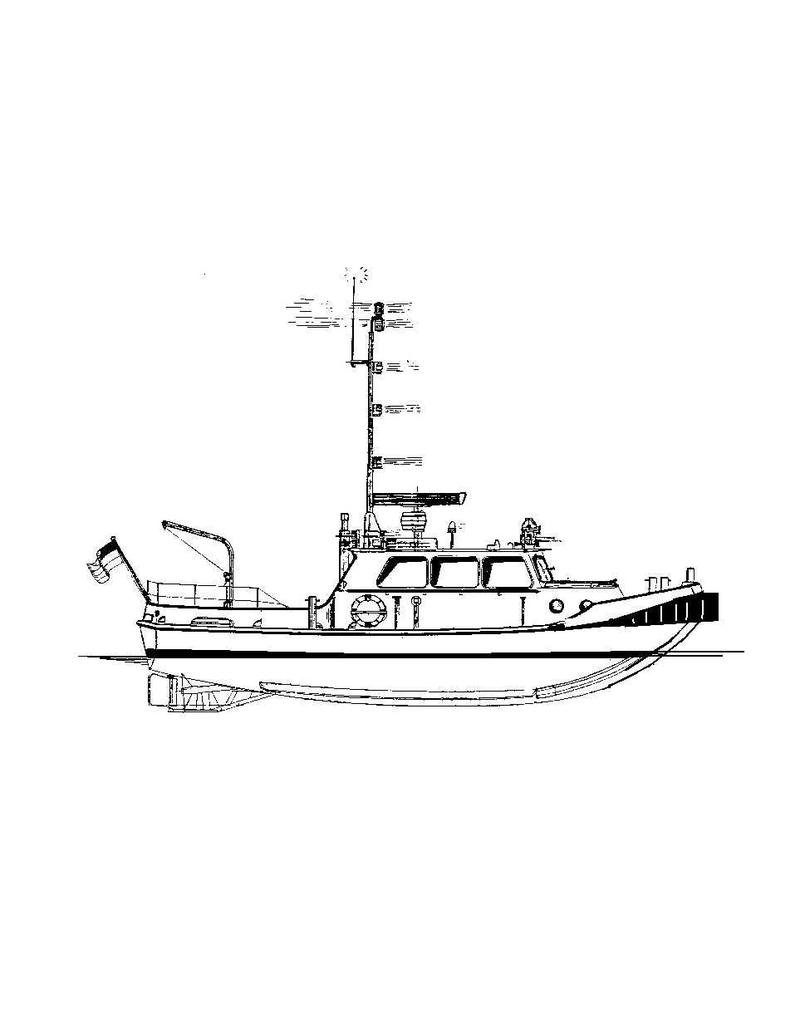

survey vessel 53 and 54 (19Ì´Ì_ ) - RWS - (damen Launch 1:43) |
|
Quality |
general plan 1:50; frames 1:20; many construction frames; details |
|
Difficulty level |
D |
|
Scale |
1 : 20 |
|
Number of sheets A00 |
2 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
5 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
31:25:00 |
|
Particulars |
l.o.a. 63 cm |
|
Remarks |
artek 4347 and 4348 |
