| Article number: | 16.18.020 |
Specifications :
|
Drawing number |
16.18.020 |
|
Description |

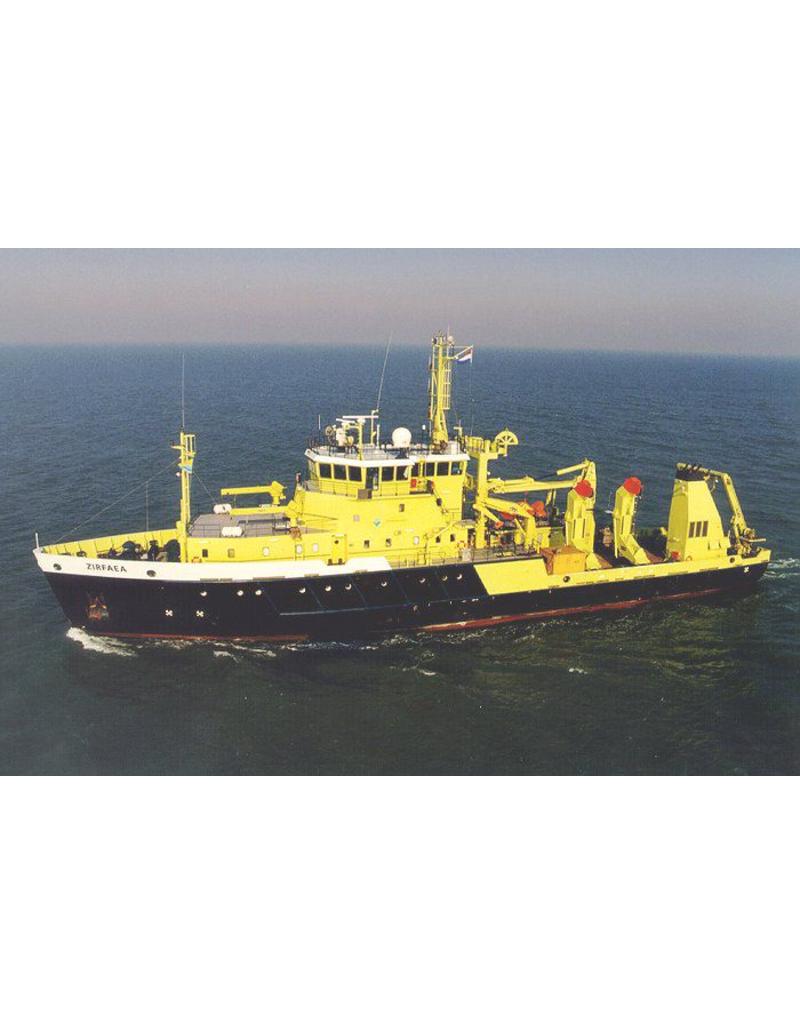

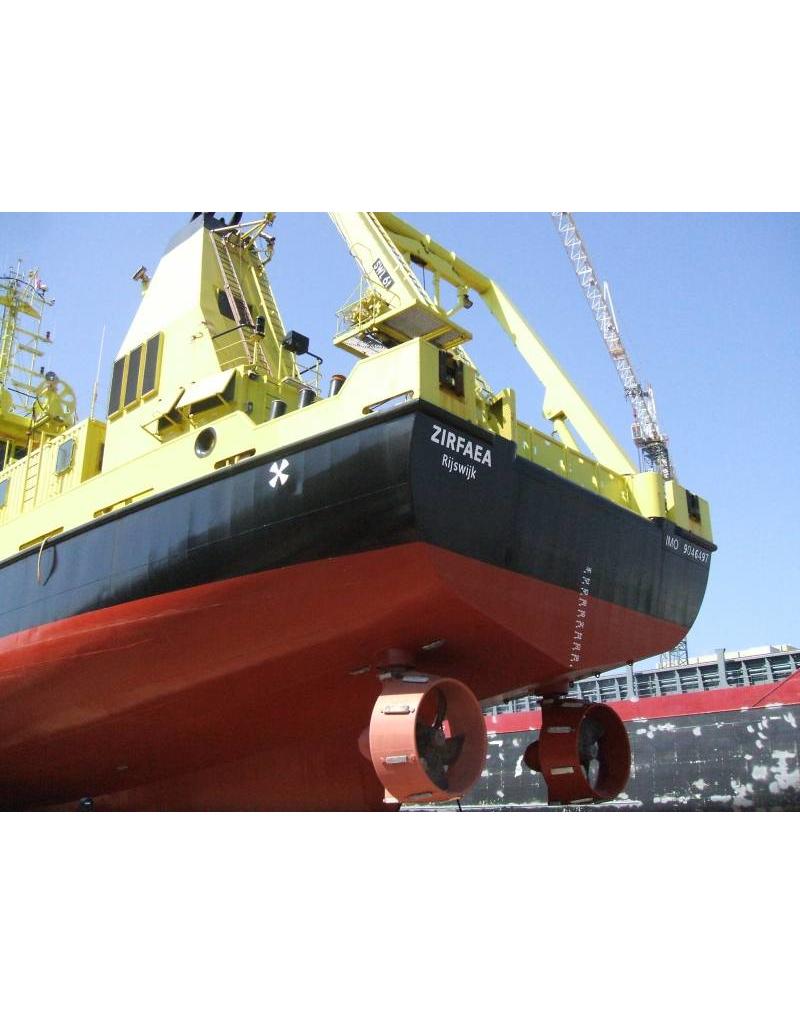

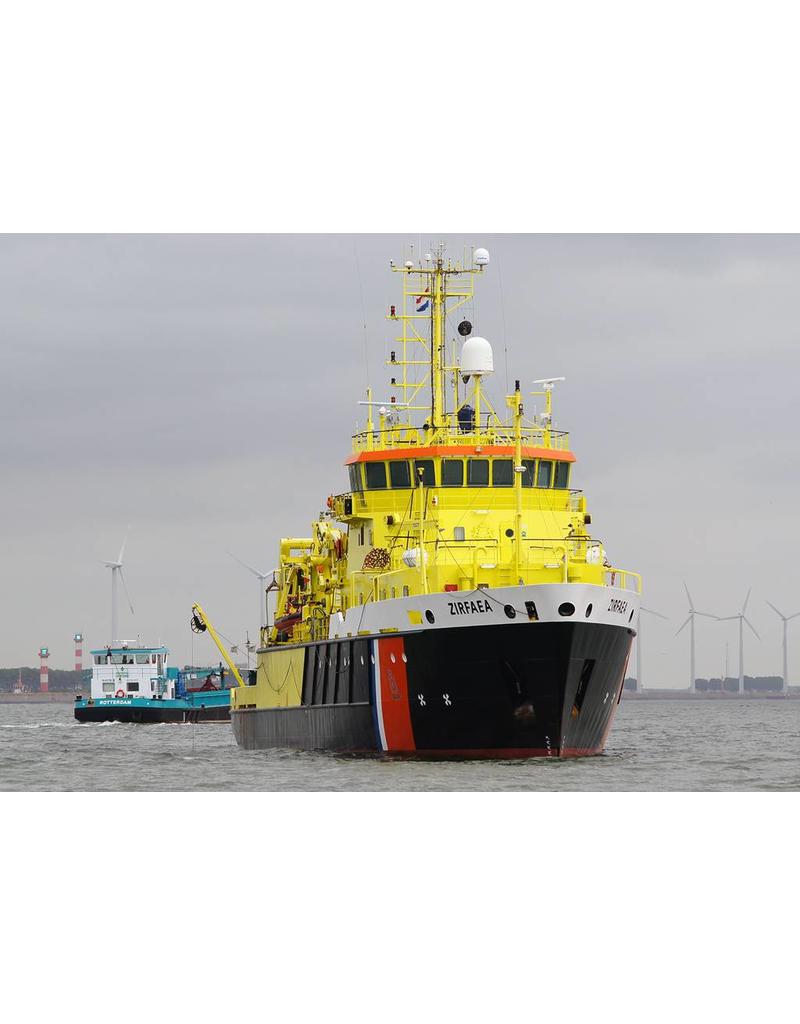

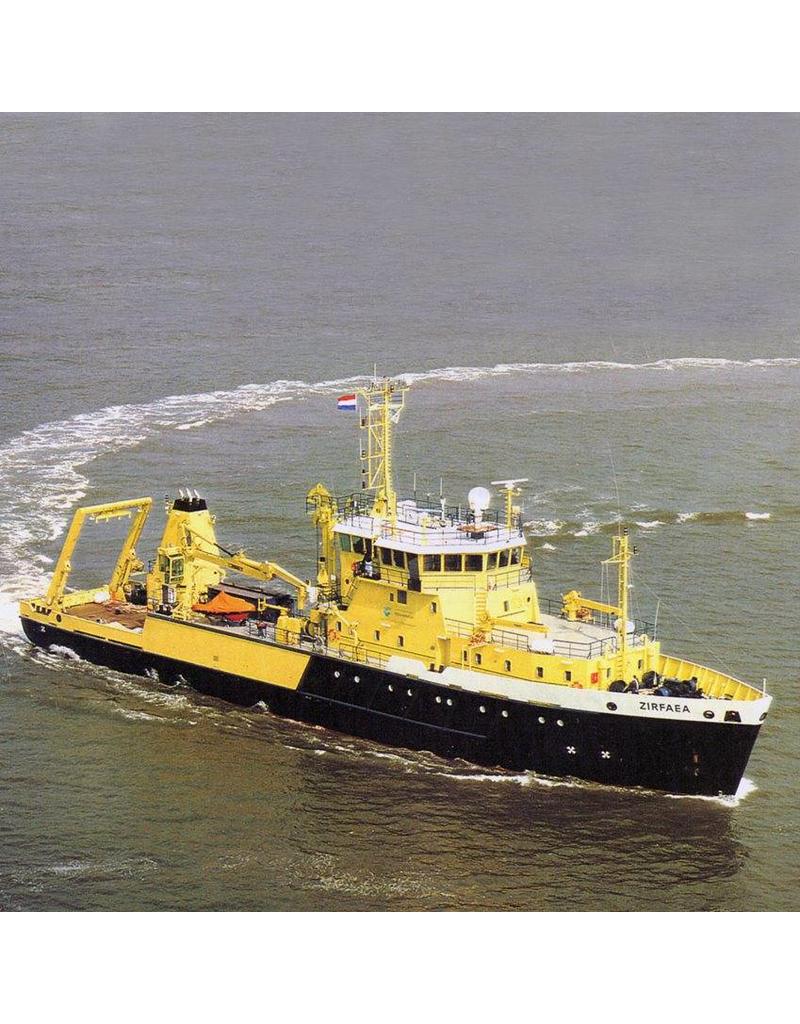

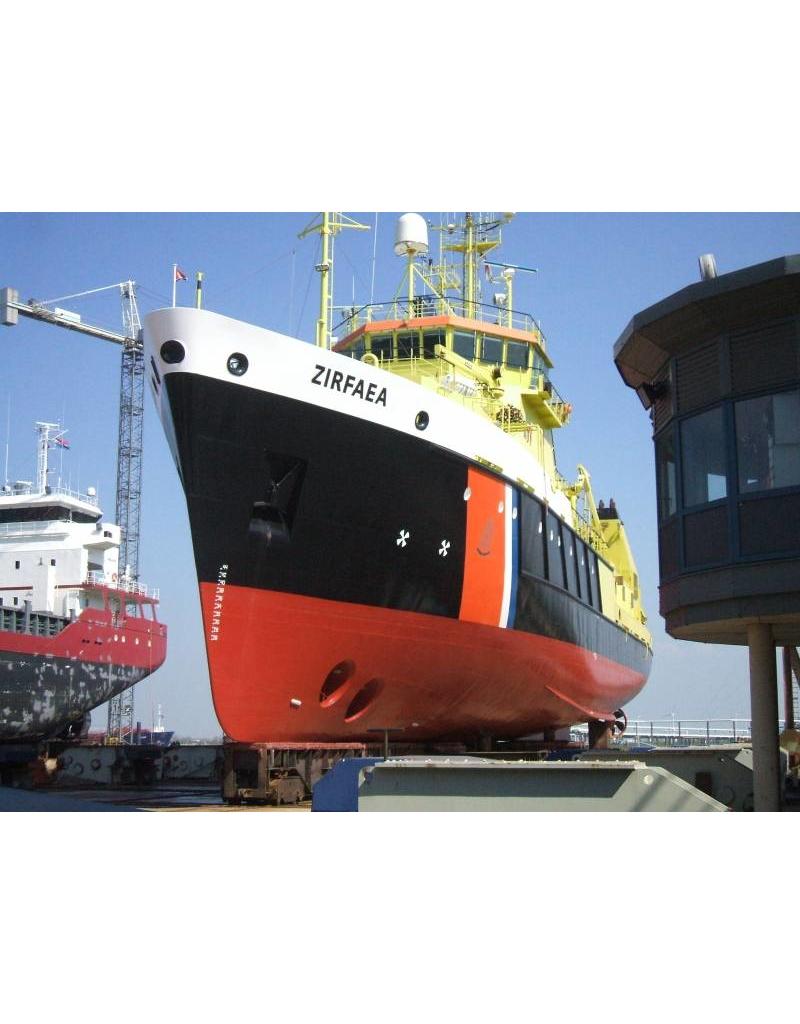

research vessel ms Zirfaea (1993) - RWS |
|
Quality |

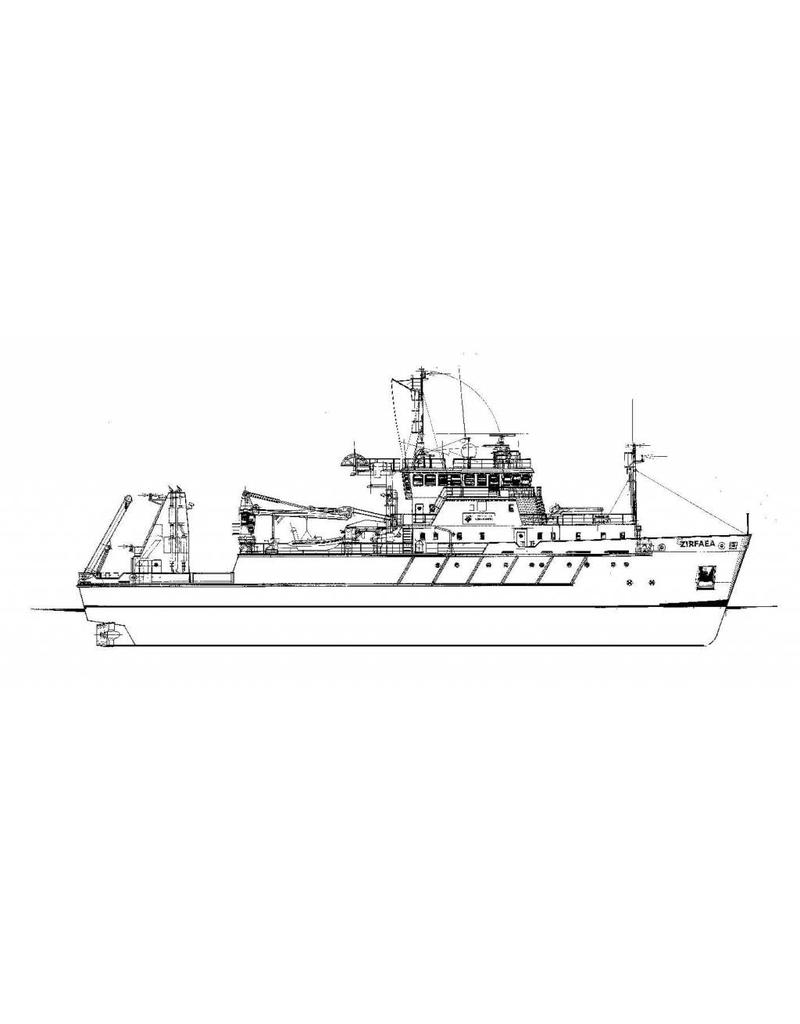

general plan; frame plan; sections; details |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
2 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
Ì´Ì_ |
|
Particulars |
l.o.a. 64 cm |
|
Remarks |
artek 4284 Ì´Ì_
|
