| Article number: | 20.06.022 |
Specifications :
|
Drawing number |
20.06.022 |
|
Author |
F. Bijlsma |
|
Description |

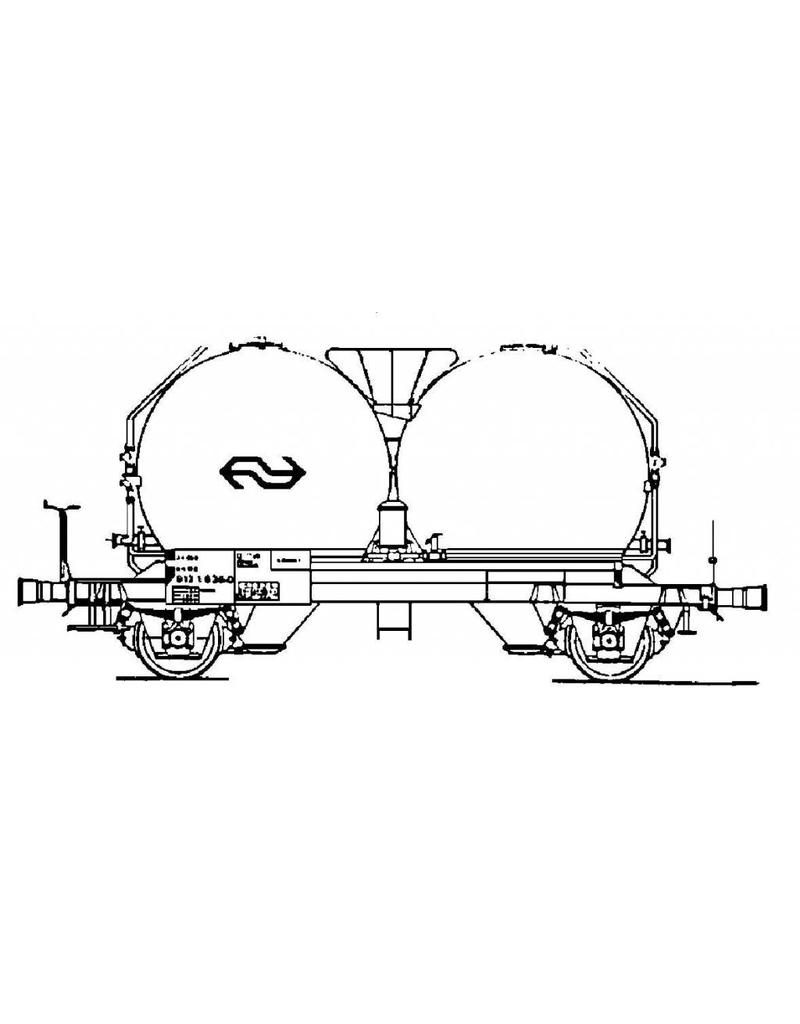

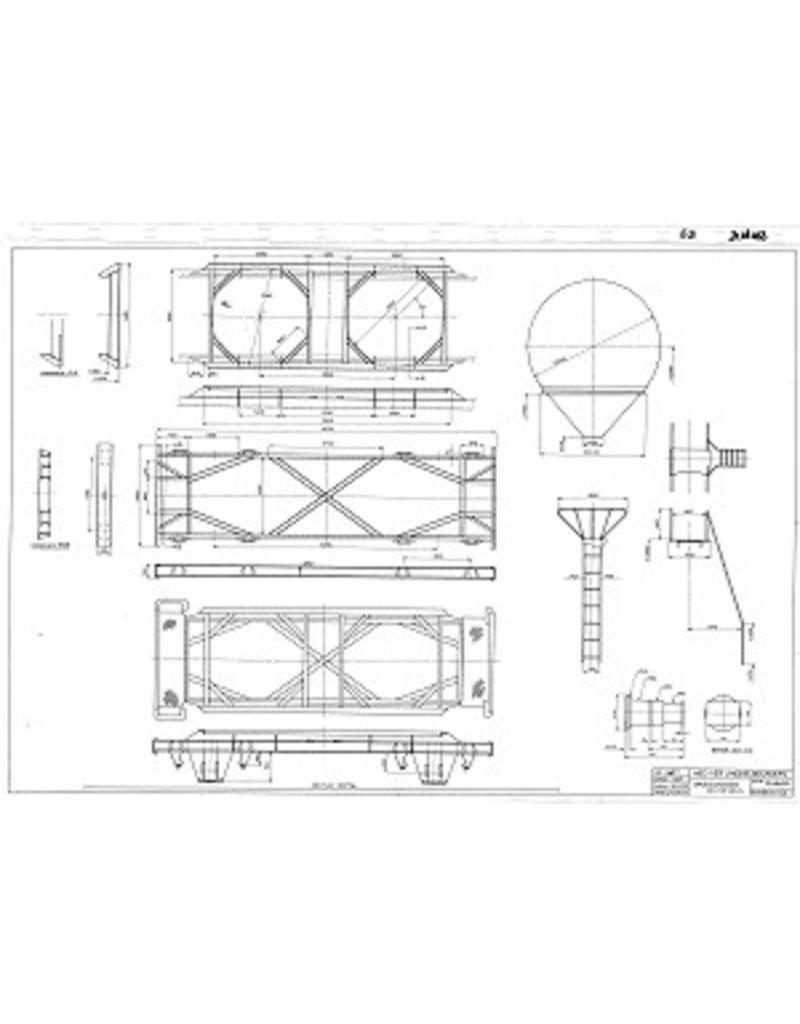

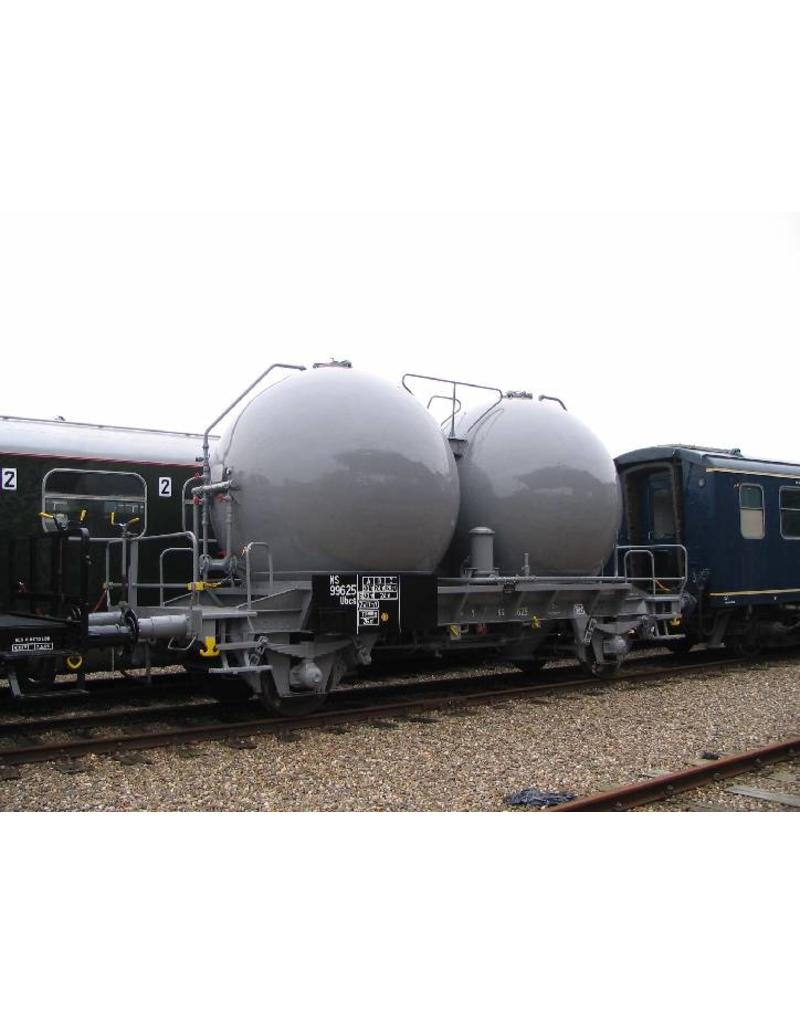

pressure silo wagon NS UCES 91211636-0 for track II (64 mm) |
|
Quality |
detailed dimensioned drawing with many details; prototype dimensions |
|
Difficulty level |
B |
|
Scale |
1 : 22,5 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
2 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Special features |
dM 1970/12 |
|
Remarks |
