| Article number: | 20.06.029 |
Specifications :
|
Drawing number |
20.06.029 |
|
Author |
J.H.M Nahon |
|
Description |

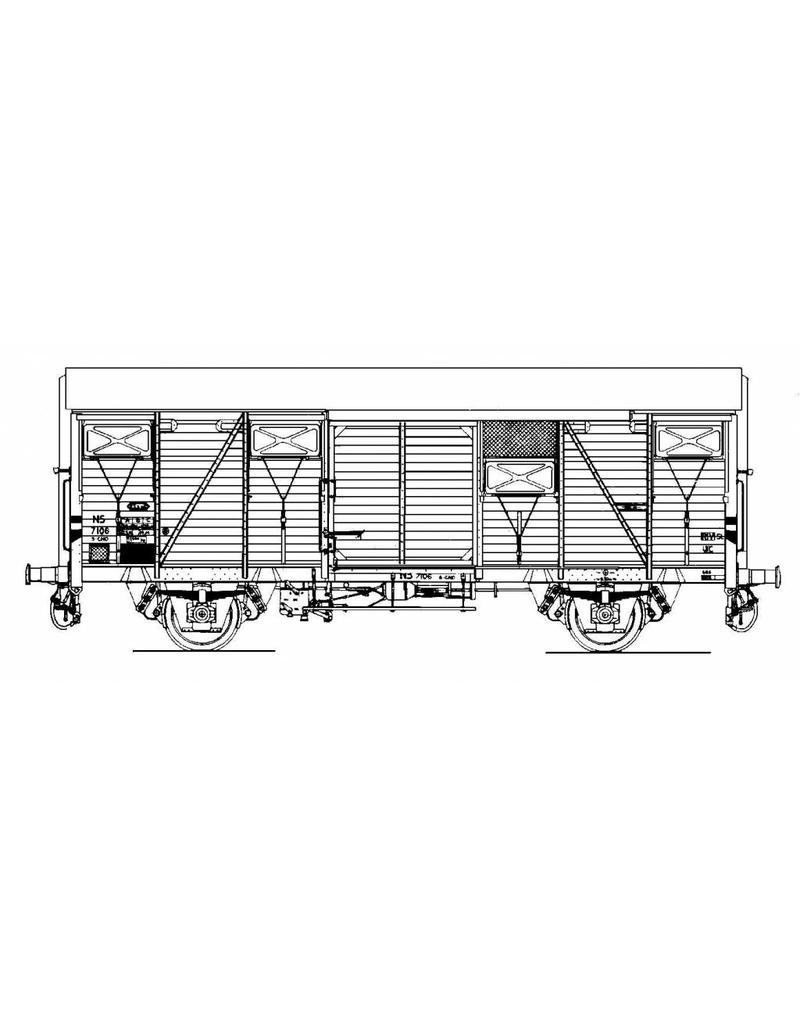

20-ton closed goods wagon NS S-CHO 6061-7560 UIC type Gs for Gauge I |
|
Quality |
dimensioned sketch with prototype dimensions; some details 1:20 |
|
Difficulty level |
D |
|
Scale |
1 : 32 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
1 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Special features |
|
|
Remarks |
