| Article number: | 20.06.051 |
Specifications :
|
Drawing number |
20.06.051 |
|
Authors |
W.C. Verboom |
|
Description |

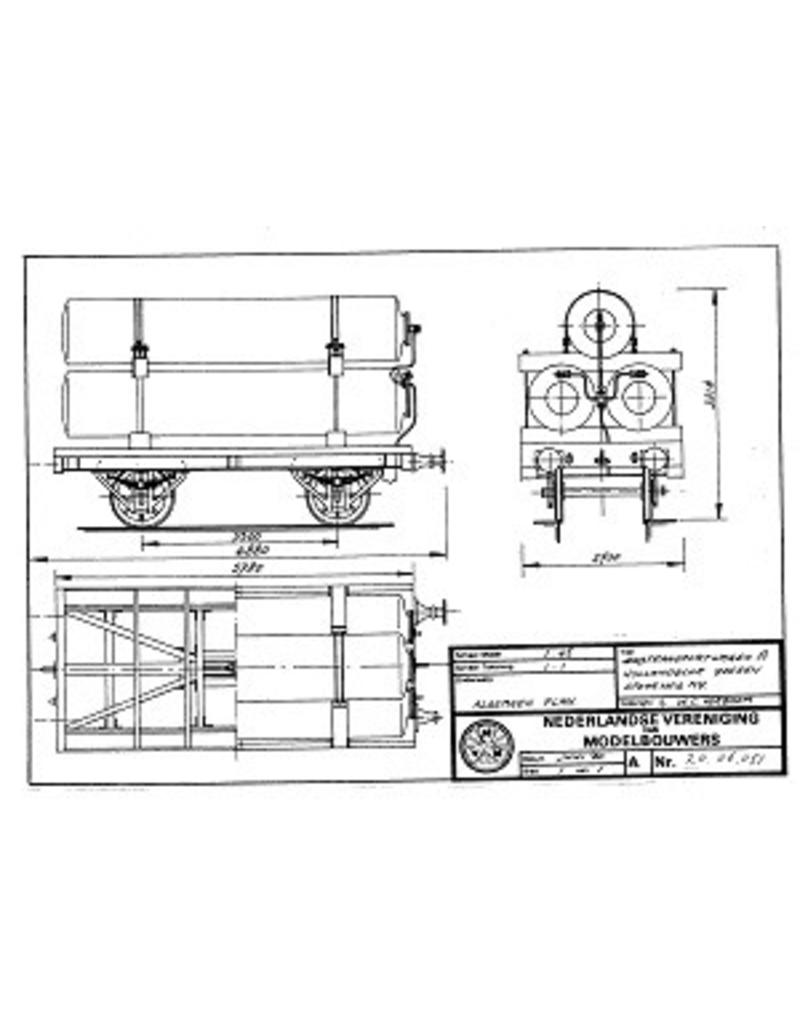

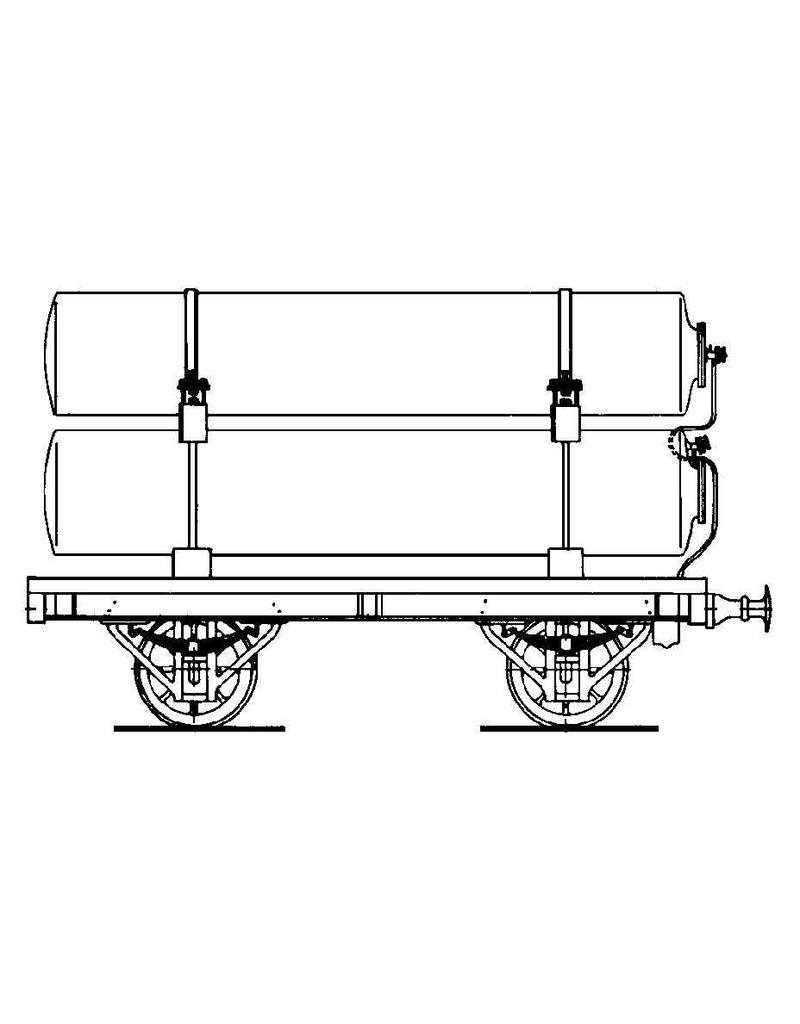

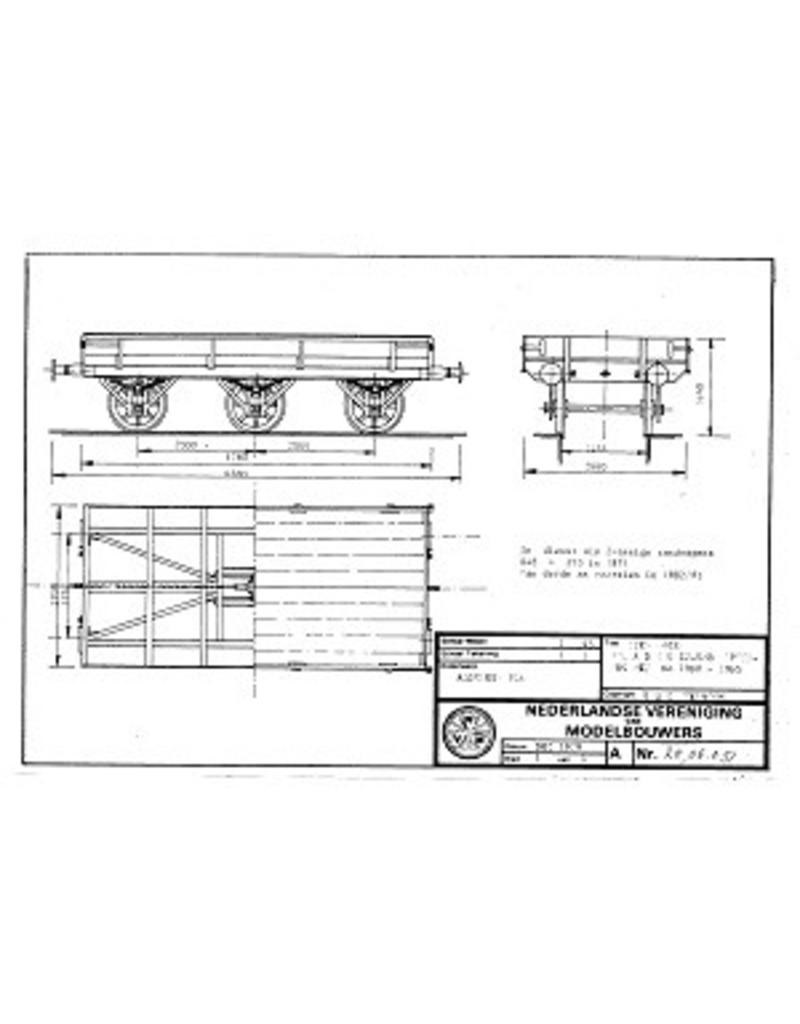

HIJSM gas transport wagon A, open wagon 1080-5, closed wagon 1-16,25-72 for gauge 0 |
|
Quality |
dimensioned sketch with main dimensions of prototype |
|
Difficulty level |
C |
|
Scale |
1 : 45 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
3 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
40 |
|
Details |
dM 1981/6 |
|
Notes |
was 20.050.021 |
