| Article number: | 20.06.054 |
Specifications :
|
Drawing number |
20.06.054 |
|
Author |
P.J. van Helden |
|
Description |

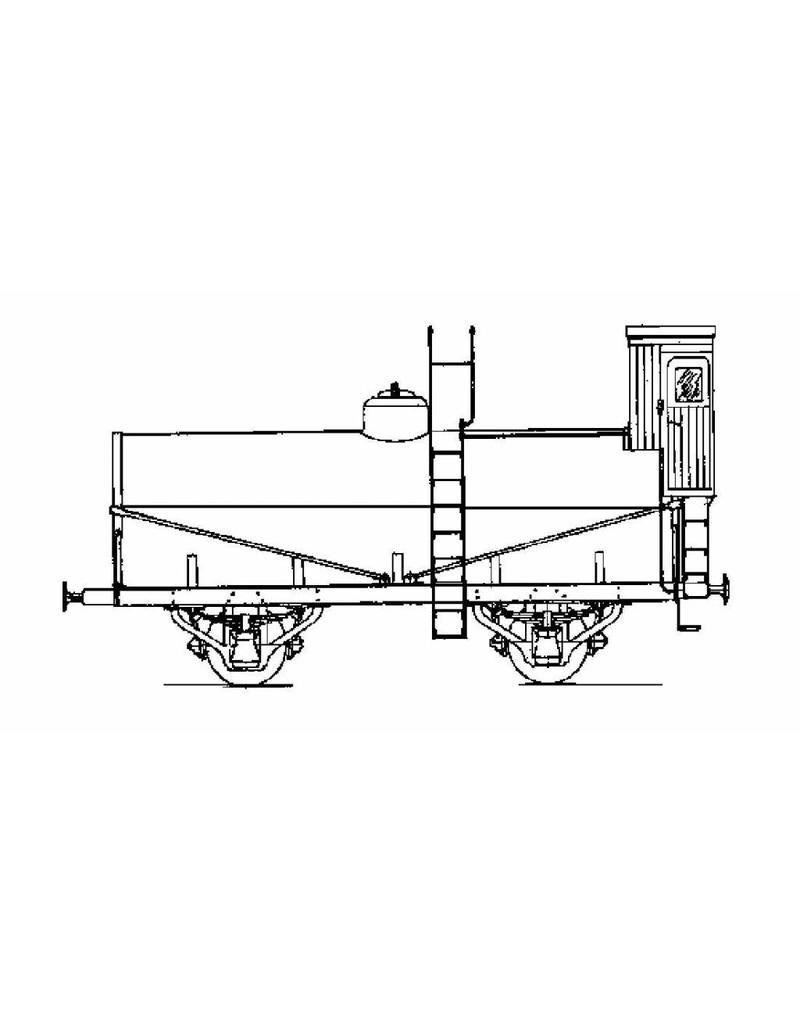

petroleum wagon SS/NS 155201 to 208, 97209 to 210 for gauge 0 |
|
Quality |
construction drawing; parts dimensioned; main dimensions prototype |
|
Difficulty level |
C |
|
Scale |
1 : 44 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Special features |
|
|
Remarks |
