| Article number: | 20.75.019 |
Specifications :
|
Drawing number |
20.75.019 |
|
Author |
J.F. Smit |
|
Description |

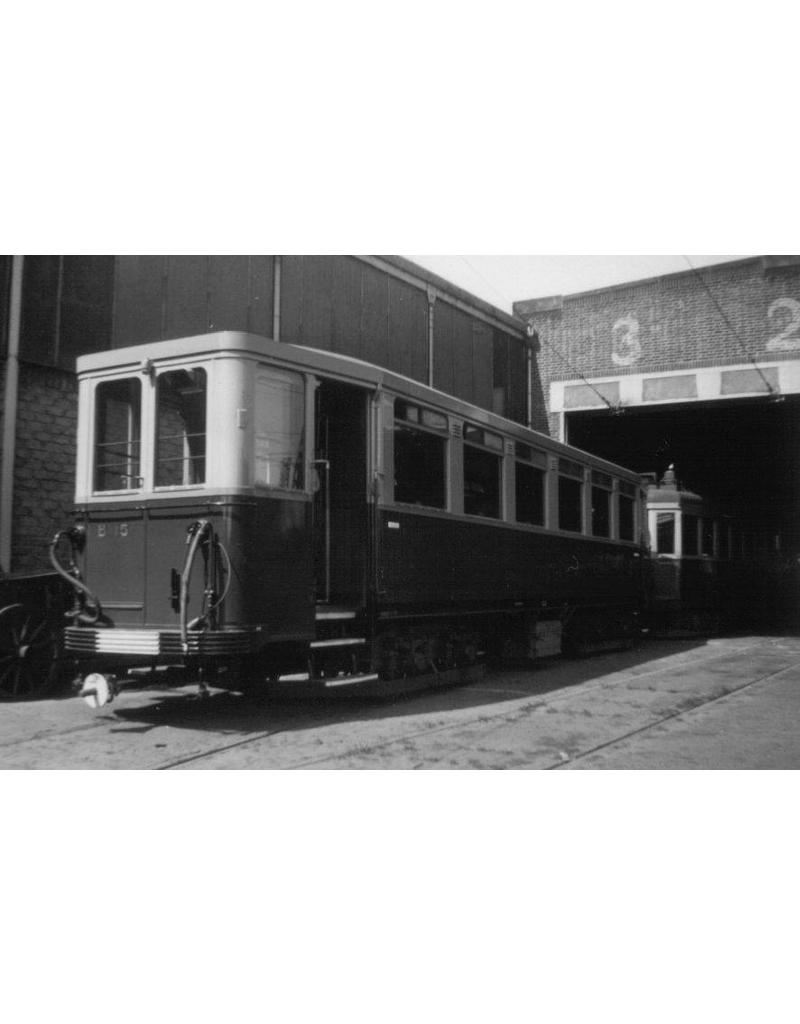

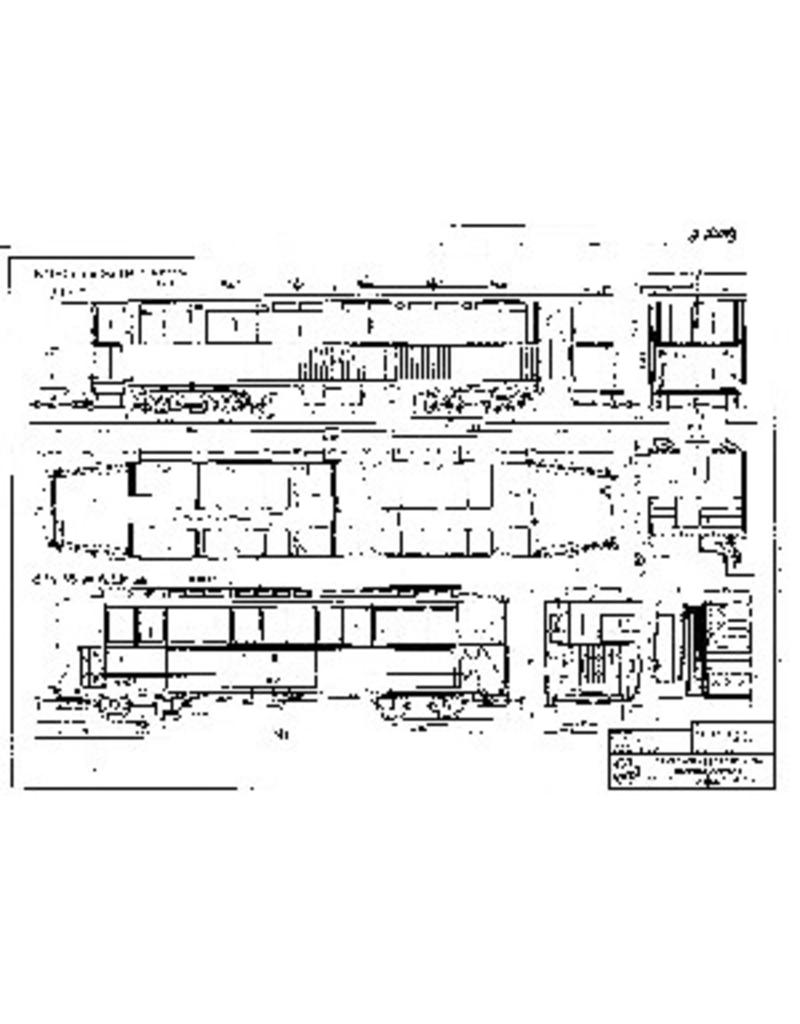

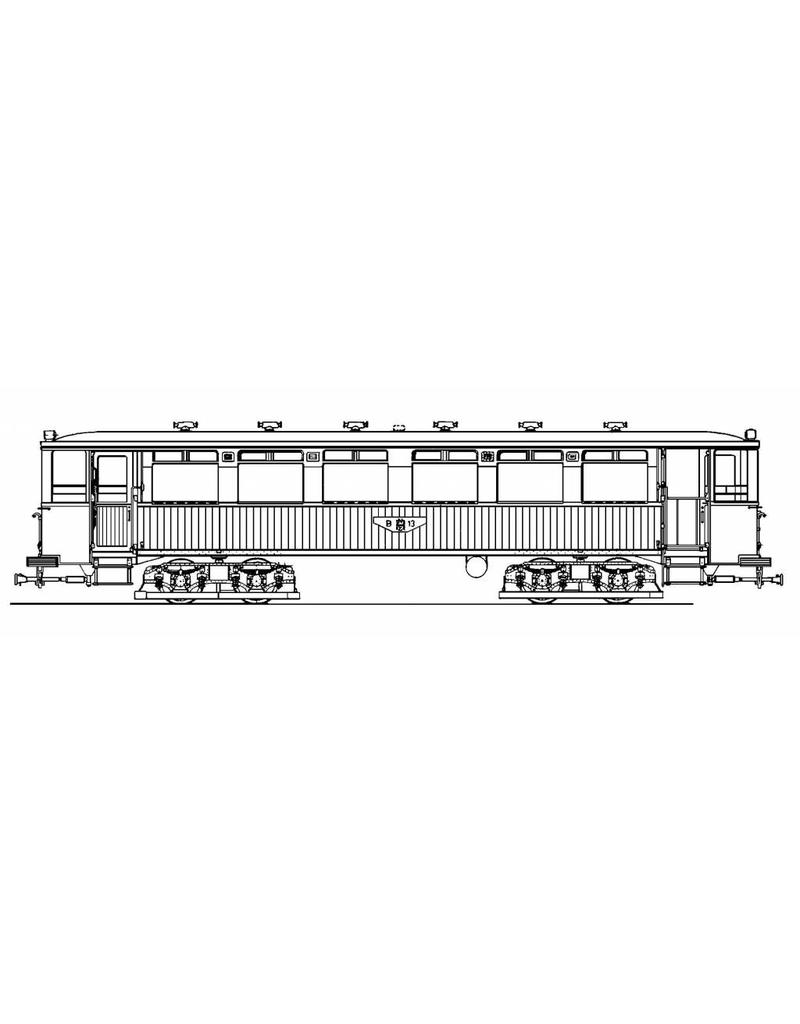

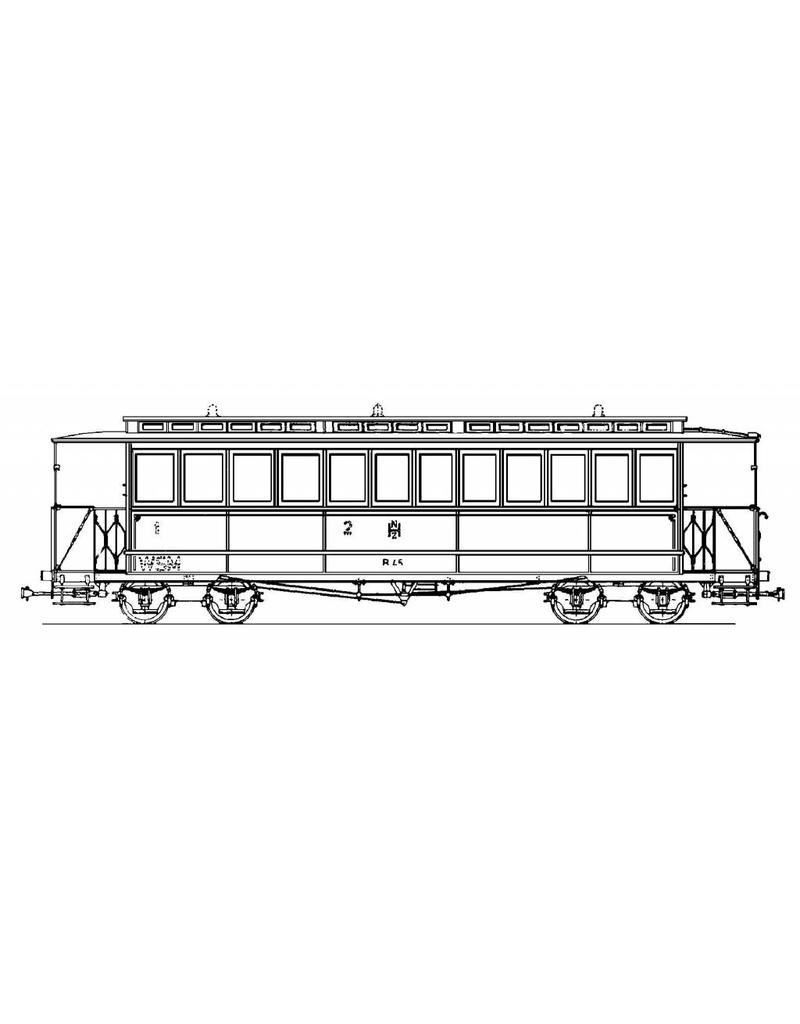

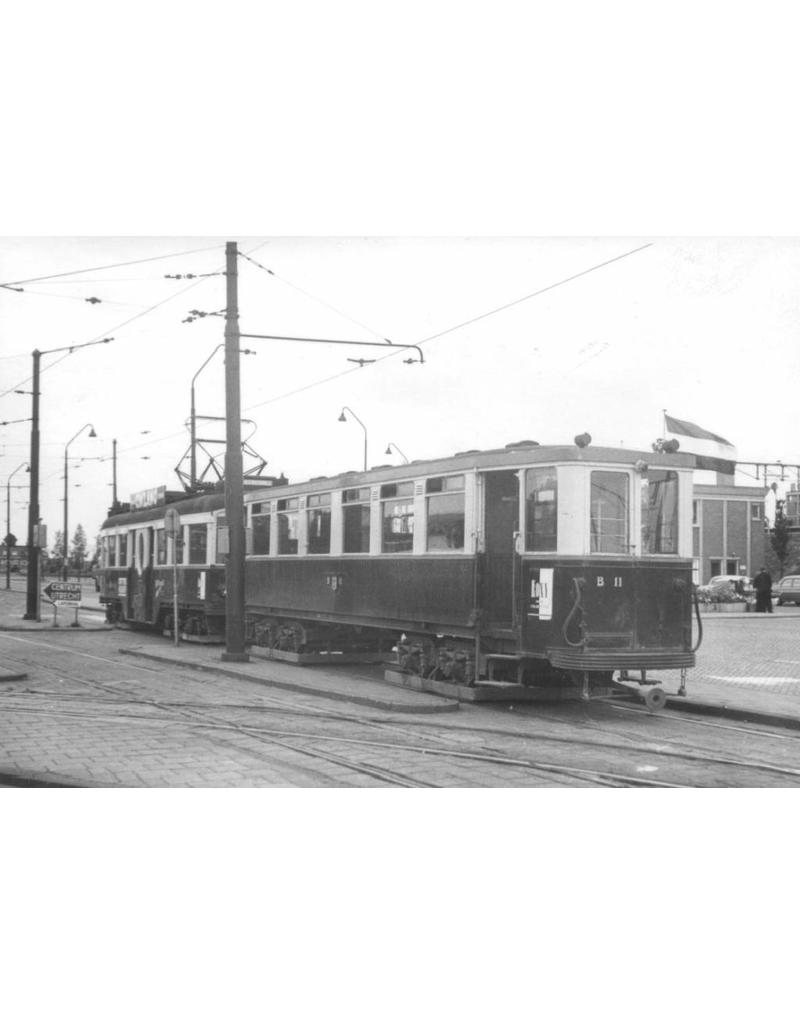

trailer carriage NZHVM B11-15, B44-45 exG0TM resp.Ì´Ì_ WSM, for gauge I |
|
Quality |
detailed dimensioned sketch with prototype dimensions |
|
Difficulty level |
C |
|
Scale |
1 : 32 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Details |
dM 1976/8 |
|
Remarks |
Ì´Ì_ |
