| Article number: | 10.11.040 |
The submarines Hr.Ms. Zwaardvis (S806) and Hr.Ms. Tijgerhaai (S807) were conventional (diesel-electric) submarines of the Zwaardvis class, built for the Royal Netherlands Navy in the 1960s and 1970s. They were modern and quiet, designed for Cold War operations, with an emphasis on NATO cooperation and anti-submarine warfare (ASW).

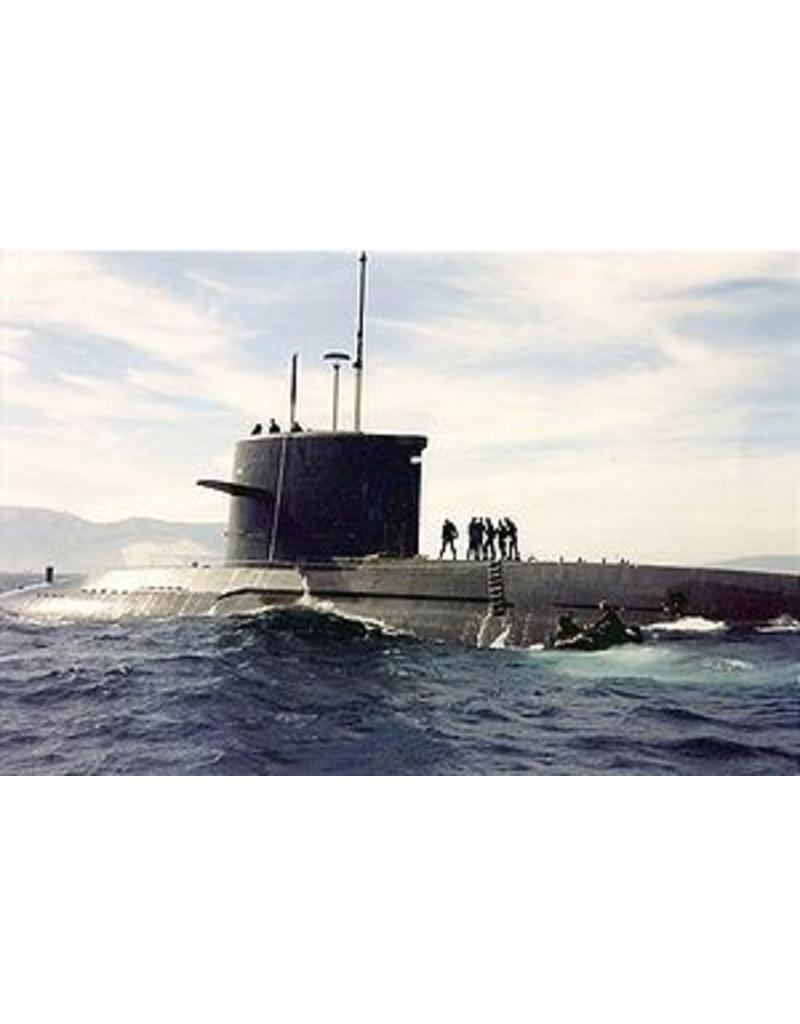

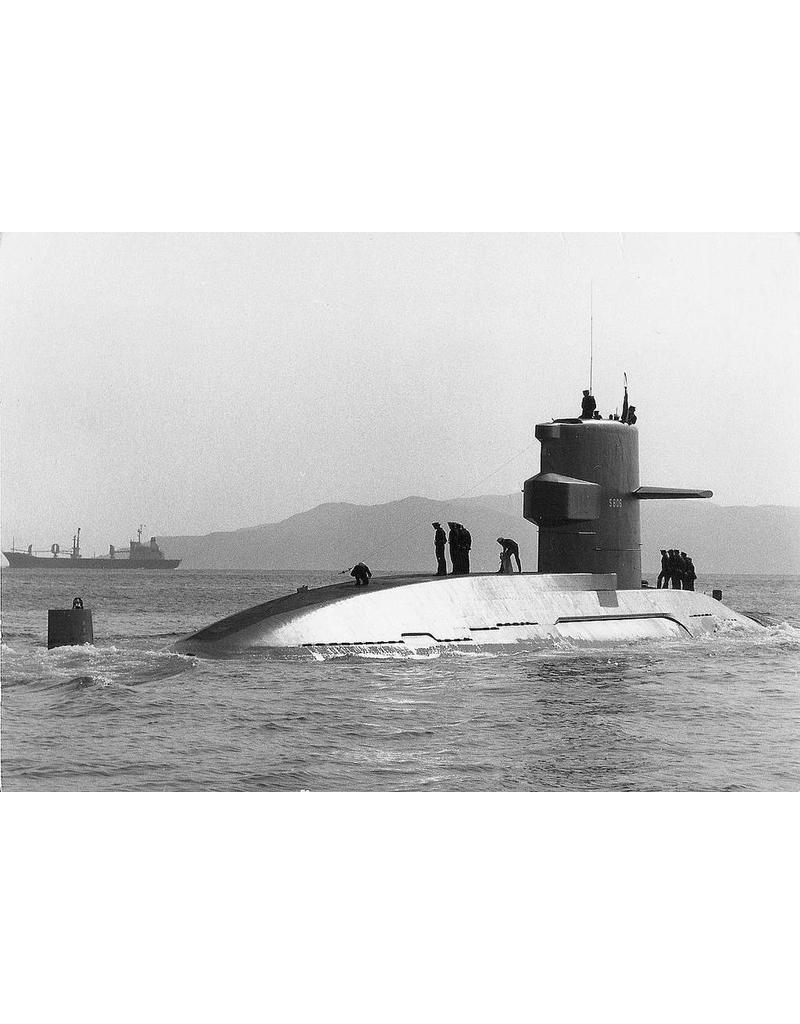

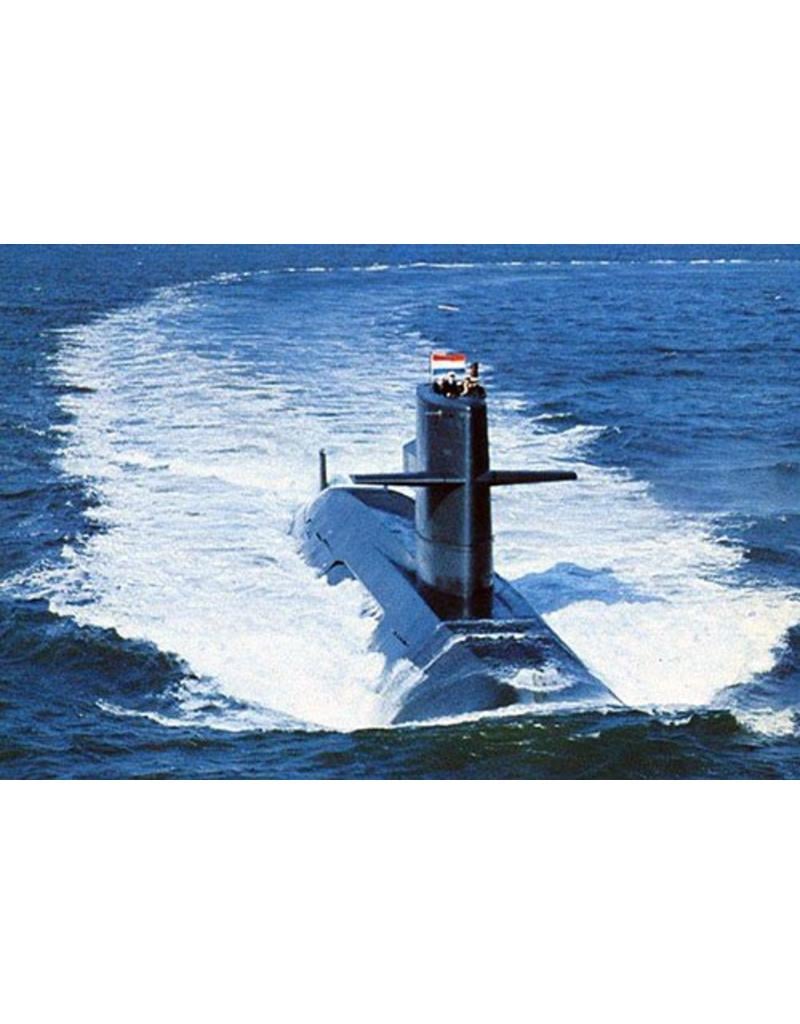

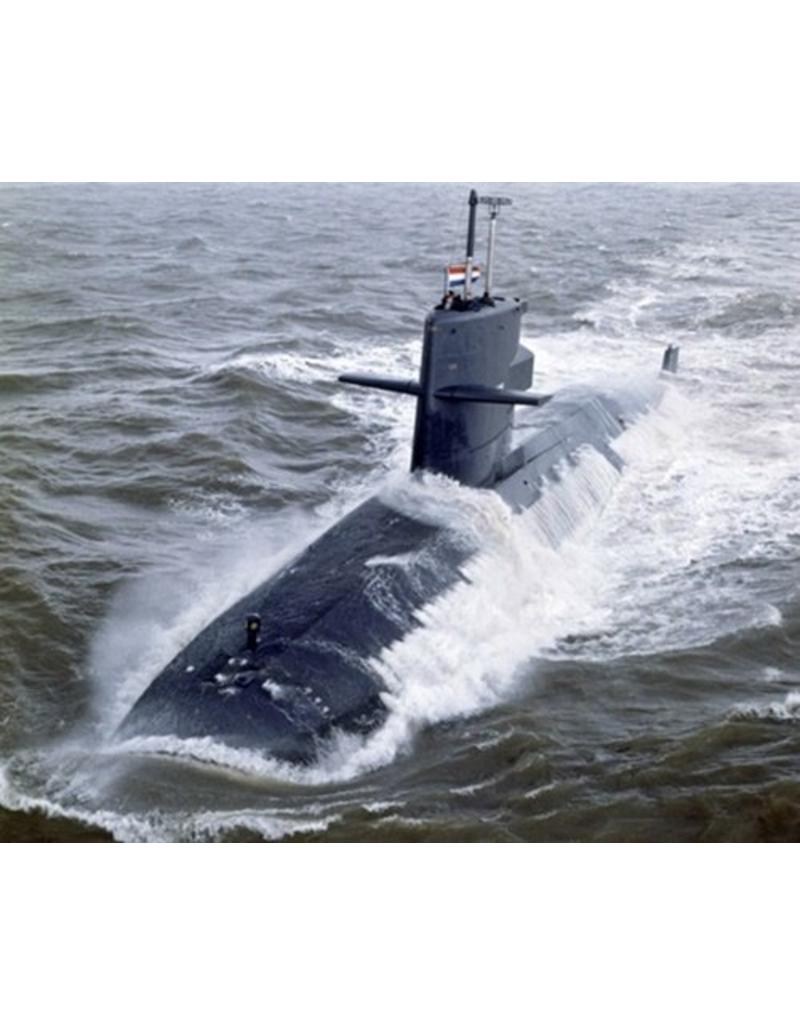

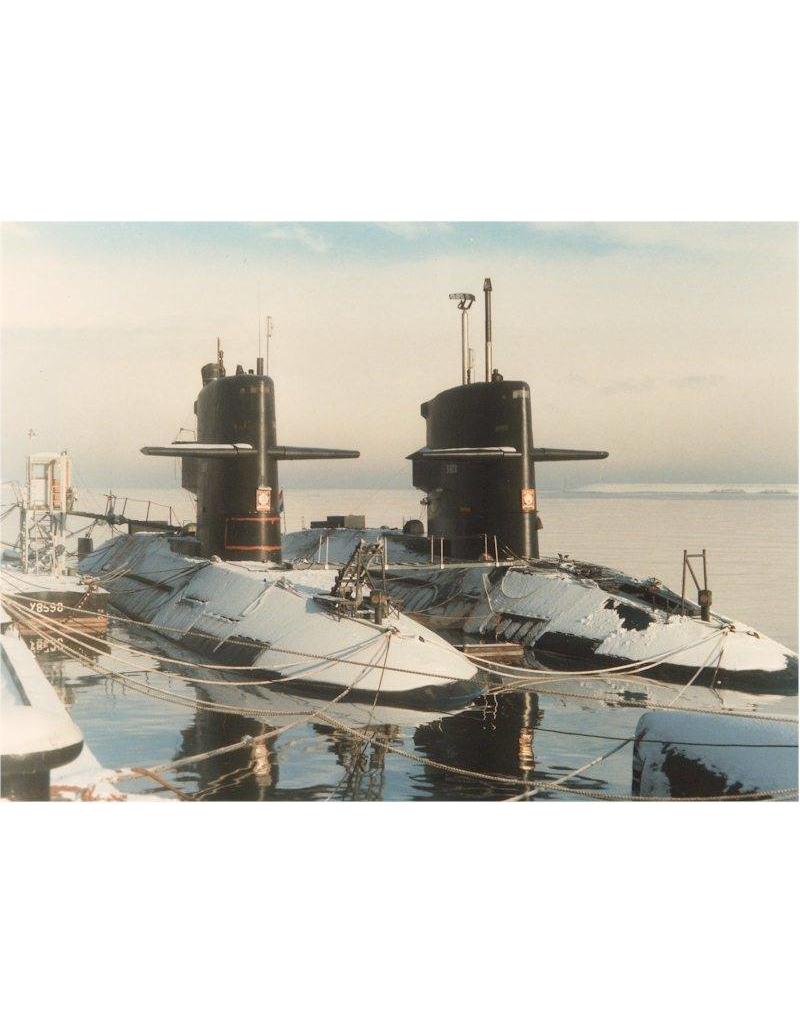

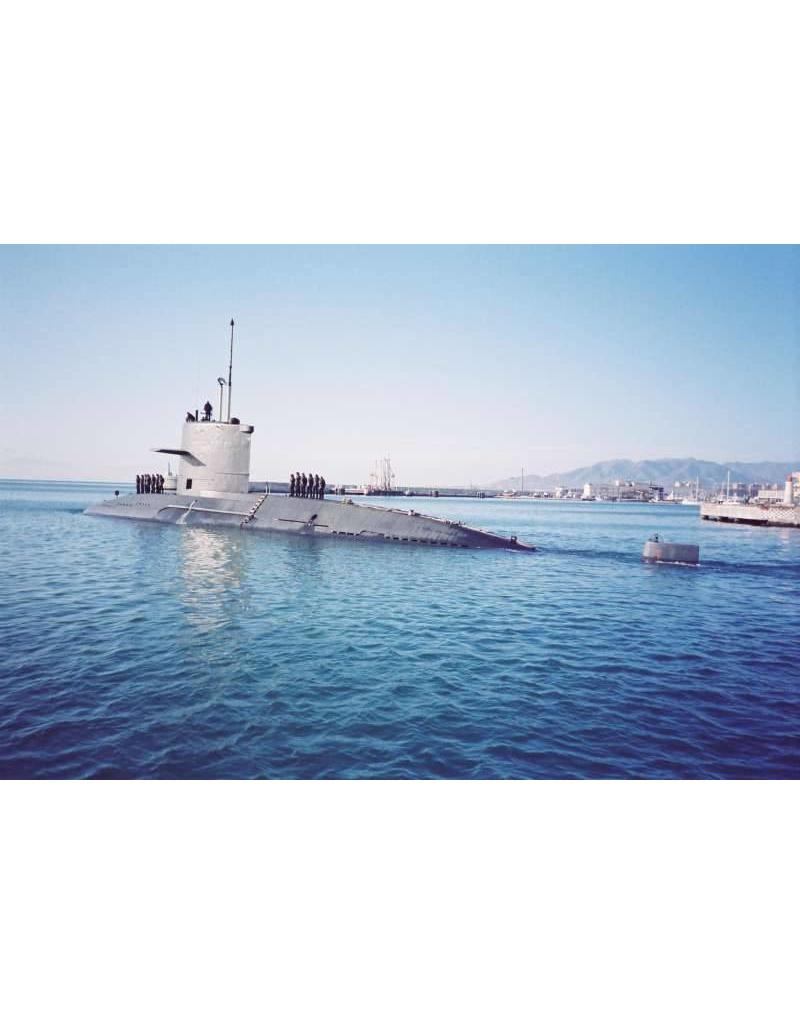

(Zwaardvis S806 and Tijgerhaai S807)
| Characteristics | Information |
|---|---|
| Type | Diesel-electric attack submarine |
| Class | Swordfish class (2 vessels) |
| Year of construction | 1965–1972 |
| In service | 1972 |
| Decommissioned | c. 1994–1995 |
Keel laid: 14 July 1965
Launched: 2 July 1970
Commissioned: 18 August 1972
Decommissioned: 1994
Built by: Wilton-Fijenoord, Schiedam
Keel laid: 14 July 1966
Launched: 25 May 1971
Commissioned: 20 October 1972
Decommissioned: 1995
Built by: Wilton-Fijenoord, Schiedam
Displacement:
1,860 tonnes (above water)
2,300 tonnes (submerged)
Length: 66 metres
Beam: 8.4 metres
Draught: 6 metres
Propulsion:
3 diesel engines (for battery charging)
Electric motor for underwater propulsion
Speed:
~13 knots (on the surface)
~20 knots (submerged)
Diving depth: >300 metres (estimated; exact figure classified)
Crew: approx. 67
Armament:
8 torpedo tubes (forward)
American and later Dutch torpedoes (such as Mark 48)
Both submarines were mainly deployed for NATO missions in the North Atlantic, the North Sea and the Norwegian Sea.
Tasks:
Anti-submarine warfare (ASW)
Intelligence gathering
Exercises with NATO units
Simulation of enemy submarines in NATO training exercises
Both ships were known for their low noise profile, making them difficult to detect.
Both submarines were decommissioned in the 1990s due to obsolescence and high maintenance costs.
Attempts to sell them to countries such as Malaysia and Indonesia failed.
They were eventually scrapped in the Netherlands.
The Zwaardvis class was based on the design of the American Barbel class, with Dutch modifications.
They formed the transition to the later Walrus-class submarines (1990s), which are still in service.
The vessels were ahead of their time in terms of silent propulsion and hydrodynamic design.
Specifications:
|
Drawing number |
10.11.040 |
|
Author |
J.TH.M. Buter |
|
Description |

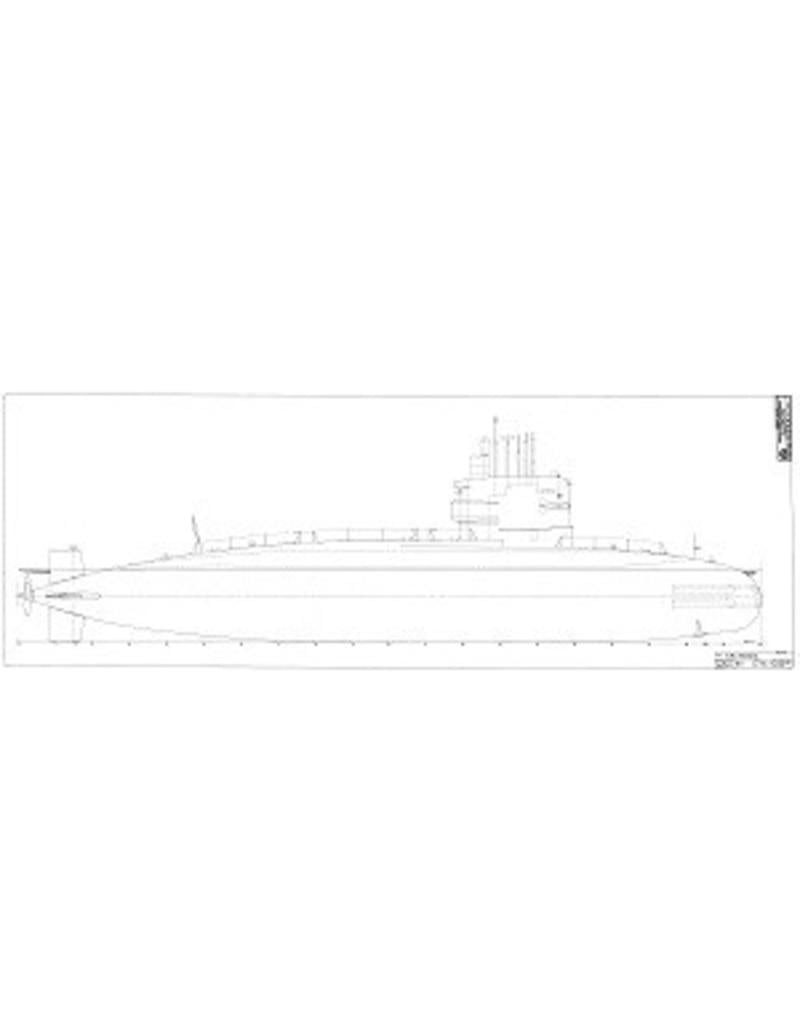

Royal Netherlands Navy submarines "Zwaardvis" S806, "Tijgerhaai" S807 (1972) |
|
Quality |

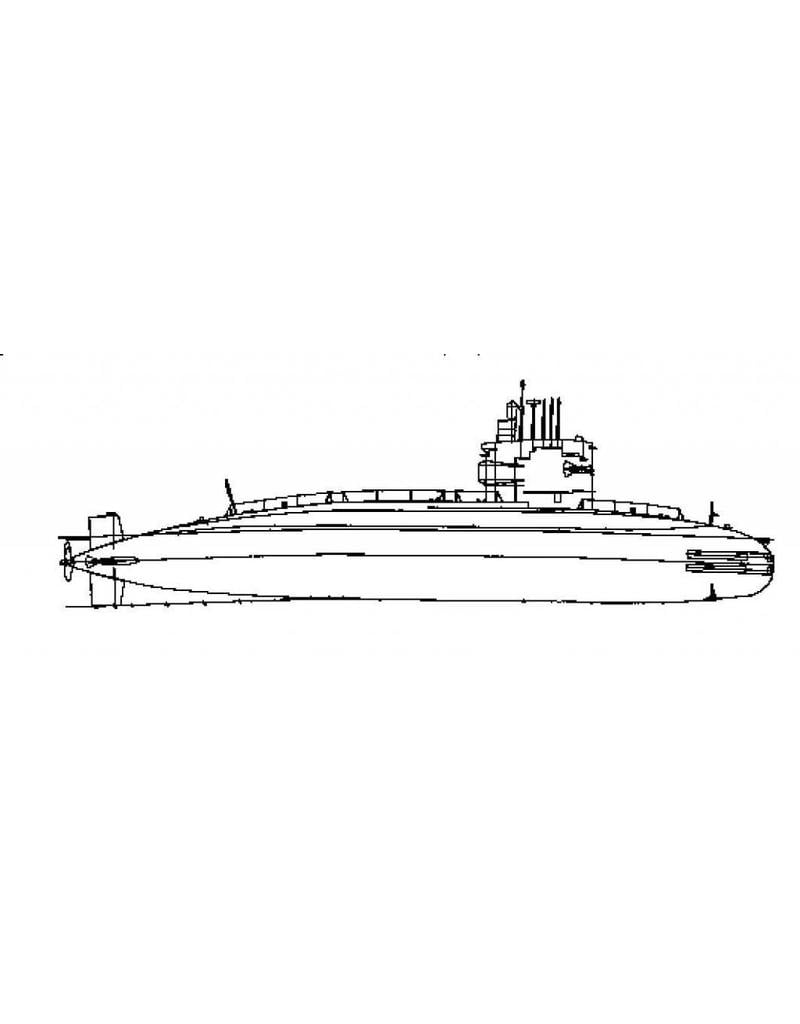

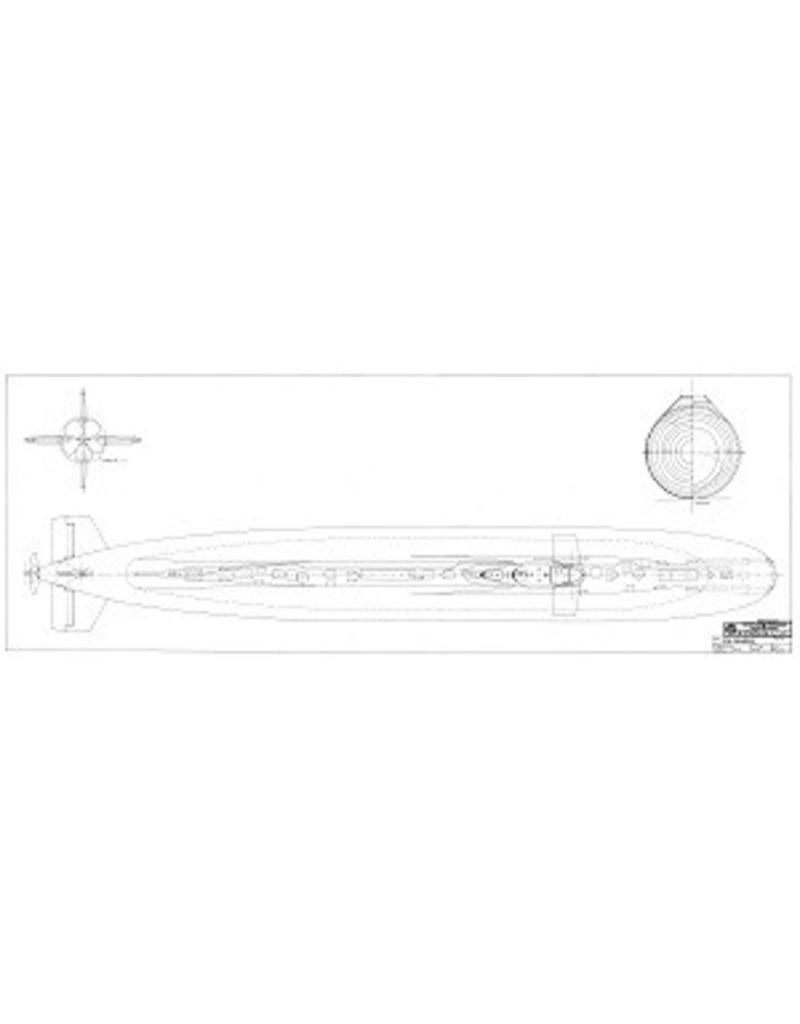

frames; side view; top view |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
0 |
|
Number of A0 sheets |
2 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text pages |
0 |
|
Weight in grams |
185 |
|
Details |
Overall length 134 cm |
|
Remarks |
